Exploring the Concept of Wave Phase

Wave phase is an essential concept in the study of oscillatory phenomena, indicating the position of a point within the wave cycle. A wave cycle is the complete oscillation from one point, such as a crest, to the next identical point, and is measured in radians, with one full cycle equating to 2π radians. Phase is thus a dimensionless quantity that describes the fraction of the wave cycle that has been completed at any given point, with values ranging from 0 to 2π radians. For example, a phase of π radians corresponds to half a cycle, while π/2 radians represents a quarter cycle. The phase of a wave is crucial for understanding its behavior and interactions with other waves.

Concentric water ripples radiate from a central point on a calm dark blue surface, highlighted by light, with a gradient background suggesting depth.

Calculating Wave Phase with Trigonometric Functions

The phase of a wave can be calculated by examining its position within the cycle, often using trigonometric functions such as sine and cosine. A simple harmonic wave can be described by the equation y = A · sin(ωt + φ), where A is the amplitude, ω is the angular frequency, t is time, and φ is the phase constant. The phase φ of the wave at any point in time can be determined by considering the argument of the sine function (ωt + φ). If the wave equation includes a phase shift, it indicates that the wave is displaced in time or space relative to a reference wave. The phase shift is factored into the equation as a constant, which can be positive or negative, indicating the direction of the shift.

The Role of Phase Difference in Wave Interference

Phase difference is the relative displacement between the phases of two waves and is pivotal in analyzing wave interference. When two waves of the same frequency and amplitude are in phase (zero phase difference), they constructively interfere, resulting in a wave with greater amplitude. Conversely, when waves are out of phase (phase difference of π radians or 180 degrees), they destructively interfere, potentially canceling each other out if their amplitudes are equal. The phase difference determines whether the interference is constructive or destructive and is a key factor in phenomena such as beats and the formation of standing waves.

Determining Phase Difference Between Waves

The phase difference between two waves, Δφ, is calculated by finding the difference in their phases at a given point in space or time. This is expressed as Δφ = φ1 - φ2, where φ1 and φ2 are the phases of the first and second wave, respectively. If the waves have different frequencies or wavelengths, the phase difference will vary with time or position. For waves with the same frequency, the phase difference remains constant. This concept is crucial in applications such as the analysis of coherent light in interferometry or the synchronization of signals in communication systems.

Practical Applications of Phase Difference

Phase difference has numerous practical applications in technology and engineering. In seismic engineering, devices such as tuned mass dampers use phase difference to reduce the amplitude of vibrations in structures during earthquakes. Noise-cancelling headphones employ destructive interference, using a phase difference of π radians to cancel out ambient noise. In electrical engineering, the phase difference between voltage and current is used to characterize the power factor of a circuit, which can indicate whether the circuit is predominantly resistive, inductive, or capacitive.

Phase Difference in Engineering Solutions

An example of phase difference in action is the tuned mass damper in the Taipei 101 skyscraper, which mitigates the effects of wind and seismic activity. The damper is designed to oscillate out of phase with the building, absorbing and dissipating energy to reduce the amplitude of building movements. This application of phase difference demonstrates its importance in creating engineering solutions that enhance the safety and stability of structures in the face of natural forces.

Concluding Thoughts on Phase Difference

In conclusion, phase difference is a fundamental aspect of wave theory that describes the relative position of waves within their cycles. It is instrumental in determining the nature of wave interactions, leading to constructive or destructive interference. A thorough understanding of phase difference is vital for the development of technologies that utilize wave properties, such as seismic protection systems, noise cancellation devices, and the optimization of electrical circuits.

Wave Phase and Its Importance in Wave Theory

Concept Map

Summary

Outline

Wave Phase and Its Importance in Wave Theory

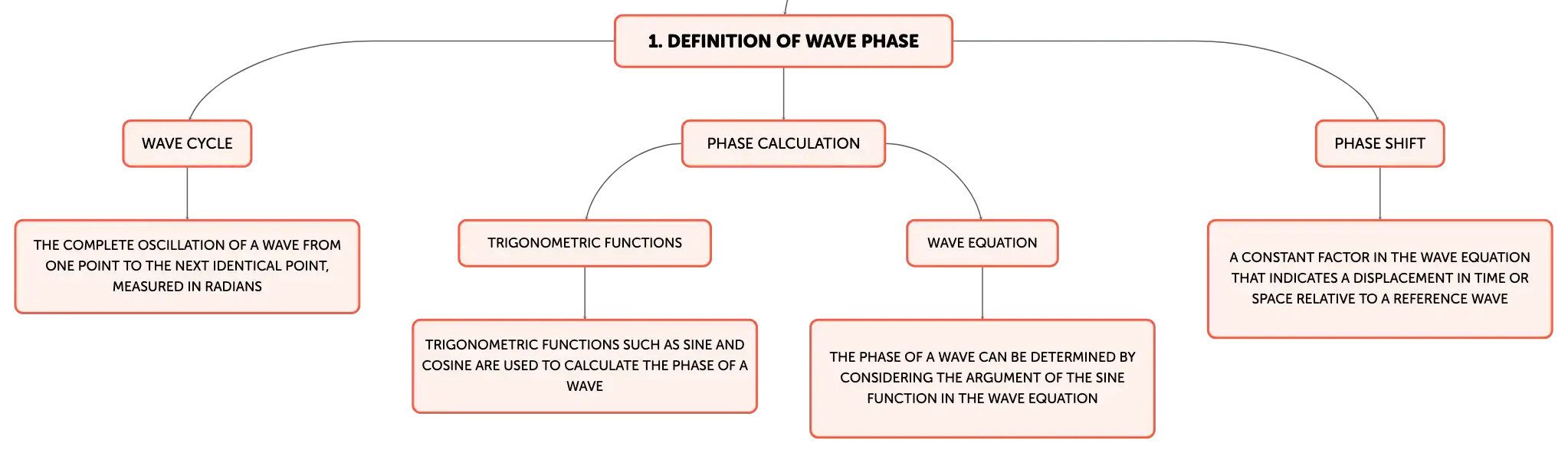

Definition of Wave Phase

Wave Cycle

Phase Calculation

Phase Shift

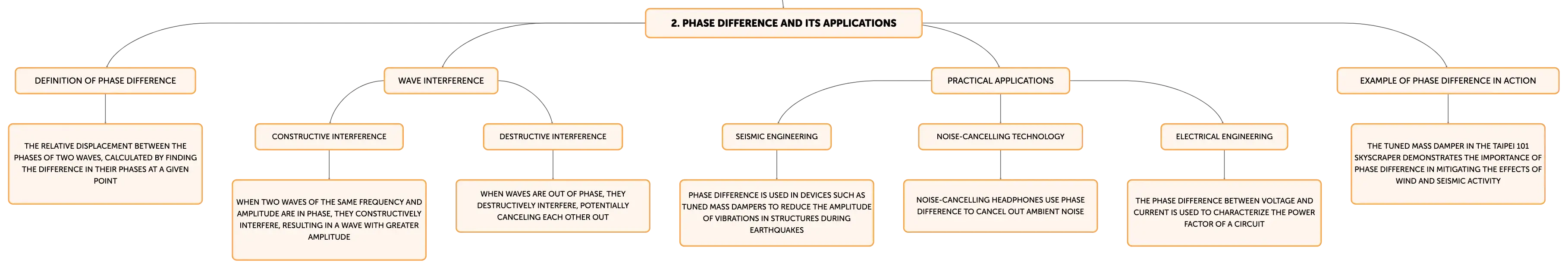

Phase Difference and Its Applications
