Integrity Constraints in Relational Databases

Integrity constraints in relational databases are crucial for data accuracy, consistency, and reliability. They include Domain, Entity, and Referential Integrity Constraints, each serving to ensure data uniformity, uniqueness, and consistent relationships across tables. Complex constraints and triggers further enhance data integrity, while the ability to alter and drop constraints allows for database adaptability.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

______ Integrity Constraints ensure that each record is uniquely identified by prohibiting duplicates and nulls in primary key columns.

Click to check the answer

Entity

2

______ Integrity Constraints preserve data relationship consistency by connecting foreign keys to primary keys in different tables.

Click to check the answer

Referential

3

Domain Integrity: Data Format

Click to check the answer

Specifies acceptable data format for a column, ensuring data adheres to predefined formats.

4

Domain Integrity: Value Range

Click to check the answer

Defines permissible range of data values for a column, ensuring data falls within specific limits.

5

Domain Integrity: Set Definitions

Click to check the answer

Establishes set of permissible values for a column, ensuring data consistency with allowed options.

6

A primary key, like 'customer_id' in a customer table, must be unique and cannot have ______ or duplicate values.

Click to check the answer

null

7

Purpose of Foreign Keys in Referential Integrity

Click to check the answer

Foreign keys link tables by referencing primary keys, ensuring records in related tables correspond.

8

Impact of Primary Key Modifications on Foreign Keys

Click to check the answer

Changes to a primary key must be reflected in all foreign keys to maintain data consistency.

9

Example of Referential Integrity in 'Customers' and 'Orders' Tables

Click to check the answer

'customer_id' as foreign key in 'Orders' ensures each order is tied to a valid customer in 'Customers'.

10

Complex Integrity Constraints go beyond standard limitations to ensure ______ and ______ rules are met.

Click to check the answer

data requirements business

11

In a project management database, a trigger might check that the total cost of tasks doesn't surpass the ______.

Click to check the answer

budget

12

ALTER TABLE statement purpose

Click to check the answer

Used to modify or remove database constraints to adapt to new requirements.

13

Ensuring data integrity during constraint changes

Click to check the answer

Verify current data complies with new rules before and after altering constraints.

14

Constraint change process

Click to check the answer

Identify existing constraint, check data compliance, execute alteration, confirm successful change.

15

To preserve data consistency, it's vital to uphold ______ integrity during updates and deletions.

Click to check the answer

referential

16

The ______ action in SQL will automatically apply changes from the 'Customers' table to the 'Orders' table.

Click to check the answer

CASCADE

17

Types of Integrity Constraints

Click to check the answer

Domain, Entity, Referential - ensure data validity, uniqueness, and consistent relationships.

18

Implementing Complex Constraints

Click to check the answer

Use custom rules and triggers to enforce specific data conditions and business logic.

19

Managing Integrity During Updates/Deletions

Click to check the answer

Alter/remove constraints, handle referential integrity to maintain data consistency when records change.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

The Significance of Terabytes in Digital Storage

View document

Computer Science

Understanding Processor Cores

View document

Computer Science

The Importance of Bits in the Digital World

View document

Computer Science

Secondary Storage in Computer Systems

View document

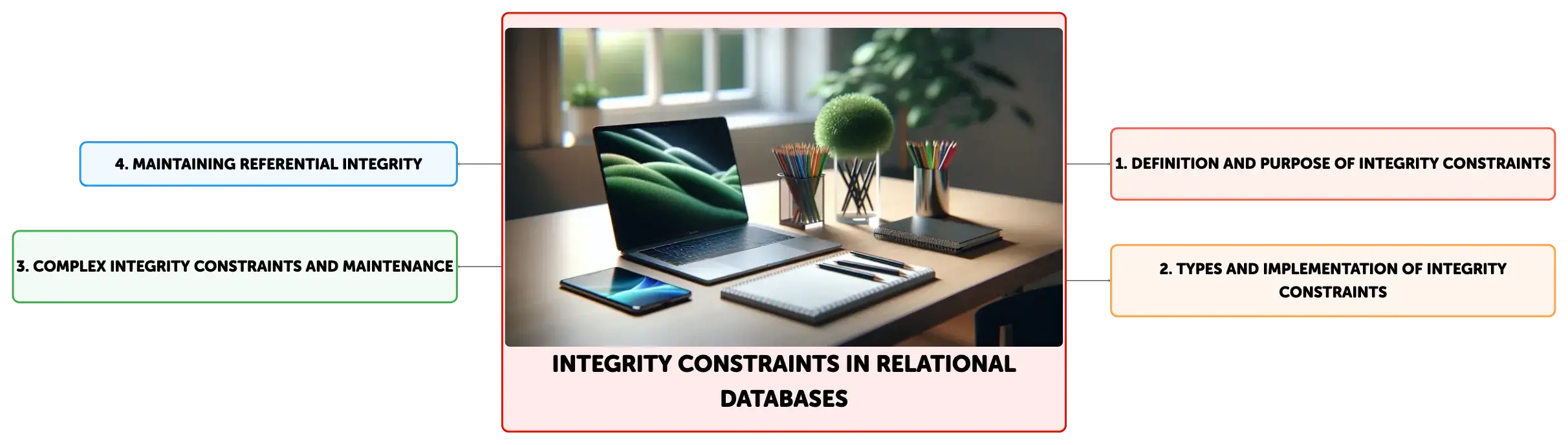

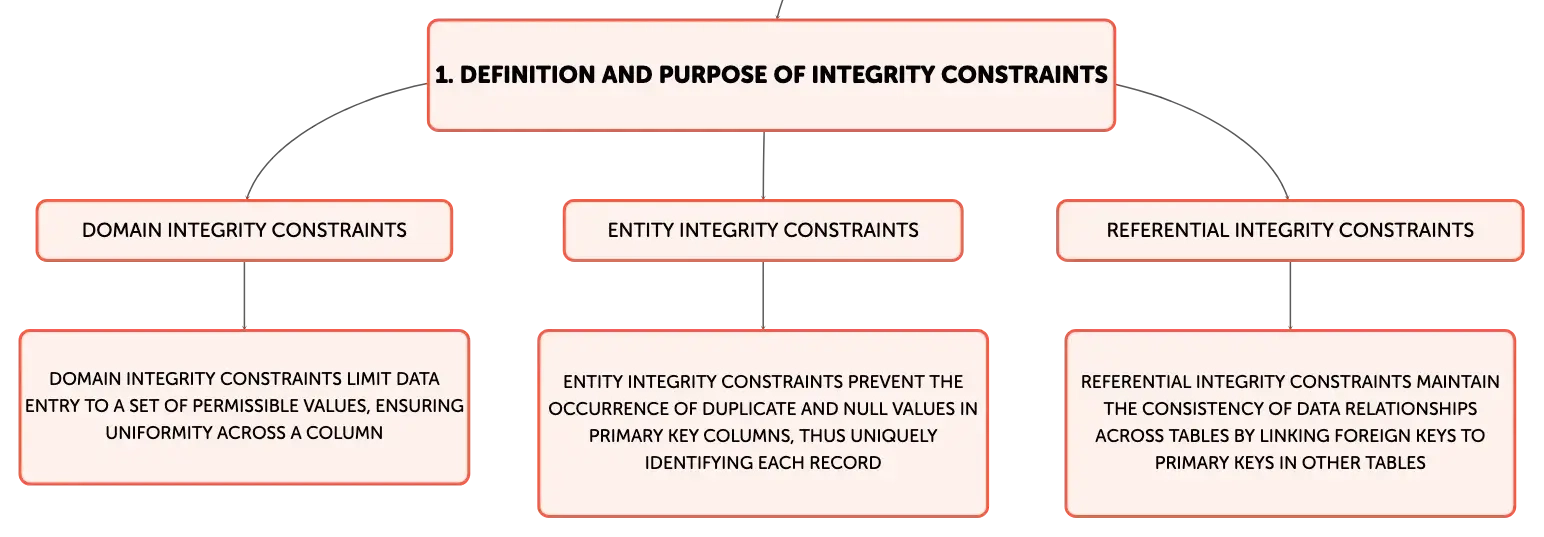

Understanding Integrity Constraints in Relational Databases

Integrity constraints are essential components of relational databases, playing a pivotal role in ensuring data accuracy, consistency, and reliability. They define rules that protect the database from invalid data entry and corruption, thereby enforcing data integrity. These constraints are broadly classified into Domain, Entity, and Referential Integrity Constraints, each with a distinct purpose in upholding the database's integrity. Domain Integrity Constraints limit data entry to a set of permissible values, ensuring uniformity across a column. Entity Integrity Constraints prevent the occurrence of duplicate and null values in primary key columns, thus uniquely identifying each record. Referential Integrity Constraints maintain the consistency of data relationships across tables by linking foreign keys to primary keys in other tables.
Tidy desk with modern laptop, green plant, glass with colorful pens, notepad and black smartphone on light wooden surface.

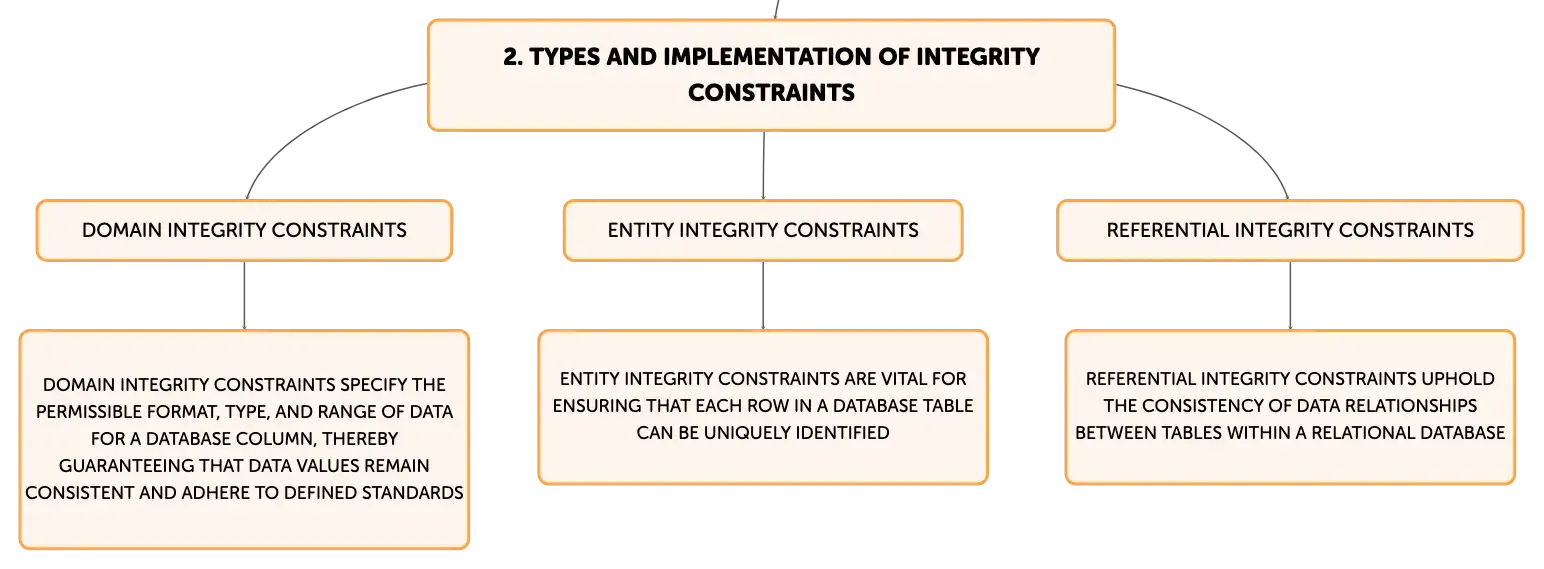

Domain Integrity Constraints: Ensuring Consistent Data Values

Domain Integrity Constraints specify the permissible format, type, and range of data for a database column, thereby guaranteeing that data values remain consistent and adhere to defined standards. These constraints can include data type specifications, restrictions on the range of values, and set definitions for permissible values. For example, a column designated for storing employee salaries might be constrained to accept only numerical values within a certain range, ensuring that all entries for salaries are both valid and consistent with the organization's salary structure.

Entity Integrity Constraints: Guaranteeing Uniqueness of Data

Entity Integrity Constraints are vital for ensuring that each row in a database table can be uniquely identified. This is achieved by assigning a primary key to each table, which serves as a unique identifier and cannot contain null or duplicate values. The enforcement of these constraints guarantees that each record is distinct and can be accurately referenced, which is fundamental for the operational integrity of the database. For instance, a 'customer_id' column might serve as a primary key in a customer table, providing a unique identifier for each customer record.

Referential Integrity Constraints: Maintaining Relationships Between Tables

Referential Integrity Constraints uphold the consistency of data relationships between tables within a relational database. These constraints are implemented using foreign keys, which are columns that reference the primary key columns of other tables. They ensure that any modifications to a primary key are correspondingly reflected in all associated foreign keys, thereby preserving the integrity of the data relationships. For example, in a relational database containing 'Customers' and 'Orders' tables, the 'customer_id' field in the 'Orders' table, as a foreign key, ensures that each order is correctly linked to an existing customer.

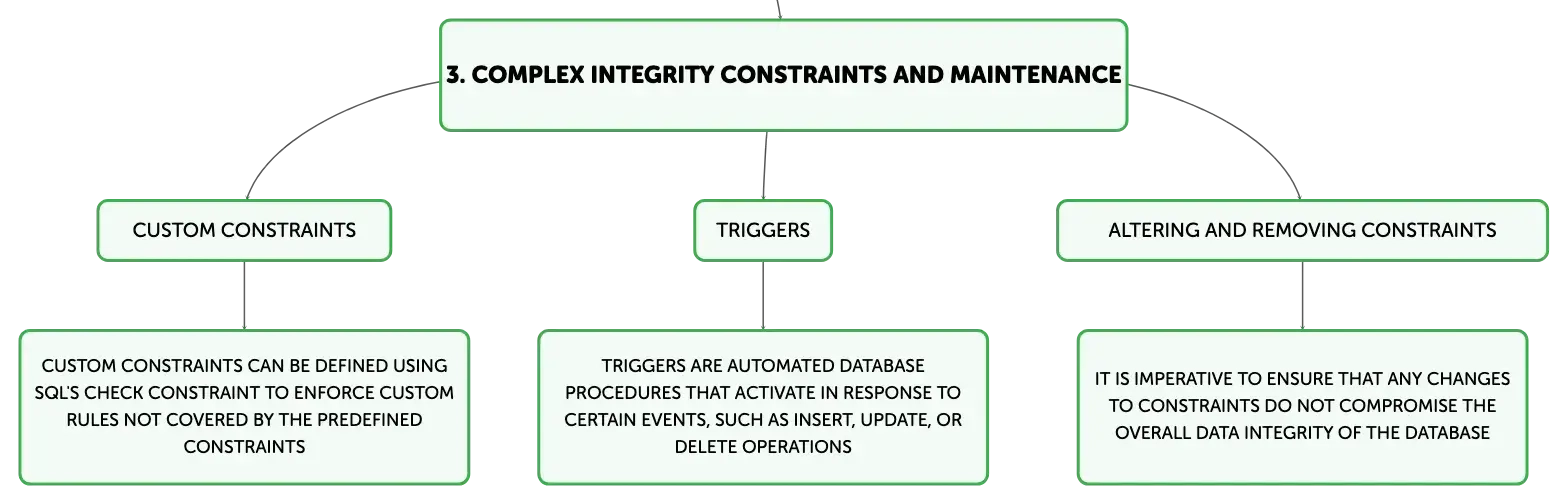

Implementing Complex Integrity Constraints Using Custom Constraints and Triggers

Complex Integrity Constraints address specific data requirements and business rules that extend beyond the capabilities of standard constraints. Custom constraints can be defined using SQL's CHECK constraint to enforce custom rules not covered by the predefined constraints. Triggers are automated database procedures that activate in response to certain events, such as INSERT, UPDATE, or DELETE operations. They are particularly useful for enforcing constraints that involve complex logic or multiple tables. For instance, a trigger could be established to verify that the total cost of assigned tasks does not exceed the budget for a given project within a project management database.

Altering and Dropping Constraints to Adapt to Evolving Data Needs

Database requirements and business rules can change over time, necessitating the modification or removal of existing constraints to accommodate new data structures or requirements. This can be achieved using the ALTER TABLE statement, which allows database administrators to safely and correctly alter or drop constraints. It is imperative to ensure that any changes to constraints do not compromise the overall data integrity of the database. For example, if an update to the salary range constraint in an 'Employees' table is required, the process would involve identifying the existing constraint, verifying that current data complies with the new rule, executing the alteration, and confirming the successful implementation of the change.

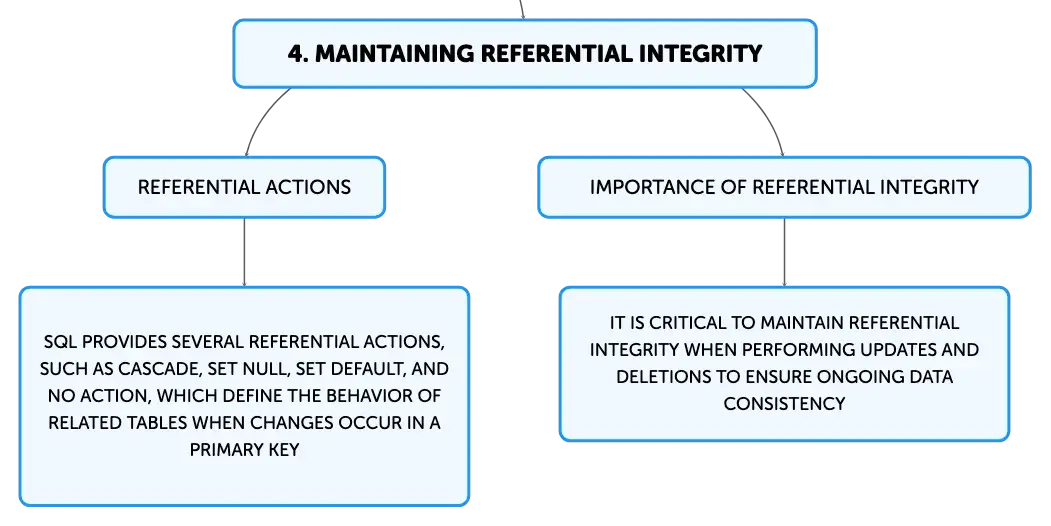

Ensuring Data Consistency During Updates and Deletes

It is critical to maintain referential integrity when performing updates and deletions to ensure ongoing data consistency. SQL provides several referential actions, such as CASCADE, SET NULL, SET DEFAULT, and NO ACTION, which define the behavior of related tables when changes occur in a primary key. These actions prevent the creation of orphaned records or the disruption of established relationships. For instance, employing the CASCADE action in a foreign key definition would automatically propagate any updates or deletions made to a record in the 'Customers' table to the related records in the 'Orders' table.

Key Takeaways on Integrity Constraints in Relational Databases

Integrity constraints are indispensable tools for maintaining the proper functioning of relational databases. They play a critical role in ensuring data consistency, preventing duplication, and preserving accurate relationships between tables. A comprehensive understanding of Domain, Entity, and Referential Integrity Constraints, along with the ability to implement complex constraints through custom rules and triggers, is essential for effective database management. Furthermore, the capacity to alter and remove constraints, as well as to manage referential integrity during record updates and deletions, is crucial for sustaining a dynamic and reliable database environment.
