The Fundamentals of Human Vision

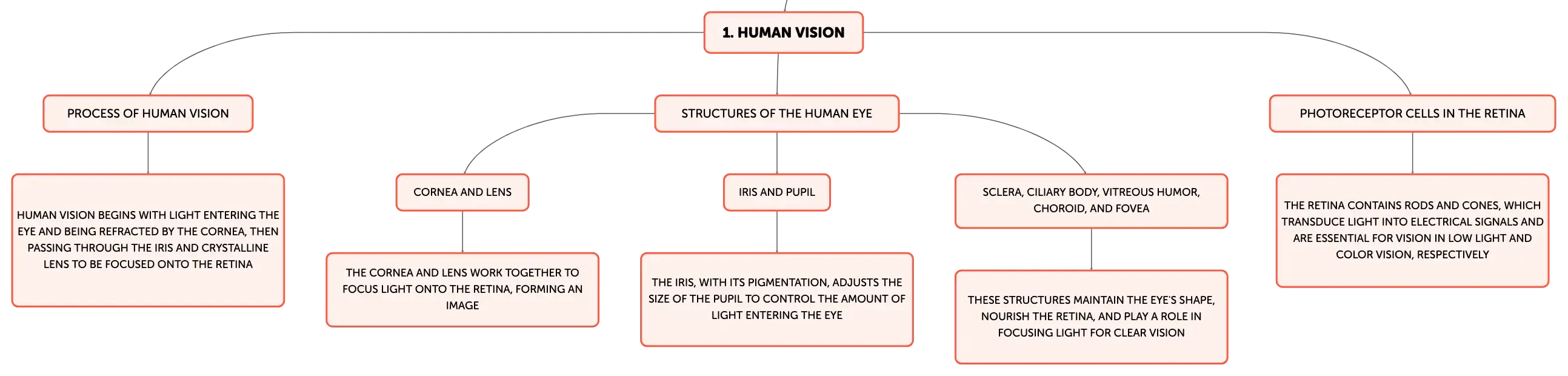

Human vision is a sophisticated sensory system that enables individuals to interpret their environment through the detection and perception of light. The process begins when light enters the eye and is refracted by the cornea, the eye's outermost lens. The iris, containing the pupil, regulates the amount of light that enters further into the eye. The crystalline lens, located behind the pupil, fine-tunes the focus of light onto the retina, a light-sensitive layer of tissue. Within the retina, photoreceptor cells, known as rods and cones, transduce light into electrical signals. These signals are then relayed to the brain through the optic nerve, initiating the complex pathway that leads to visual perception.

Close-up of human eye with hazel iris, black pupil, white sclera with blood vessels and curved eyelashes on delicate skin.

The Eye's Structural Components

The human eye is a marvel of biological engineering, consisting of several key structures that contribute to its function. The cornea and lens collaborate to focus light onto the retina, where the image is formed. The iris, with its pigmentation providing eye color, adjusts the size of the pupil to control light entry. The sclera, the tough, white outer layer, maintains the eye's shape and protects the internal components. The ciliary body, attached to the lens, alters its curvature for focusing, a process known as accommodation. The vitreous humor, a clear gel filling the eye's cavity, helps maintain its spherical shape. The choroid, rich in blood vessels, nourishes the retina. The fovea, a small depression in the retina, is densely packed with cones and is critical for high-resolution vision. Finally, the optic nerve transmits the visual information to the brain for interpretation.

Rods and Cones: The Retina's Photoreceptors

The retina contains two types of photoreceptor cells essential for vision: rods and cones. Rods, numbering approximately 120 million in the human retina, are highly sensitive to light and enable vision in dim conditions, though they do not discern color. Cones, fewer in number at around 6 million, are less sensitive to low light but are responsible for color vision and visual acuity. Humans have three types of cones, each sensitive to different wavelengths of light, corresponding to red, green, and blue. The combination and intensity of signals from these cones allow for the perception of a wide spectrum of colors.

The Visual Pathway to Perception

The visual pathway is the route taken by visual information from the retina to the brain's visual cortex, where perception occurs. The journey begins with the optic nerve, which carries signals from the retina to the lateral geniculate nucleus (LGN) in the thalamus. At the optic chiasm, fibers from each optic nerve partially cross over, ensuring that visual information from the right half of the visual field is processed by the left hemisphere, and vice versa. After processing in the LGN, the information is sent to the primary visual cortex, located in the occipital lobe of the brain. Here, complex processing reconstructs the visual scene, allowing us to experience the world in three dimensions.

Color Vision and the Mechanism of Accommodation

Color vision is a critical aspect of the human visual system, allowing for the differentiation of colors based on the varying wavelengths of light. The retina's cone cells, each type responsive to red, green, or blue light, facilitate this process. The brain combines the information from these cells to produce the full color spectrum. Accommodation is the eye's ability to focus on objects at different distances, achieved by the ciliary muscles adjusting the lens's shape. This dynamic change in lens curvature enables the eye to focus light rays onto the retina, producing a clear image whether the object is near or far.

Assessing Visual Acuity

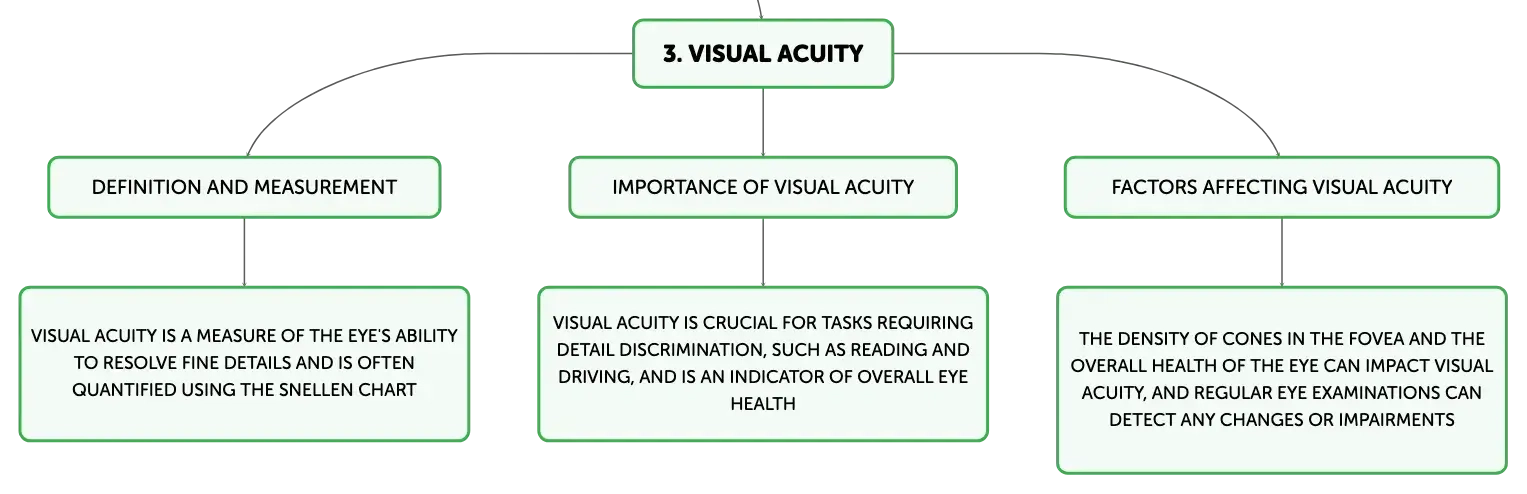

Visual acuity is a measure of the eye's capacity to resolve fine details and is a critical indicator of eye health. It is often quantified using the Snellen chart, where "20/20 vision" represents the standard visual clarity at a distance of 20 feet. The fovea of the retina, densely packed with cones, is central to achieving sharp vision. Visual acuity is vital for tasks requiring detail discrimination, such as reading and driving. Regular eye examinations include visual acuity tests to detect any changes or impairments in vision, which may indicate the need for corrective measures or further investigation into eye health.
