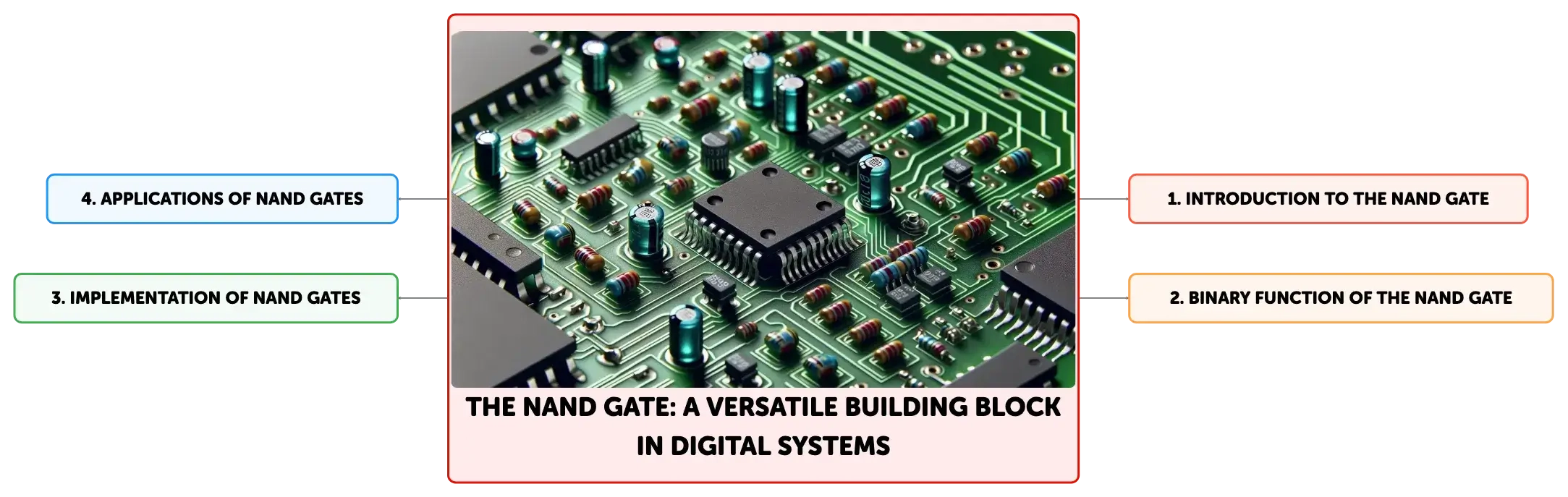

The NAND Gate: A Versatile Building Block in Digital Systems

Implementing NAND Gates in Digital Circuits

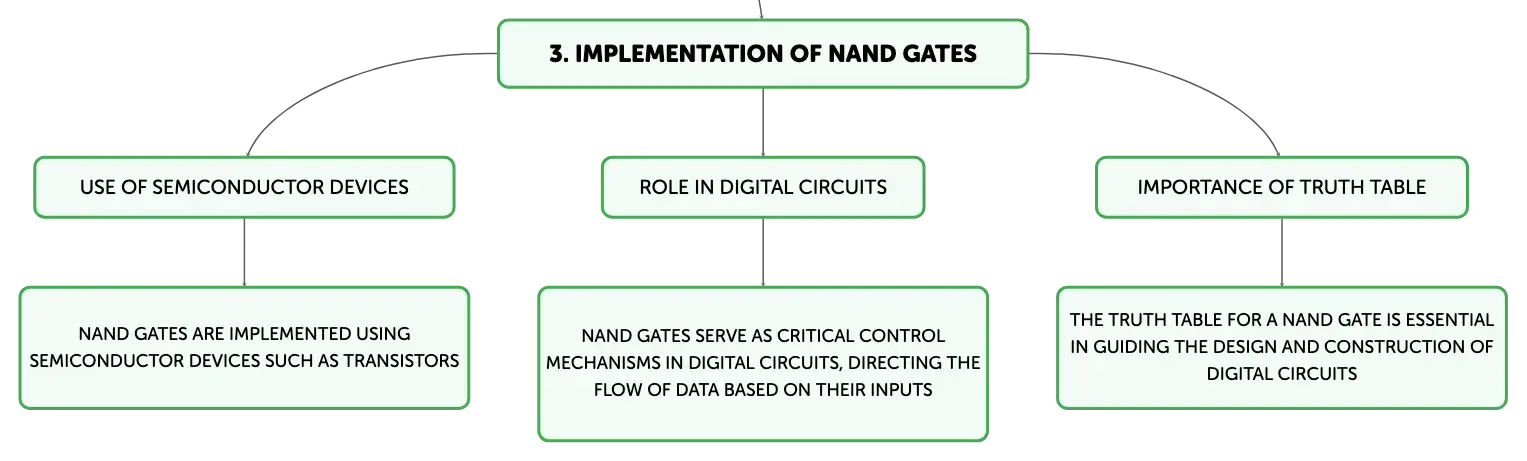

In digital circuits, NAND gates are implemented using semiconductor devices such as transistors, which are configured to produce the desired output for each possible input combination. These gates serve as critical control mechanisms, directing the flow of data based on the logic defined by their inputs. The truth table for a NAND gate is an essential reference that depicts the gate's output for every potential input scenario, guiding the design and construction of digital circuits. The table confirms that a NAND gate outputs a high signal in all cases except when both inputs are high, a characteristic leveraged to simplify and optimize circuit designs.

The Universal Function of NAND Logic in Digital Electronics

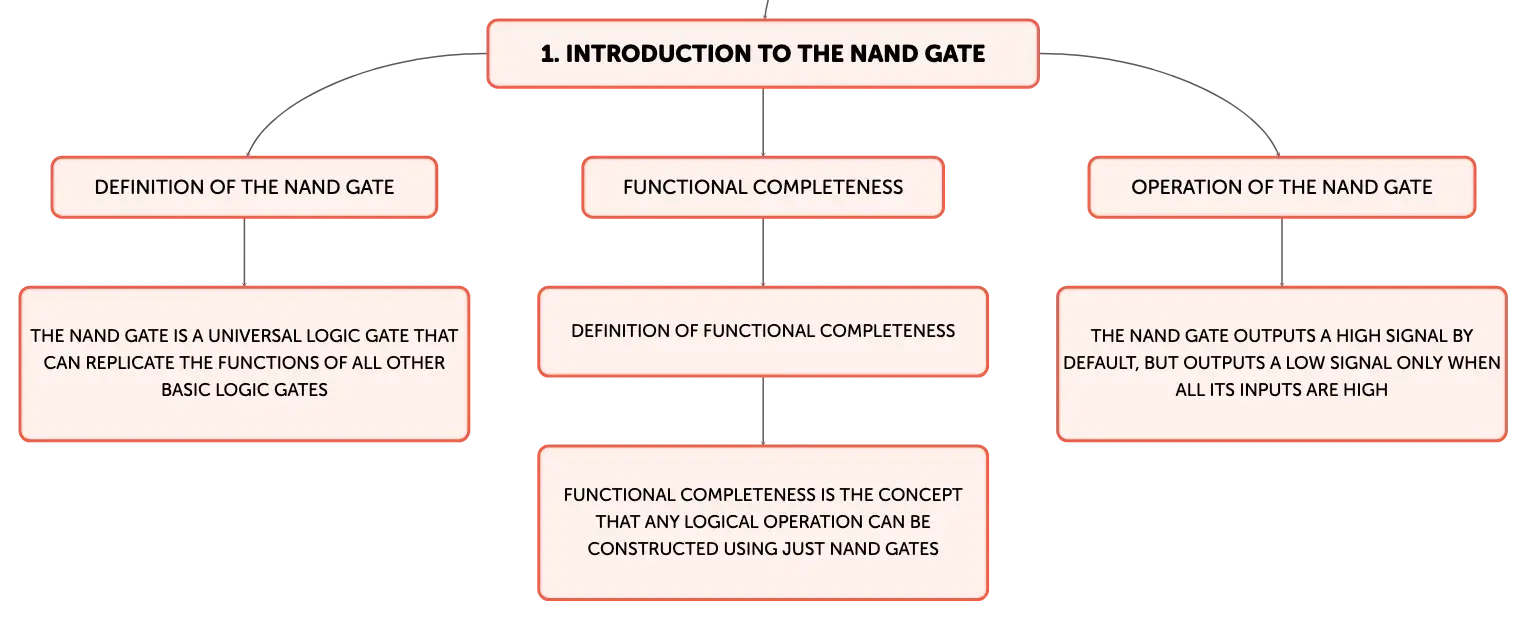

NAND logic is a fundamental aspect of digital electronics, on par with other basic logic gates such as OR, AND, NOR, XOR, XNOR, and NOT. Its classification as a universal gate is due to its unique ability to form all other logic gates using only NAND gates. This property is invaluable in the design and production of complex digital circuits, such as those found in memory chips and microprocessors, where minimizing space and cost is paramount. The NAND gate's capacity to execute complex logical operations through simple binary functions underscores its ubiquitous presence and utility in the electronics industry.

Distinguishing AND Gates from NAND Gates

The AND gate is a fundamental logic gate that outputs a high signal only when all its binary inputs are high. In contrast, the NAND gate is the complement of the AND gate; it outputs a high signal in all cases except when all inputs are high. This inversion of the AND gate's output is the defining characteristic of the NAND gate and is instrumental in its ability to streamline circuit design. A clear understanding of the differences between these two gates is crucial for students to grasp the behavior of digital circuits and their implementation in computer systems.

Real-World Applications of NAND Gates

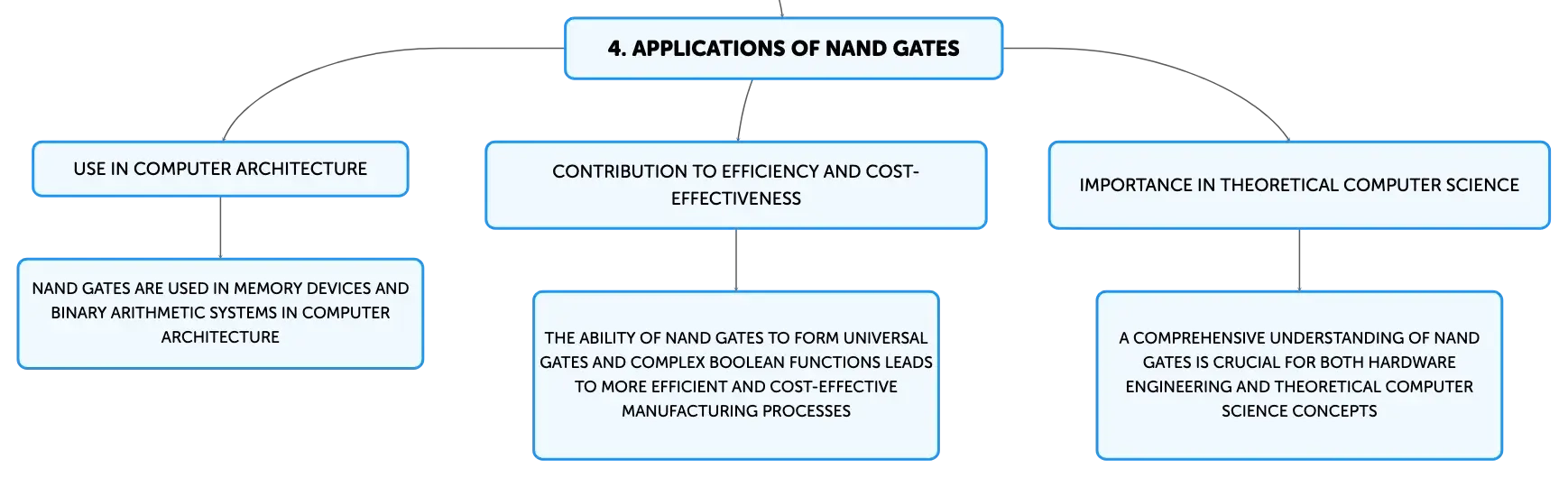

NAND gates are employed in a wide array of applications within computer architecture, including memory devices such as Random Access Memory (RAM) and NAND Flash Memory, the latter of which is utilized in USB flash drives and Solid State Drives (SSD). They also play a pivotal role in binary arithmetic systems, enabling the execution of arithmetic operations like addition, subtraction, multiplication, and division within computational processes. The ability of NAND gates to form universal gates and complex Boolean functions leads to more efficient and cost-effective manufacturing processes. A comprehensive understanding of NAND gates is essential not only for hardware engineering but also for a thorough grasp of theoretical computer science concepts.

Essential Insights on NAND Gates

To conclude, the NAND gate is an indispensable component in digital electronics, serving as a universal gate capable of emulating the functions of all other basic logic gates. Its operation, which outputs a high signal except when all inputs are high, is a fundamental binary function in the domain of computer science. The NAND gate's role as a critical element in digital circuits, its implementation using semiconductor technology, and its contribution to the principle of functional completeness make it a cornerstone in computer architecture. The ability to replace a variety of logic gates with combinations of NAND gates enhances both spatial and cost efficiency, emphasizing the gate's importance in the design and operation of digital electronic systems.
