Thermionic Electron Emission and its Applications

Thermionic electron emission is the process where electrons are emitted from a heated metal surface. Discovered in the 19th century, it's fundamental to the operation of devices like electron guns, used in early TVs and oscilloscopes. The Rutherford-Bohr model explains the atomic structure and energy levels that allow electrons to gain enough energy to overcome a metal's work function, leading to emission. Understanding the speed and acceleration of these electrons involves kinetic energy equations and the electron-volt concept.

See more

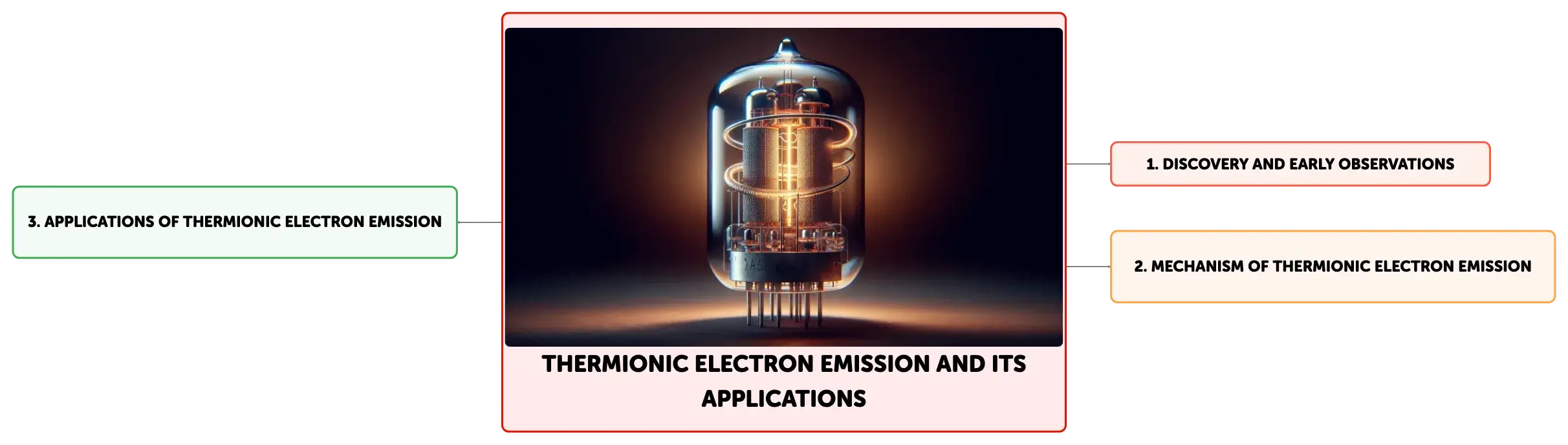

Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Thermionic emission rediscovery and by whom?

Click to check the answer

Rediscovered by Frederick Guthrie in 1873.

2

Origin of the term 'thermionic'

Click to check the answer

Derived from Greek 'thermos' meaning 'hot' and 'ion', indicating a moving particle.

3

Significance of early thermionic emission observations

Click to check the answer

Laid groundwork for understanding electron behavior and development of electronic devices.

4

In the concept of thermionic emission, the - atomic model explains the release of electrons from a metal when it's heated enough.

Click to check the answer

Rutherford Bohr

5

Definition of thermionic emission

Click to check the answer

Emission of electrons from heated metal when thermal energy increases electron kinetic energy.

6

Role of work function in thermionic emission

Click to check the answer

Minimum energy needed for an electron to escape metal surface; must be overcome for emission.

7

Types of particles emitted in thermionic emission

Click to check the answer

Not just free electrons, but also other charge carriers like ions released by heating.

8

The ______ effect, which is essentially thermionic emission, was first noticed by ______ during his work on electric light bulbs.

Click to check the answer

Edison Thomas Edison

9

An electron gun, which generates a concentrated stream of electrons, includes a heated ______, focusing ______, and an anode with a high positive ______.

Click to check the answer

cathode electrodes voltage

10

Kinetic energy equation for electron velocity

Click to check the answer

E_k = 1/2 mv^2; E_k is kinetic energy, m is electron mass, v is velocity.

11

Mass of an electron in kg

Click to check the answer

Electron mass (m) is 9.109 x 10^-31 kg.

12

Velocity of electron with given kinetic energy

Click to check the answer

For E_k = 4.9 x 10^-19 J, electron velocity (v) is ~1.04 x 10^6 m/s.

13

Thermionic Emission Process

Click to check the answer

Electrons escape heated metal when kinetic energy surpasses work function.

14

Rutherford-Bohr Model Relevance

Click to check the answer

Explains atomic structure and energy levels influencing electron ejection.

15

Electron-Volt in Electron Behavior

Click to check the answer

Unit to measure electron kinetic energy; 1 eV equals energy gained by an electron accelerating through 1 volt potential.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Properties and Applications of Light Waves

View document

Physics

Wave Equations and Their Applications

View document

Physics

Spherical Aberration and its Effects on Optical Systems

View document

Physics

The Thick Lens Formula: A Cornerstone of Optical Science

View document

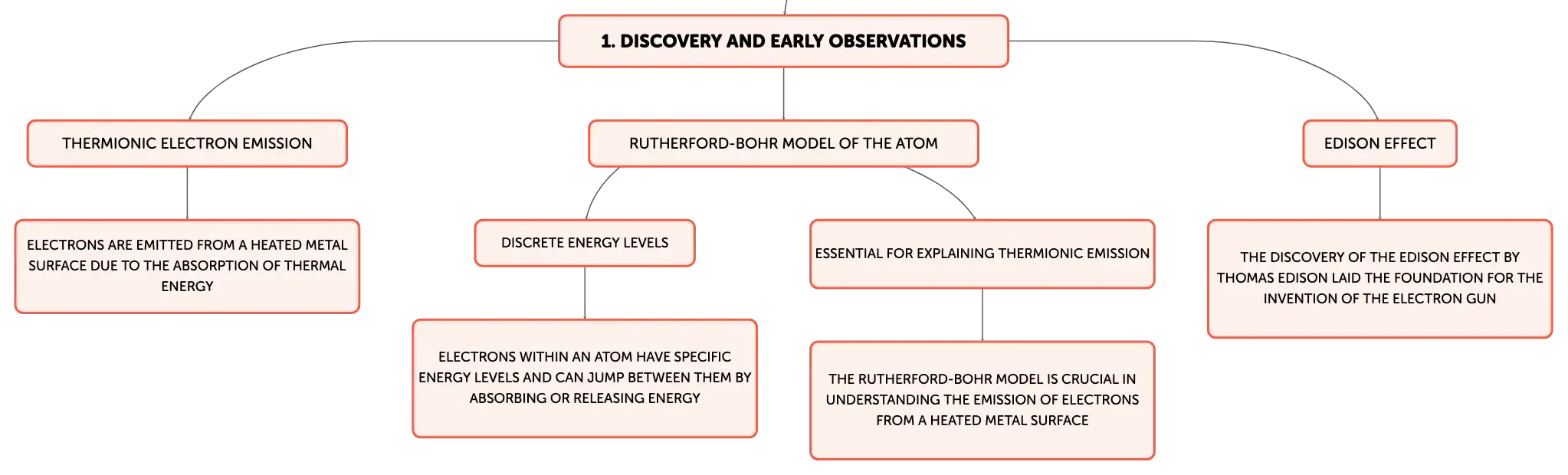

Discovery and Concept of Thermionic Electron Emission

Thermionic electron emission, a phenomenon where electrons are emitted from a heated metal surface, was first observed by French physicist Edmond Becquerel in 1853. It was later independently rediscovered by British physicist Frederick Guthrie in 1873. The term 'thermionic' combines the Greek 'thermos' meaning 'hot' with 'ion', suggesting a particle that is in motion. Although the electron itself was not identified until the end of the 19th century, these early observations were foundational for the future understanding of electron behavior and the development of various electronic devices.

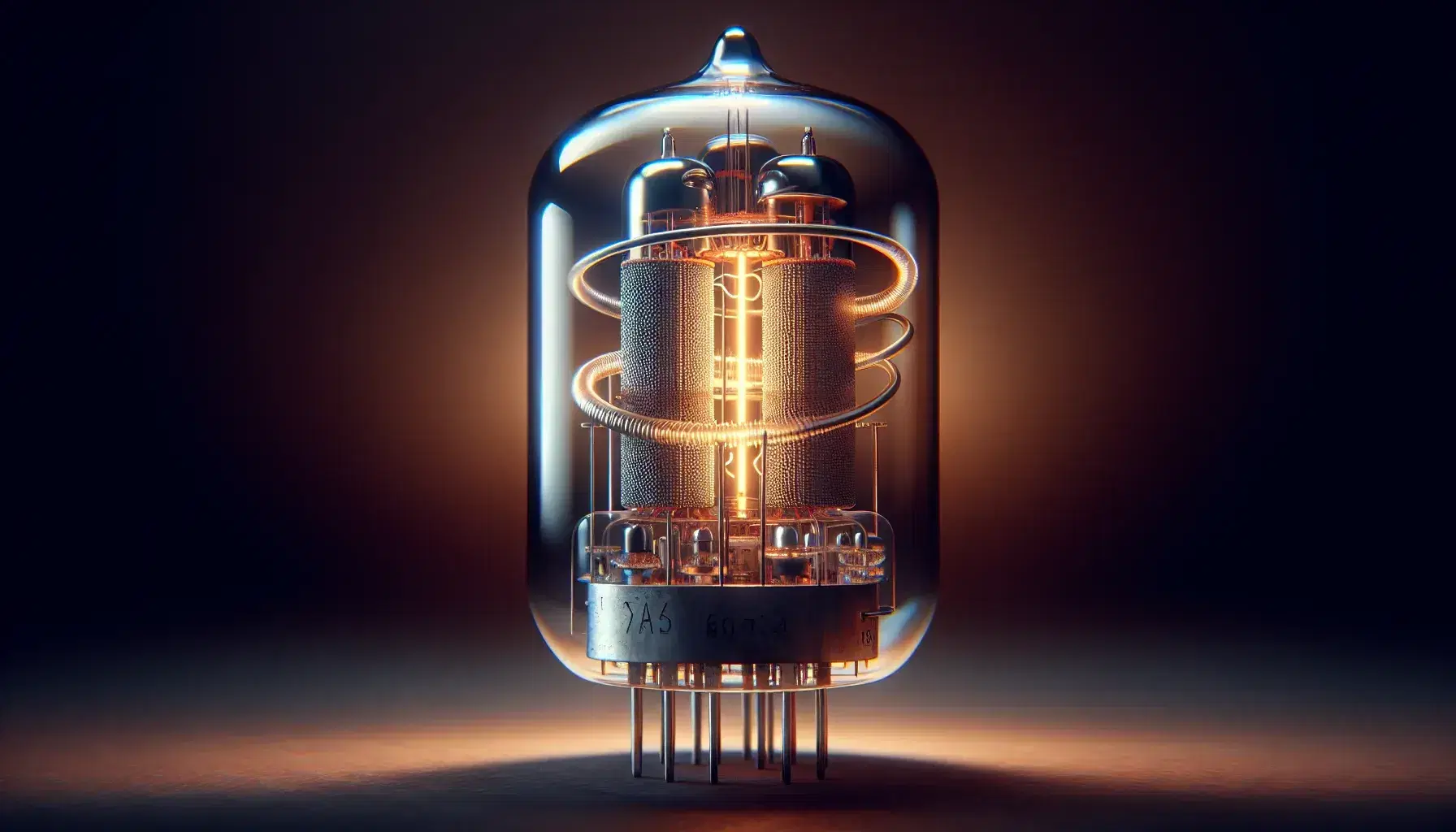

Close-up view of a thermionic diode vacuum tube with a glowing filament, showcasing internal metallic cathode and reflective anode.

The Rutherford-Bohr Model and Energy Levels

The Rutherford-Bohr model of the atom, proposed by Niels Bohr building on Ernest Rutherford's nuclear model, introduced the concept of discrete energy levels for electrons within an atom. In this model, electrons orbit the nucleus at specific distances corresponding to quantized energy levels. Electrons can absorb energy and jump to higher orbits or release energy and fall to lower orbits. This model is essential for explaining the emission of electrons from a metal surface when it is sufficiently heated, as in thermionic emission.

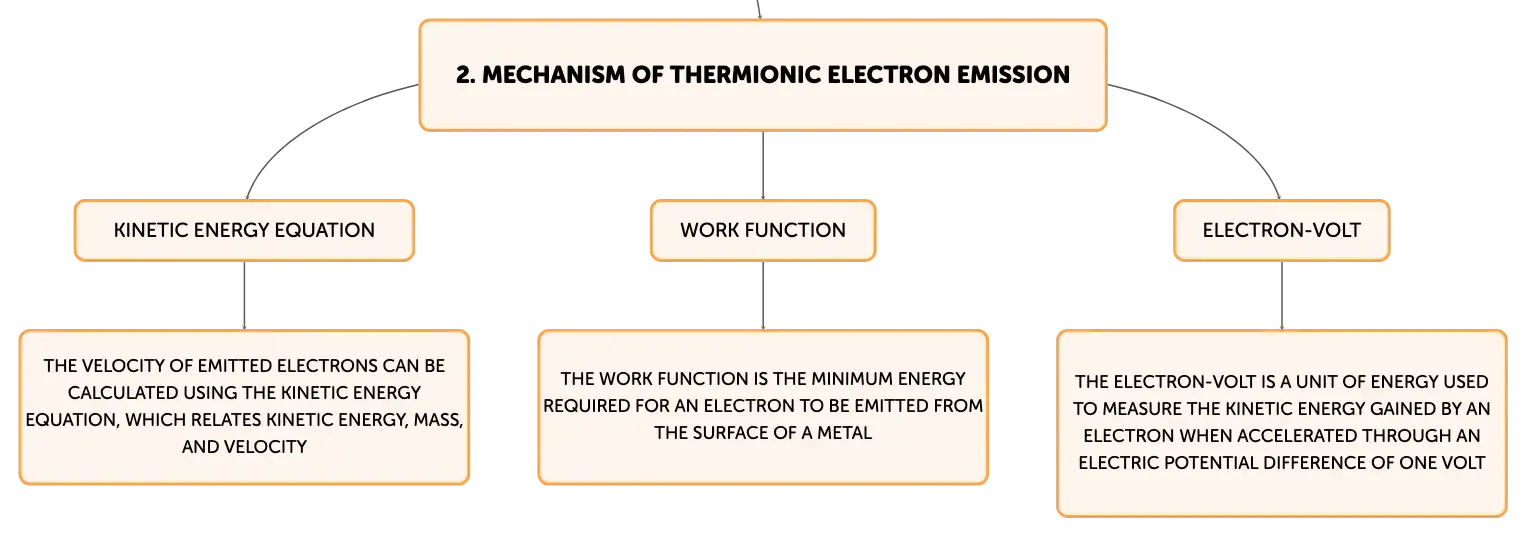

Mechanism of Thermionic Electron Emission

Thermionic electron emission occurs when electrons in a metal absorb thermal energy, increasing their kinetic energy and allowing them to move to higher energy levels. If the metal is heated to a high enough temperature, some electrons will acquire enough energy to overcome the work function, which is the minimum energy required to liberate an electron from the surface of the metal. Once this energy barrier is surpassed, electrons are emitted from the surface. These emitted electrons, or 'thermions', can include not only free electrons but also other charge carriers such as ions that are released due to heating.

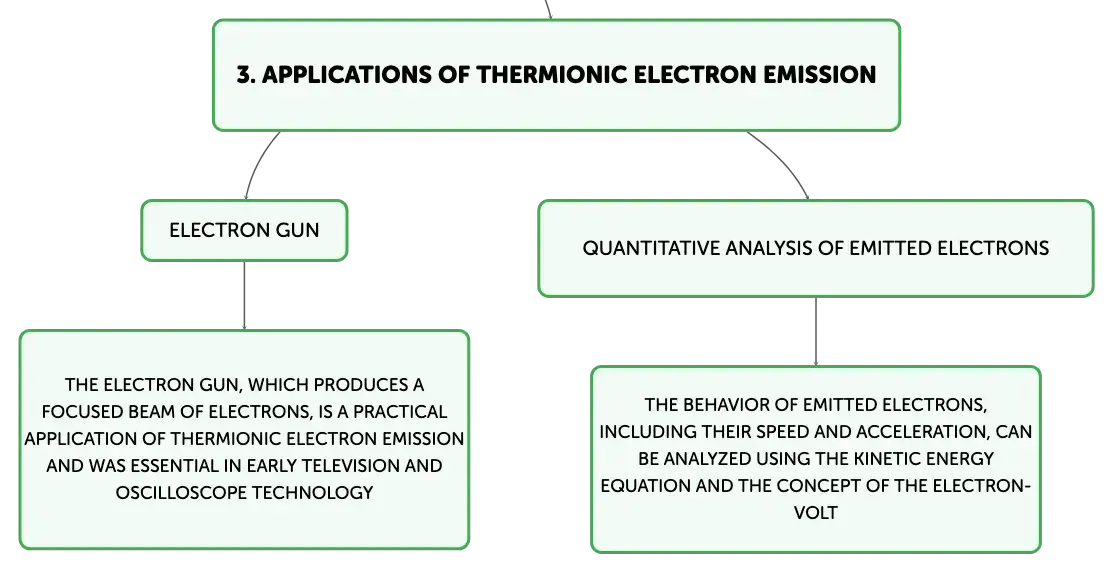

The Edison Effect and the Development of the Electron Gun

The Edison effect, a manifestation of thermionic emission, was discovered by Thomas Edison while experimenting with electric light bulbs. He observed that an electric current could pass through a vacuum from a heated filament to a cooler metal plate. This discovery laid the groundwork for the invention of the electron gun, a device that produces a focused beam of electrons. An electron gun typically consists of a heated cathode, focusing electrodes, and an anode with a high positive voltage. This technology became a fundamental component of cathode ray tubes, which were widely used in early television sets and oscilloscopes.

Calculating the Speed of Thermionic Electrons

The velocity of electrons emitted during thermionic emission can be calculated using the kinetic energy equation \(E_k = \frac{1}{2} mv^2\), where \(E_k\) represents the kinetic energy, \(m\) is the mass of the electron, and \(v\) is the velocity of the electron. Given the kinetic energy of an electron and the known mass of an electron (\(9.109 \times 10^{-31}\) kg), one can determine the speed of the electron. For instance, an electron with a kinetic energy of \(4.9 \times 10^{-19}\) joules would have a velocity of approximately \(1.04 \times 10^6\) meters per second.

Electron Acceleration and the Electron-Volt

The electron-volt (eV) is a unit of energy defined as the amount of kinetic energy gained by a single electron when it is accelerated through an electric potential difference of one volt. The kinetic energy of an electron can be expressed as \(E_k = eV\), where \(e\) is the elementary charge (\(1.602 \times 10^{-19}\) coulombs) and \(V\) is the potential difference in volts. This relationship is particularly useful for calculating the final velocity of electrons after acceleration in devices such as electron guns, where the potential difference is known.

Key Takeaways on Thermionic Electron Emission

Thermionic electron emission is a critical process in which electrons are ejected from a heated metal surface after gaining enough kinetic energy to overcome the material's work function. This process is grounded in the atomic structure and energy levels described by the Rutherford-Bohr model. The practical application of thermionic emission has led to significant technological developments, including the electron gun, which was essential in early television and oscilloscope technology. The behavior of emitted electrons, including their speed and acceleration, can be quantitatively analyzed using the kinetic energy equation and the concept of the electron-volt.
