Magnetic Fields and Flux

Exploring the Fundamentals of Magnetic Fields and Flux

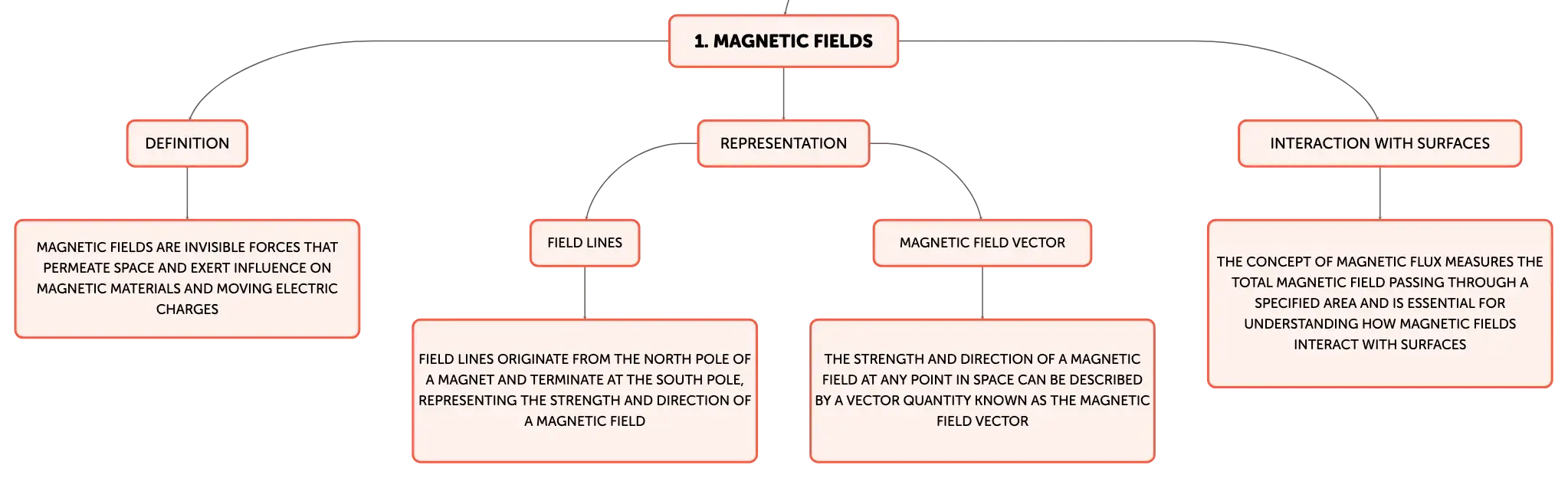

Magnetic fields are invisible forces that permeate space and exert influence on magnetic materials and moving electric charges. These fields are represented by field lines that originate from the north pole of a magnet and terminate at the south pole. The strength and direction of a magnetic field at any point in space can be described by a vector quantity known as the magnetic field vector. To quantify the interaction of a magnetic field with a surface, we introduce the concept of magnetic flux. Magnetic flux, denoted by the Greek letter Phi (Φ), measures the total magnetic field passing orthogonally through a specified area. This concept is not only pivotal in theoretical physics but also underpins the operation of many technological devices, from electric motors to MRI machines.

Calculating Magnetic Flux in Uniform and Non-Uniform Fields

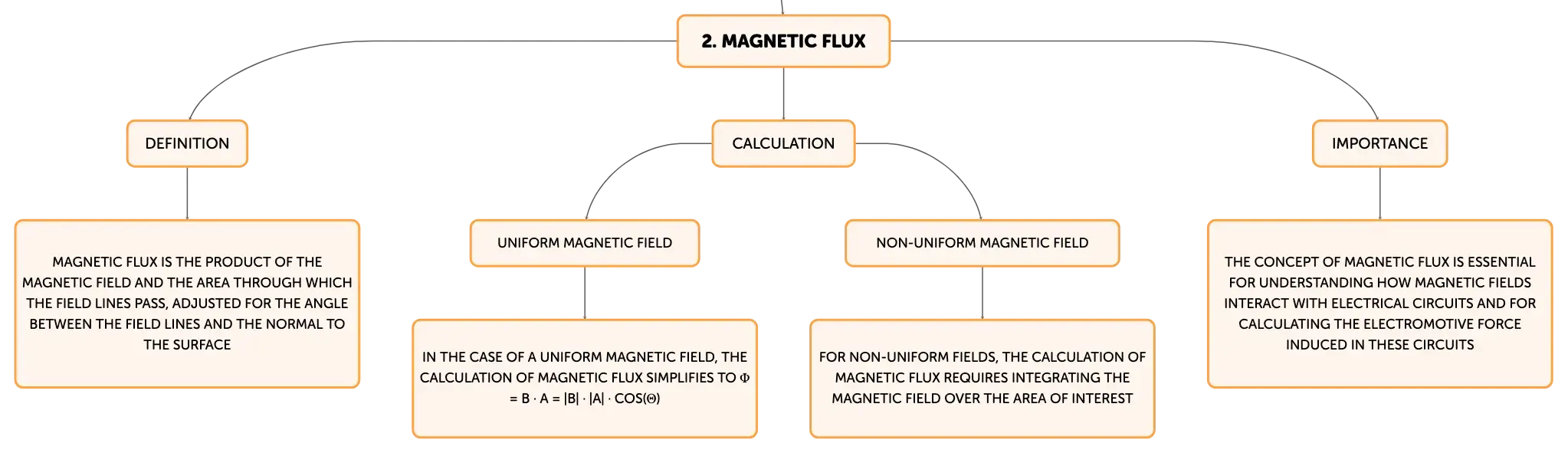

Magnetic flux is defined as the product of the magnetic field and the area through which the field lines pass, adjusted for the angle between the field lines and the normal to the surface. In the case of a uniform magnetic field, the calculation simplifies to Φ = B · A = |B| · |A| · cos(θ), where B is the magnetic field vector, A is the area vector, and θ is the angle between B and the normal to the surface. For non-uniform fields, the calculation of magnetic flux requires integrating the magnetic field over the area of interest. The concept of magnetic flux is essential for understanding how magnetic fields interact with electrical circuits and for calculating the electromotive force induced in these circuits.

Faraday's Law of Electromagnetic Induction

Faraday's law of electromagnetic induction is a fundamental principle that describes how a time-varying magnetic field can induce an electromotive force (EMF) in a closed circuit. The law states that the induced EMF in any closed circuit is equal to the negative rate of change of the magnetic flux through the circuit. Mathematically, Faraday's law is expressed as ε = -dΦ/dt, where ε is the induced EMF and Φ is the magnetic flux. This relationship is a key component of Maxwell's equations and has profound implications for the generation of electricity, as it forms the basis for the operation of generators and inductors.

Enhancing Induction with Magnetic Flux Linkage

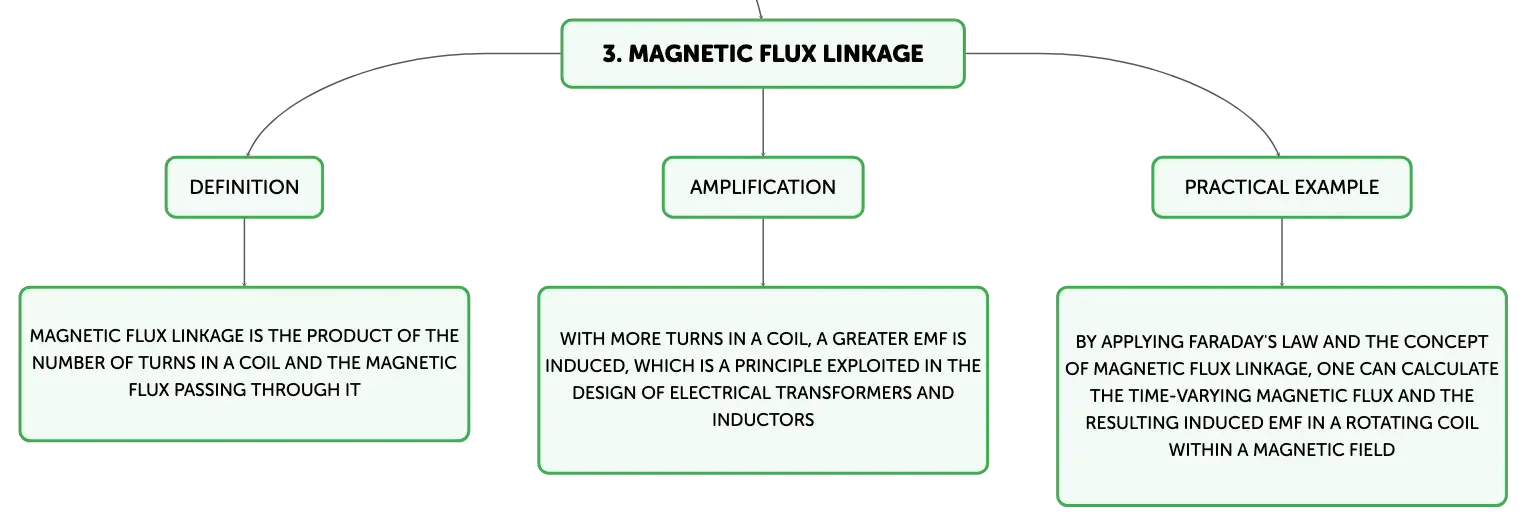

When a coil of wire is placed in a magnetic field, the magnetic flux through the coil can induce an EMF. If the coil has multiple turns, each turn experiences the same magnetic flux, and the effects add together, a phenomenon known as magnetic flux linkage. The total magnetic flux linkage is the product of the number of turns (N) and the magnetic flux (Φ), giving ΦL = NΦ. This multiplication effect means that with more turns in the coil, a greater EMF is induced, which is a principle exploited in the design of electrical transformers and inductors to efficiently transfer energy from one circuit to another.

Demonstrating Magnetic Flux and EMF in Practical Applications

Consider a practical example where a coil with an area of 1 m² and 100 turns rotates within a uniform magnetic field of 10 Teslas. The magnetic field is oriented along the x-axis, and the coil rotates, causing the angle between the magnetic field and the normal to the coil's surface to change over time. By applying Faraday's law and the concept of magnetic flux linkage, one can calculate the time-varying magnetic flux and the resulting induced EMF. This example not only demonstrates the theoretical principles but also highlights the practical application of these concepts in devices such as electric generators, where mechanical energy is converted into electrical energy.

Educational Implications of Magnetic Flux and Flux Linkage

In conclusion, the concepts of magnetic flux and magnetic flux linkage are essential for understanding the interaction between magnetic fields and electrical circuits. Faraday's law of electromagnetic induction provides the framework for predicting the induced EMF resulting from a changing magnetic flux. The principle of flux linkage further explains how the induced EMF can be amplified in a coil with multiple turns. These foundational concepts are integral to the study of electromagnetism and are crucial for the design and functioning of a wide range of electrical devices, from simple inductors to complex power generation systems. Understanding these principles is vital for students and professionals in the fields of physics, engineering, and technology.
