Planar Graphs
Planar graphs are a fundamental concept in graph theory, characterized by their ability to be drawn on a plane without edge crossings. This text delves into their distinctive properties, such as adhering to Euler's formula (v - e + f = 2) and having an edge limitation (3v - 6 edges). It also discusses techniques for recognizing planar graphs, the importance of Euler's formula, vertex colouring, and the Four Colour Theorem. Understanding these concepts is crucial for applications in network design, computational geometry, and algorithm development.
See moreExploring the Basics of Planar Graphs

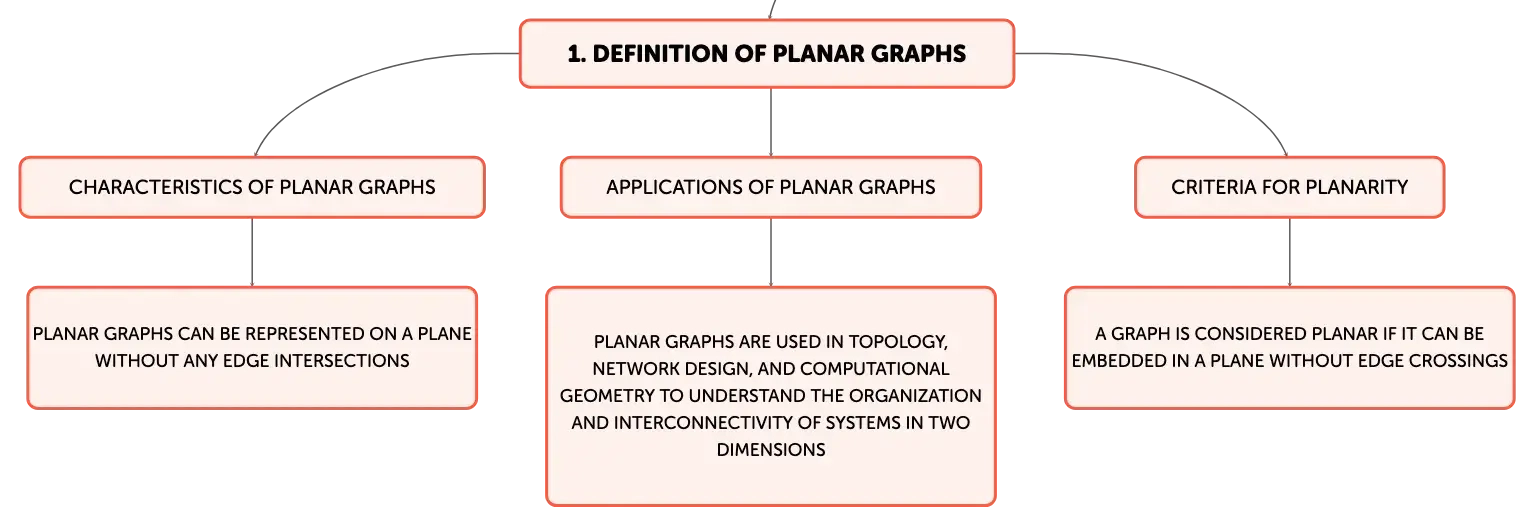

Planar graphs are a central concept in graph theory, characterized by their ability to be represented on a plane without any of their edges intersecting. These graphs are pivotal in disciplines such as topology, network design, and computational geometry, offering insights into the organization and interconnectivity of systems that can be modeled in two dimensions. A graph is deemed planar if it can be embedded in a plane such that its edges intersect only at their endpoints. This feature facilitates the investigation of planar graphs' mathematical properties and their practical applications.Distinctive Properties of Planar Graphs

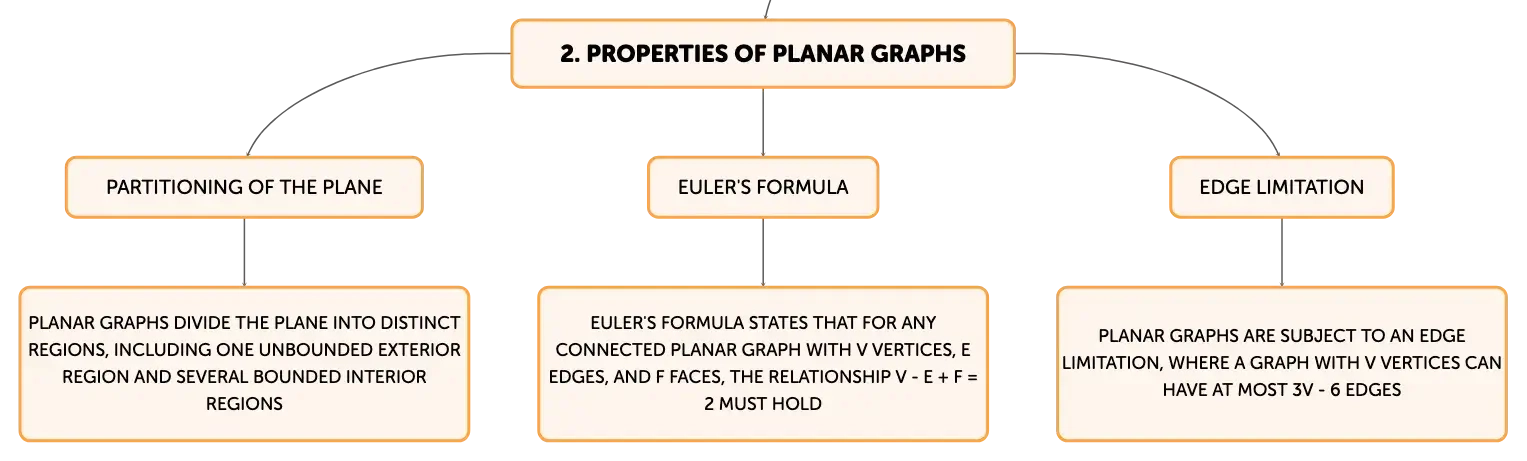

Planar graphs are distinguished by unique properties that are essential to their analysis and utility. Their ability to be drawn on a plane without edge crossings is a defining characteristic. When represented graphically, planar graphs partition the plane into distinct regions, which include one unbounded exterior region and several bounded interior regions. Euler's formula is a fundamental theorem in this context, establishing that for any connected planar graph with v vertices, e edges, and f faces, the relationship v - e + f = 2 must hold. Planar graphs are also subject to an edge limitation, stipulating that a graph with v vertices (where v ≥ 3) can have at most 3v - 6 edges. The concept of dual graphs, which involves constructing a new graph by interchanging the roles of vertices and faces from the original, demonstrates the conceptual depth of planar graphs.Techniques for Recognizing Planar Graphs

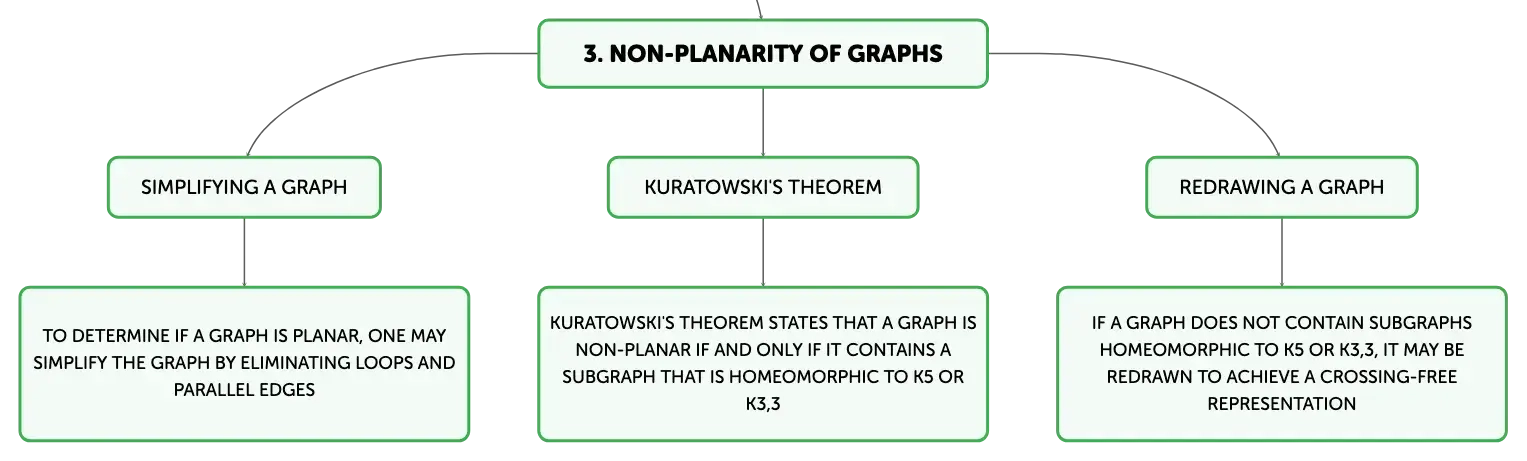

Identifying a planar graph requires determining if it can be drawn on a plane without edge crossings. This process may involve simplifying the graph by eliminating loops and parallel edges, followed by searching for subgraphs that are subdivisions of known non-planar graphs such as K5 (the complete graph on five vertices) or K3,3 (the complete bipartite graph on six vertices). The absence of these subgraphs suggests potential planarity, and one may attempt to redraw the graph to achieve a crossing-free representation. Kuratowski's Theorem offers a definitive criterion for non-planarity, stating that a graph is non-planar if and only if it contains a subgraph that is homeomorphic to K5 or K3,3.The Importance of Euler's Formula in Planar Graph Theory
Euler's Formula is a linchpin of planar graph theory, articulating a fundamental relationship among the number of vertices (V), edges (E), and faces (F) in a planar graph. This formula is indispensable for confirming the planarity of a graph and understanding its structure. Its significance extends to practical applications in computational geometry and algorithm design, where the planarity of a graph can influence the complexity and execution of algorithms. Euler's Formula is also instrumental in the development of network design and the study of polyhedra.Vertex Colouring and the Four Colour Theorem in Planar Graphs
Vertex colouring is a crucial process in the study of planar graphs, where the objective is to assign colours to vertices so that no two adjacent vertices are the same colour, using the fewest colours possible. This task has practical implications in areas such as scheduling, frequency allocation, and the design of efficient algorithms. The Four Colour Theorem, a landmark result in graph colouring, asserts that four colours are sufficient to colour any planar graph in such a way that no two adjacent vertices are identically coloured. This theorem, proven with the assistance of computer verification, has significant consequences for map colouring and various combinatorial optimization problems.Engaging with Theorems and Exercises in Planar Graphs
Engaging with theorems and exercises is vital for deepening one's understanding of planar graphs. Foundational theorems like Euler's Formula and the Four Colour Theorem lay the groundwork for academic exploration in this area. Exercises often involve demonstrating the planarity or non-planarity of a graph, applying Euler's formula, or colouring a graph in accordance with the Four Colour Theorem. These activities not only reinforce theoretical knowledge but also enhance critical thinking and problem-solving abilities that are essential in mathematics and related disciplines.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Planar graph representation
Click to check the answer
2
Planar graph applications
Click to check the answer
3
Planar graph embedding
Click to check the answer
4
A ______ graph can be depicted without any of its edges crossing and divides the plane into distinct areas.
Click to check the answer
5
Euler's formula, which applies to connected ______ graphs, states that the number of vertices (v) minus the number of edges (e) plus the number of faces (f) equals ______.
Click to check the answer
6
In ______ graphs, there is a limit on the number of edges, specifically, a graph with v vertices (v ≥ 3) can have at most ______ edges.
Click to check the answer
7
Planar graph simplification steps
Click to check the answer
8
Subgraphs indicating non-planarity
Click to check the answer
9
Kuratowski's Theorem significance
Click to check the answer
10
The importance of Euler's Formula is evident in its use for verifying the ______ of a graph and its applications in ______ geometry and algorithm design.
Click to check the answer
11
Objective of vertex colouring in planar graphs
Click to check the answer
12
Practical applications of vertex colouring
Click to check the answer
13
Four Colour Theorem proof method
Click to check the answer
14
The ______ Colour Theorem is a foundational concept for academic exploration in graph theory, which is often applied by ______ a graph to adhere to its principles.
Click to check the answer
