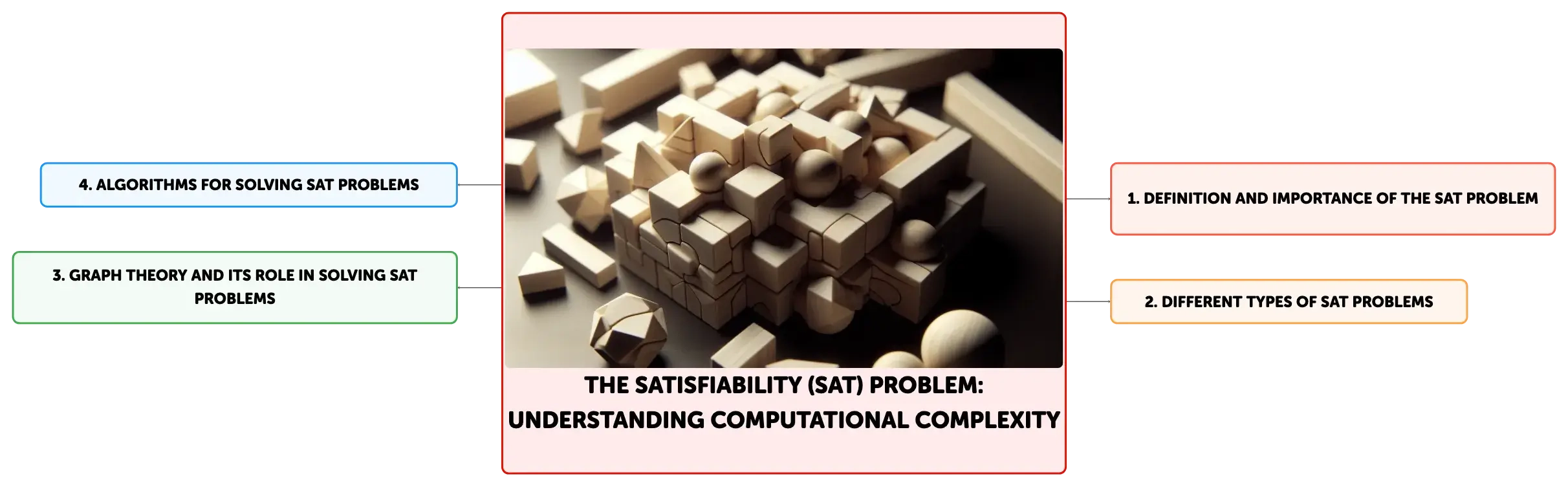

The Satisfiability (SAT) Problem: Understanding Computational Complexity

Exploring the SAT Problem in computer science reveals its role as a cornerstone in computational complexity theory. This text delves into the Boolean SAT problem, its NP-completeness, and the variants like 2-SAT and 3-SAT, each with unique complexities. It also discusses graph theory's role in analyzing SAT problems, various algorithms like DPLL and CDCL, and practical applications in real-world scenarios.

see more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

First NP-complete Problem

Click to check the answer

SAT was the first problem proven to be NP-complete, marking a milestone for complexity theory.

2

Sub-problems of SAT

Click to check the answer

Includes Boolean SAT, 2-SAT, 3-SAT, each with unique difficulty and solving strategies.

3

Truth Assignment in SAT

Click to check the answer

SAT asks if there's a way to assign truth values to variables that makes a Boolean formula true.

4

Currently, there is no known algorithm that can solve all instances of the ______ problem efficiently, meaning in ______ time.

Click to check the answer

SAT polynomial

5

2-SAT problem solvability

Click to check the answer

Solvable in polynomial time, unlike most SAT problems.

6

3-SAT problem status

Click to check the answer

Retains NP-complete status, indicating higher complexity than 2-SAT.

7

Graph-theoretical methods like implication graphs and identifying ______ help solve ______ more efficiently.

Click to check the answer

Strongly Connected Components (SCCs) 2-SAT problems

8

DPLL Algorithm Strategy

Click to check the answer

Employs backtracking search to determine satisfiability of Boolean formulas.

9

CDCL Algorithm Enhancement

Click to check the answer

Improves DPLL efficiency through clause learning, aiding in solving SAT problems.

10

Survey Propagation Application

Click to check the answer

Effective for certain k-SAT problems, utilizes concepts from statistical physics.

11

For the more complex ______, heuristic methods like ______ or ______ are often used within backtracking algorithms to find solutions.

Click to check the answer

3-SAT DPLL CDCL

12

Decomposing formulas in SAT

Click to check the answer

Breaking down large Boolean formulas into smaller, more manageable components to simplify the problem.

13

Unit propagation in DPLL

Click to check the answer

Technique where single-literal clauses assign truth values, triggering a chain of implications to simplify SAT.

14

Optimizing ______ in manufacturing is an example of how SAT problems are applied in ______ contexts.

Click to check the answer

task scheduling practical

15

Define SAT problem

Click to check the answer

SAT problem: decision problem determining if there exists an interpretation that satisfies a given Boolean formula.

16

Explain NP-completeness relevance to SAT

Click to check the answer

NP-completeness: SAT is a prototypical NP-complete problem, crucial for understanding computational problem classes and intractability.

17

Differentiate 2-SAT from 3-SAT

Click to check the answer

2-SAT vs 3-SAT: 2-SAT is solvable in polynomial time using graph-based algorithms, while 3-SAT is NP-complete and generally solved with heuristic or exponential time algorithms.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Understanding Processor Cores

View document

Computer Science

The Significance of Terabytes in Digital Storage

View document

Computer Science

Secondary Storage in Computer Systems

View document

Computer Science

Computer Memory

View document

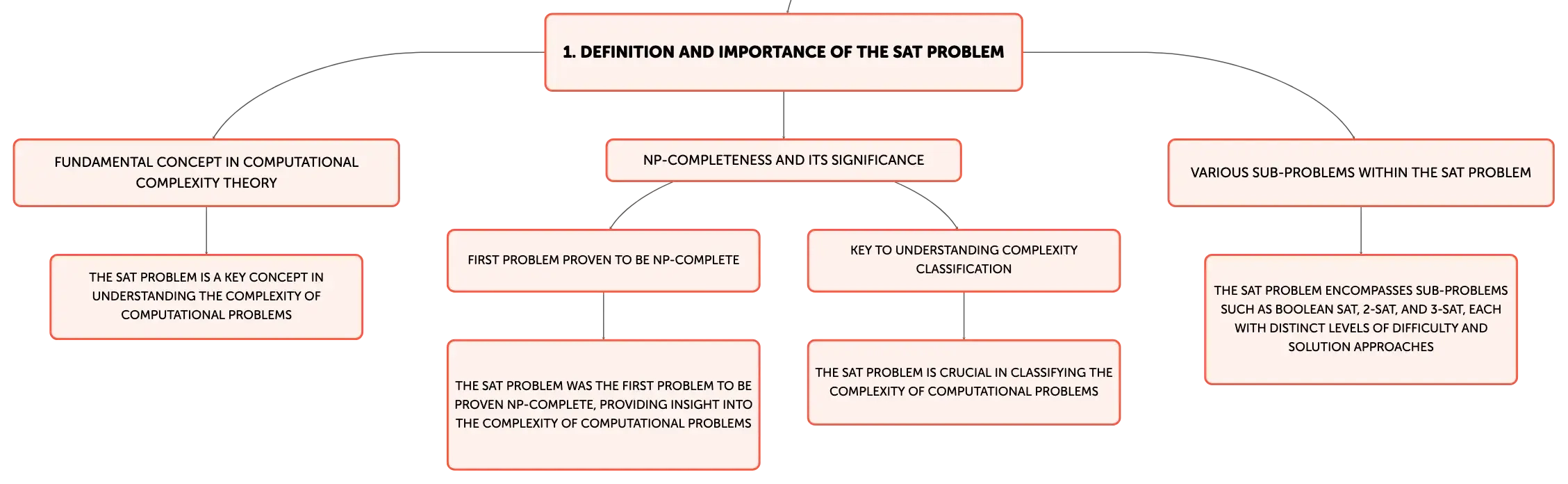

Exploring the Fundamentals of the SAT Problem in Computer Science

The Satisfiability (SAT) Problem is a fundamental concept in computational complexity theory within computer science. It asks whether there exists an assignment of truth values to variables that makes a given Boolean formula true. As the first problem to be proven NP-complete, it is a key to understanding the complexity classification of computational problems. The SAT problem encompasses various sub-problems, such as the Boolean SAT problem, and more specific cases like 2-SAT and 3-SAT, each with distinct levels of difficulty and solution approaches.
Close-up of a three-dimensional wooden puzzle with interlocking pieces, some assembled and others scattered on a black background.

Delving into the Boolean SAT Problem and Its NP-Completeness

The Boolean SAT problem, commonly referred to as the SAT problem, requires finding an assignment of truth values to variables that satisfies a Boolean formula. This problem is known to be NP-complete, which means that, as of current knowledge, there is no known algorithm that can solve all instances of the problem efficiently, i.e., in polynomial time. The complexity of the problem escalates with the size of the input, often resulting in exponential growth in the time required to find a solution, posing a significant challenge in computational problem-solving.

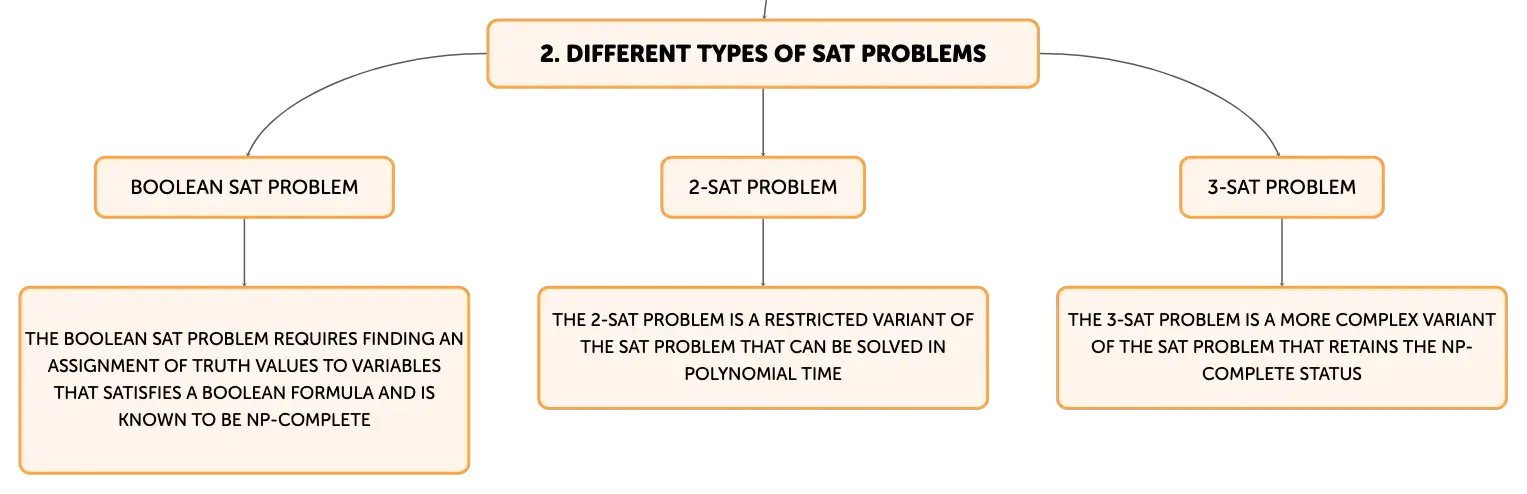

Understanding the 2-SAT and 3-SAT Variants

The 2-SAT problem is a restricted variant where each clause in the Boolean formula has exactly two literals, and it is solvable in polynomial time, making it an outlier among SAT problems. In contrast, the 3-SAT problem, with clauses containing three literals, is more complex and retains the NP-complete status. The distinction between these sub-problems is essential for comprehending the varying complexities within the SAT problem domain.

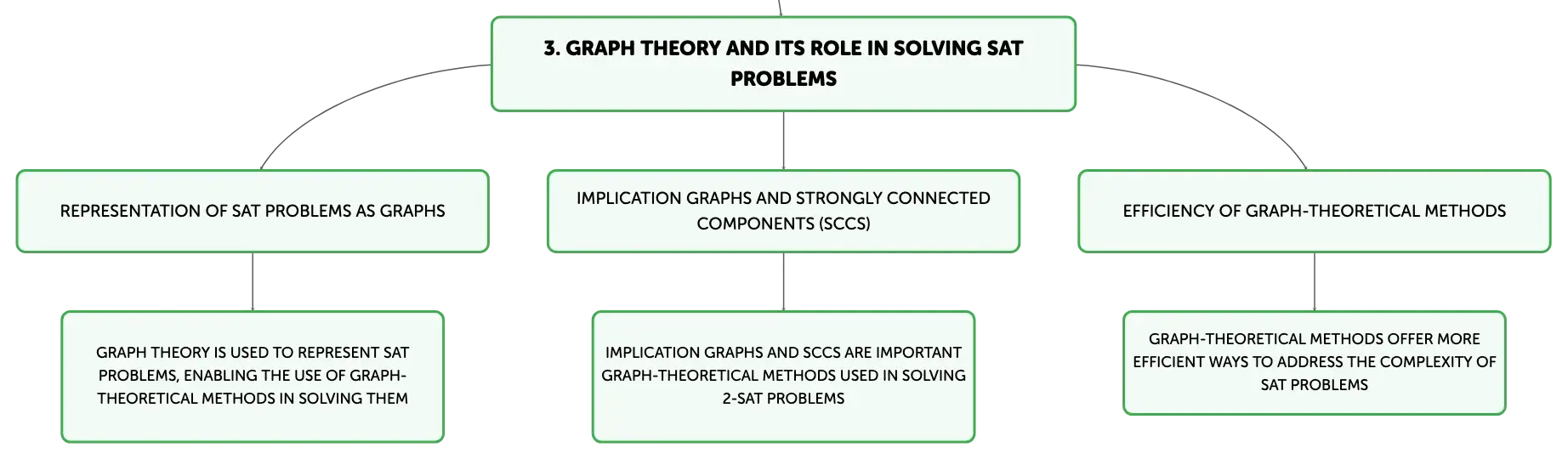

The Role of Graph Theory in Analyzing SAT Problem Complexity

Graph theory plays a crucial role in the analysis of SAT problems by enabling their representation as graphs. This graphical representation facilitates the use of graph-theoretical methods, such as implication graphs and the identification of Strongly Connected Components (SCCs), particularly in solving 2-SAT problems. These methods offer more efficient ways to address the complexity of SAT problems.

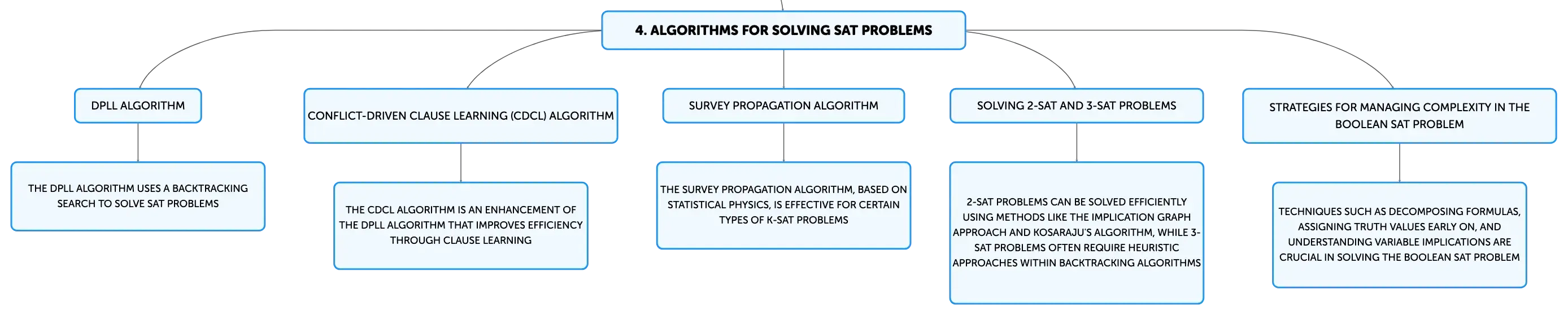

Algorithms and Techniques for Tackling SAT Problems

A range of algorithms has been devised to tackle SAT problems, each employing different strategies to determine the satisfiability of Boolean formulas. The DPLL (Davis-Putnam-Logemann-Loveland) Algorithm, which employs a backtracking search, and its modern enhancement, the Conflict-Driven Clause Learning (CDCL) algorithm, which improves efficiency through clause learning, are notable examples. The Survey Propagation algorithm, drawing from statistical physics, has also proven effective for certain types of k-SAT problems.

Solving 2-SAT and 3-SAT: Methods and Heuristics

The 2-SAT problem can be efficiently solved using methods like the Implication Graph Approach and Kosaraju's Algorithm, which guarantee polynomial-time solutions. The 3-SAT problem, being more complex, often necessitates heuristic approaches within backtracking algorithms, such as DPLL or CDCL, to find solutions. Heuristics like the MOMS (Maximum Occurrence in clauses of Minimum Size) strategy can expedite the solving process, although they do not ensure polynomial-time solutions.

Strategies for Addressing the Boolean SAT Problem

To solve the Boolean SAT problem, various strategies are employed to manage its complexity. Techniques such as decomposing large formulas into smaller components, assigning truth values to single-literal clauses early on, and understanding the implications of variable assignments are crucial. The "unit propagation" technique used in the DPLL algorithm is a prime example of how understanding the chain of implications can lead to a solution.

Enhancing Comprehension with Practical Applications

Practical examples and applications are invaluable for deepening the understanding of SAT problems. Real-world scenarios, such as generating unique exam papers for an online quiz platform or optimizing task scheduling in manufacturing, provide context for the abstract concepts of SAT problems. These applications demonstrate how SAT problems can be modeled and solved in various domains, thereby reinforcing problem-solving skills in this intricate area of computer science.

Key Insights into the SAT Problem

The SAT problem is a pivotal and complex topic in computer science, embodying a wide spectrum of computational problems with diverse complexity levels. From the general Boolean SAT problem to the specific 2-SAT and 3-SAT variants, mastering the SAT problem involves an understanding of NP-completeness, graph theory, and a variety of algorithmic approaches. Through dedicated study and practical application, learners can cultivate the necessary skills to navigate these problems, enhancing their analytical abilities and deepening their understanding of computational complexity.
