The Oil-Drop Experiment: Advancing Our Understanding of the Electron

Exploring the Electron: Millikan's Oil-Drop Experiment

The oil-drop experiment, conducted by physicist Robert A. Millikan and his graduate student Harvey Fletcher in 1909, was a landmark scientific investigation aimed at determining the elementary electric charge—the charge of a single electron. Conducted at the University of Chicago, the experiment improved upon previous attempts by scientists such as J.J. Thomson, who had estimated the electron's charge. Millikan's meticulous technique allowed for an unprecedented level of precision, significantly advancing our comprehension of the electron's fundamental characteristics.

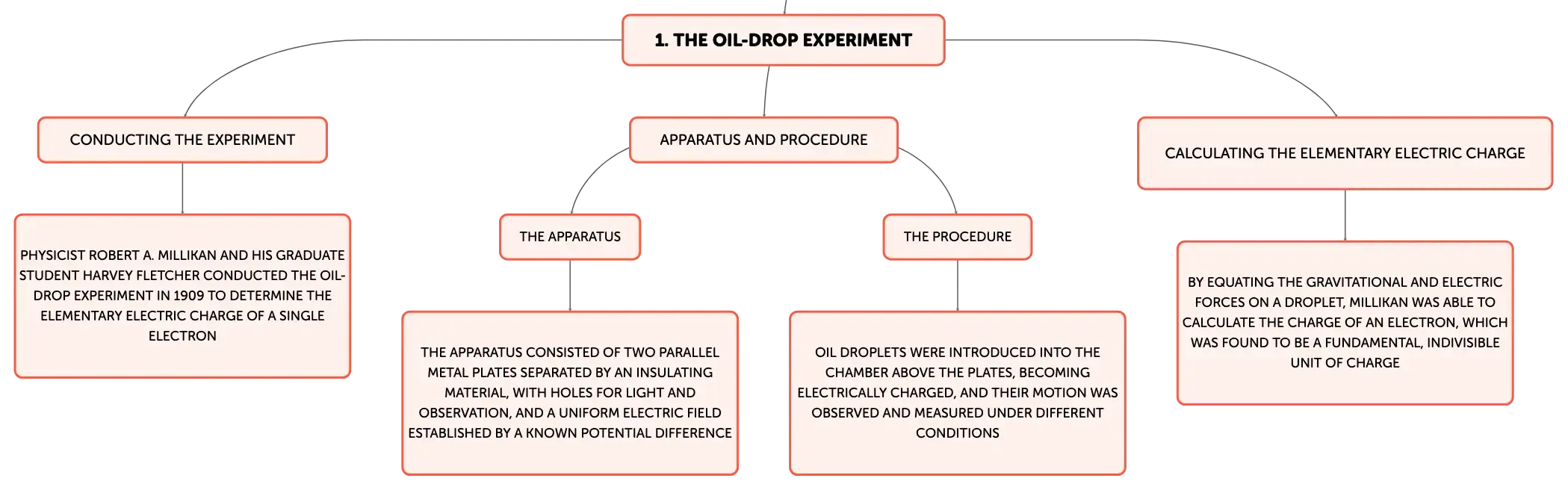

The Ingenious Design of the Oil-Drop Apparatus

The apparatus for Millikan's oil-drop experiment was ingeniously crafted, consisting of two parallel metal plates separated by an insulating material. The plates had holes to allow for the introduction of light and for observation with a microscope. A uniform electric field was established between the plates by applying a known potential difference. Oil droplets, selected for their stability and low vapor pressure, were introduced into the chamber above the plates. These droplets became electrically charged either through friction with the atomizing nozzle or by exposure to ionizing radiation, such as X-rays.

Measuring the Charge on Oil Droplets

The experimental procedure involved observing the motion of the oil droplets between the plates. Initially, with the electric field turned off, the droplets fell under gravity, reaching a terminal velocity where the gravitational force was balanced by the viscous drag of the air. When the electric field was applied, it exerted a force on the charged droplets, causing them to move upward or downward depending on the polarity of the charge. By carefully adjusting the voltage, Millikan could suspend a charged droplet in equilibrium. This meticulous balancing act allowed him to calculate the charge on the droplet by considering the forces at play.

Determining the Elementary Electric Charge

To calculate the elementary electric charge, Millikan equated the gravitational force on a droplet (its mass times the acceleration due to gravity) with the electric force (the charge times the electric field strength). The mass of the droplet was inferred from its terminal velocity when the electric field was off, using the known viscosity of air. The applied voltage and the distance between the plates provided the electric field strength. By rearranging the force balance equation, Millikan could solve for the charge on the droplet. Repeated measurements on multiple droplets revealed that the charges were always multiples of a smallest, fundamental value—the charge of the electron.

Implications of Millikan's Experimental Results

Millikan's precise measurements established the charge of an electron as approximately -1.60 x 10^-19 Coulombs, with an initial accuracy of about 1%, later refined to 0.1%. His results provided compelling evidence for the quantization of electric charge; that is, electric charge occurs in discrete units equal to integer multiples of the electron's charge. This discovery was crucial for the development of atomic theory, as it confirmed that electrons are fundamental, indivisible units of charge that can be transferred between atoms.

Millikan's Contributions to the Photoelectric Effect

Millikan's research extended beyond the charge of the electron to the study of the photoelectric effect, where light ejects electrons from a material. Initially skeptical of Albert Einstein's explanation of the photoelectric effect, which proposed that light consists of quanta or photons, Millikan aimed to disprove the theory. However, his precise experiments, which measured the energy of ejected electrons, ended up confirming Einstein's hypothesis. This work not only supported Einstein's 1921 Nobel Prize but also earned Millikan the Nobel Prize in Physics in 1923 for his work on the elementary charge of the electron and on the photoelectric effect.

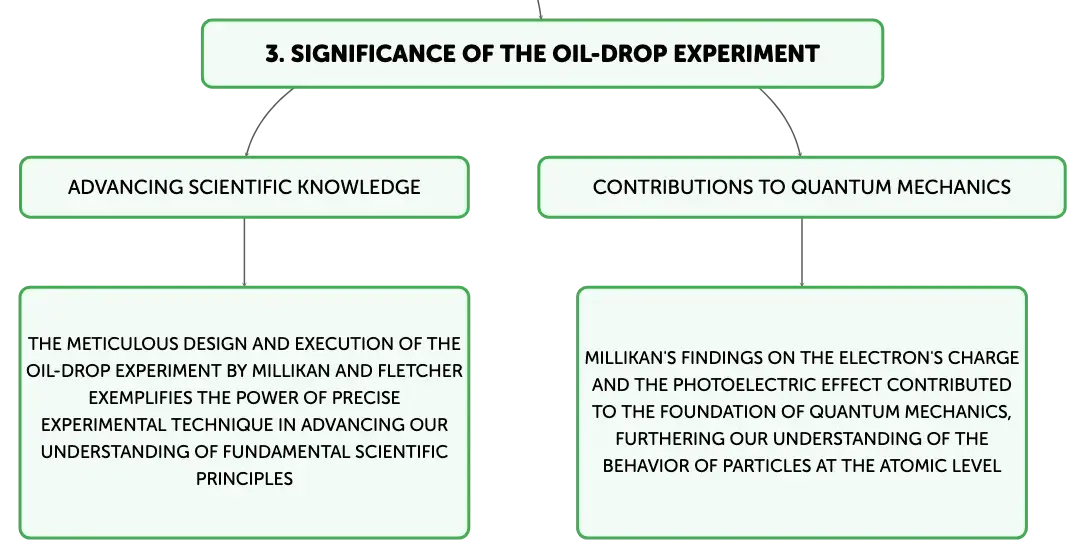

Legacy of the Oil-Drop Experiment

In conclusion, the oil-drop experiment by Millikan and Fletcher stands as a cornerstone in the history of physics, providing an accurate measurement of the electron's charge and affirming the principle of charge quantization. The careful design of the experiment, involving the manipulation of oil droplets between electrically charged plates, was pivotal to its success. Millikan's findings had far-reaching implications, reinforcing the photoelectric effect and contributing to the foundation of quantum mechanics. The oil-drop experiment exemplifies the power of precise experimental technique in advancing scientific knowledge.
