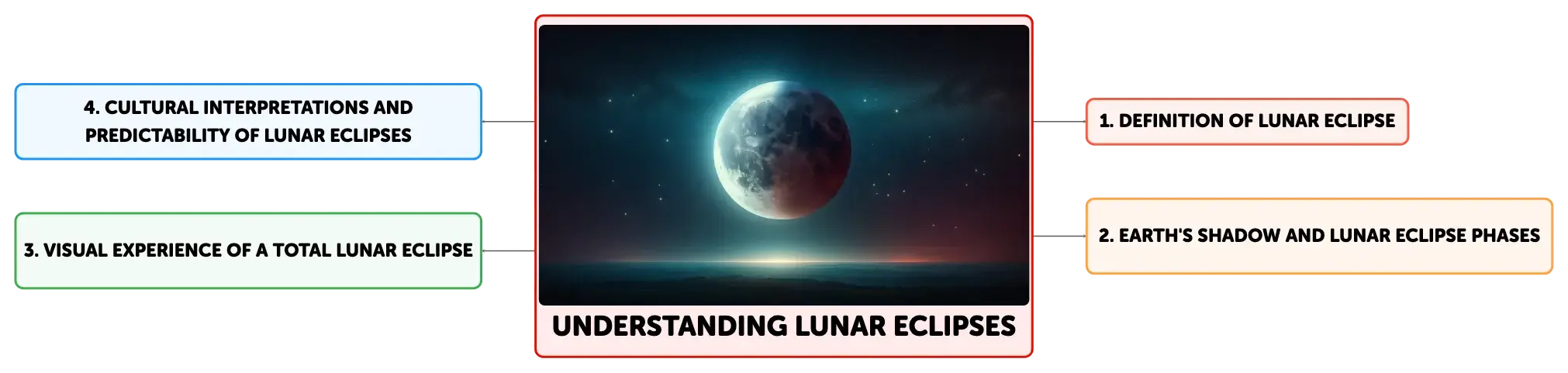

Understanding Lunar Eclipses
Concept Map
Algorino
Edit available
Lunar eclipses are captivating events where the Earth casts a shadow on the Moon, with types ranging from penumbral to total eclipses. They reveal the Earth's umbra and penumbra, and during a total eclipse, the Moon can appear red due to atmospheric filtering of sunlight. These eclipses have deep cultural roots and are predictable thanks to cycles like the Saros.
Summary
Outline
Understanding Lunar Eclipses
A lunar eclipse is an astronomical event that occurs when the Earth comes between the Sun and the Moon, casting a shadow on the Moon. This event can only happen during a full moon when the Sun, Earth, and Moon are nearly in a straight line, with the Earth in the middle. For a lunar eclipse to occur, the Moon must be near one of its orbital nodes, the points where its orbit intersects the ecliptic, which is the plane of Earth's orbit around the Sun.The Earth's Shadow and Types of Lunar Eclipses
Earth's shadow is composed of two distinct parts: the umbra, where all direct sunlight is blocked, and the penumbra, where only a portion of the sunlight is obscured. Lunar eclipses are classified into three types: penumbral, partial, and total. In a penumbral eclipse, the Moon passes through the Earth's penumbra, causing a slight shading on the Moon's surface. A partial eclipse occurs when a portion of the Moon enters the umbra, leading to a visible darkening of a part of the lunar surface. During a total lunar eclipse, the entire Moon falls within the umbra, often displaying a reddish color due to the Earth's atmosphere filtering and bending the sunlight that reaches the Moon.The Visual Experience of a Total Lunar Eclipse
The total lunar eclipse is notable for the Moon's transformation into a reddish color, commonly referred to as a "blood moon." This coloration is due to the Earth's atmosphere, which scatters shorter-wavelength light and allows longer-wavelength red light to reach the Moon. Observing a total lunar eclipse is safe without protective eyewear. The duration of totality can last up to nearly two hours, which is longer than the total phase of a solar eclipse, because the Earth's shadow is much larger than the Moon.Central Lunar Eclipses and Selenelions
Central lunar eclipses are a rare form of total lunar eclipse where the Moon passes centrally through the Earth's umbra, maximizing the duration of totality. Equally rare are selenelions, a phenomenon that occurs when the eclipsed Moon and the rising or setting Sun are visible simultaneously due to atmospheric refraction. This optical effect causes both celestial bodies to appear above the horizon when they are actually geometrically below it.Phases and Timing of Lunar Eclipses
The progression of a lunar eclipse is marked by a series of contacts, or distinct phases. The initial phase, or first contact, begins with the penumbral eclipse, followed by the second contact, which signals the start of the partial eclipse. The third contact marks the onset of totality, with the point of greatest eclipse representing the peak of the event. The fourth contact signifies the conclusion of totality, the fifth contact ends the partial phase, and the sixth contact concludes the penumbral eclipse.The Danjon Scale for Lunar Eclipse Brightness
The Danjon scale is a five-point system used to describe the brightness and color of a lunar eclipse. It ranges from L=0, indicating an extremely dark eclipse, to L=4, which signifies a very bright eclipse with a copper-red or orange hue. The appearance of the Moon during an eclipse is influenced by atmospheric conditions, such as volcanic ash or dust storms, which can affect the amount of sunlight refracted towards the Moon.Cultural Interpretations and Myths of Lunar Eclipses
Throughout history, lunar eclipses have been imbued with cultural and mythological significance. Different cultures have created stories and legends to explain the temporary disappearance of the Moon. For instance, the Incas believed a jaguar attacked the Moon, causing a lunar eclipse, while in Mesopotamian lore, the event was seen as the Moon being assaulted by seven demons. Scientifically, lunar eclipses have been used to understand celestial mechanics, such as by the Ancient Greeks who deduced the Earth's spherical shape from the circular shadow cast on the Moon during an eclipse.Predictability and Occurrence of Lunar Eclipses
Lunar eclipses are relatively frequent and predictable events, with at least two occurring each year. Their predictability is due to the regularity of the Moon's orbit and eclipse cycles, such as the Saros cycle, which spans approximately 18 years. Eclipses occur during an eclipse season, a period when the Sun is near the Moon's orbital nodes, allowing the Sun, Earth, and Moon to align precisely enough for an eclipse to take place.
Show More

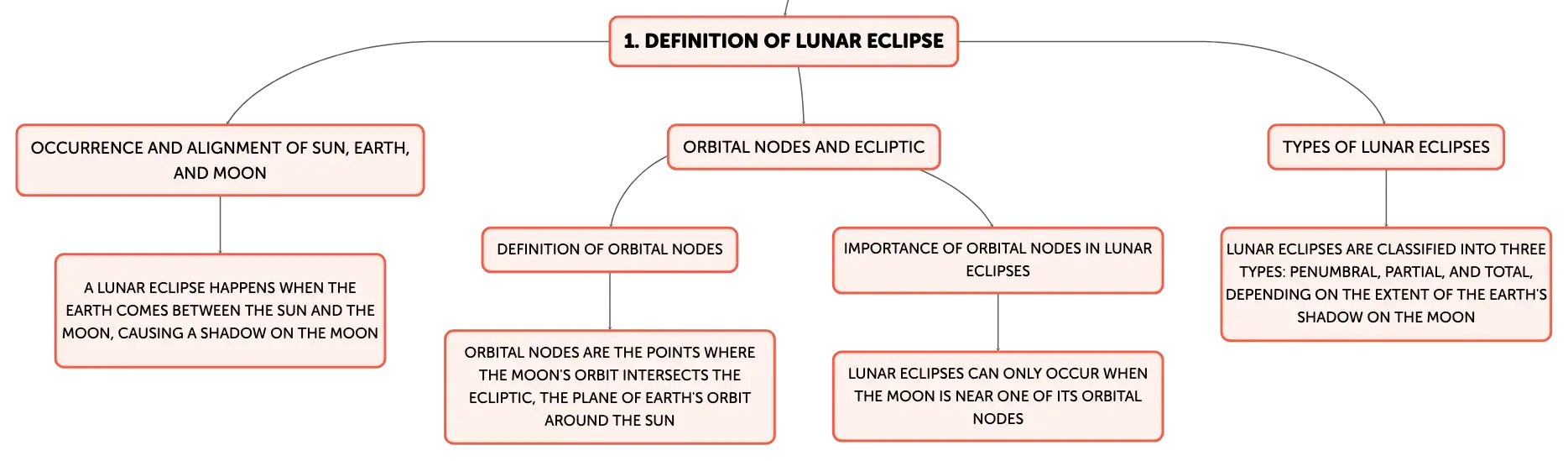

Definition of Lunar Eclipse
Occurrence and alignment of Sun, Earth, and Moon
A lunar eclipse happens when the Earth comes between the Sun and the Moon, causing a shadow on the Moon
Orbital nodes and ecliptic
Definition of orbital nodes
Orbital nodes are the points where the Moon's orbit intersects the ecliptic, the plane of Earth's orbit around the Sun
Importance of orbital nodes in lunar eclipses
Lunar eclipses can only occur when the Moon is near one of its orbital nodes
Types of Lunar Eclipses
Lunar eclipses are classified into three types: penumbral, partial, and total, depending on the extent of the Earth's shadow on the Moon

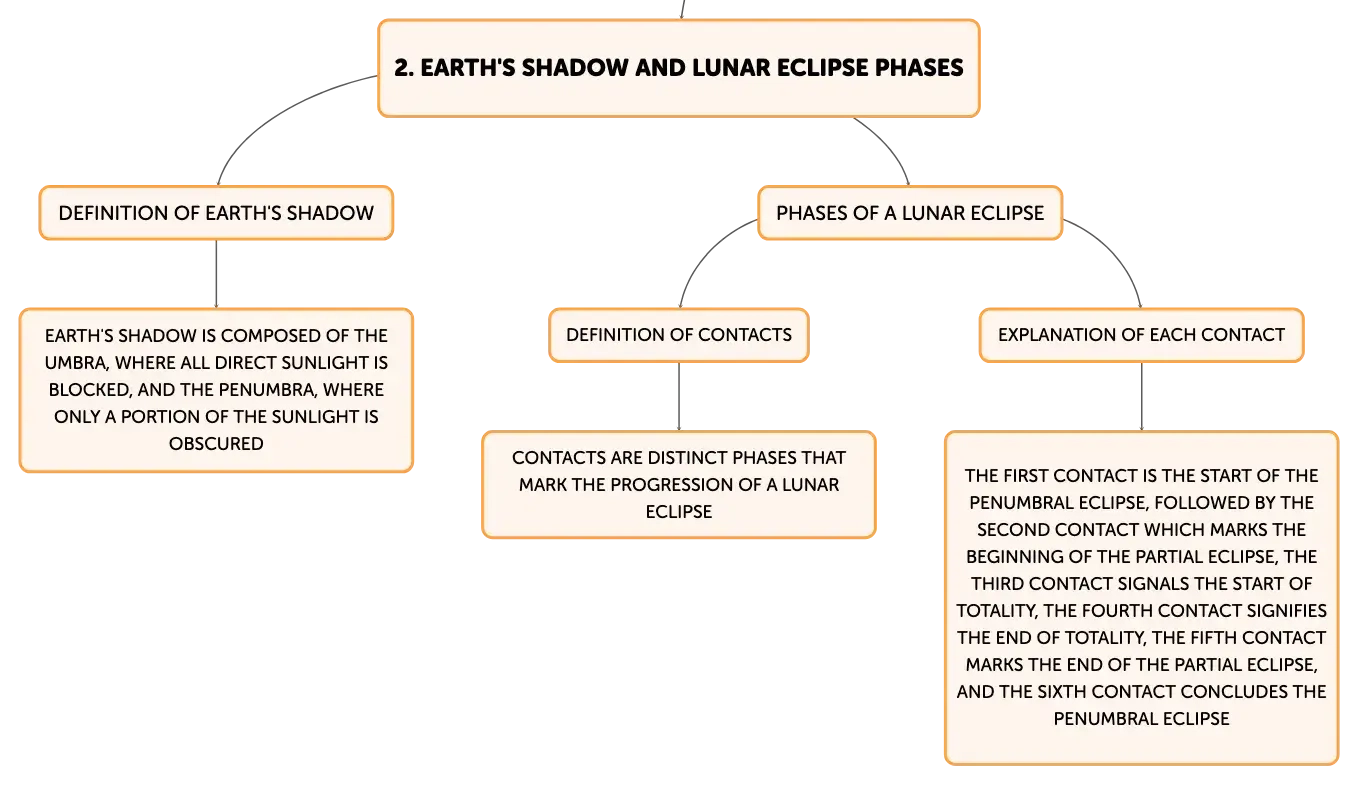

Earth's Shadow and Lunar Eclipse Phases
Definition of Earth's shadow
Earth's shadow is composed of the umbra, where all direct sunlight is blocked, and the penumbra, where only a portion of the sunlight is obscured
Phases of a Lunar Eclipse
Definition of contacts
Contacts are distinct phases that mark the progression of a lunar eclipse
Explanation of each contact
The first contact is the start of the penumbral eclipse, followed by the second contact which marks the beginning of the partial eclipse, the third contact signals the start of totality, the fourth contact signifies the end of totality, the fifth contact marks the end of the partial eclipse, and the sixth contact concludes the penumbral eclipse

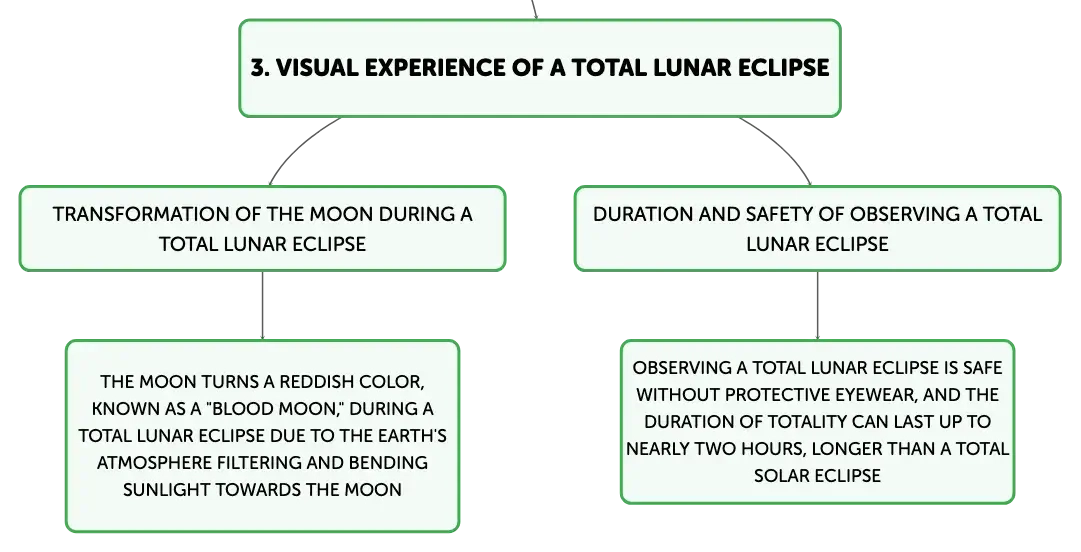

Visual Experience of a Total Lunar Eclipse
Transformation of the Moon during a total lunar eclipse
The Moon turns a reddish color, known as a "blood moon," during a total lunar eclipse due to the Earth's atmosphere filtering and bending sunlight towards the Moon
Duration and safety of observing a total lunar eclipse
Observing a total lunar eclipse is safe without protective eyewear, and the duration of totality can last up to nearly two hours, longer than a total solar eclipse

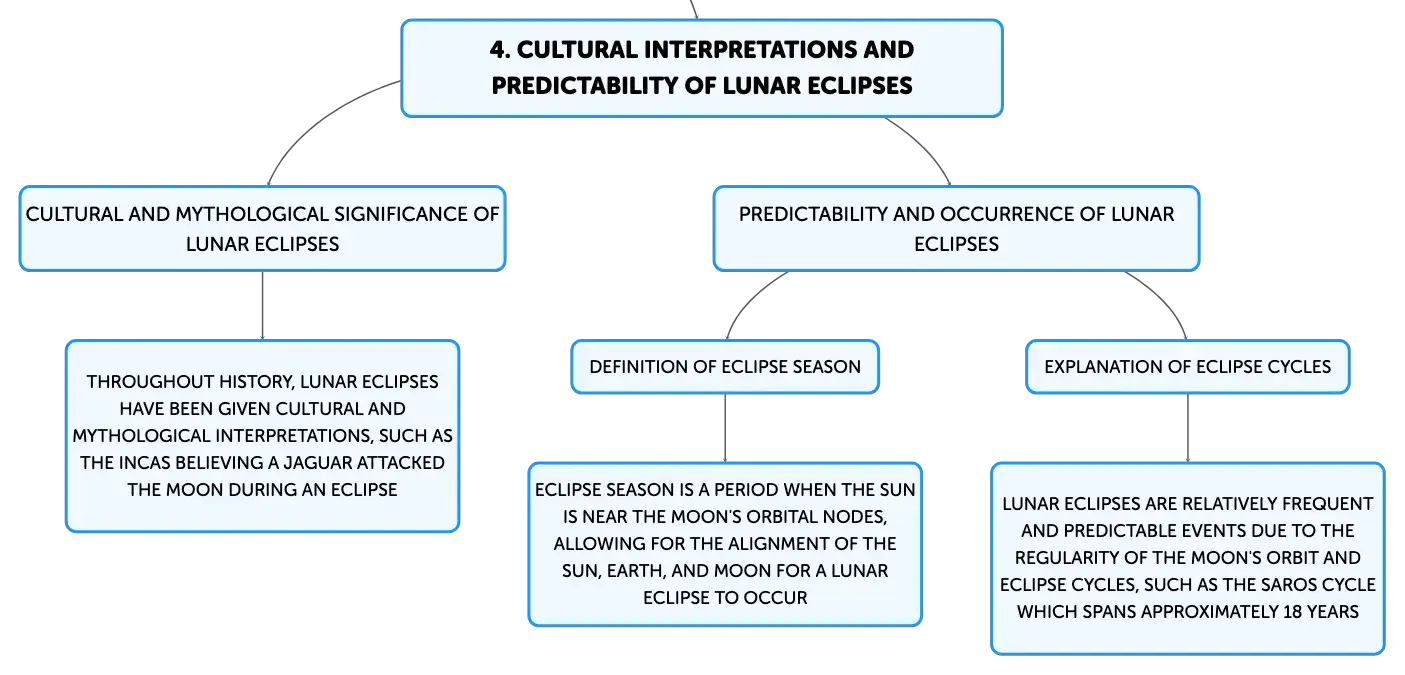

Cultural Interpretations and Predictability of Lunar Eclipses
Cultural and mythological significance of lunar eclipses
Throughout history, lunar eclipses have been given cultural and mythological interpretations, such as the Incas believing a jaguar attacked the Moon during an eclipse
Predictability and occurrence of lunar eclipses
Definition of eclipse season
Eclipse season is a period when the Sun is near the Moon's orbital nodes, allowing for the alignment of the Sun, Earth, and Moon for a lunar eclipse to occur
Explanation of eclipse cycles
Lunar eclipses are relatively frequent and predictable events due to the regularity of the Moon's orbit and eclipse cycles, such as the Saros cycle which spans approximately 18 years
Understanding Lunar Eclipses
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
Lunar eclipse alignment
Sun, Earth, Moon align nearly straight; Earth between Sun and Moon.
01
Lunar eclipse timing
Occurs only during full moon phase.
02
A ______ lunar eclipse is when the Moon only skirts through the Earth's ______, resulting in minor shading.
penumbral
penumbra
