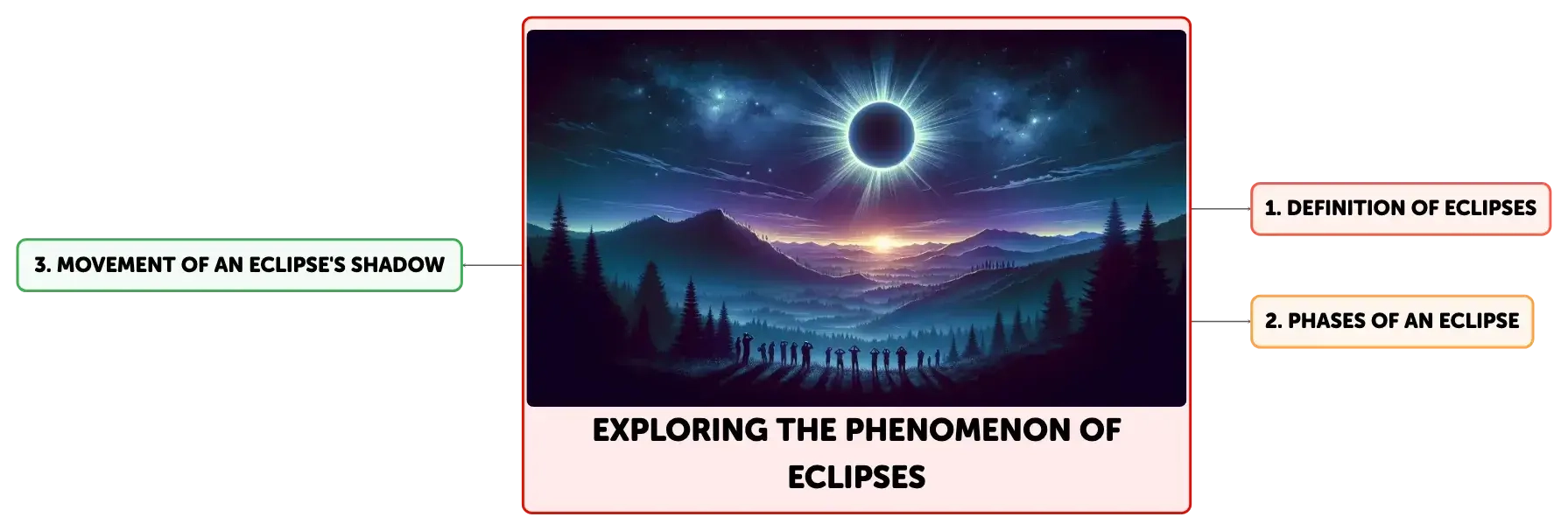

Concept Map
Algorino
Edit available
Eclipses are astronomical events where celestial bodies like the Sun, Earth, and Moon align, causing shadows with regions named umbra, penumbra, and antumbra. These shadows lead to different types of eclipses: total, annular, and partial, each offering a unique viewing experience. The text delves into the progression of an eclipse, the calculation of the umbra's length, and the movement of an eclipse's shadow across Earth.
Summary
Outline
Exploring the Phenomenon of Eclipses
An eclipse is a captivating astronomical event that occurs when one celestial body moves into the shadow of another. This interaction involves at least three celestial bodies, such as the Sun, Earth, and Moon. During an eclipse, the light from a star, like the Sun, is blocked by an intervening celestial body, casting a shadow that can fall upon another body. The duration and type of eclipse depend on the alignment and relative motion of these celestial bodies.The Structure of Shadows: Understanding Umbra, Penumbra, and Antumbra
The shadow created during an eclipse consists of three parts: the umbra, penumbra, and antumbra. The umbra is the fully shaded inner region where the light from the source is entirely blocked, resulting in total darkness. Surrounding the umbra is the penumbra, a partially shaded area where the light source is only partly obscured. Beyond the umbra lies the antumbra, where the occluding body appears smaller than the light source, allowing for a ring of light to be visible around it. These regions are crucial in determining the type of eclipse an observer on Earth will see.Classifying Eclipses: Total, Annular, and Partial
Eclipses are classified based on an observer's position relative to the shadow regions. A total eclipse occurs when an observer is within the umbra, and the light source is completely hidden. An annular eclipse takes place when the observer is in the antumbra, and a bright ring of the light source encircles the occluding body. A partial eclipse is seen when the observer is in the penumbra, with only a part of the light source being obscured. In the case of lunar eclipses, the antumbra does not play a role, as the Moon does not extend beyond the Earth's umbra.The Progression of an Eclipse: Key Contact Points
An eclipse unfolds through specific phases, each defined by contact points. The initial contact happens when the occluding body first grazes the light source, signaling the start of the eclipse. The second contact marks the beginning of a total or annular eclipse, with the occluding body fully within the light source's disc. The third contact indicates the end of the total or annular phase, as the occluding body begins to move away from the light source. The final contact occurs when the occluding body leaves the light source's disc, concluding the eclipse.Determining the Length of the Umbra
The length of the umbra can be calculated using geometric principles, considering the sizes of the light source and the occluding body, as well as the distance between them. For the Earth-Moon system, the Earth's umbra is long enough to envelop the Moon during a lunar eclipse. However, Earth's atmosphere can refract sunlight into the umbra, illuminating the Moon with a reddish hue during a total lunar eclipse. This phenomenon is known as a "blood moon."The Movement of an Eclipse's Shadow Across Earth
The speed at which an eclipse's shadow moves over the Earth's surface is not constant and can exceed 1 km per second. This speed varies depending on the shadow's geographic location and the angle of intersection with Earth's surface. The rotation of the Earth and the orbital motion of the Moon cause the shadow to trace a predictable path. This allows for precise forecasting of eclipse paths, enabling observers to plan for viewing opportunities.
Show More

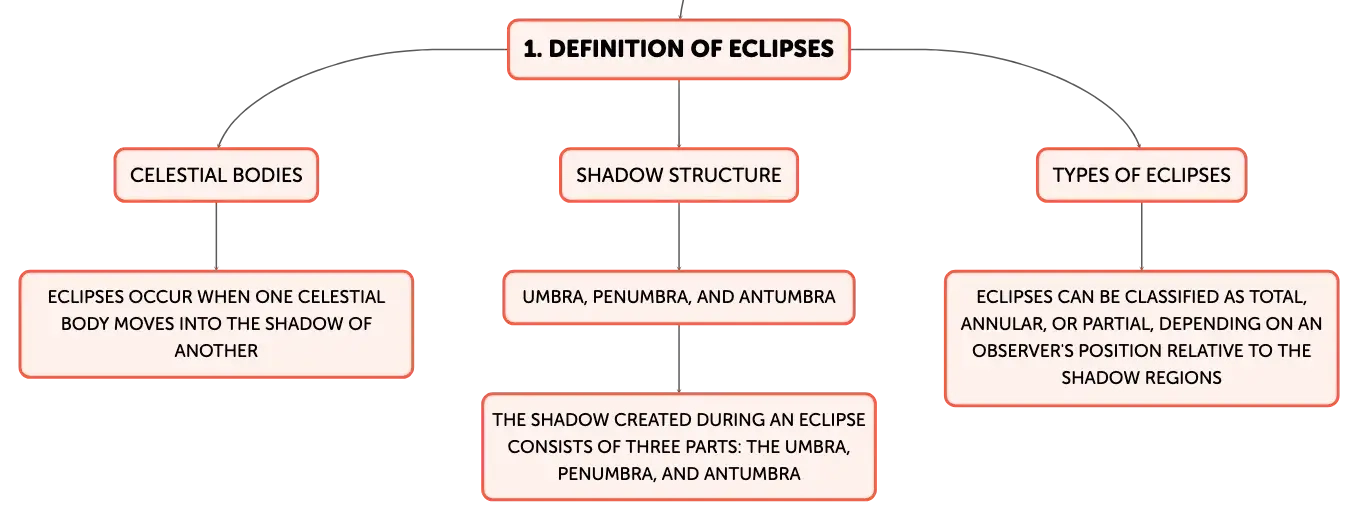

Definition of Eclipses
Celestial Bodies
Eclipses occur when one celestial body moves into the shadow of another
Shadow Structure
Umbra, Penumbra, and Antumbra
The shadow created during an eclipse consists of three parts: the umbra, penumbra, and antumbra
Types of Eclipses
Eclipses can be classified as total, annular, or partial, depending on an observer's position relative to the shadow regions

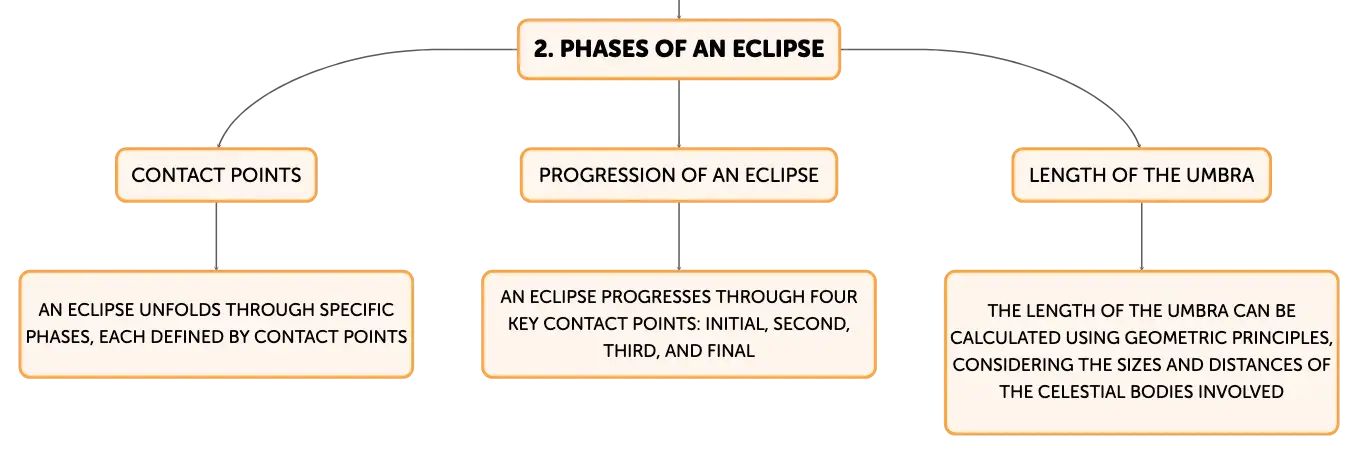

Phases of an Eclipse
Contact Points
An eclipse unfolds through specific phases, each defined by contact points
Progression of an Eclipse
An eclipse progresses through four key contact points: initial, second, third, and final
Length of the Umbra
The length of the umbra can be calculated using geometric principles, considering the sizes and distances of the celestial bodies involved

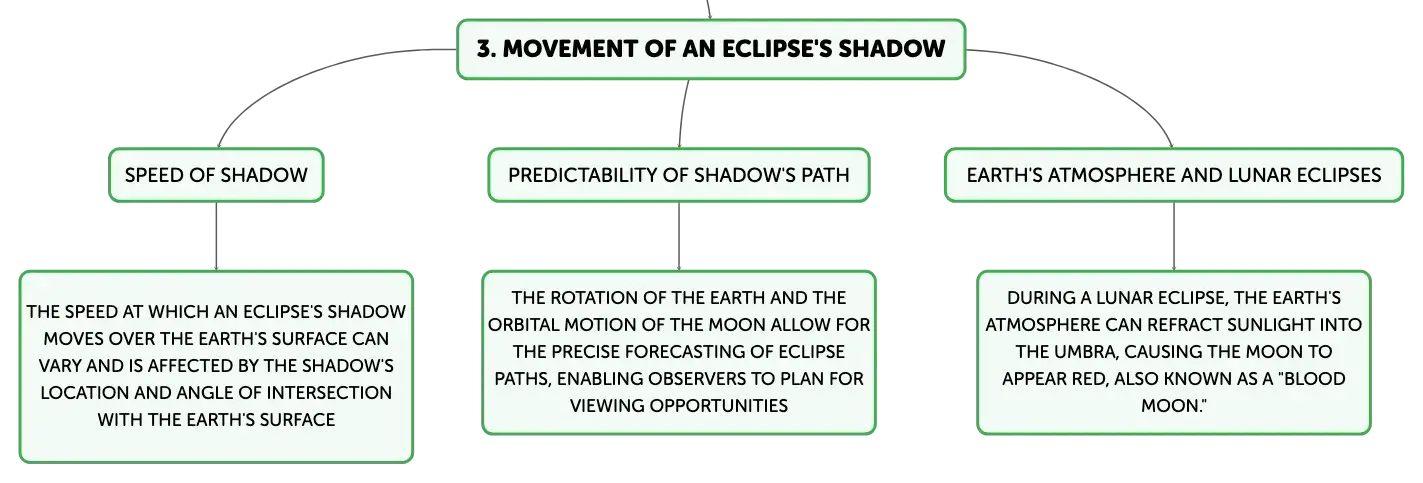

Movement of an Eclipse's Shadow
Speed of Shadow
The speed at which an eclipse's shadow moves over the Earth's surface can vary and is affected by the shadow's location and angle of intersection with the Earth's surface
Predictability of Shadow's Path
The rotation of the Earth and the orbital motion of the Moon allow for the precise forecasting of eclipse paths, enabling observers to plan for viewing opportunities
Earth's Atmosphere and Lunar Eclipses
During a lunar eclipse, the Earth's atmosphere can refract sunlight into the umbra, causing the Moon to appear red, also known as a "blood moon."
Exploring the Phenomenon of Eclipses
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
Celestial bodies involved in an eclipse
Eclipses occur with at least three celestial bodies, such as Sun, Earth, Moon.
01
Eclipse duration and type factors
Depend on alignment, relative motion of celestial bodies.
02
During an eclipse, the innermost part that is completely shaded is called the ______.
umbra
