SQL Join Operations

SQL join operations are essential for merging data from multiple tables in a relational database. They include Inner join, Outer join (LEFT, RIGHT, FULL), Cross join, and Self join, each with specific use cases. Understanding these joins is crucial for database professionals to construct complex queries and perform advanced data manipulation, enabling efficient and precise data retrieval.

see more
Open map in editor

1

6

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

The main types of joins are ______, ______, ______, and ______, each with a specific role in data retrieval.

Click to check the answer

Inner join Outer join Cross join Self join

2

Default join type when unspecified in SQL

Click to check the answer

Inner join is the default join type used if no join type is explicitly specified in a SQL query.

3

Syntax requirement for Inner join

Click to check the answer

The syntax for an inner join requires the INNER JOIN clause followed by the ON clause to define the join condition.

4

Inner join usage example

Click to check the answer

To match customer orders with customer names from two tables, an inner join uses customer IDs to join and retrieve related data.

5

Outer joins not only retrieve ______ rows but also those that are ______ from one or both tables.

Click to check the answer

matched unmatched

6

A ______ combines the features of both LEFT and RIGHT joins, returning all rows with a match in ______ table.

Click to check the answer

FULL JOIN either

7

Definition of Cross join

Click to check the answer

Combines each row from one table with all rows from another, no join condition.

8

Use case of Cross joins

Click to check the answer

Used for comprehensive row combinations, essential in specific data analysis tasks.

9

In terms of functionality, a self join is similar to an ______ join, but it's used on a ______ table to perform complex comparisons.

Click to check the answer

inner single

10

Join Operations: Row Merging Basis

Click to check the answer

Joins merge rows based on related columns via conditions like keys or fields.

11

Set Operators: Result Set Unification

Click to check the answer

Set operators unite result sets by set theory: UNION, UNION ALL, INTERSECT, EXCEPT.

12

Column Structure: Set Operators Requirement

Click to check the answer

Set operators require identical column structures in SELECT statements for operation.

13

In SQL, ______ joins are best for combining related data from different tables.

Click to check the answer

Inner

14

______ joins are useful in SQL when one needs to include rows that do not have matching counterparts in other tables.

Click to check the answer

Outer

15

SQL Join Types

Click to check the answer

Inner, outer, cross, self joins; each with unique syntax and use cases.

16

Join Operation Role in SQL

Click to check the answer

Merges data from multiple tables; crucial for database management and query optimization.

17

Data Retrieval Customization

Click to check the answer

Different join types enable tailored data extraction to meet diverse requirements.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Computer Memory

View document

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

Computer Science

Secondary Storage in Computer Systems

View document

Computer Science

Understanding Processor Cores

View document

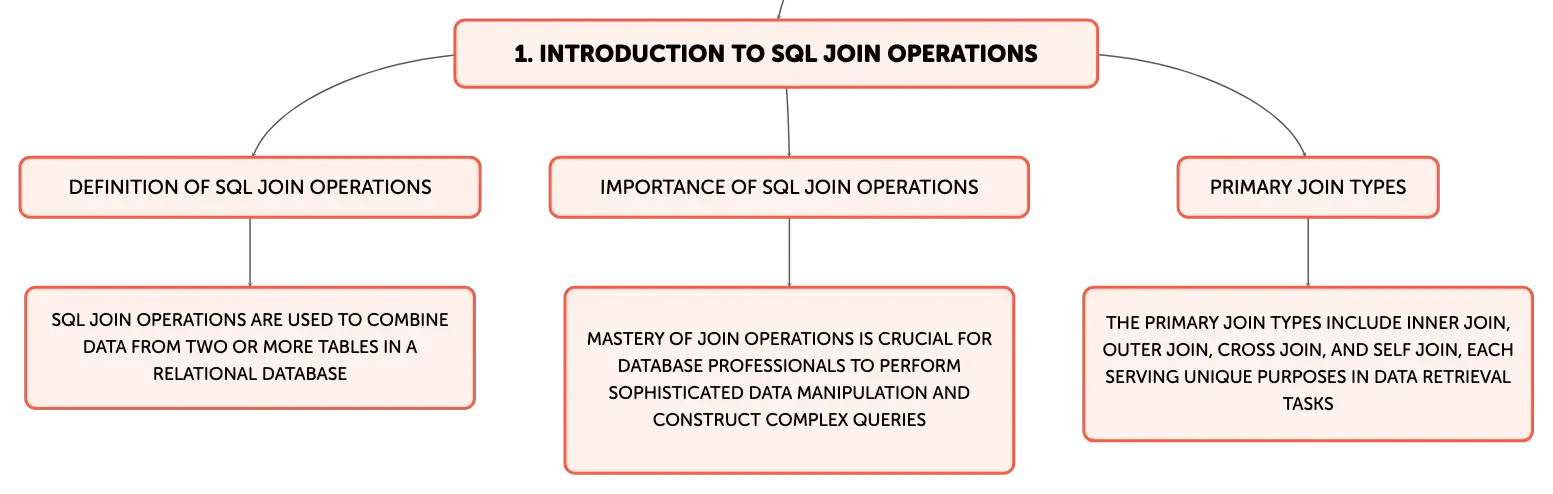

Exploring SQL Join Operations

SQL Join operations are a cornerstone of relational database management, allowing for the combination of data from two or more tables. These operations hinge on specific conditions that dictate the merging of rows from the involved tables. Mastery of join operations is crucial for database professionals to perform sophisticated data manipulation and construct complex queries. The primary join types include Inner join, Outer join (subdivided into LEFT, RIGHT, and FULL joins), Cross join, and Self join, each serving unique purposes in data retrieval tasks.
Polished wooden table with four groups of marbles colored in blue, red, green and yellow and a central glass bowl with mixed marbles.

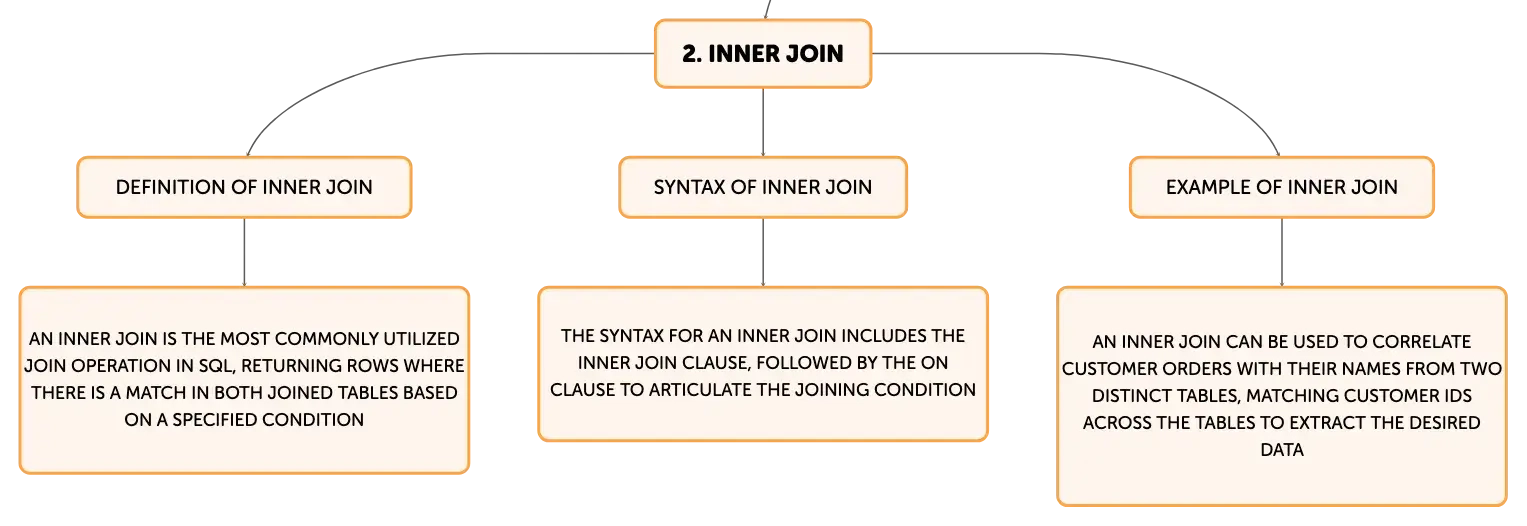

The Inner Join: A Fundamental SQL Operation

The Inner join is the most commonly utilized join operation in SQL, returning rows where there is a match in both joined tables based on a specified condition. It is implicitly used when the join type is not explicitly stated. The syntax for an inner join includes the INNER JOIN clause, followed by the ON clause to articulate the joining condition. For instance, to correlate customer orders with their names from two distinct tables, an inner join would be employed, matching customer IDs across the tables to extract the desired data.

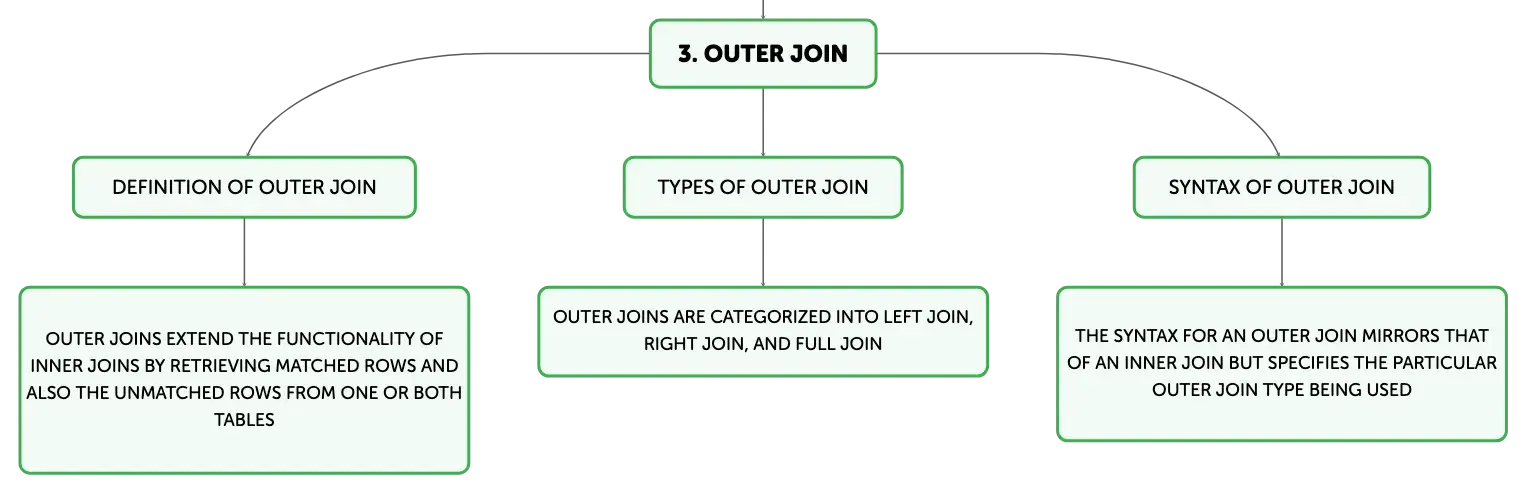

Outer Joins: Capturing Matched and Unmatched Data

Outer joins extend the functionality of inner joins by retrieving matched rows and also the unmatched rows from one or both tables. This join type is categorized into LEFT JOIN, RIGHT JOIN, and FULL JOIN. A LEFT JOIN fetches all rows from the left table with corresponding rows from the right table, while a RIGHT JOIN does the converse. A FULL JOIN amalgamates the behaviors of both, returning all rows with a match in either table. The syntax for an outer join mirrors that of an inner join but specifies the particular OUTER JOIN type being used.

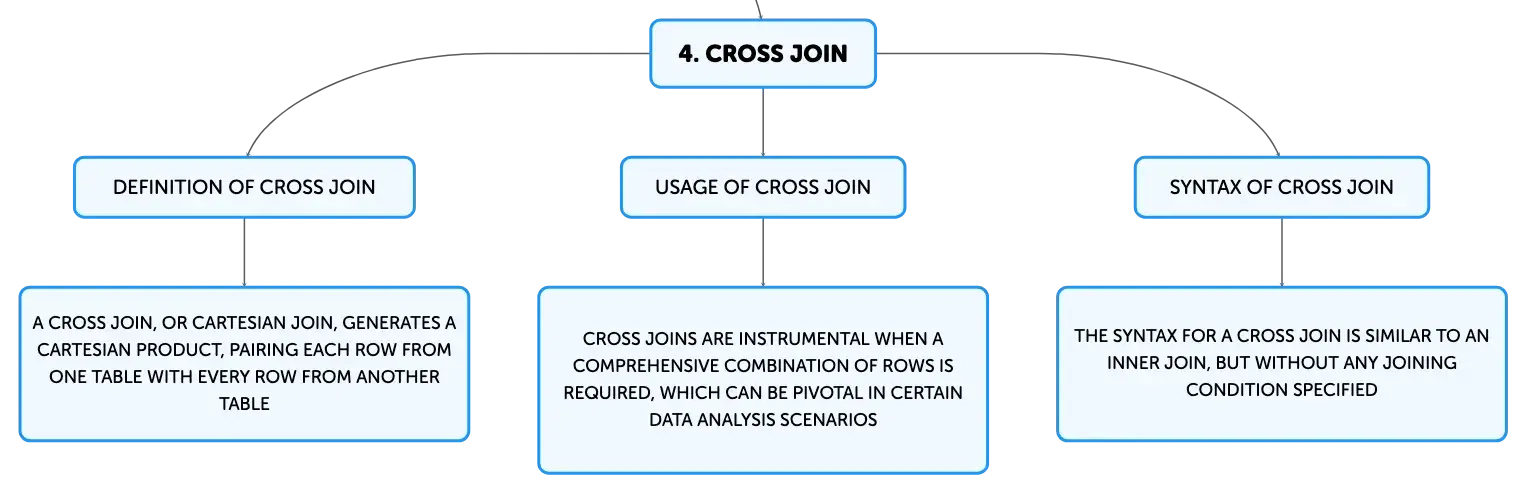

Cross Join: Producing Comprehensive Combinations

A Cross join, or Cartesian join, generates a Cartesian product, pairing each row from one table with every row from another table, without any joining condition to filter the results. The resulting dataset contains a number of rows equal to the product of the row counts of the two tables. Cross joins are instrumental when a comprehensive combination of rows is required, which can be pivotal in certain data analysis scenarios.

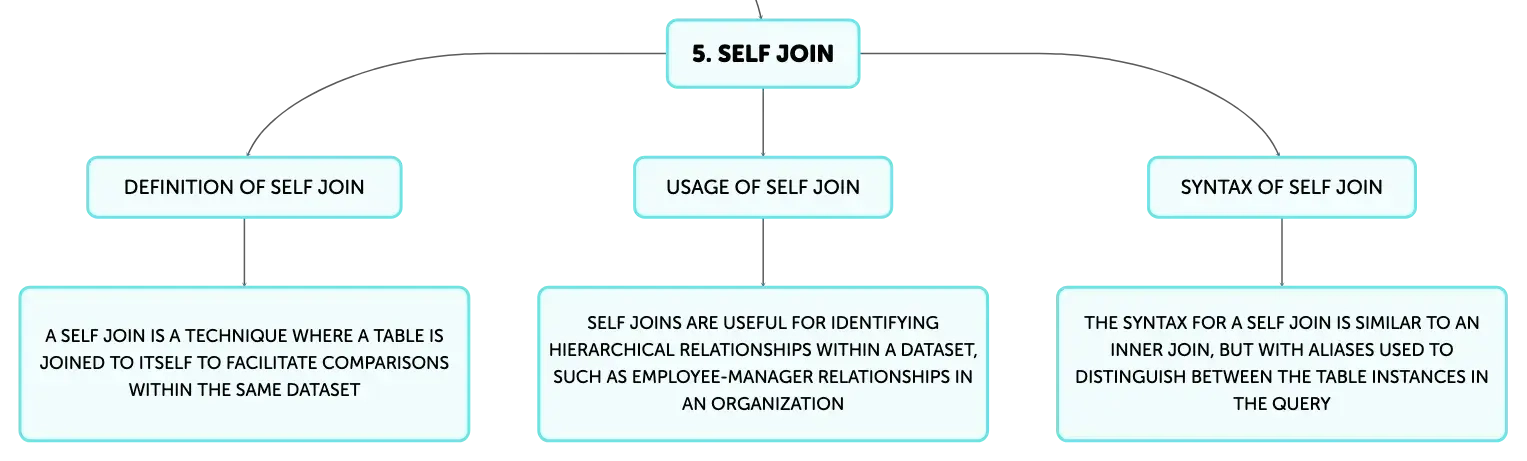

Self Join: Analyzing Data Within a Single Table

A Self join is a technique where a table is joined to itself to facilitate comparisons within the same dataset. Aliases are employed to distinguish between the table instances in the query. Functionally, a self join is akin to an inner join but applied to a single table, enabling intricate comparisons and data extraction from hierarchical structures, such as identifying employee-manager relationships within an organization.

Contrasting Join Operations with SQL Set Operators

Join operations and set operators are both used to consolidate data from different sources, but they follow distinct principles. Joins merge rows based on defined conditions, while set operators unite entire result sets following the principles of set theory. Set operators include UNION, UNION ALL, INTERSECT, and EXCEPT, and they necessitate compatible column structures across the SELECT statements. Joins offer more flexibility in column selection and condition specification, whereas set operators are more stringent, adhering to the rules of set theory.

Implementing Join Operations in Real-World SQL Queries

Join operations are fundamental to constructing real-world SQL queries, enabling the assembly of information from multiple relational database tables. A thorough understanding of the various join types and their application contexts empowers database administrators and developers to formulate efficient and precise queries. Inner joins are optimal for associating related data across tables, while outer joins are beneficial for including rows without corresponding matches in other tables. Cross joins and self joins, while more niche, are vital components of the SQL toolkit for specific analytical tasks.

Key Insights into SQL Join Operations

In conclusion, join operations are an integral feature of SQL, essential for merging data from multiple tables. Comprehending the subtleties of inner, outer, cross, and self joins is imperative for effective database management and query optimization. Each join type has its own syntax and designated use case, facilitating customized data retrieval to satisfy a variety of requirements. Proficiency in join operations is a critical skill for anyone working with SQL, as it significantly enhances the ability to manipulate and interpret data within a relational database environment.
