Polar Curves: Mathematical Entities in Nature and Fractals
Concept Map
Polar curves are fascinating mathematical shapes that appear in nature, such as in sunflower seeds and galaxies. Defined by polar coordinates, they can form intricate patterns like rose curves and spirals. This overview discusses their mathematical representation, types, symmetries, graphing techniques, and significance in fractals.
Summary
Outline
Exploring the World of Polar Curves and Their Occurrences in Nature
Polar curves are intriguing mathematical entities that manifest in a variety of natural forms, from the spiraling patterns of sunflower seeds to the grand structure of galaxies and the elegant shape of nautilus shells. These curves are defined using polar coordinates, a system that specifies the location of a point by its distance from a fixed central point (the pole) and the angle relative to a reference direction (usually the positive x-axis). This system is denoted by two values: the radial distance \( r \), and the angular coordinate \( \theta \). Polar functions, represented as \( r = f(\theta) \), can create intricate and diverse patterns, such as the rose curve, which is characterized by its petal-like structure and can be described by an equation like \( r = a\sin(n\theta) \) or \( r = a\cos(n\theta) \), where \( a \) and \( n \) are constants that affect the size and number of petals, respectively.Mathematical Representation of Polar Curves
Polar curves are mathematically depicted through equations that relate the radial distance \( r \) to the angle \( \theta \). The conversion between polar and Cartesian coordinates is facilitated by the equations \( r = \sqrt{x^2 + y^2} \) and \( \theta = \arctan{\frac{y}{x}} \), or through the relationships \( x = r\cos{\theta} \) and \( y = r\sin{\theta} \). A general polar equation takes the form \( r = f(\theta) \), which can describe a multitude of specific curve types, each with its own set of properties and equations that dictate its shape and behavior.Types of Polar Curves and Their Characteristics
Polar curves encompass a diverse range of types, each with unique features. Limaçons, for instance, may exhibit a loop, a dimple, or form a cardioid depending on the ratio of two constants in their equation. Rose curves, attributed to the work of mathematician Guido Grandi, display a number of petals that is determined by the coefficients in their equations. Archimedean spirals maintain a constant rate of increase in their radial distance per turn, while logarithmic spirals, also known as equiangular spirals, increase their radius by a factor that can be related to the natural logarithm. Cassini ovals and lemniscates represent other classes of polar curves, with lemniscates resembling a figure-eight shape and being a special case of Cassini ovals when the two foci are equidistant from the origin.Symmetry in Polar Curves
Many polar curves exhibit symmetries that can be leveraged to simplify their analysis and graphing. These symmetries include reflections about the polar axis (the line \( \theta = 0 \)), the pole (the origin), and the line \( \theta = \frac{\pi}{2} \) (the vertical line through the pole). A curve is symmetric about the polar axis if it remains unchanged when \( \theta \) is replaced with \( -\theta \) in its equation. Symmetry about the pole is present if the curve is unchanged when \( r \) is replaced with \( -r \). Symmetry about the line \( \theta = \frac{\pi}{2} \) occurs if the curve is unchanged when \( \theta \) is replaced with \( \pi - \theta \). Identifying these symmetries can simplify the process of plotting polar curves and understanding their structure.Techniques for Graphing and Analyzing Polar Curves
To graph polar curves, one must first comprehend their equations and inherent properties. This can be done by plotting points for various values of \( \theta \), checking for periodicity, and utilizing symmetries to minimize the effort required. Modern tools such as graphing calculators and software like Geogebra and Desmos can facilitate the visualization of these curves. The area enclosed by a polar curve can be calculated by integrating \( \frac{1}{2}r^2 \) with respect to \( \theta \), and the arc length of a segment of a polar curve is determined by integrating the square root of \( r^2 + \left( \frac{dr}{d\theta} \right)^2 \) over the relevant interval of \( \theta \). These mathematical methods enable a comprehensive exploration of polar curves and their geometric properties.The Role of Polar Curves in Fractals and the Mandelbrot Set
Beyond their presence in natural patterns, polar curves also play a significant role in the realm of fractals, which are complex, self-similar structures. The Mandelbrot set, a famous example of a fractal, features boundary shapes that echo polar curves, including cardioids and logarithmic spirals. The intricate boundary of the Mandelbrot set can be explored through sequences of lemniscates and other polar curve forms. This intersection of polar curves with fractal geometry underscores their widespread relevance and the deep connections they share with various branches of mathematics and natural sciences.
Show More

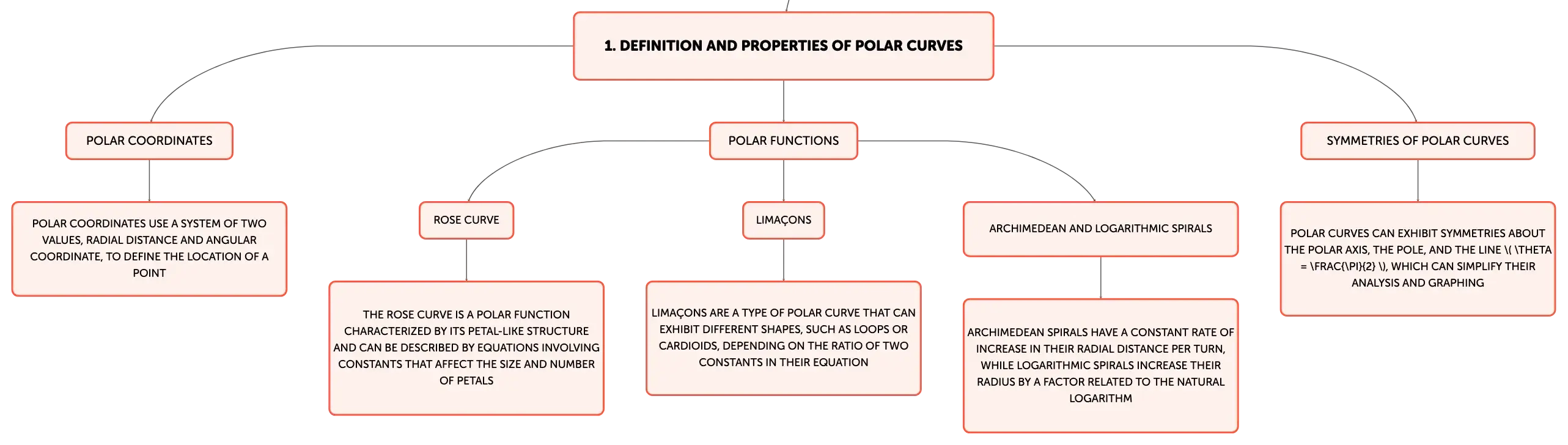

Definition and Properties of Polar Curves
Polar Coordinates
Polar coordinates use a system of two values, radial distance and angular coordinate, to define the location of a point
Polar Functions
Rose Curve
The rose curve is a polar function characterized by its petal-like structure and can be described by equations involving constants that affect the size and number of petals
Limaçons
Limaçons are a type of polar curve that can exhibit different shapes, such as loops or cardioids, depending on the ratio of two constants in their equation
Archimedean and Logarithmic Spirals
Archimedean spirals have a constant rate of increase in their radial distance per turn, while logarithmic spirals increase their radius by a factor related to the natural logarithm
Symmetries of Polar Curves
Polar curves can exhibit symmetries about the polar axis, the pole, and the line \( \theta = \frac{\pi}{2} \), which can simplify their analysis and graphing

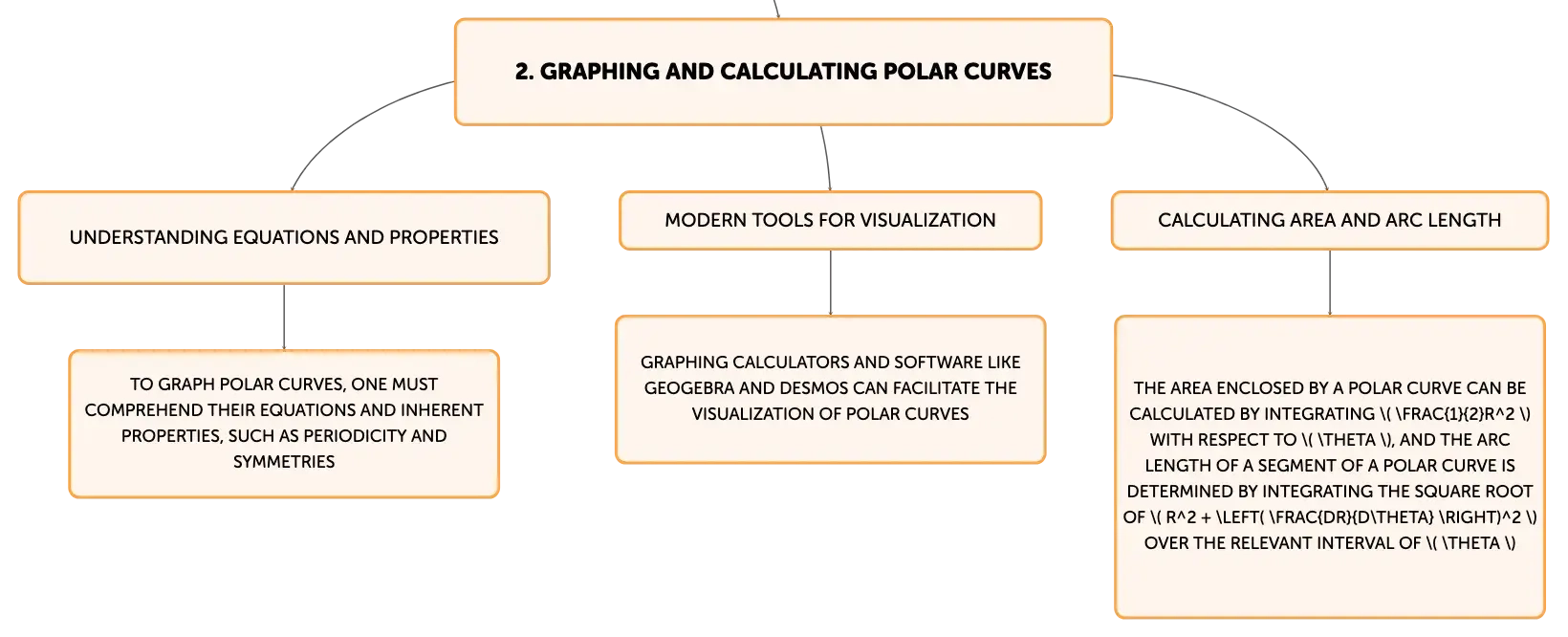

Graphing and Calculating Polar Curves
Understanding Equations and Properties
To graph polar curves, one must comprehend their equations and inherent properties, such as periodicity and symmetries
Modern Tools for Visualization
Graphing calculators and software like Geogebra and Desmos can facilitate the visualization of polar curves
Calculating Area and Arc Length
The area enclosed by a polar curve can be calculated by integrating \( \frac{1}{2}r^2 \) with respect to \( \theta \), and the arc length of a segment of a polar curve is determined by integrating the square root of \( r^2 + \left( \frac{dr}{d\theta} \right)^2 \) over the relevant interval of \( \theta \)

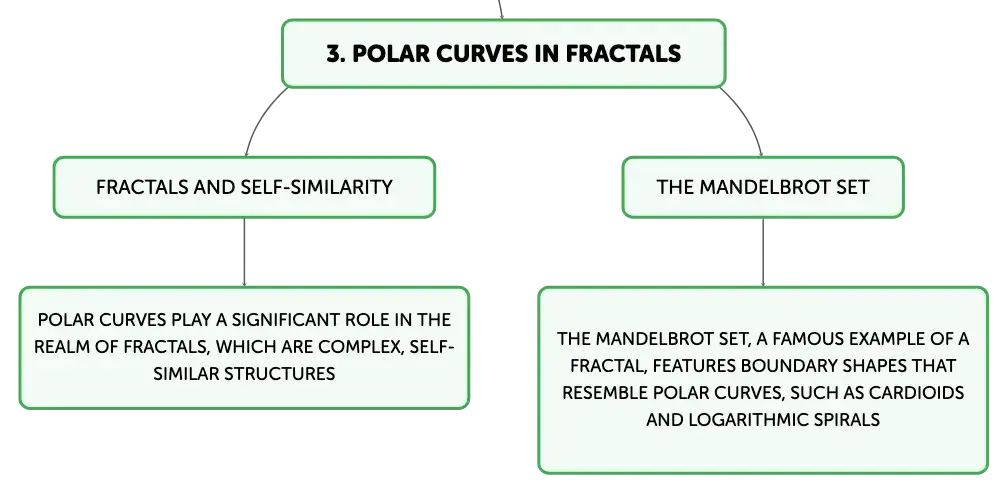

Polar Curves in Fractals
Fractals and Self-Similarity
Polar curves play a significant role in the realm of fractals, which are complex, self-similar structures
The Mandelbrot Set
The Mandelbrot set, a famous example of a fractal, features boundary shapes that resemble polar curves, such as cardioids and logarithmic spirals

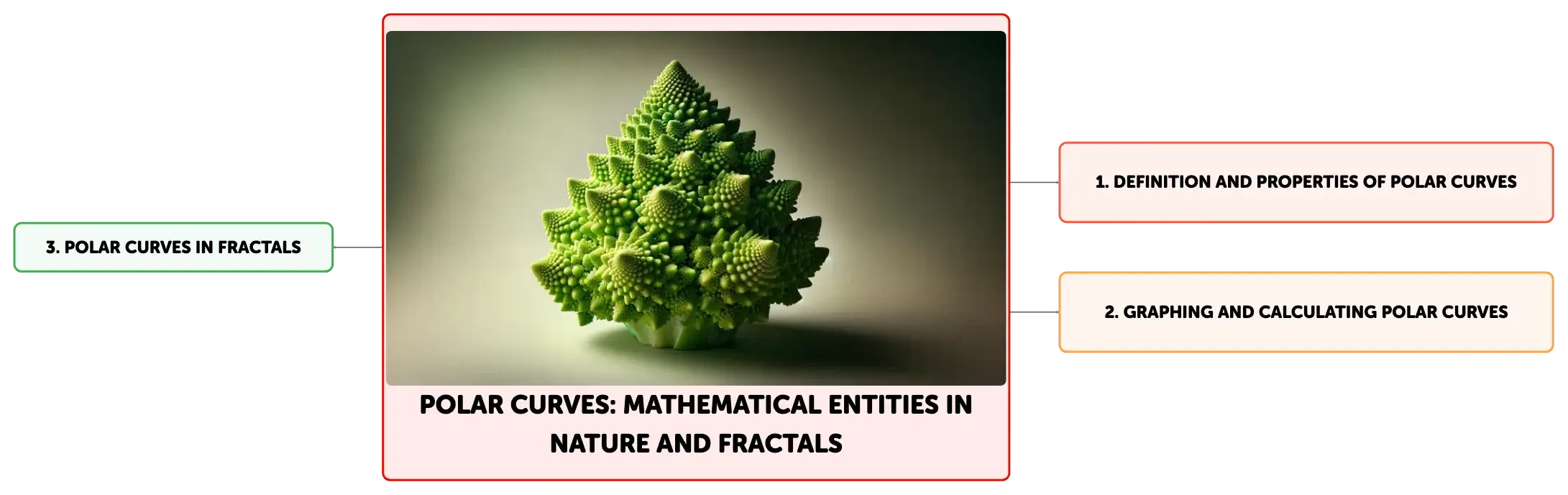

Polar Curves: Mathematical Entities in Nature and Fractals
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Limaçon Curve Characteristics
Limaçons may have a loop, dimple, or be a cardioid, based on constant ratio.
01
Rose Curve Petal Determination
Rose curve petals number depends on coefficients in equation, linked to Grandi's work.
02
Difference Between Archimedean and Logarithmic Spirals
Archimedean spirals grow at constant rate per turn; logarithmic spirals' radius increases by a factor related to natural logarithm.
