Heap Data Structure

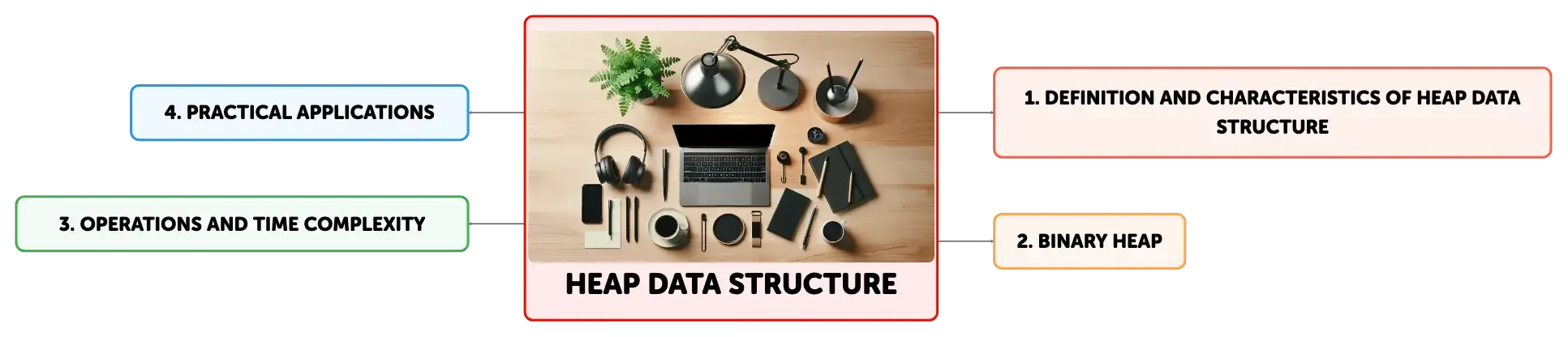

Concept Map
The heap data structure is a complete binary tree used for organizing data efficiently in computer science. It comes in two forms: Min Heap and Max Heap, each maintaining a specific order between parent and child nodes. This structure enables quick operations like insertion, deletion, and finding the minimum or maximum element, making it essential for algorithms like priority queues and heap sort. Distinct from heap memory, the heap data structure is crucial for data manipulation and large dataset management.
Summary
Outline
Exploring the Heap Data Structure in Computer Science
The heap data structure is an integral part of computer science, functioning as an efficient binary tree for organizing data. It is defined by its primary characteristic: in a Min Heap, each parent node's value is less than or equal to those of its children, and conversely, in a Max Heap, each parent node's value is greater than or equal to its children's values. This property allows heaps to efficiently perform operations such as finding the minimum or maximum element, which is why understanding heaps is crucial for both beginners and seasoned programmers.Binary Heap: Structure and Representation
A binary heap is a specific type of heap that is structured as a complete binary tree and is commonly implemented using an array. This ensures that all levels are fully filled except possibly the last, which is filled from left to right. Binary heaps are categorized into Min Heaps and Max Heaps, based on the ordering of parent and child nodes. The array-based representation of a binary heap allows for efficient element access and manipulation, with the root at index 0, and the children of the node at index i at indices 2i+1 and 2i+2, respectively.Heap Operations and Time Complexity Analysis
Heaps support various operations, each with a specific time complexity. Inserting a new element or deleting an element from a heap typically requires \(O(\log n)\) time, as these operations may involve traversing the height of the tree, which is proportional to the logarithm of the number of elements. Extracting the minimum or maximum value is done in constant time, \(O(1)\), but re-establishing the heap property afterward takes \(O(\log n)\) time. These efficient operations make heaps suitable for large datasets and critical for algorithms that frequently require the smallest or largest element, such as priority queues and heap sort.Practical Uses of Heap Data Structures
Heaps are employed in a variety of practical computing applications, valued for their efficiency and the structured order they provide. Priority queues, which are pivotal in task scheduling and certain graph algorithms like Dijkstra's and Prim's, are built using heaps. Heap sort, an efficient sorting algorithm, leverages the properties of heaps to sort elements. Additionally, heaps are utilized in hardware design for tasks such as memory allocation. However, this should not be confused with heap memory, which is a separate concept related to dynamic memory management during program execution.Heap Data Structures vs. Heap Memory: Clarifying the Difference
It is crucial to distinguish between the heap data structure and heap memory, as they serve different purposes in computer science. The heap data structure is a type of binary tree designed for efficient data organization and manipulation, known for its quick operation times. Heap memory, in contrast, is a memory area for dynamic allocation while a program is running. Despite sharing a common name, the heap data structure and heap memory are unrelated in function and application, with the former focusing on data hierarchy and the latter on managing memory at runtime.Fundamental Concepts and Terminology of Heap Data Structures
Understanding heap data structures requires familiarity with key concepts and terminology. The 'Root' is the topmost node in the heap, and 'Parent' and 'Child' nodes refer to the hierarchical relationships within the tree. The complete binary tree nature of heaps, combined with the Max Heap or Min Heap properties, ensures that operations such as insertion, deletion, and extraction maintain a logarithmic time complexity. This efficiency is advantageous for handling large datasets and performing rapid data manipulations, making heaps a valuable tool in various computational tasks.
Show More

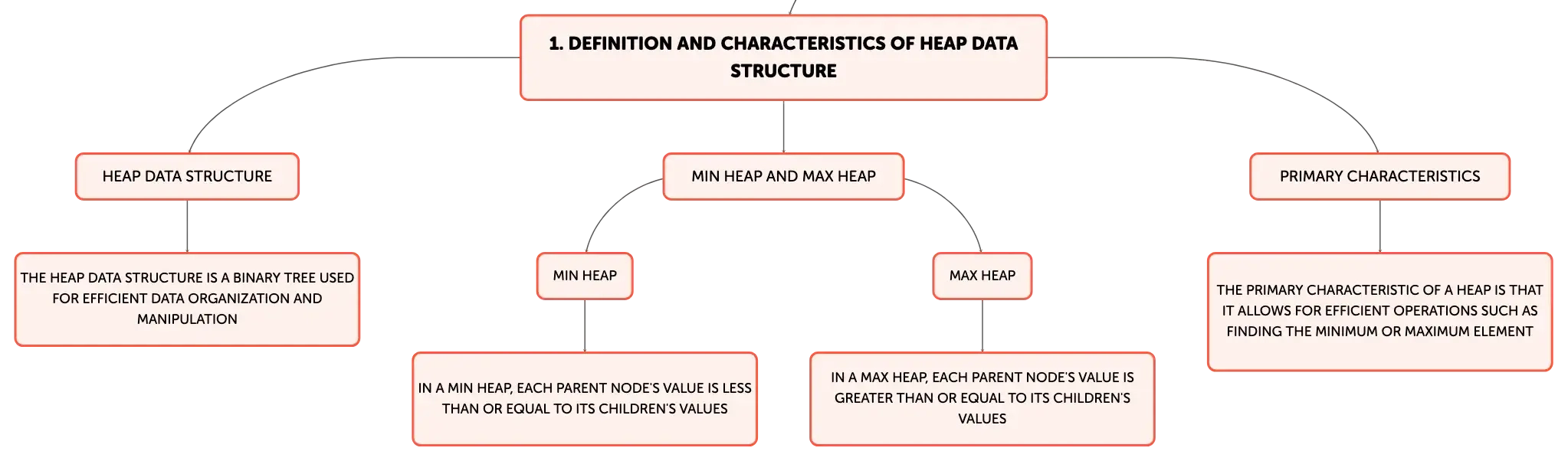

Definition and Characteristics of Heap Data Structure
Heap Data Structure
The heap data structure is a binary tree used for efficient data organization and manipulation
Min Heap and Max Heap
Min Heap
In a Min Heap, each parent node's value is less than or equal to its children's values
Max Heap
In a Max Heap, each parent node's value is greater than or equal to its children's values
Primary Characteristics
The primary characteristic of a heap is that it allows for efficient operations such as finding the minimum or maximum element

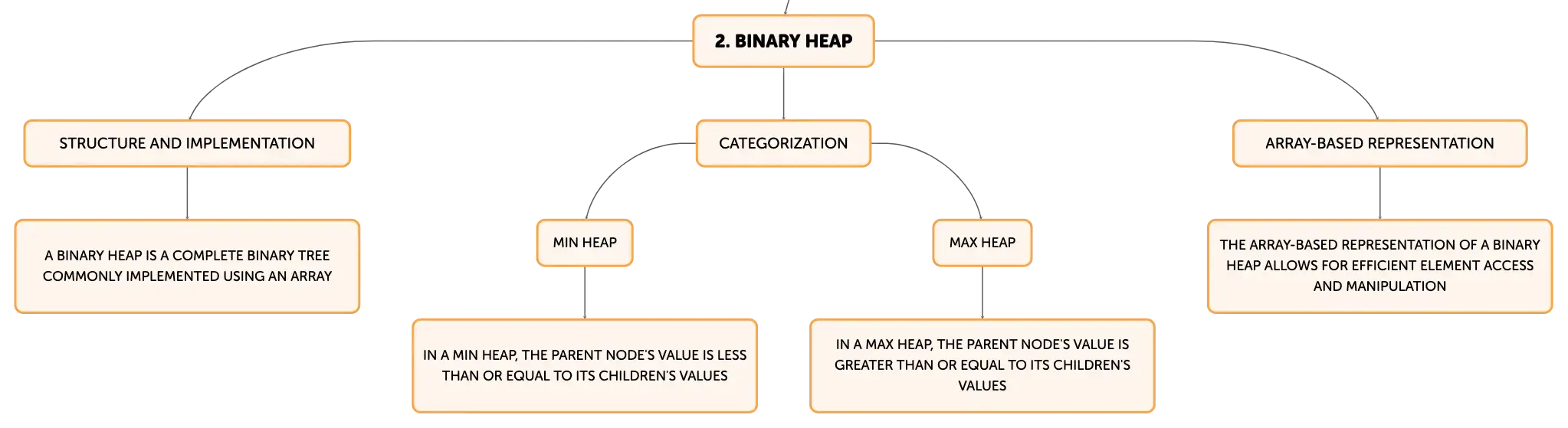

Binary Heap
Structure and Implementation
A binary heap is a complete binary tree commonly implemented using an array
Categorization
Min Heap
In a Min Heap, the parent node's value is less than or equal to its children's values
Max Heap
In a Max Heap, the parent node's value is greater than or equal to its children's values
Array-based Representation
The array-based representation of a binary heap allows for efficient element access and manipulation

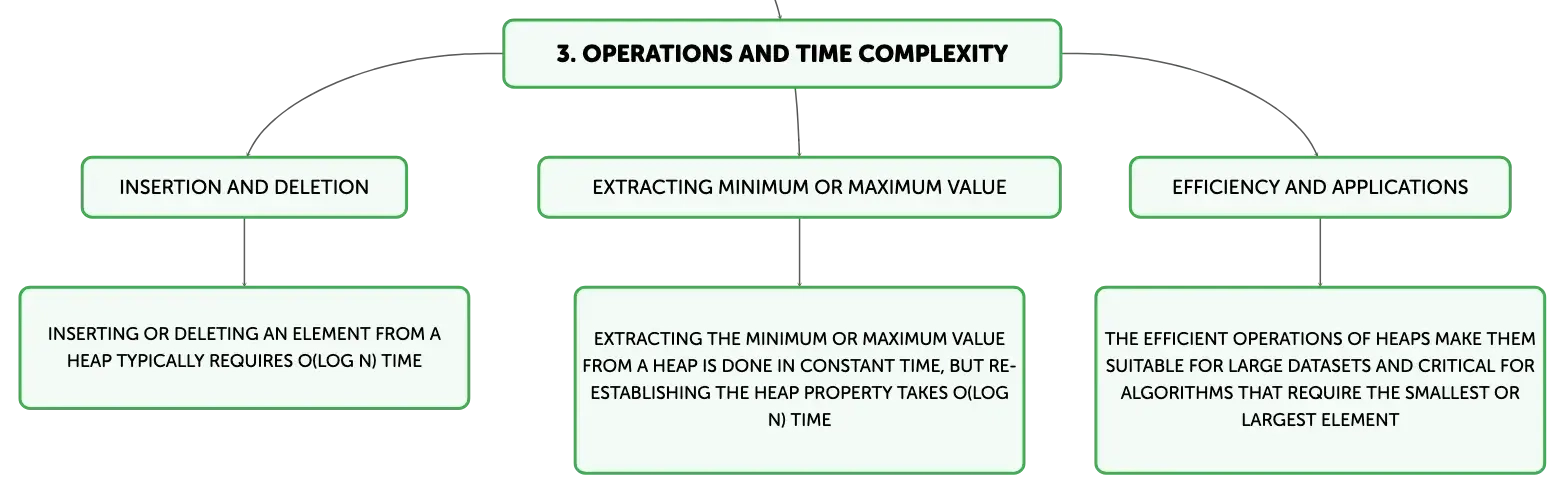

Operations and Time Complexity
Insertion and Deletion
Inserting or deleting an element from a heap typically requires O(log n) time
Extracting Minimum or Maximum Value
Extracting the minimum or maximum value from a heap is done in constant time, but re-establishing the heap property takes O(log n) time
Efficiency and Applications
The efficient operations of heaps make them suitable for large datasets and critical for algorithms that require the smallest or largest element

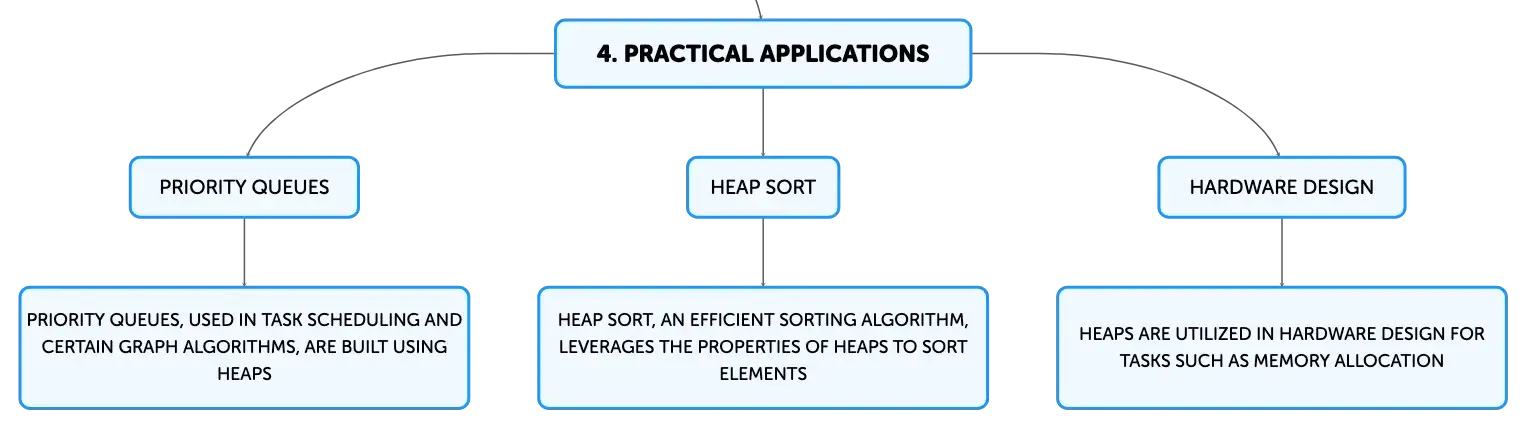

Practical Applications
Priority Queues
Priority queues, used in task scheduling and certain graph algorithms, are built using heaps
Heap Sort
Heap sort, an efficient sorting algorithm, leverages the properties of heaps to sort elements
Hardware Design
Heaps are utilized in hardware design for tasks such as memory allocation
Heap Data Structure
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
A ______ heap ensures the parent node's value is always less than or equal to its children, while a ______ heap ensures it's greater.
Min
Max
01
Binary Heap: Complete Binary Tree Requirement
Must be a complete binary tree, all levels filled except possibly the last, filled left to right.
02
Binary Heap Categories: Min Heap vs. Max Heap
Min Heap has the smallest element at the root; Max Heap has the largest element at the root.
