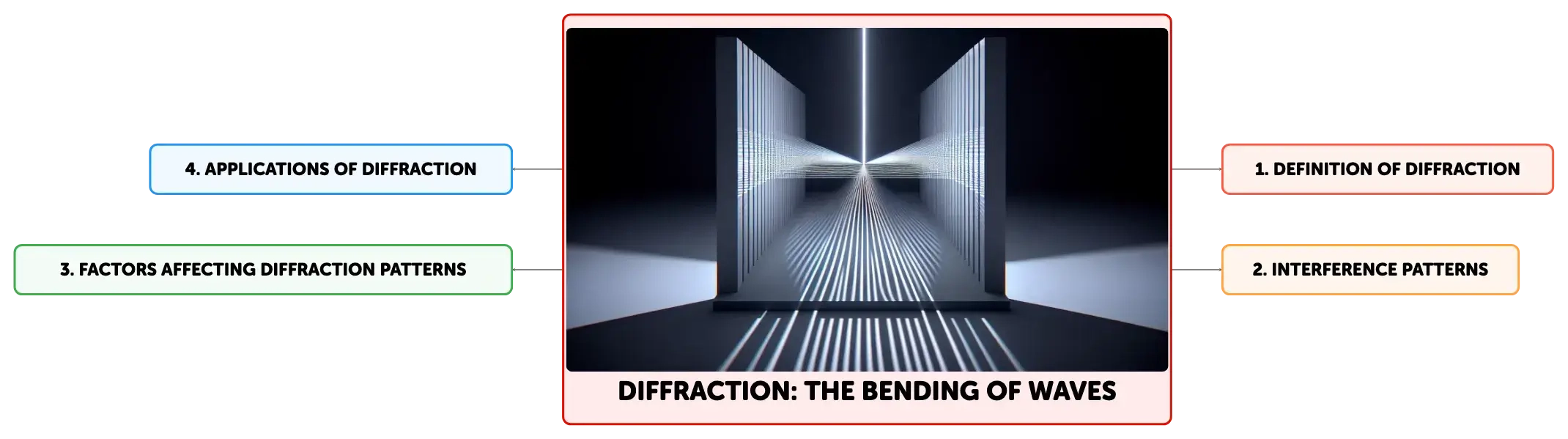

Diffraction: The Bending of Waves

Exploring the Phenomenon of Diffraction: Waves Meeting Obstacles and Apertures

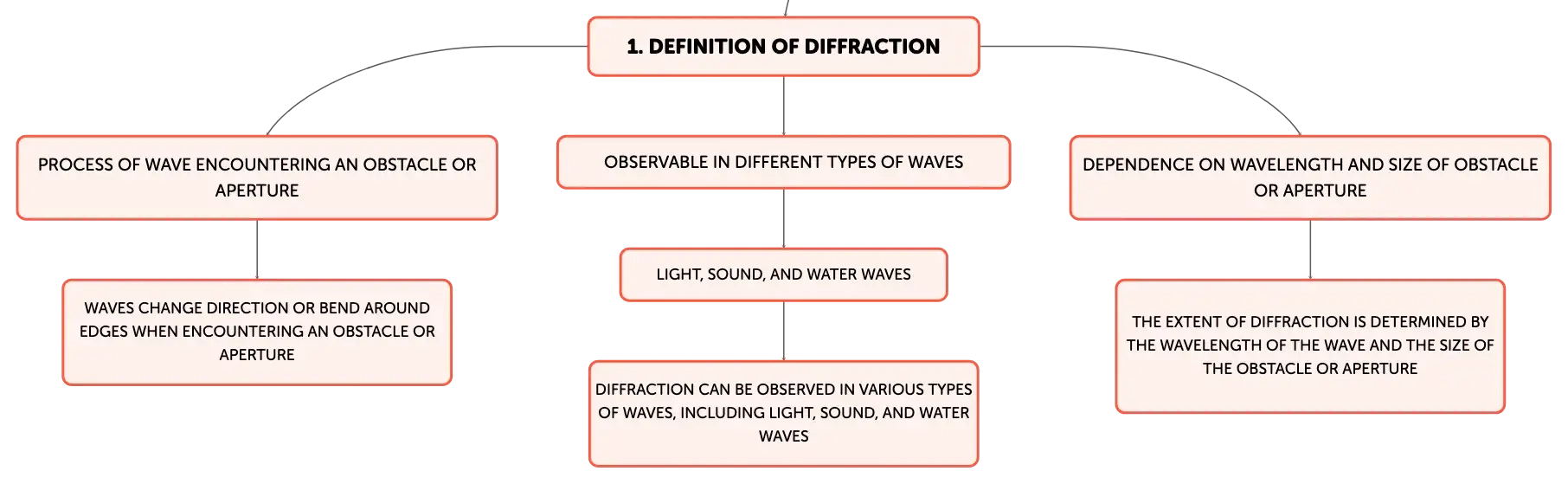

Diffraction is the process by which a wave encounters an obstacle or an aperture and undergoes a change in direction or bending around the edges. This wave behavior is observable across different types of waves, including light, sound, and water waves. The extent of diffraction depends on the wavelength of the wave and the size of the obstacle or aperture. When a wavefront interacts with an object, it can produce a pattern of interference behind the object, with regions of constructive interference (bright spots) and destructive interference (dark spots). Similarly, when waves pass through an aperture, they spread out and can create an interference pattern on the other side, with the central maximum being the brightest and additional maxima and minima on either side.

The Role of Aperture Size in Wave Diffraction

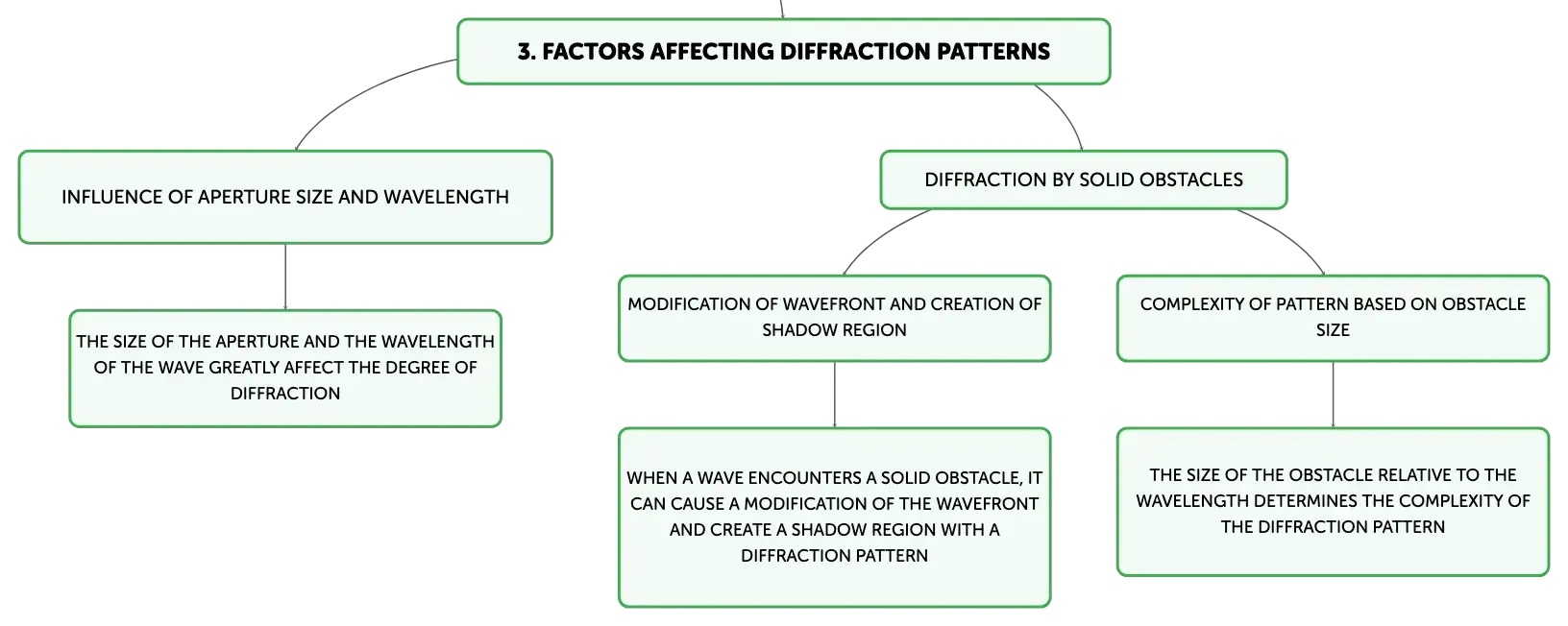

The degree of diffraction a wave undergoes as it passes through an aperture is greatly influenced by the size of the aperture in relation to the wave's wavelength. If the aperture is much larger than the wavelength, the wave will pass through with little alteration. However, as the aperture size approaches the order of the wavelength, significant diffraction occurs, and an interference pattern emerges. The relationship between the aperture size (d), the wavelength (λ), and the angle of diffraction (θ) is given by the equation \(d \sin \theta = n \lambda\), where 'n' is an integer representing the order of the maxima or minima in the interference pattern. This equation is fundamental to understanding the distribution of light or other waves as they pass through an aperture and interact with one another.

Constructive and Destructive Interference in Wave Patterns

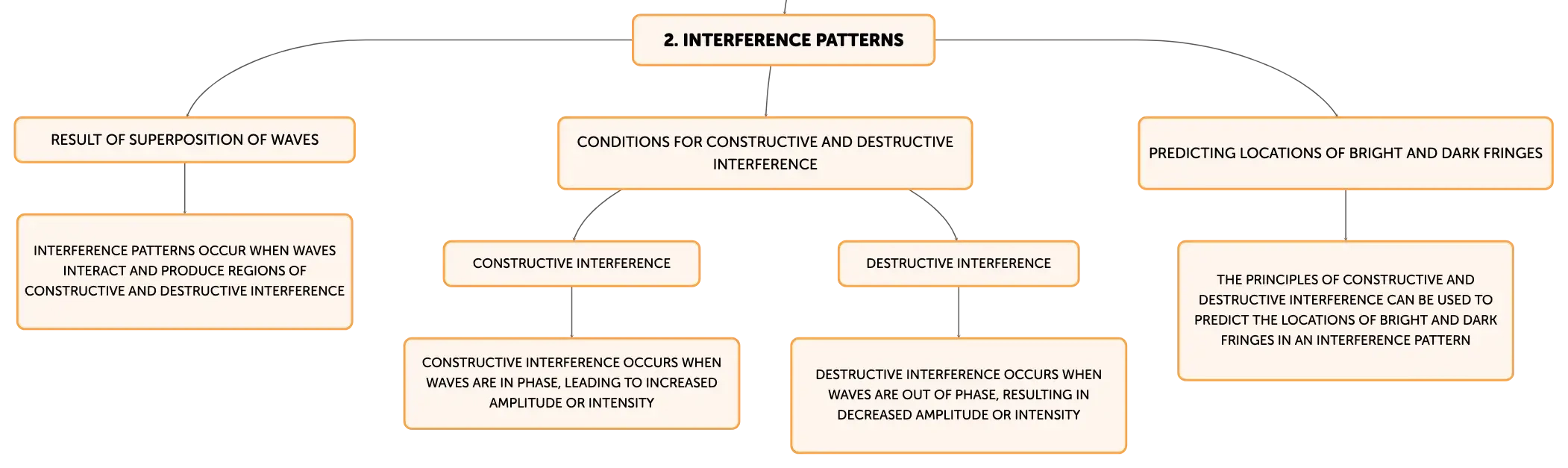

Interference patterns result from the superposition of waves, where constructive interference occurs at points where the waves are in phase, leading to increased amplitude or intensity, and destructive interference occurs where they are out of phase, resulting in decreased amplitude or intensity. The condition for constructive interference is given by \(d \sin \theta = m \lambda\), where 'm' is an integer and represents the order of the maxima. For destructive interference, the condition is \(d \sin \theta = (m + \frac{1}{2}) \lambda\), where 'm' is an integer and represents the order of the minima. These principles are essential for predicting the locations of bright and dark fringes in an interference pattern, which are observable in experiments such as the double-slit experiment.

Influence of Solid Obstacles on Wave Diffraction Patterns

The presence of a solid obstacle in the path of a wave can cause diffraction, leading to a modification of the wavefront and the creation of a shadow region with a diffraction pattern. The complexity of the pattern depends on the size of the obstacle relative to the wavelength. A small obstacle may produce a simple pattern with a central bright spot and concentric rings, while a larger obstacle can cause a more intricate pattern with multiple maxima and minima. The study of these patterns provides insight into the wave nature of light and other phenomena, and is important in applications such as the design of optical instruments and the analysis of sound waves.

Comprehensive Insights into Diffraction and Its Determinants

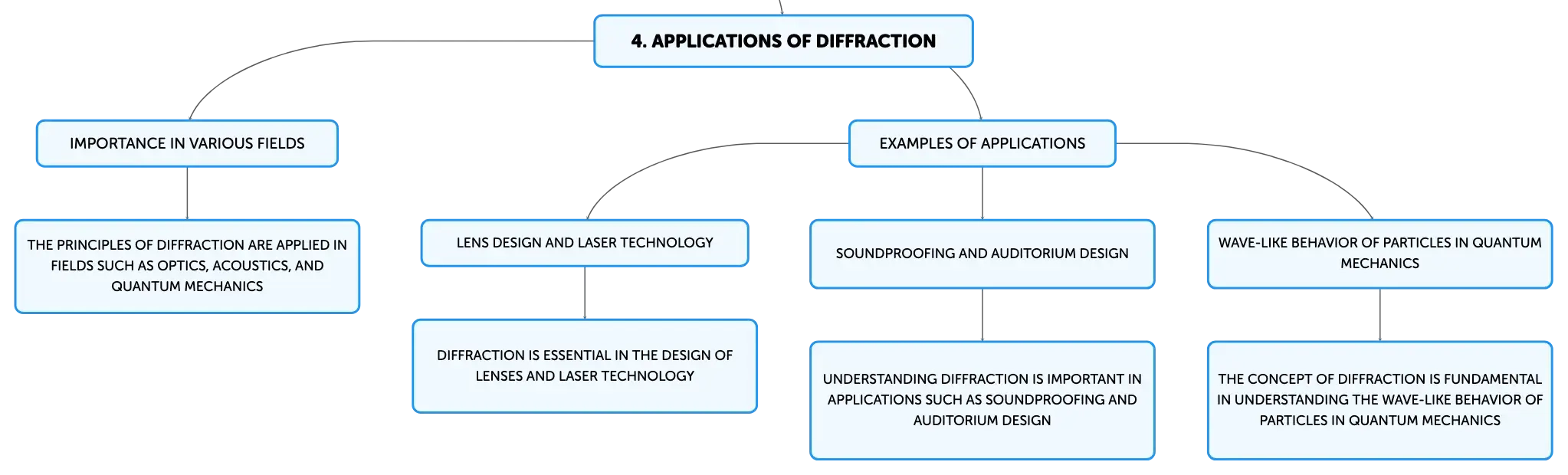

Diffraction is a key concept in wave physics, illustrating how waves interact with physical boundaries. The patterns produced by diffraction are influenced by factors such as the wavelength of the wave and the size and shape of the obstacles or apertures encountered. Understanding these patterns is crucial for interpreting and predicting wave behavior in various scientific and engineering contexts. The principles of diffraction are applied in fields ranging from optics, where they are essential for lens design and laser technology, to acoustics, where they help in soundproofing and auditorium design, and even to quantum mechanics, where the wave-like behavior of particles is a fundamental concept.
