Exploring the Fundamentals of Superscalar Processor Architecture
Superscalar processor architecture is a method of CPU design that allows for the execution of multiple instructions simultaneously within a single clock cycle, thereby increasing the processing speed and efficiency of a computer system. This design is based on the principle of Instruction Level Parallelism (ILP), which facilitates the concurrent execution of instructions. Key components of a superscalar processor include the Instruction Fetch Unit, Instruction Decode Unit, and multiple Execution Units, each playing a vital role in the instruction pipeline. By boosting the number of instructions executed per clock cycle (IPC), superscalar processors significantly enhance the performance of computing devices. Dynamic scheduling is an essential feature of this architecture, which dynamically orders the execution of instructions to optimize resource use and throughput.The Progressive Development of Superscalar CPU Architectures
The development of superscalar CPU architectures represents a major leap forward in the evolution of processor technology. The concept of executing multiple instructions out-of-order originated in speculative designs from the 1960s. Notable milestones in the history of superscalar CPUs include the Intel i960CA, introduced in 1990, and the Intel Pentium Pro in 1995, which implemented out-of-order execution. The Intel Pentium 4, released in 2002, further refined the architecture by incorporating a high-speed double-pumped ALU. These innovations have been instrumental in shaping the capabilities of contemporary computing systems.Transitioning from Dataflow to Superscalar Processor Architectures
The evolution of processor architectures has seen a shift from dataflow concepts, which prioritize data-driven execution, to the more sophisticated superscalar designs. Dataflow architectures, which emerged in the 1970s, offered a form of parallelism that triggered computations as soon as the necessary data was available. Despite its potential, the dataflow model encountered significant hurdles in widespread commercial adoption. Superscalar architectures addressed these challenges by enabling parallel execution of instructions within a single processing thread, thus allowing for several instructions to be processed in each clock cycle. This transition has had a profound impact on the design and construction of modern processors, leading to substantial gains in computational speed and efficiency.Comparing Superscalar and Superpipelined Architectures
Superscalar and superpipelined architectures represent two different strategies for improving processor performance. Superscalar architecture achieves this by executing multiple instructions in parallel across various functional units within a single clock cycle. On the other hand, superpipelined architecture focuses on subdividing the processing stages into finer steps, which enables higher clock frequencies. Superscalar processors necessitate sophisticated scheduling mechanisms to manage the parallel execution of instructions, whereas superpipelined processors require additional registers and control logic to handle the increased number of pipeline stages. Both architectures strive to enhance throughput—superscalar by processing several instructions concurrently, and superpipelined by accelerating the flow of instructions through a more segmented pipeline.Benefits and Challenges of Superscalar Processor Architecture
Superscalar processor architecture offers numerous benefits, such as improved throughput from the simultaneous execution of multiple instructions and the potential for higher clock speeds due to the parallel processing capabilities. It also provides scalability, with the theoretical possibility of executing an unlimited number of instructions concurrently. However, this architecture also presents several challenges, including increased complexity in CPU design, dependencies between instructions, longer instruction paths, and the law of diminishing returns when adding more execution units. Advanced techniques like out-of-order execution and sophisticated branch prediction are employed to address these challenges, striking a balance between the architecture's advantages and its inherent complexities.Implementing Superscalar Architecture in Modern Technologies
Superscalar architecture is widely used in a variety of modern technologies, ranging from smartphones and personal computers to smart TVs and gaming consoles. Multi-core processors in these devices leverage superscalar techniques to execute multiple instructions at once, thereby boosting their processing capabilities. Noteworthy examples include Intel's Pentium processors, which pioneered the use of superscalar architecture with dual pipelining, and AMD's Ryzen CPUs, which feature a superscalar, multi-threaded 'Zen' architecture. This architectural approach is also utilized in GPUs for tasks such as video rendering and machine learning, as well as in processors designed for real-time, safety-critical applications in autonomous vehicles and Internet of Things (IoT) devices.Concluding Insights on Superscalar Processor Architecture
Superscalar processor architecture marks a significant advancement from earlier dataflow models by enabling the parallel execution of multiple instructions, thereby enhancing computational efficiency. Characterized by its capacity to execute several instructions per clock cycle, this architecture is exemplified by Intel's Pentium series and AMD's Ryzen CPUs. The architecture's strengths lie in its increased throughput and processing speed, while its challenges include complex design considerations and inter-instruction dependencies. The decision between superscalar and superpipelined architectures depends on specific system requirements, with contemporary CPUs often incorporating elements of both to maximize performance. Despite its challenges, superscalar architecture continues to be a driving force in the evolution of processor design and the expansion of technology applications.
Show More

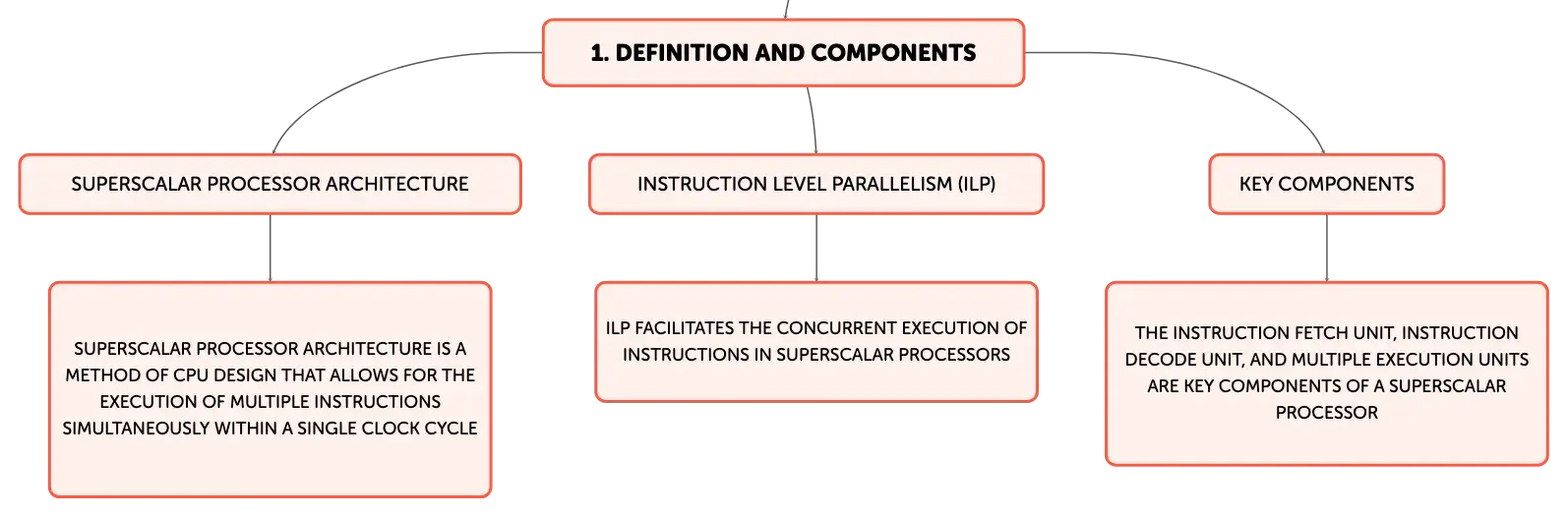

Definition and Components
Superscalar Processor Architecture
Superscalar processor architecture is a method of CPU design that allows for the execution of multiple instructions simultaneously within a single clock cycle
Instruction Level Parallelism (ILP)
ILP facilitates the concurrent execution of instructions in superscalar processors
Key Components
The Instruction Fetch Unit, Instruction Decode Unit, and multiple Execution Units are key components of a superscalar processor

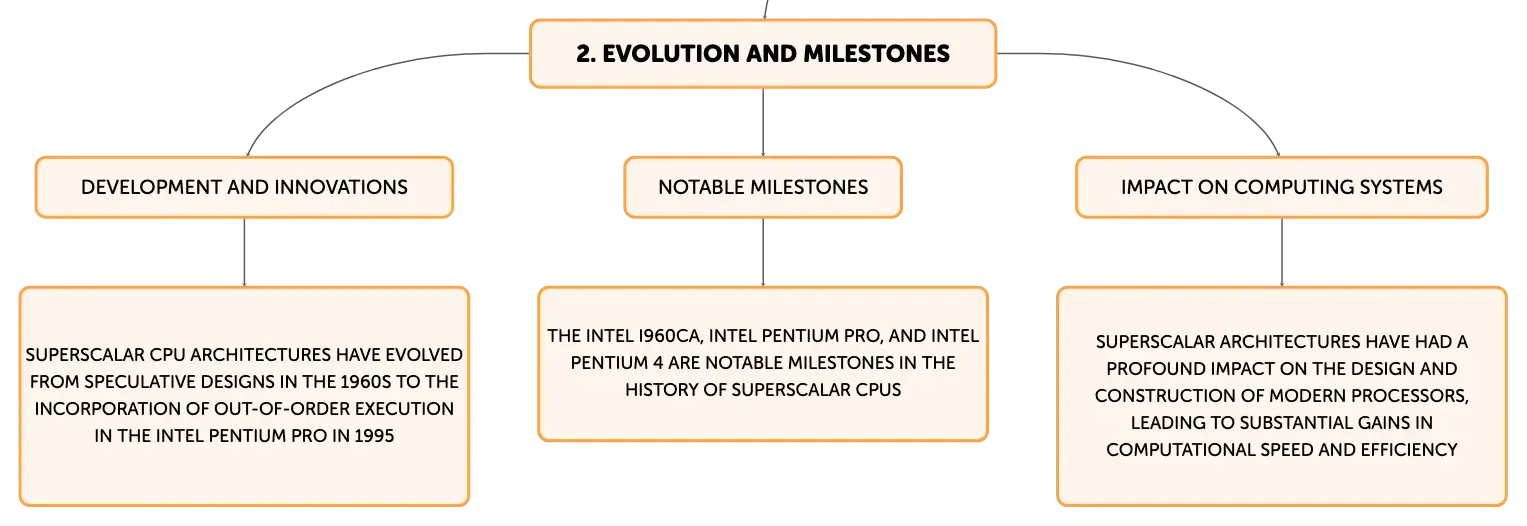

Evolution and Milestones
Development and Innovations
Superscalar CPU architectures have evolved from speculative designs in the 1960s to the incorporation of out-of-order execution in the Intel Pentium Pro in 1995
Notable Milestones
The Intel i960CA, Intel Pentium Pro, and Intel Pentium 4 are notable milestones in the history of superscalar CPUs
Impact on Computing Systems
Superscalar architectures have had a profound impact on the design and construction of modern processors, leading to substantial gains in computational speed and efficiency

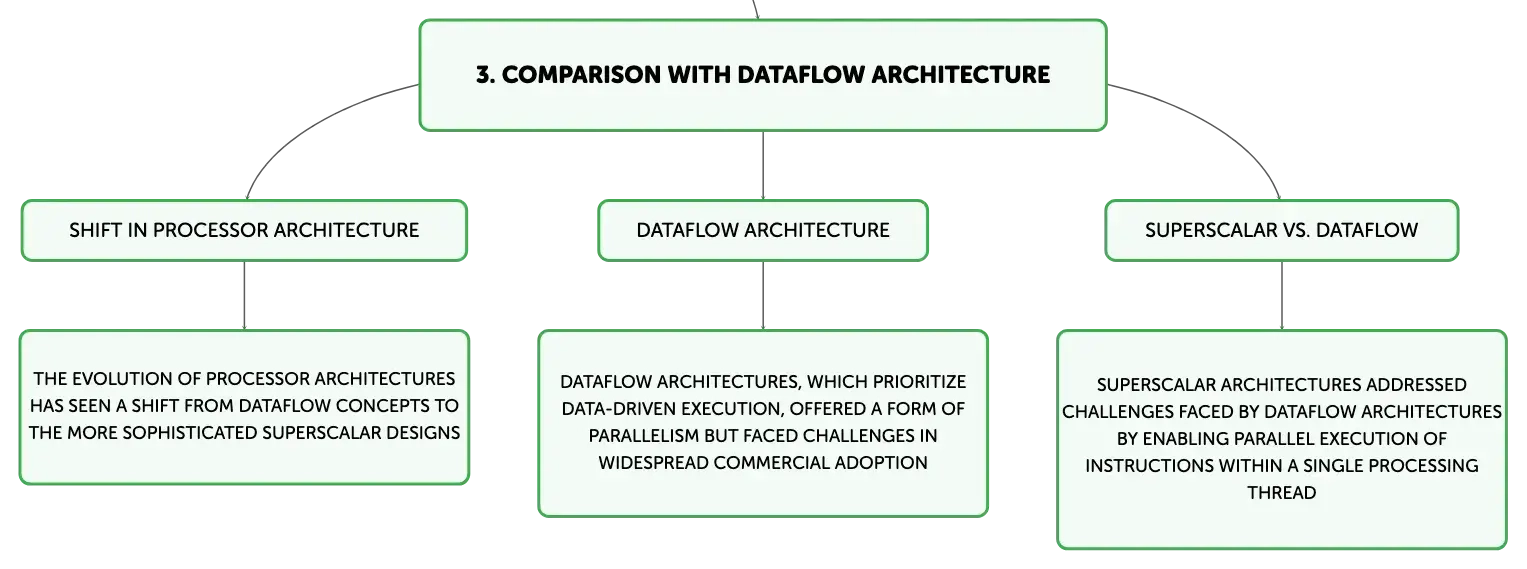

Comparison with Dataflow Architecture
Shift in Processor Architecture
The evolution of processor architectures has seen a shift from dataflow concepts to the more sophisticated superscalar designs
Dataflow Architecture
Dataflow architectures, which prioritize data-driven execution, offered a form of parallelism but faced challenges in widespread commercial adoption
Superscalar vs. Dataflow
Superscalar architectures addressed challenges faced by dataflow architectures by enabling parallel execution of instructions within a single processing thread

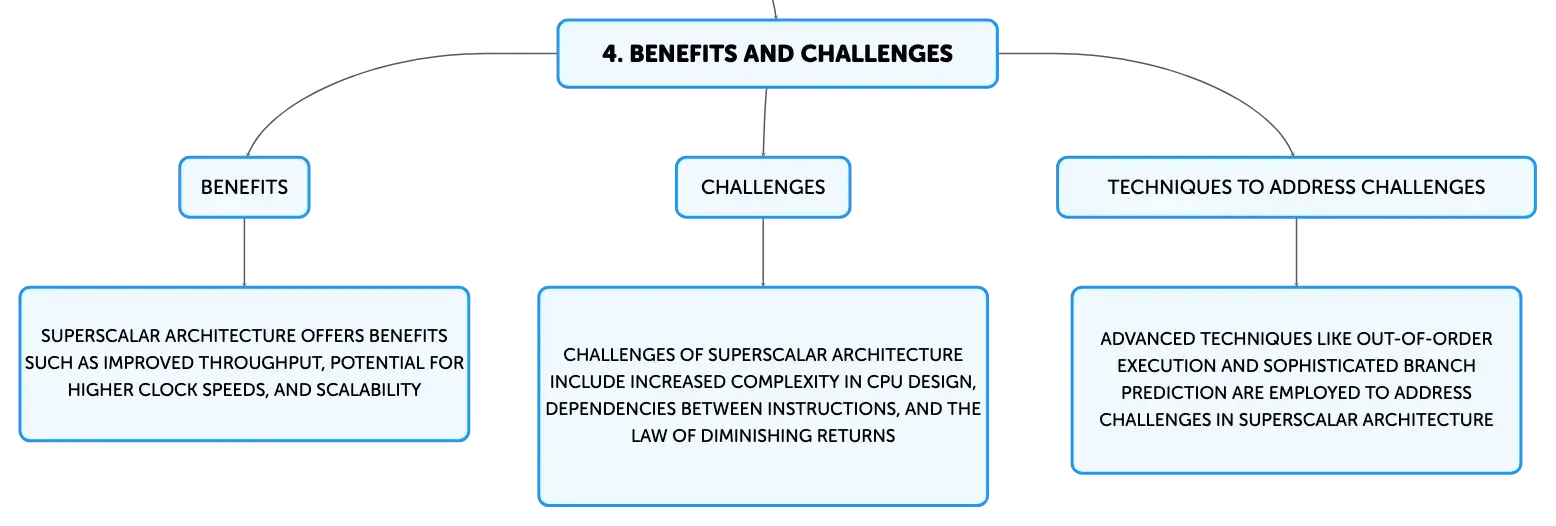

Benefits and Challenges
