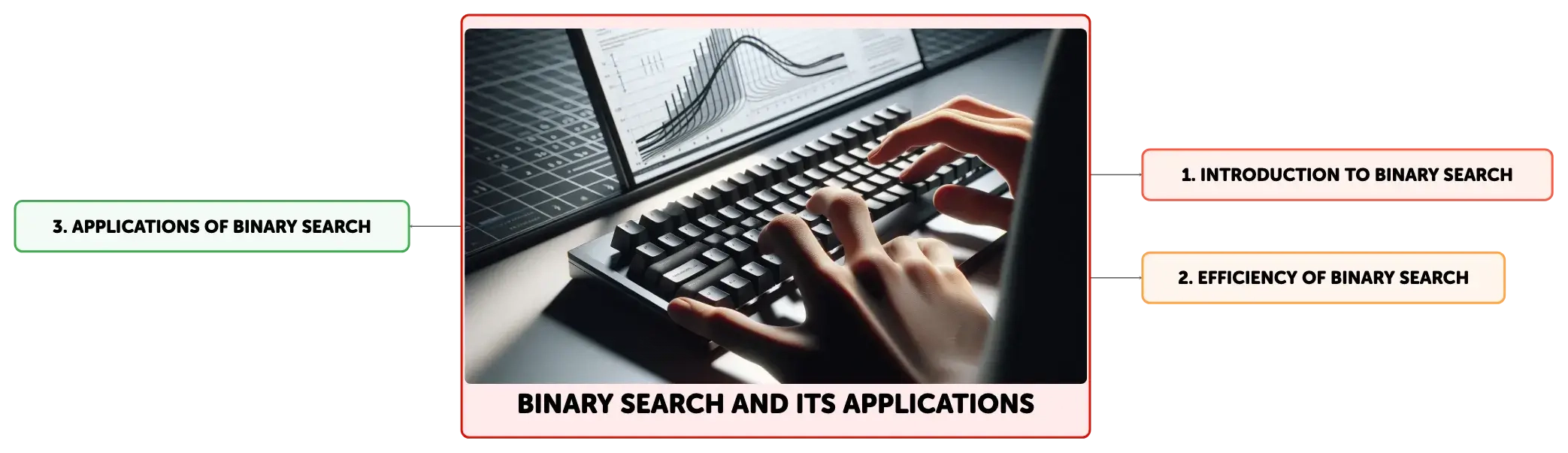

Binary Search and its Applications

Binary Search is a fundamental algorithm in computer science, used for efficient data retrieval in sorted arrays with a time complexity of O(log2n). It employs a divide-and-conquer approach to halve the search space with each step, making it much faster than linear search methods. This technique is also integral to binary search trees (BSTs), which facilitate operations like searching, insertion, and deletion, and are crucial in database and file system management.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Binary Search: Required Data Structure

Click to check the answer

Sorted array or list.

2

Binary Search: Comparison Basis

Click to check the answer

Target value vs. middle element.

3

Binary Search: Alternative Names

Click to check the answer

Half-interval search, logarithmic search, binary chop.

4

Binary Search initial step

Click to check the answer

Starts by checking the middle element of a sorted array.

5

Binary Search subsequent steps

Click to check the answer

If target not found, halves the array and selects a new middle based on target's comparison.

6

Binary Search vs Sequential Search efficiency

Click to check the answer

Binary Search is faster, often finding elements without checking each one, unlike Sequential Search.

7

The principles of ______ Search can be applied to sorted data structures like binary search trees and ______.

Click to check the answer

Binary heaps

8

BST Node Key Organization

Click to check the answer

In a BST, each node's left subtree contains keys less than the node's key, and the right subtree contains keys greater.

9

BST Operations: Searching, Insertion, Deletion

Click to check the answer

BSTs allow efficient searching (O(log n)), insertion (O(log n)), and deletion (O(log n)) operations, assuming the tree is balanced.

10

BSTs in Systems

Click to check the answer

BSTs are utilized in database management and file systems for quick data retrieval and maintaining ordered data.

11

Binary Search applications beyond element finding

Click to check the answer

Used in machine learning, data mining, network algorithms for identifying optimal points, thresholds, boundaries.

12

Binary Search in sorted datasets

Click to check the answer

Efficient at finding specific values or conditions like thresholds within sorted data, aiding in decision-making.

13

Impact of Binary Search customization

Click to check the answer

Tailoring Binary Search to problem specifics increases search efficiency, enhances system performance in computing tasks.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

Computer Science

Computer Memory

View document

Computer Science

Secondary Storage in Computer Systems

View document

Computer Science

The Significance of Terabytes in Digital Storage

View document

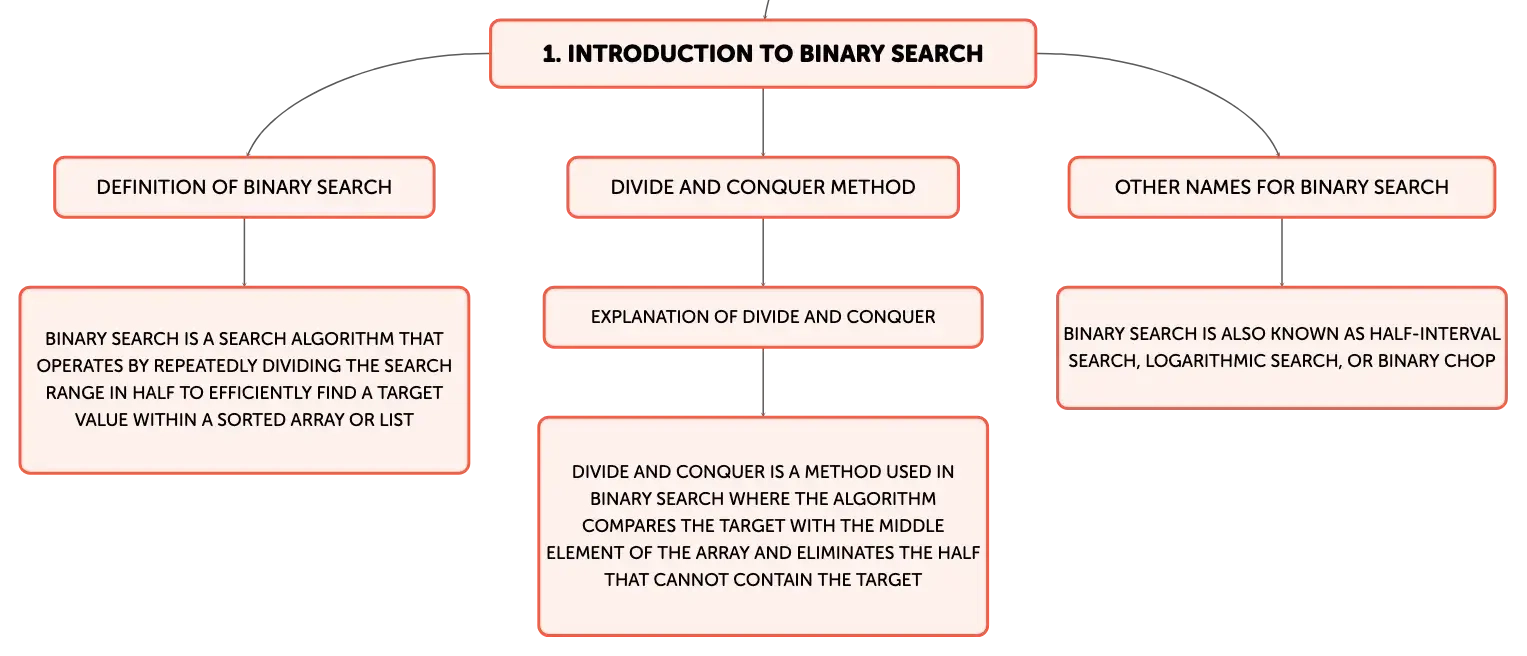

Exploring the Binary Search Algorithm

The Binary Search algorithm is an essential technique in computer science for finding a target value within a sorted array or list. It operates by repeatedly dividing the search range in half, a method known as divide and conquer. The algorithm compares the target with the middle element of the array; if they match, the search is successful. If not, the algorithm eliminates the half of the array that cannot contain the target and repeats the process on the remaining half. This halving of the search space continues until the target is found or the search space is empty, hence the name 'Binary Search'. It is also known by other names such as half-interval search, logarithmic search, or binary chop.
Hands positioned for typing on modern black and silver keyboard, with blurred screen showing symmetric curved graph without labels.

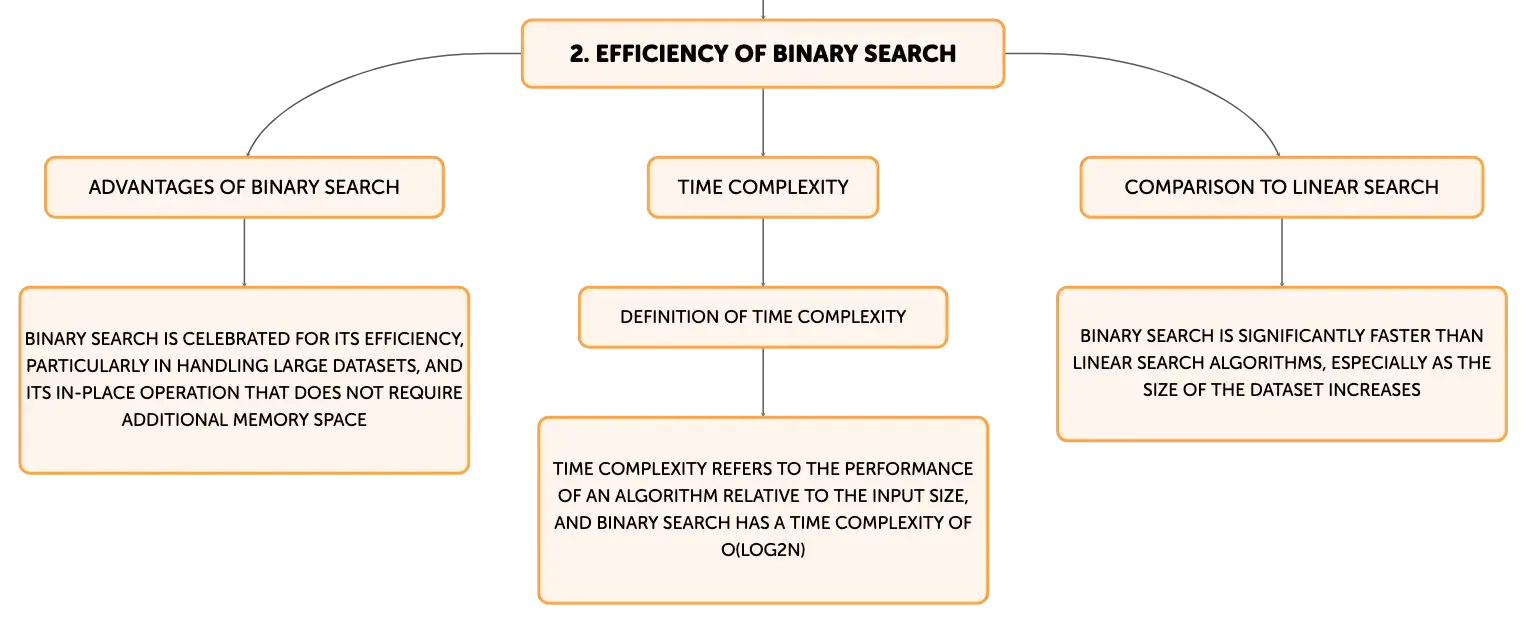

The Efficiency of Binary Search

Binary Search is celebrated for its efficiency, particularly in handling large datasets. The prerequisite for its application is a sorted array, as the algorithm relies on the ability to discard half of the search space with each comparison. The search begins at the midpoint of the array and proceeds to the appropriate half based on whether the target is less than or greater than the middle element. This process reduces the problem size exponentially, resulting in a time complexity of \(O(\log_{2}n)\), where \(n\) is the number of elements in the array. Consequently, Binary Search is significantly faster than linear search algorithms, especially as the size of the dataset increases.

Binary Search in Action: A Step-by-Step Example

Consider an example where we need to locate the number 50 in a sorted array of integers from 1 to 100. Binary Search begins by examining the middle element, which is 50 in this perfectly balanced scenario. The target is found immediately. If the target were different, the algorithm would determine whether to continue the search in the left or right half of the array, depending on whether the target is smaller or larger than the middle element. This example demonstrates the potential of Binary Search to locate an element swiftly, contrasting with the inefficiency of a sequential search that might require examining each element in the worst case.

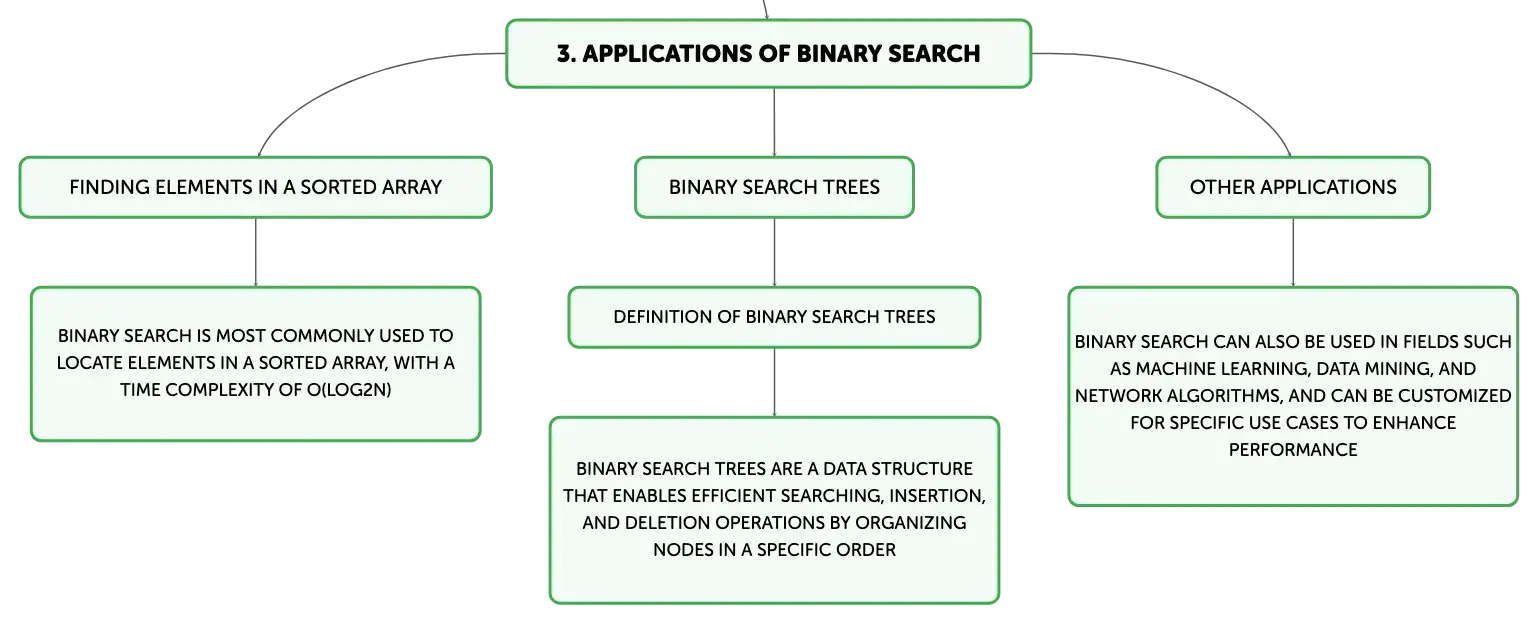

Advantages and Applications of Binary Search

Binary Search offers numerous advantages, including its time efficiency and its in-place operation, which does not require additional memory space. Its implementation is relatively simple, which contributes to code clarity and maintainability. While Binary Search is most commonly associated with arrays, its principles are applicable to other sorted data structures, such as binary search trees, heaps, and even on data structures that support random access. However, it is important to note that the initial sorting of an unsorted array can be costly, and the benefits of Binary Search should be weighed against this preprocessing step.

Binary Search Trees and Efficient Data Management

Binary Search Trees (BSTs) are a pivotal data structure in computer science, enabling efficient searching, insertion, and deletion operations. Each node in a BST holds a key, and it is organized such that all keys in the left subtree are less than the node's key, and all keys in the right subtree are greater. BSTs are fundamental in managing ordered data, constructing sorted lists, and are widely used in database management systems and file systems for quick data access. They also serve as the basis for more advanced balanced tree structures like AVL Trees and Red-Black Trees, which ensure that the tree remains balanced for optimal search performance.

Understanding Binary Search Time Complexity

The time complexity of Binary Search is \(O(\log_{2}n)\), reflecting the algorithm's performance relative to the input size. This logarithmic complexity indicates that the time required to search for an element grows logarithmically with the size of the dataset, which is a desirable property for scalability. The logarithmic growth means that even for large datasets, the increase in the number of steps needed to find an element is modest. This efficiency is graphically represented by a logarithmic curve, highlighting the algorithm's capability to handle large amounts of data effectively.

Advanced Applications and Optimization of Binary Search

Binary Search extends beyond simple element finding to more complex applications in fields such as machine learning, data mining, and network algorithms. It is adept at identifying optimal points within a sorted dataset, such as thresholds or boundaries. To enhance the performance of Binary Search, it can be customized to specific use cases, such as locating the first or last occurrence of a duplicate element in a sorted array. Tailoring the algorithm to the nuances of the problem at hand can lead to more efficient search operations and improved overall system performance in a variety of advanced computing tasks.
