Fundamentals of PID Control in Computing Systems

Proportional-Integral-Derivative (PID) controllers are critical in computing systems for ensuring the stability and precision of control processes. These controllers dynamically adjust system outputs to regulate variables such as temperature, flow, pressure, or speed, aiming to keep them within desired parameters. The PID controller operates by calculating an 'error value' as the difference between a measured process variable and a desired setpoint. It then applies a control signal based on the proportional (P), integral (I), and derivative (D) terms, which correspond to the present, accumulated, and future errors, respectively, to minimize this error over time.
Panel mounted PID controller with red, blue and green knobs for proportional, integral and derivative settings and black square buttons.

Mathematical Principles of PID Controllers

The mathematical representation of a PID controller is a time-dependent function that considers the error (e(t)) between the desired and actual states of a system. The control output (u(t)) is determined by the sum of three components: the proportional gain (Kp) times the error, the integral gain (Ki) times the integral of the error over time, and the derivative gain (Kd) times the rate of change of the error. These gains are tuned to match the specific characteristics of the system being controlled. For example, in a temperature control system, the PID controller would adjust heating or cooling outputs to align the actual temperature with the target temperature, thus reducing the error.

Functions of PID Controller Components

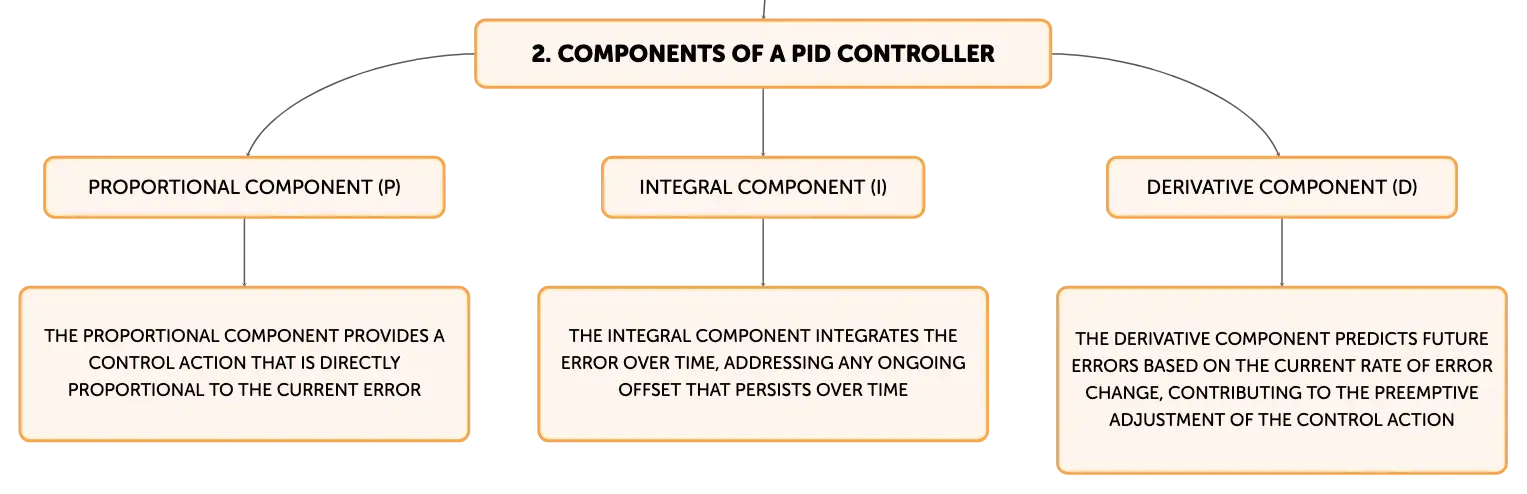

The three components of a PID controller—proportional, integral, and derivative—each serve a unique function in the control mechanism. The proportional component (P) provides a control action that is directly proportional to the current error. The integral component (I) integrates the error over time, addressing any ongoing offset that persists over time. The derivative component (D) predicts future errors based on the current rate of error change, contributing to the preemptive adjustment of the control action. The gains Kp, Ki, and Kd are the tunable parameters that determine the influence of each component on the overall control strategy.

Optimizing PID Controller Performance through Tuning

Tuning a PID controller is a critical step in achieving optimal system performance. It involves adjusting the proportional (Kp), integral (Ki), and derivative (Kd) gains to balance the system's responsiveness with stability. A high proportional gain can lead to a quick response to errors but may cause overshoot and instability. An excessive integral gain can eliminate steady-state errors but might introduce oscillations. A high derivative gain can help reduce overshoot and improve stability but may make the system overly sensitive to noise. The tuning process is typically iterative, requiring empirical testing or computational methods to find the best gain values for the desired system response.

Real-World Applications of PID Controllers

PID controllers are integral to many systems we encounter in daily life. Automotive cruise control systems use PID algorithms to maintain a constant vehicle speed, adjusting the throttle in response to varying road conditions. Drones employ PID controllers to achieve stable flight dynamics. In residential settings, thermostats and smart appliances use PID control to maintain desired temperatures. These examples demonstrate the versatility of PID controllers in providing precise control across a wide range of applications, ensuring efficiency and comfort in our everyday lives.

Integration of PID Controllers in Computer Systems

PID controllers are deeply integrated into various aspects of computer systems, including process control, embedded systems, and advanced fields like artificial intelligence (AI) and machine learning (ML). In industrial automation, PID controllers are vital for managing complex processes and machinery. Embedded systems often utilize PID control for real-time operational adjustments. Furthermore, the application of PID principles in AI and ML, particularly in reinforcement learning, is leading to more sophisticated and autonomous systems. These integrations underscore the significance of PID controllers in the advancement of computer science and technology.

Advancements and Future Directions of PID Controllers

The transition from analog to digital PID controllers has greatly improved their accuracy and functionality. With the advent of AI and ML, adaptive and self-tuning PID controllers are becoming increasingly common, enabling systems to perform optimally under varying conditions. Future developments may see the integration of PID control with quantum computing, bio-inspired computing, and advanced control strategies such as fuzzy logic and model predictive control. These advancements promise to further enhance the capabilities of PID controllers, solidifying their role as a cornerstone in the field of control systems and computer science.
