The Discovery of the Electron and its Impact on Atomic Theory

Concept Map

Algorino

Edit available

The discovery of the electron marked a pivotal moment in physics, revolutionizing our understanding of atomic structure. J.J. Thomson's cathode-ray tube experiments led to the identification of electrons and the charge-to-mass ratio, laying the groundwork for future atomic models. Subsequent experiments by Rutherford and Millikan further refined our knowledge, with the gold foil experiment revealing the nuclear atom and the oil-drop experiment confirming charge quantization.

Summary

Outline

The Electron's Discovery and Its Revolutionary Impact on Physics

The identification of the electron as a fundamental subatomic particle was a transformative event in the field of physics, reshaping our understanding of atomic structure. Electrons are not only essential constituents of atoms but also key players in the formation of chemical bonds. The discovery was made through experiments with cathode-ray tubes, which demonstrated the presence of particles with a negative charge. J.J. Thomson, a pivotal figure in this research, successfully measured the charge-to-mass ratio of the electron, providing a foundation for the precise determination of its charge and mass in subsequent studies.
Vintage laboratory with a cathode ray tube connected to a vacuum pump, scattered gold foil pieces, a scientific balance with weights, and an oil-drop experiment setup.

J.J. Thomson's Groundbreaking Cathode-Ray Tube Experiments

J.J. Thomson's experimental work with cathode rays significantly advanced the atomic theory of matter. He ingeniously manipulated magnetic and electric fields in cathode-ray tubes to deduce the negative charge of the particles, which were later named electrons. By using a metal cup to collect the rays, he demonstrated an accumulation of negative charge, confirming his hypothesis. His precise measurements of the charge-to-mass ratio of the electron (qe/me) were crucial for later experiments that accurately determined the electron's charge (qe) and mass (me).

Thomson's Plum Pudding Model and Atomic Structure Insights

Thomson's investigations into subatomic particles led him to propose the plum pudding model of the atom. In this model, atoms were envisioned as spheres of positive charge with negatively charged electrons (resembling raisins) interspersed throughout, akin to a plum pudding. This model suggested that atoms were electrically neutral, with the positive and negative charges counterbalancing each other. Although later experimental evidence would overturn this model, it represented an important conceptual step in the development of atomic theory.

Rutherford's Gold Foil Experiment and the Concept of the Nuclear Atom

The gold foil experiment, conducted by Ernest Rutherford and his colleagues Hans Geiger and Ernest Marsden in 1909, provided groundbreaking insights into the structure of the atom. When they bombarded thin gold foil with alpha particles, they observed some particles being deflected at large angles, contrary to the predictions of the plum pudding model. Rutherford inferred from these observations that the atom had a small, dense nucleus with a positive charge, surrounded by a cloud of much lighter, negatively charged electrons. This nuclear model of the atom indicated that atoms are mostly empty space, with the nucleus containing the bulk of the atomic mass.

Millikan's Oil-Drop Experiment and the Discovery of Charge Quantization

The oil-drop experiment conducted by Robert Millikan in 1909 was pivotal in determining the electron's charge with high precision. Millikan measured the charge on tiny oil droplets suspended between two electric plates, finding that the charge was always a multiple of a fundamental unit, approximately \(−1.6 \cdot 10^{-19} C\). This discovery of charge quantization provided compelling evidence for the existence of electrons as discrete charge carriers, reinforcing the concept of quantized electric charge and the indivisible nature of the electron.

The Profound Implications of the Electron's Discovery

The discovery of the electron by J.J. Thomson in 1897, through his innovative cathode-ray tube experiments, along with the subsequent pivotal experiments by Rutherford and Millikan, has had a lasting impact on our comprehension of atomic and subatomic phenomena. These scientific milestones not only confirmed the existence of subatomic particles but also led to the formulation of atomic models that accurately describe the atom's structure. The discovery of the electron remains a fundamental chapter in the history of physics, underpinning our current understanding of matter and the intricate forces that dictate chemical interactions.

Show More

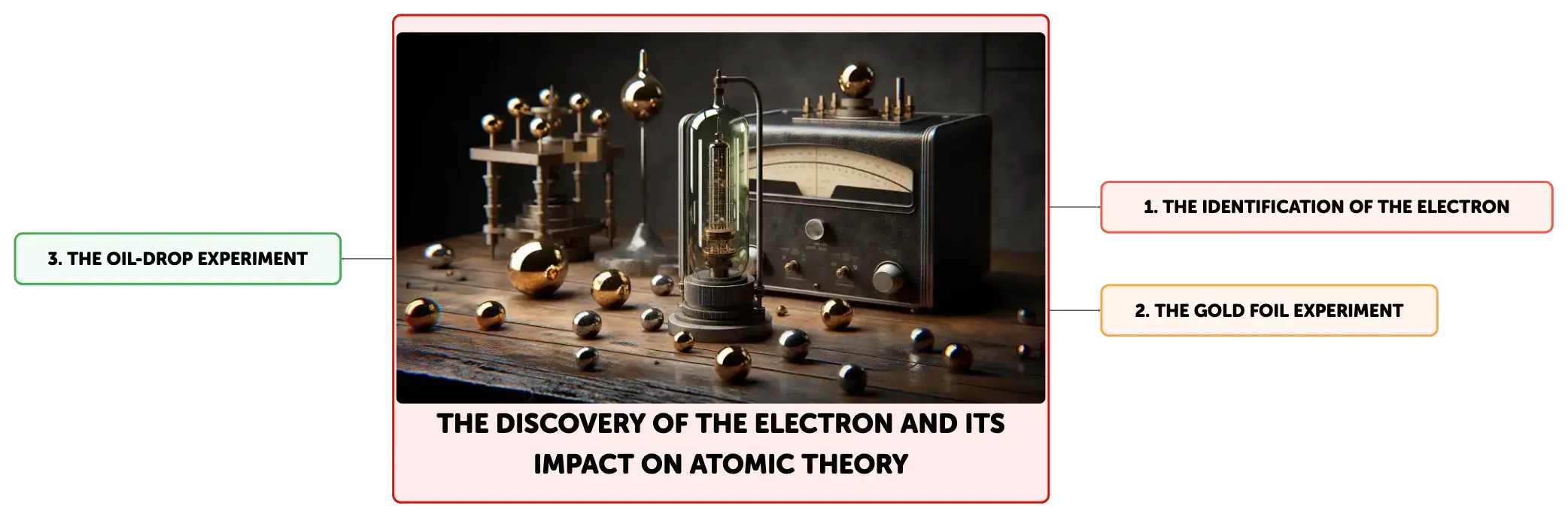

    The Discovery of the Electron and its Impact on Atomic Theory

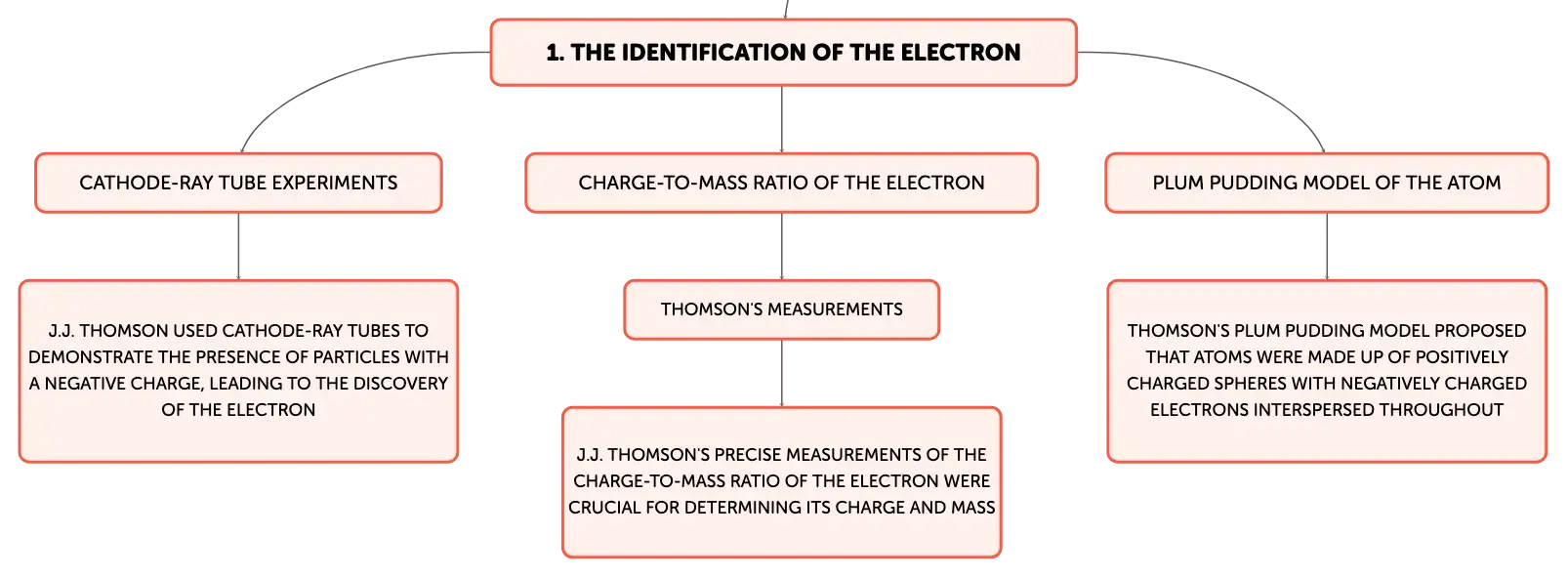

  • The Identification of the Electron

  • Cathode-Ray Tube Experiments

  • J.J. Thomson used cathode-ray tubes to demonstrate the presence of particles with a negative charge, leading to the discovery of the electron

  • Charge-to-Mass Ratio of the Electron

  • Thomson's Measurements

  • J.J. Thomson's precise measurements of the charge-to-mass ratio of the electron were crucial for determining its charge and mass

  • Plum Pudding Model of the Atom

  • Thomson's plum pudding model proposed that atoms were made up of positively charged spheres with negatively charged electrons interspersed throughout

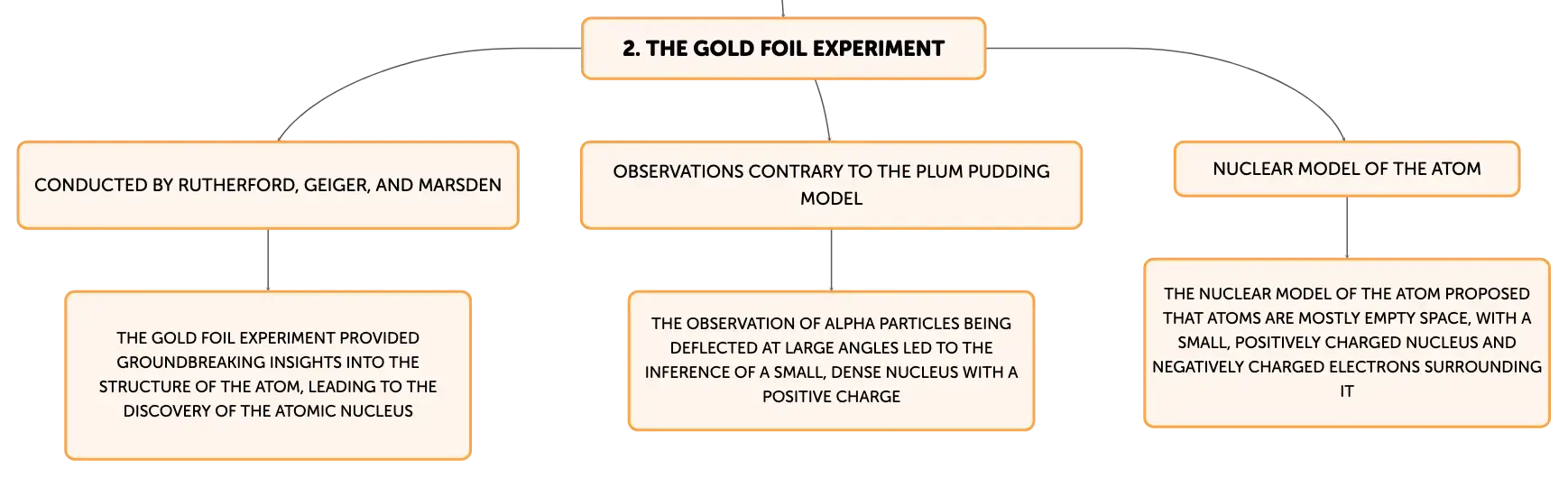

  • The Gold Foil Experiment

  • Conducted by Rutherford, Geiger, and Marsden

  • The gold foil experiment provided groundbreaking insights into the structure of the atom, leading to the discovery of the atomic nucleus

  • Observations Contrary to the Plum Pudding Model

  • The observation of alpha particles being deflected at large angles led to the inference of a small, dense nucleus with a positive charge

  • Nuclear Model of the Atom

  • The nuclear model of the atom proposed that atoms are mostly empty space, with a small, positively charged nucleus and negatively charged electrons surrounding it

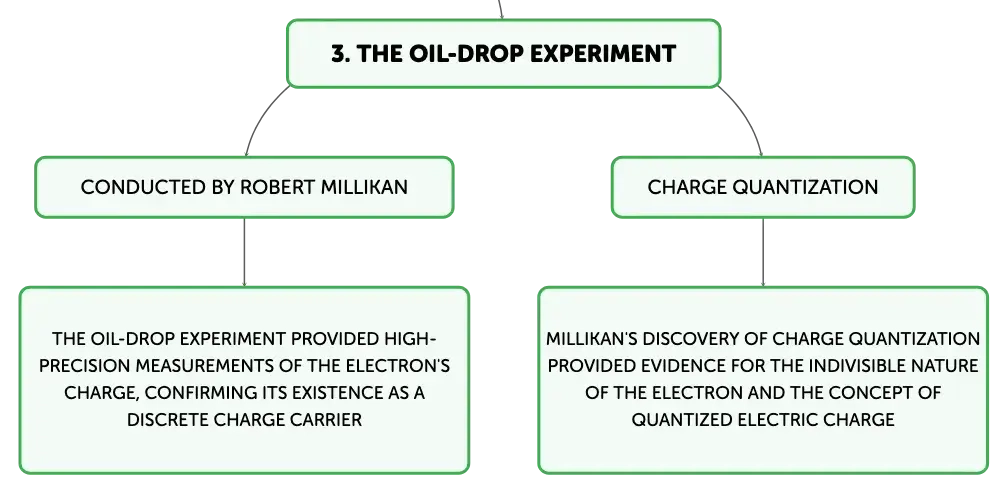

  • The Oil-Drop Experiment

  • Conducted by Robert Millikan

  • The oil-drop experiment provided high-precision measurements of the electron's charge, confirming its existence as a discrete charge carrier

  • Charge Quantization

  • Millikan's discovery of charge quantization provided evidence for the indivisible nature of the electron and the concept of quantized electric charge

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

Electron's role in atoms

Electrons are fundamental subatomic particles, essential for atomic structure and chemical bond formation.

01

Electron discovery method

Electrons were discovered through cathode-ray tube experiments, revealing particles with a negative charge.

02

J.J. Thomson's contribution

Thomson measured the electron's charge-to-mass ratio, laying groundwork for future precise measurements of its charge and mass.

03

The scientist ______ made pivotal contributions to the atomic theory by experimenting with ______.

J.J. Thomson

cathode rays

04

Plum pudding model composition

Atoms as spheres of positive charge with interspersed electrons.

05

Electrical neutrality in plum pudding model

Positive and negative charges balance each other, making atoms neutral.

06

Fate of plum pudding model

Later experiments refuted it, leading to new atomic models.

07

In ______ the gold foil experiment led by ______ ______, with his team members ______ ______ and ______ ______, revolutionized our understanding of atomic structure.

1909

Ernest

Rutherford

Hans

Geiger

Ernest

Marsden

08

Purpose of Millikan's oil-drop experiment?

To measure electron's charge with high precision.

09

Method used in Millikan's oil-drop experiment?

Measuring charge on suspended oil droplets between electric plates.

10

Significance of charge quantization discovery?

Provided evidence of electrons as discrete charge carriers, supporting quantized charge concept.

11

In ______ , J.J. Thomson's cathode-ray tube experiments led to the ______ of the ______.

1897

discovery

electron
