The Binary Number System: The Language of Computers

The binary number system is fundamental to digital technology, using just two symbols, 0 and 1, to encode data. This base-2 system simplifies arithmetic and logical operations, making it essential for efficient computing. Understanding binary conversion, data structures, and real-world applications is crucial for computer science and technology fields.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

In computing, the smallest unit of data is known as a ______, which is derived from the term 'binary digit'.

Click to check the answer

bit

2

Decimal to Binary: Initial Step

Click to check the answer

Start by dividing the decimal number by 2, record the remainder.

3

Decimal to Binary: Subsequent Steps

Click to check the answer

Divide the quotient by 2, record the new remainder; repeat until quotient is 0.

4

Reading Binary Result

Click to check the answer

Read the remainders in reverse order to obtain the binary equivalent.

5

______ files contain data in a format that a computer can directly read, and are utilized for ______, ______, and other types of files.

Click to check the answer

Binary executable files images

6

Binary literals in C++ and Python

Click to check the answer

Both C++ and Python support binary literals, allowing direct use of binary numbers in code.

7

Bitwise operations: AND, OR, XOR, NOT

Click to check the answer

Bitwise operations manipulate individual bits within binary numbers for efficient data processing.

8

Bit shifting for multiplication/division

Click to check the answer

Shifting bits left or right in a binary number multiplies or divides by two, respectively.

9

______ operations are essential for tasks like optimization, error checking, and cryptography within binary numbers.

Click to check the answer

Bitwise

10

Binary number system definition

Click to check the answer

A system using base 2, representing values using two symbols: 0 and 1.

11

Decimal to binary conversion

Click to check the answer

Process of translating a base 10 number into a base 2 number.

12

Binary arithmetic application

Click to check the answer

Used in computing for operations such as addition, subtraction, multiplication, and division in binary.

13

In ______, knowledge of binary is vital for setting up IP addresses and ______ masks, and it's fundamental for digital sensors and encryption.

Click to check the answer

networking subnet

14

Binary system efficiency

Click to check the answer

Binary's simplicity allows for efficient data processing and storage, with easy conversion to other systems.

15

Binary to decimal conversion

Click to check the answer

Binary numbers can be readily converted to decimal, facilitating interaction with human-readable formats.

16

Binary system applications

Click to check the answer

Used in hardware design, software development, networking, and AI, binary is crucial across computing disciplines.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Computer Memory

View document

Computer Science

Bitwise Shift Operations in Computer Science

View document

Computer Science

The Importance of Bits in the Digital World

View document

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

The Fundamentals of the Binary Number System

The binary number system is the cornerstone of digital technology, encoding and processing data in a format that computers can understand. It is a base-2 numeral system that uses only two symbols: 0 and 1. Each digit in this system is a bit, which stands for binary digit, the smallest unit of data in computing. The binary system's reliance on two states—representing 'On' (1) and 'Off' (0)—mirrors the physical properties of electronic devices, which use transistors as switches to control the flow of electricity. The binary system's design aligns with the operational simplicity required for reliable and efficient electronic circuits.

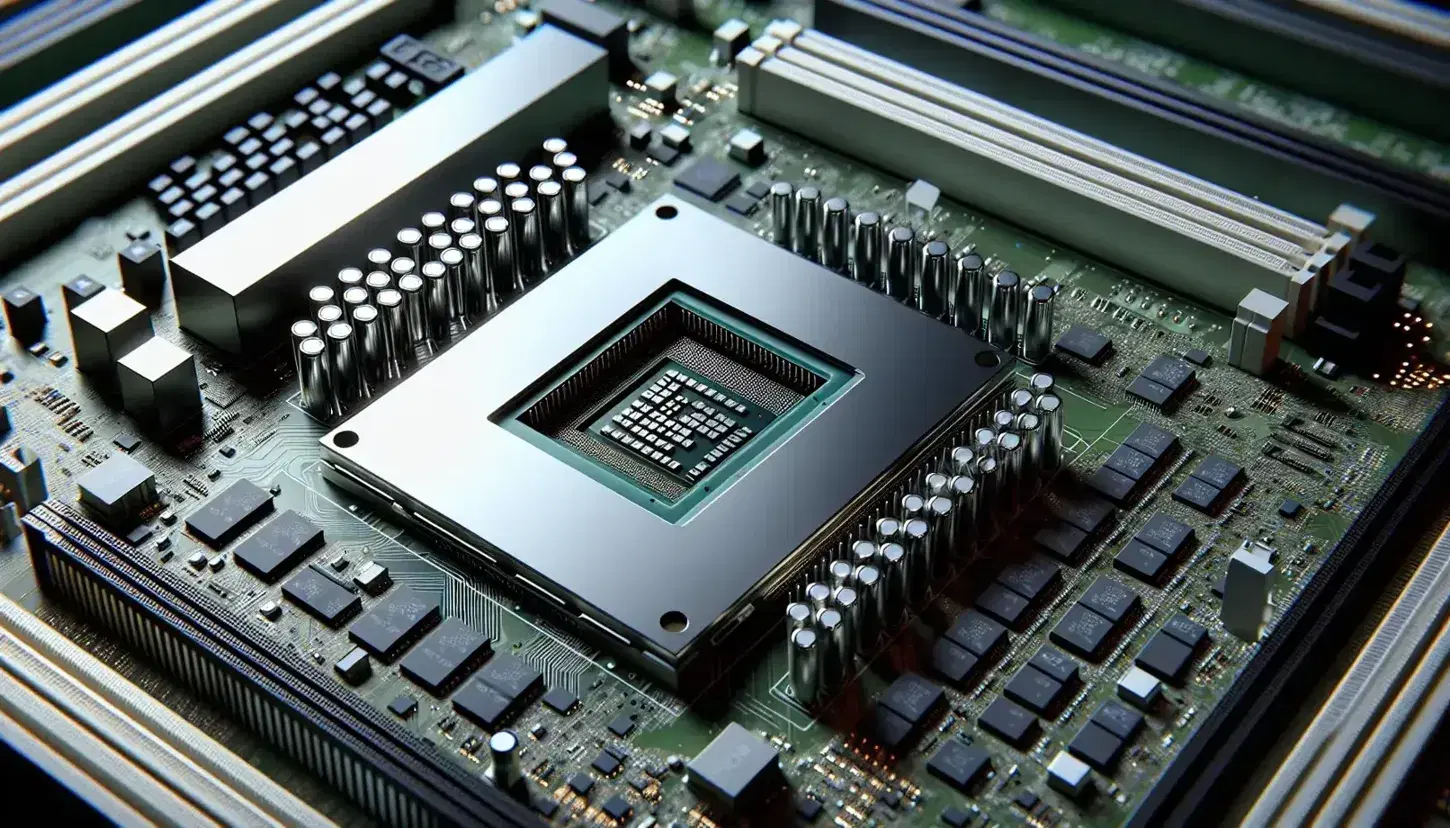

Close-up of a computer motherboard with a silver central CPU, empty memory slots, metallic capacitors and etched circuitry.

Converting Decimal to Binary

The conversion from the decimal system, which is base-10, to the binary system involves a method known as repeated division by 2. To convert a decimal number to binary, one divides the number by 2 and records the remainder. The division is repeated on the quotient until a quotient of 0 is obtained. The binary result is composed of the remainders read in reverse order. For instance, converting the decimal number 10 to binary involves dividing 10 by 2 to get a quotient of 5 and a remainder of 0, then dividing 5 by 2 to get a quotient of 2 and a remainder of 1, and continuing this process until the binary equivalent, 1010, is determined.

Binary Data Structures and File Types

Binary data types and structures are pivotal in computing for organizing, storing, and interpreting data. Binary-coded decimals represent decimal numbers where each digit is encoded as a fixed number of binary digits, typically four. Binary trees are structured data types that facilitate efficient searching and sorting operations, playing a vital role in databases and network routing. Binary files store data in a binary format, directly readable by a computer, and are used for executable files, images, and more. Mastery of these binary data types is essential for data management and algorithmic efficiency.

Binary in Programming Languages

Binary numbers are essential in programming, as they enable the representation and manipulation of data at the most granular level. Many programming languages, including C++ and Python, provide support for binary literals and operations. Programmers can perform bitwise operations—such as AND, OR, XOR, and NOT—on binary numbers, which allows for efficient data processing and manipulation. For example, bit shifting operations can multiply or divide by powers of two, and bitwise masking can isolate specific bits in a number.

Binary Arithmetic and Logical Operations

Binary arithmetic operates on the same principles as decimal arithmetic but is simplified due to the binary system's base-2 nature. The rules for binary addition, subtraction, multiplication, and division are straightforward, with binary addition being particularly simple: 0 plus 0 equals 0, 1 plus 0 equals 1, and 1 plus 1 equals 0 with a carry of 1 to the next higher bit. Bitwise operations are logical functions applied to individual bits within binary numbers and are fundamental for optimizing computational tasks, error detection and correction, and encryption algorithms.

Utilizing the Binary Number System Table

A binary number system table, also known as a binary conversion chart, is a valuable educational tool that lists decimal numbers alongside their binary equivalents. This table serves as a quick reference for students and professionals alike, simplifying the process of converting between decimal and binary systems and assisting with binary arithmetic. It is an excellent resource for those new to the concepts of binary numbers, providing a visual aid to enhance comprehension and proficiency in binary calculations.

Real-World Applications of Binary Numbers

The binary number system is integral to various aspects of computing and digital technology. It is used in the execution of bitwise operations for data manipulation, in the handling of binary files, and in the addressing of memory locations. In networking, binary understanding is crucial for configuring IP addresses and subnet masks. Additionally, binary principles underpin the operation of digital sensors, encryption systems, and the representation of multimedia files such as audio, video, and images.

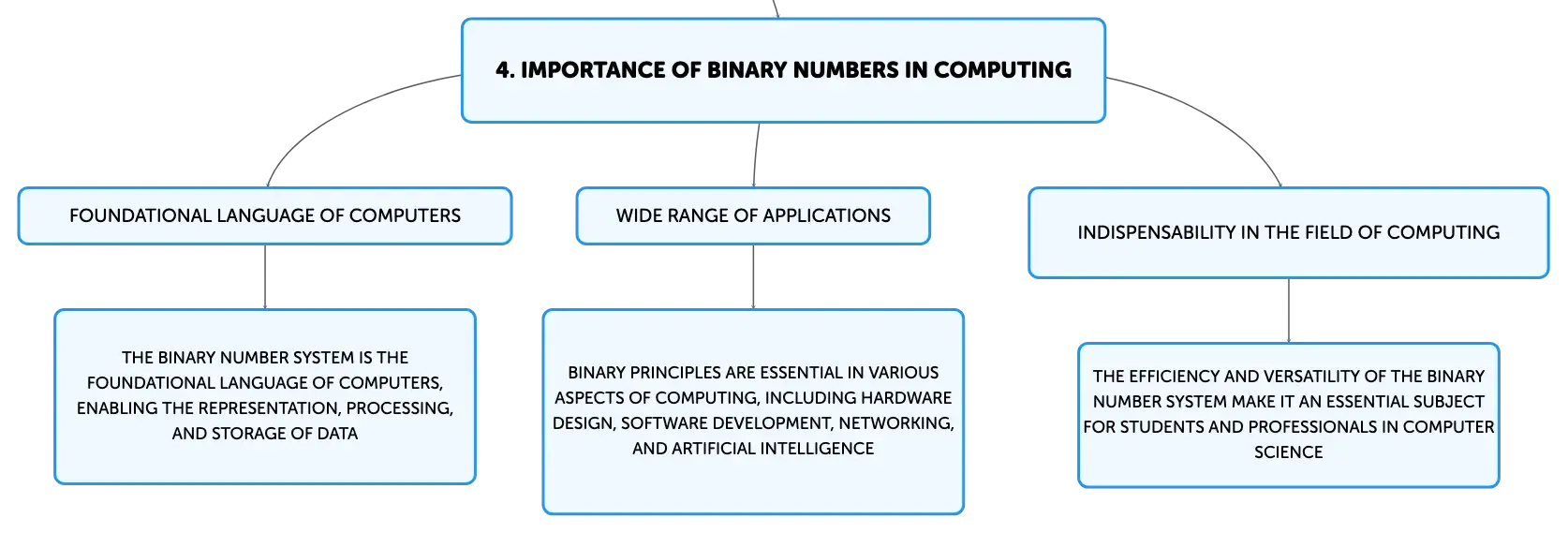

The Significance of Binary in Computing

The binary number system is the foundational language of computers, enabling the representation, processing, and storage of data. Its binary logic is the basis for all computing operations, from the simplest to the most complex. The system's efficiency and the straightforward conversion between binary and other number systems, particularly decimal, underscore its indispensability in the field of computing. The binary number system's applications are vast, ranging from hardware design and software development to networking and artificial intelligence, making it an essential subject for students and professionals in computer science.
