Electric Potential and Its Applications

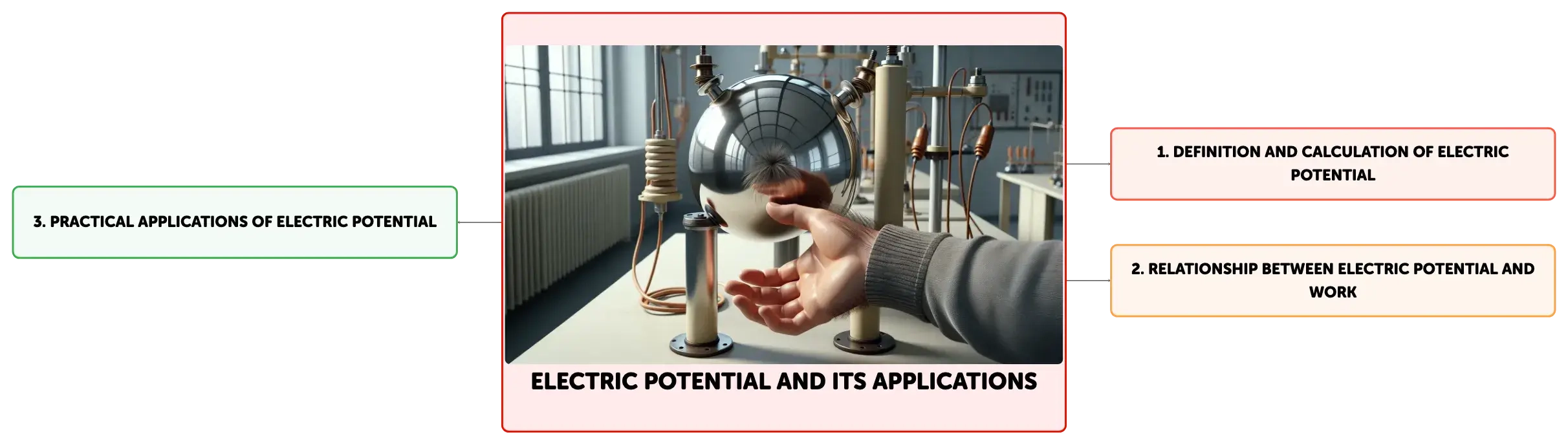

Concept Map
Electric potential is a fundamental concept in electromagnetism, representing the work needed to move a unit charge within an electric field. This text delves into the nature of electric potential and potential energy, the relationship with work, and the significance of equipotential surfaces. It also explores practical calculations for electric potential in engineering scenarios, such as around a spherical generator, and concludes with insights on the concept's importance in various applications.
Summary
Outline
Exploring the Concept of Electric Potential
Electric potential is a key concept in electromagnetism, denoting the amount of work needed to move a unit charge from a reference point to a specific point within an electric field without any acceleration. It is a scalar quantity with units of volts (V), where one volt equals one joule per coulomb (J/C). The electric potential due to a point charge is given by the equation V = kQ/r, where V is the potential, k is Coulomb's constant (8.99 x 10^9 N m²/C²), Q is the charge, and r is the radial distance from the charge. The potential is considered zero at an infinite distance from the charge, and it is positive near a positive charge and negative near a negative charge.Electric Potential within an Electric Field
The electric potential at a point in space due to a point charge is proportional to the charge's magnitude and inversely proportional to the distance from the charge. For a positive charge, the electric potential decreases as one moves away from the charge, reflecting the work done against the electric field. For a negative charge, the potential also decreases with increasing distance, as work is done by the electric field to move a positive test charge away. When multiple charges are present, the total electric potential at a point is the algebraic sum of the potentials due to each charge, calculated using the principle of superposition.The Nature of Electric Potential Energy
Electric potential energy is the energy a charged object possesses by virtue of its position in an electric field. It is the work done to bring the charge from infinity to that point against the electric field. The potential energy between two point charges is given by U = kq₁q₂/r, where U is the potential energy, q₁ and q₂ are the charges, and r is the distance between them. The potential energy is positive when the charges are like and negative when they are opposite. The change in electric potential energy is the work done by or against the electric field in moving a charge between two points.Work and Electric Potential
The relationship between electric potential and work is fundamental in understanding energy transfer within electric fields. The work W done in moving a charge Q through an electric potential difference ΔV is W = QΔV. This equation implies that if the charge moves in the direction of decreasing potential, work is done by the electric field, and if it moves against the field, work is done on the field. This principle is vital for calculating the energy required to move charges in circuits and electric fields.Electric Potential Gradient and Equipotential Surfaces
The electric potential gradient is the rate at which the electric potential changes with position in space and is the vector quantity that points in the direction of the greatest rate of decrease of potential. The electric field E is related to the potential gradient by E = -∇V, where ∇V is the gradient of the potential. Equipotential surfaces are three-dimensional analogs of equipotential lines and are perpendicular to electric field lines. They represent loci of points having the same electric potential. The electric field is strongest where equipotential surfaces are closest together. The potential difference between two points is related to the electric field and the distance by ΔV = -EΔs, where Δs is the displacement along the field line.Practical Calculation of Electric Potential
In practical scenarios, such as determining the electric potential around a spherical generator, one must apply the principles of electric potential. For a spherical charge distribution, the potential outside the sphere is the same as if the charge were concentrated at the center. Given a potential of 150 kV at the surface of a sphere with a radius of 10 cm, the charge on the sphere can be calculated using V = kQ/r. To find the potential at a distance of 25 cm, one would use the same formula, substituting the new distance into the equation. This example demonstrates the application of electric potential concepts to real-world engineering problems.Concluding Insights on Electric Potential
Electric potential is a fundamental concept in electromagnetism, encapsulating the work per unit charge required to move a charge within an electric field. It is essential for understanding the behavior of electric fields and the forces exerted on charges. The electric potential difference, or voltage, is a measure of the electric field's ability to do work on a charge and is crucial in various applications, from electronic circuits to large-scale power systems. As one moves away from a charge or distribution of charges, the electric potential typically decreases, reflecting the diminishing influence of the electric field with distance.
Show More

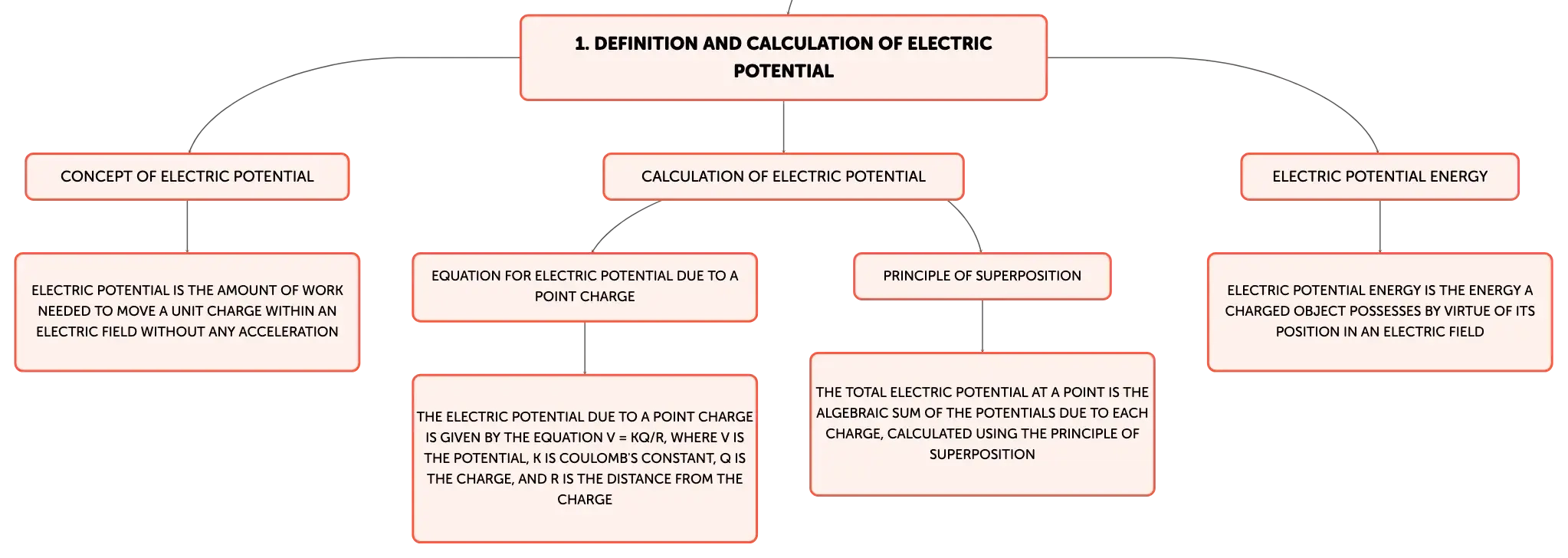

Definition and Calculation of Electric Potential
Concept of Electric Potential
Electric potential is the amount of work needed to move a unit charge within an electric field without any acceleration
Calculation of Electric Potential
Equation for Electric Potential Due to a Point Charge
The electric potential due to a point charge is given by the equation V = kQ/r, where V is the potential, k is Coulomb's constant, Q is the charge, and r is the distance from the charge
Principle of Superposition
The total electric potential at a point is the algebraic sum of the potentials due to each charge, calculated using the principle of superposition
Electric Potential Energy
Electric potential energy is the energy a charged object possesses by virtue of its position in an electric field

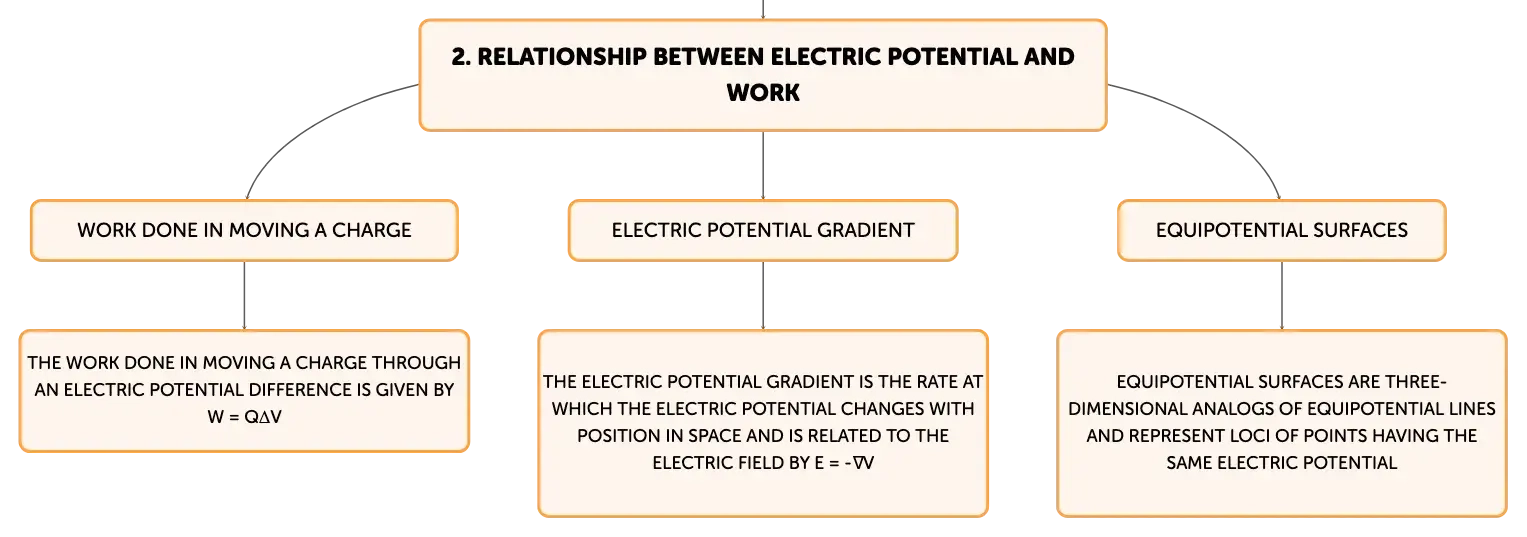

Relationship between Electric Potential and Work
Work Done in Moving a Charge
The work done in moving a charge through an electric potential difference is given by W = QΔV
Electric Potential Gradient
The electric potential gradient is the rate at which the electric potential changes with position in space and is related to the electric field by E = -∇V
Equipotential Surfaces
Equipotential surfaces are three-dimensional analogs of equipotential lines and represent loci of points having the same electric potential

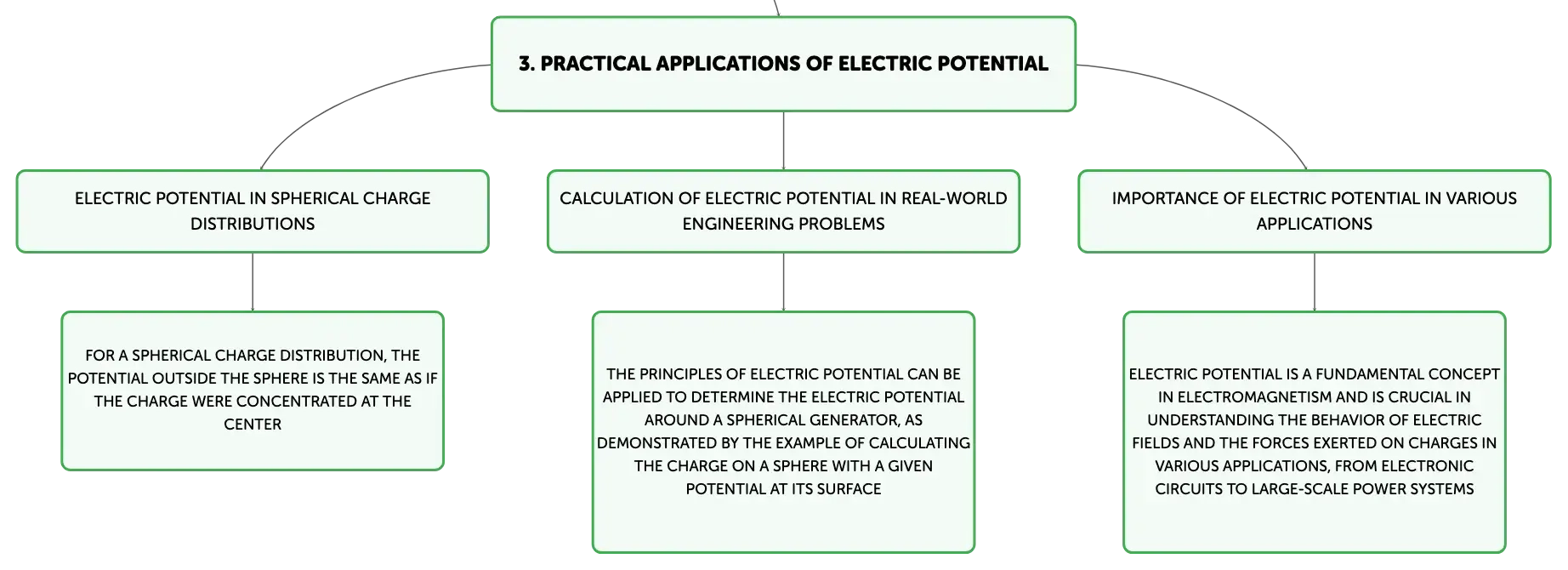

Practical Applications of Electric Potential
Electric Potential in Spherical Charge Distributions
For a spherical charge distribution, the potential outside the sphere is the same as if the charge were concentrated at the center
Calculation of Electric Potential in Real-World Engineering Problems
The principles of electric potential can be applied to determine the electric potential around a spherical generator, as demonstrated by the example of calculating the charge on a sphere with a given potential at its surface
Importance of Electric Potential in Various Applications
Electric potential is a fundamental concept in electromagnetism and is crucial in understanding the behavior of electric fields and the forces exerted on charges in various applications, from electronic circuits to large-scale power systems
Electric Potential and Its Applications
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
The formula for the potential due to a point charge is V = kQ/r, where 'k' stands for ______'s constant.
Coulomb
01
Electric potential due to point charge proportionality
Proportional to charge magnitude, inversely proportional to distance.
02
Electric potential around positive vs negative charge
Decreases with distance for both; work done against field for positive, by field for negative.
