The Arithmetic Logic Unit (ALU) in Computer Architecture

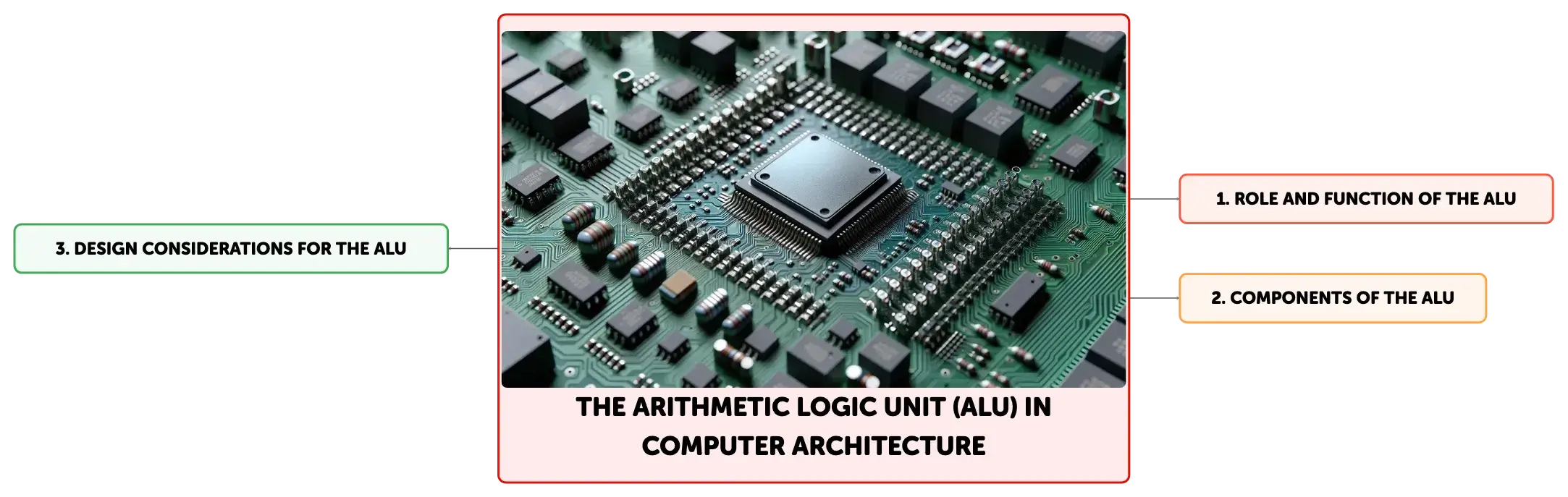

Concept Map
The Arithmetic Logic Unit (ALU) is a fundamental component of the CPU, executing arithmetic and logical operations crucial for computer functionality. It works in tandem with the Control Unit, which coordinates CPU activities. The ALU's design impacts computational speed and efficiency, with considerations for performance, power efficiency, and space on the silicon chip. Understanding the ALU's role and design is key to advancements in computer architecture.
Summary
Outline
The Role of the Arithmetic Logic Unit in Computing
The Arithmetic Logic Unit (ALU) is a critical component within the Central Processing Unit (CPU) of a computer, dedicated to performing a variety of operations that are essential to computer functionality. It executes arithmetic operations such as addition, subtraction, multiplication, and division, as well as logical operations including AND, OR, NOT, and XOR. The ALU receives operands from the CPU registers and processes them based on the instructions provided by the Control Unit (CU). The results are then stored back in the registers or memory for subsequent use. Additionally, the ALU is capable of performing comparison operations, which are vital for control flow in programs, such as loops and conditional statements.The Anatomy of an Arithmetic Logic Unit
The ALU consists of several integral components that collaborate to execute instructions. These include arithmetic circuits for mathematical computations, logic circuits for bitwise operations, and a set of registers for holding the inputs, outputs, and intermediate results of the ALU's operations. The Control Unit interfaces with the ALU, directing which operation to perform and managing the data flow within the CPU. While the architecture of an ALU can vary to meet different processing needs, its design is a key factor in the overall computational speed and efficiency of the computer system.Design Principles of Arithmetic Logic Units
The design of an ALU is governed by considerations of performance, power efficiency, and optimal resource utilization. Designers must decide on the range of operations the ALU will support, the types of data it will handle, and the inclusion of parallel processing capabilities, which are especially relevant in multicore processors and Application-Specific Integrated Circuits (ASICs). Power-saving strategies are implemented to reduce energy consumption when the ALU is not in full operation. Minimizing the physical space the ALU occupies on the silicon chip is also important, as it allows for a denser integration of components. A key objective in ALU design is to shorten the critical path, which is the longest sequence of operations that determines the maximum speed at which the ALU can operate.Distinguishing Between the ALU and the Control Unit
The ALU and the Control Unit are both indispensable to the CPU's operation, yet they fulfill distinct roles. The ALU is tasked with the execution of arithmetic and logical operations and the storage of the resulting data. In contrast, the Control Unit decodes program instructions, generates the necessary control signals to coordinate the activities of the CPU's components, oversees data transfers, and manages system interrupts and exceptions. It also controls the timing of operations through clock signals. The performance of the ALU is largely dependent on the design of its circuits, while the efficiency of the CU is reliant on the sophistication of its control algorithms and the speed of instruction processing.Understanding the Importance of the Arithmetic Logic Unit
To conclude, the Arithmetic Logic Unit is an indispensable part of the computer's CPU, responsible for a broad spectrum of operations crucial to program execution. Its design, encompassing arithmetic and logic circuits, as well as registers and the Control Unit, must be meticulously crafted to achieve the desired performance. Recognizing the differences between the ALU and the CU is essential for understanding their synergistic functions in the execution of instructions. A well-engineered ALU is pivotal to the computational capabilities, efficiency, and energy consumption of a computer, underscoring its significance in the field of computer architecture and engineering.
Show More

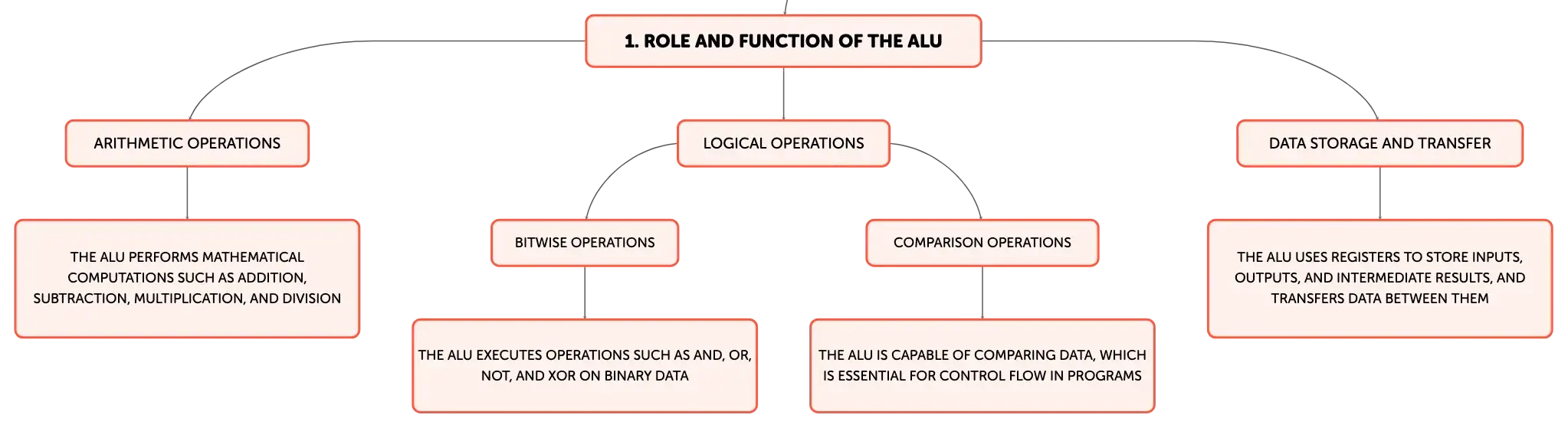

Role and Function of the ALU
Arithmetic Operations
The ALU performs mathematical computations such as addition, subtraction, multiplication, and division
Logical Operations
Bitwise Operations
The ALU executes operations such as AND, OR, NOT, and XOR on binary data
Comparison Operations
The ALU is capable of comparing data, which is essential for control flow in programs
Data Storage and Transfer
The ALU uses registers to store inputs, outputs, and intermediate results, and transfers data between them

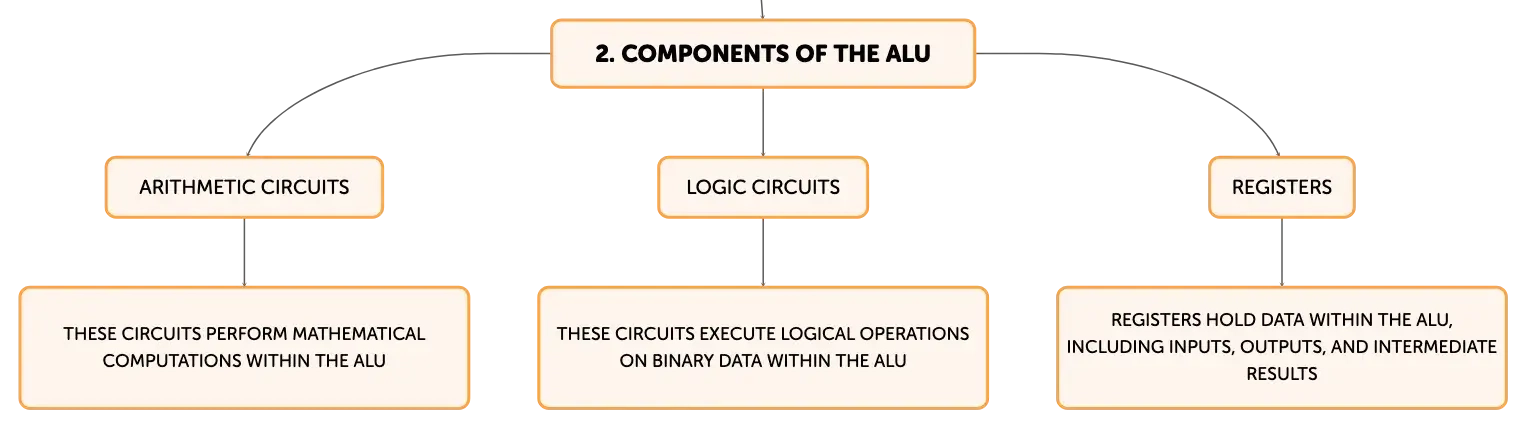

Components of the ALU
Arithmetic Circuits
These circuits perform mathematical computations within the ALU
Logic Circuits
These circuits execute logical operations on binary data within the ALU
Registers
Registers hold data within the ALU, including inputs, outputs, and intermediate results
Design Considerations for the ALU
Performance and Efficiency
The design of the ALU must balance performance and power efficiency, as well as optimize resource utilization
Data Handling and Processing
Designers must consider the range of operations and types of data the ALU will handle, as well as the inclusion of parallel processing capabilities
Physical Space and Critical Path
Designers aim to minimize the physical space the ALU occupies and shorten the critical path to increase computational speed
