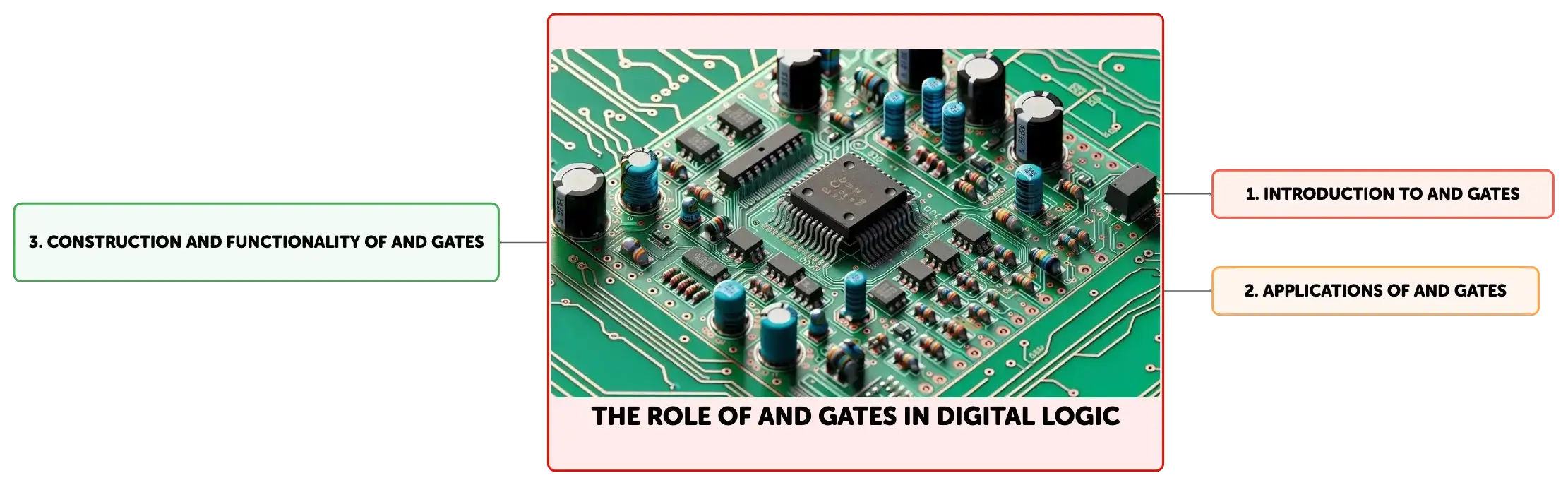

The Role of AND Gates in Digital Logic

The AND gate is a fundamental component in digital electronics, performing logical conjunctions in circuits. It is essential in devices like CPUs, where it forms part of the arithmetic logic unit. AND gates are also found in everyday technology, ensuring conditions are met for operations to proceed safely. Their design typically involves transistors configured in series, and they operate based on Boolean algebra. Understanding AND gates is crucial for anyone interested in digital systems and computing technologies.

see more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

AND gate function representation

Click to check the answer

Represented by a truth table showing all input combinations and corresponding outputs.

2

AND gate input-output relation for two inputs

Click to check the answer

Outputs high (1) only when both input A and input B are high (1).

3

AND gate output when not all inputs are high

Click to check the answer

Outputs low (0) if any input is low (0); requires all high inputs for high output.

4

The ______ gate is crucial for creating digital circuits and is used with OR and NOT gates to build complex logic functions.

Click to check the answer

AND

5

In CPUs, the arithmetic logic units (ALUs) rely on the ______ gate to perform arithmetic and logical operations.

Click to check the answer

AND

6

AND gate function in multi-factor authentication

Click to check the answer

AND gates require multiple conditions met for access.

7

AND gate role in household appliances

Click to check the answer

AND gates ensure operations proceed only when all safety and operational prerequisites are met.

8

AND gate usage in industrial machinery

Click to check the answer

AND gates check for engagement of safety interlocks and power presence before machinery operates.

9

In an AND gate circuit, the output signal is only ______ when all ______ switches are closed.

Click to check the answer

high transistor

10

The fundamental logic of an AND gate circuit remains unchanged, despite the increase in ______ with more inputs.

Click to check the answer

complexity

11

AND gate output condition

Click to check the answer

High output only if all inputs are high.

12

AND gate input responsiveness

Click to check the answer

Output changes immediately with input states.

13

In digital systems, AND gates are frequently combined with ______ gates to create more complex functions.

Click to check the answer

other logic

14

A practical skill in computing technology design and troubleshooting involves analyzing AND gates, especially when they're used to create a ______ gate by combining them with a NOT gate.

Click to check the answer

NAND

15

AND gate basic function

Click to check the answer

Outputs true only if all inputs are true; fundamental to Boolean logic.

16

AND gate role in digital circuits

Click to check the answer

Used to create complex circuits; enables conditional operations.

17

AND gate technological progression

Click to check the answer

Reflects computing advances; from simple to complex systems.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

The Importance of Bits in the Digital World

View document

Computer Science

Secondary Storage in Computer Systems

View document

Computer Science

Understanding Processor Cores

View document

Computer Science

The Significance of Terabytes in Digital Storage

View document

Fundamentals of the AND Gate in Digital Electronics

The AND gate is a crucial digital logic gate that operates on the principles of Boolean algebra. It is used to implement logical conjunction, producing a high output (1) only when all its inputs are high (1). The function of an AND gate is typically represented in a truth table, which lists all possible input combinations and their corresponding outputs. For a basic two-input AND gate, the truth table illustrates that the output is high only when both input A and input B are high; in all other cases, the output is low (0).
Close-up of a green electronic board with black integrated circuit, colored resistors, capacitors and copper traces.

Historical and Contemporary Significance of the AND Gate

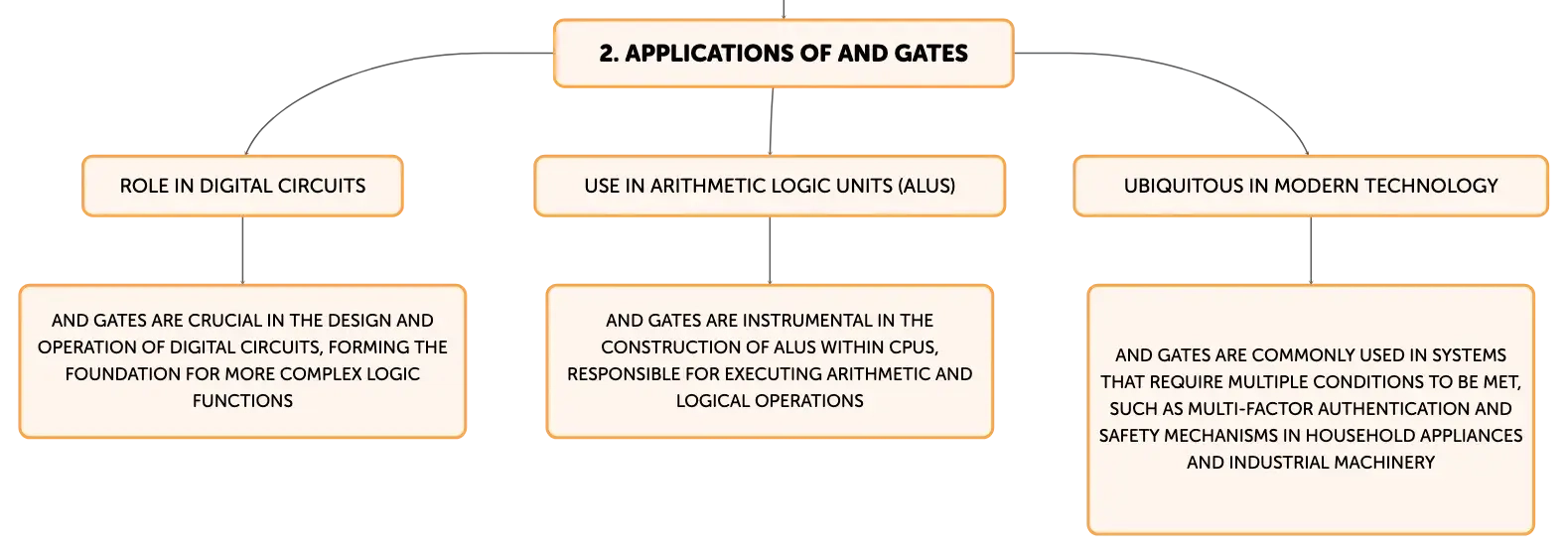

The AND gate plays a vital role in the design and operation of digital circuits, forming the foundation for more complex logic functions in conjunction with OR and NOT gates. It is instrumental in the construction of arithmetic logic units (ALUs) within CPUs, which are responsible for executing arithmetic and logical operations. The development of the AND gate mirrors the evolution of computing technology, transitioning from mechanical and relay-based systems to contemporary silicon-based transistors. This reflects broader technological advancements, including the transition from vacuum tubes to integrated circuits and the trend towards miniaturization in electronics.

Everyday Applications of AND Gate Logic

AND gates are ubiquitous in modern technology, often operating behind the scenes in systems that require a combination of conditions to be met. For example, multi-factor authentication systems in secure devices use AND gate logic to require the satisfaction of multiple security conditions before access is granted. In household appliances and industrial machinery, AND gates ensure that operations only proceed when all safety and operational prerequisites are met, such as the engagement of safety interlocks and the presence of power.

Components and Design of AND Gate Circuits

The construction of an AND gate circuit involves a power source, resistors, and transistors. Transistors are the key components, configured in series to emulate the AND logic function. The output signal is high only when all transistor switches are closed, allowing current to pass through the entire series. While the complexity of AND gate circuits can increase with the addition of more inputs, the fundamental logic remains the same, ensuring that the output reflects the logical conjunction of all inputs.

Logical Operation of the AND Gate

The AND gate's functionality is rooted in Boolean algebra, where it executes the logical AND operation on its inputs. The output of the gate is immediately responsive to input states, which is essential for the precision required in digital circuits. The gate produces a high output exclusively when every input is high, a principle that applies to AND gates with any number of inputs, preserving the core logic of the conjunction operation.

Exploring AND Gate Functions Through Examples

Examining practical examples of AND gates within computational circuits can enhance understanding of their role in digital systems. These examples often involve the integration of AND gates with other logic gates to create complex functions, such as combining an AND gate with a NOT gate to form a NAND gate. Analyzing the behavior of AND gates in these scenarios is critical for understanding the operation of more intricate digital circuits and is a practical skill for designing and troubleshooting computing technologies.

The Pervasive Influence of AND Gates in Digital Technology

The AND gate is a fundamental building block in the realm of digital electronics, with applications that span from basic gadgets to advanced computational systems. Its simple yet robust operation, based on Boolean logic, enables the development of intricate digital circuits. The progression of AND gate technology is indicative of the larger advancements in the field of computing. The widespread use of AND gates in various applications highlights their importance, making knowledge of these gates essential for students and professionals in computer science and electronics.
