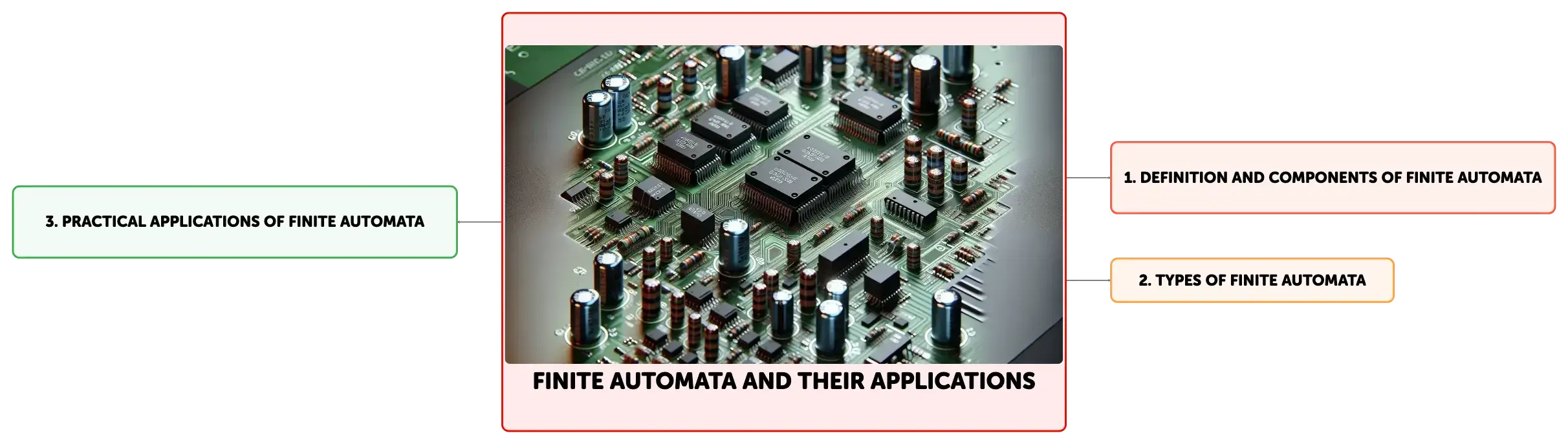

Finite Automata and Their Applications

Finite Automata, or Finite State Machines, are computational models crucial for digital circuit design, language parsing, and algorithm implementation. They consist of a finite set of states, input symbols, a transition function, an initial state, and accepting states. This text delves into their deterministic operation, diagrammatic representation, and real-world applications, highlighting their significance in computer science.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Purpose of Finite Automata

Click to check the answer

Model systems with limited states, design digital circuits, parse languages, implement algorithms.

2

Deterministic vs Non-deterministic Finite Automata

Click to check the answer

Deterministic has one transition per state/input; non-deterministic can have multiple transitions.

3

Role of Accepting States in Finite Automata

Click to check the answer

Define successful computations; system ends in accepting state if input is accepted.

4

Finite Automata operate with a ______ set of states and input symbols, and start from an ______ state.

Click to check the answer

finite initial

5

In the context of Finite Automata, ______ states determine if an input string is ______ by the machine.

Click to check the answer

Accepting accepted

6

FSM graphical representation

Click to check the answer

State diagrams with nodes as states, directed edges as transitions.

7

FSM example

Click to check the answer

Light bulb toggle system, states for bulb status, transitions for user actions.

8

FSM state diagrams utility

Click to check the answer

Aid in comprehension, communication of FSM design and behavior.

9

A Finite State Machine consists of a finite number of ______, a set of input symbols, a ______ function, an initial state, and accepting states.

Click to check the answer

states transition

10

Definition of DFA

Click to check the answer

DFA: Automata with one transition per state/input symbol pair, no multiple paths for input.

11

DFA suitability for language type

Click to check the answer

DFAs are ideal for recognizing regular languages, the simplest in Chomsky hierarchy.

12

DFA acceptance criteria

Click to check the answer

DFA accepts input if it ends in an accepting state after processing entire string.

13

______ allow for multiple transitions per input symbol, including to multiple states or none.

Click to check the answer

Non-Deterministic Finite Automata (NFA)

14

Finite Automata in Compiler Design

Click to check the answer

Used for lexical analysis to tokenize input strings, parsing source code into syntactic structures.

15

Finite Automata in Digital Circuits

Click to check the answer

Employed to design deterministic systems that control digital circuit operations and state transitions.

16

Finite Automata in Security

Click to check the answer

Crucial for developing encryption algorithms ensuring secure data transmission and storage.

17

Online resources like ______ and educational software offer engaging methods to learn about ______.

Click to check the answer

simulation platforms Finite Automata

18

Applications of Finite Automata in AI

Click to check the answer

Used in pattern recognition, control systems.

19

Role of Finite Automata in Text Processing

Click to check the answer

Employed for parsing, searching patterns in text.

20

Finite Automata in Error Detection/Correction

Click to check the answer

Crucial for checking data integrity, correcting errors in transmissions.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Secondary Storage in Computer Systems

Computer Science

Computer Memory

Computer Science

Bitwise Shift Operations in Computer Science

Computer Science

The Importance of Bits in the Digital World

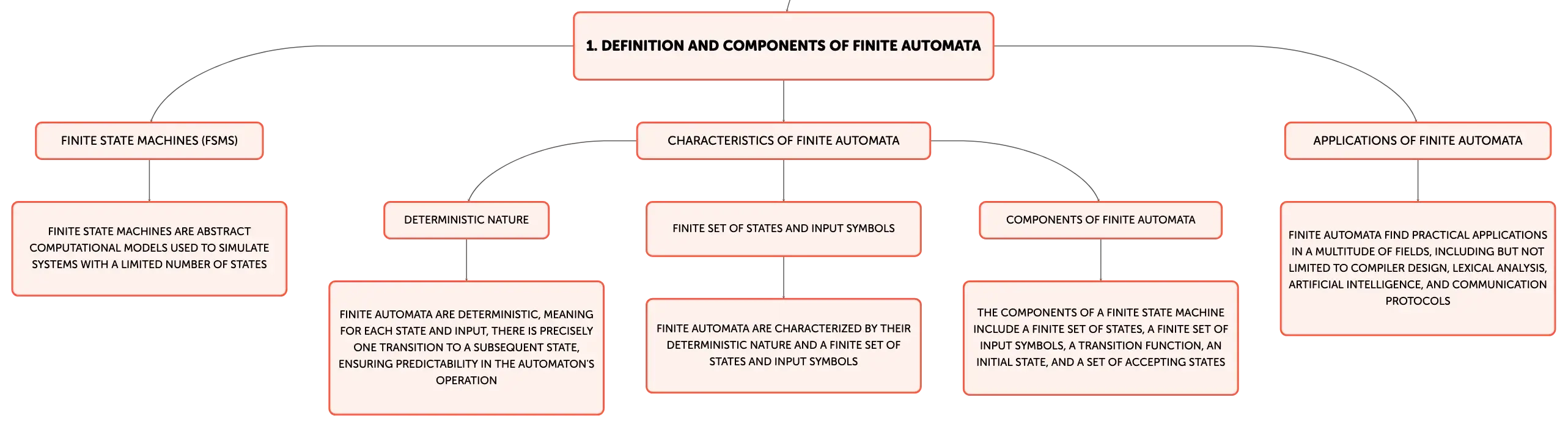

Understanding Finite Automata Fundamentals

Finite Automata, commonly referred to as Finite State Machines (FSMs), are abstract computational models used to simulate systems with a limited number of states. These models are essential in the realm of theoretical computer science for the design and analysis of digital circuits, the parsing of languages, and the implementation of algorithms. A Finite Automaton is defined by a set of states, a set of input symbols, a transition function, an initial state, and a set of accepting states. The system is deterministic, meaning for each state and input, there is precisely one transition to a subsequent state, ensuring predictability in the automaton's operation.

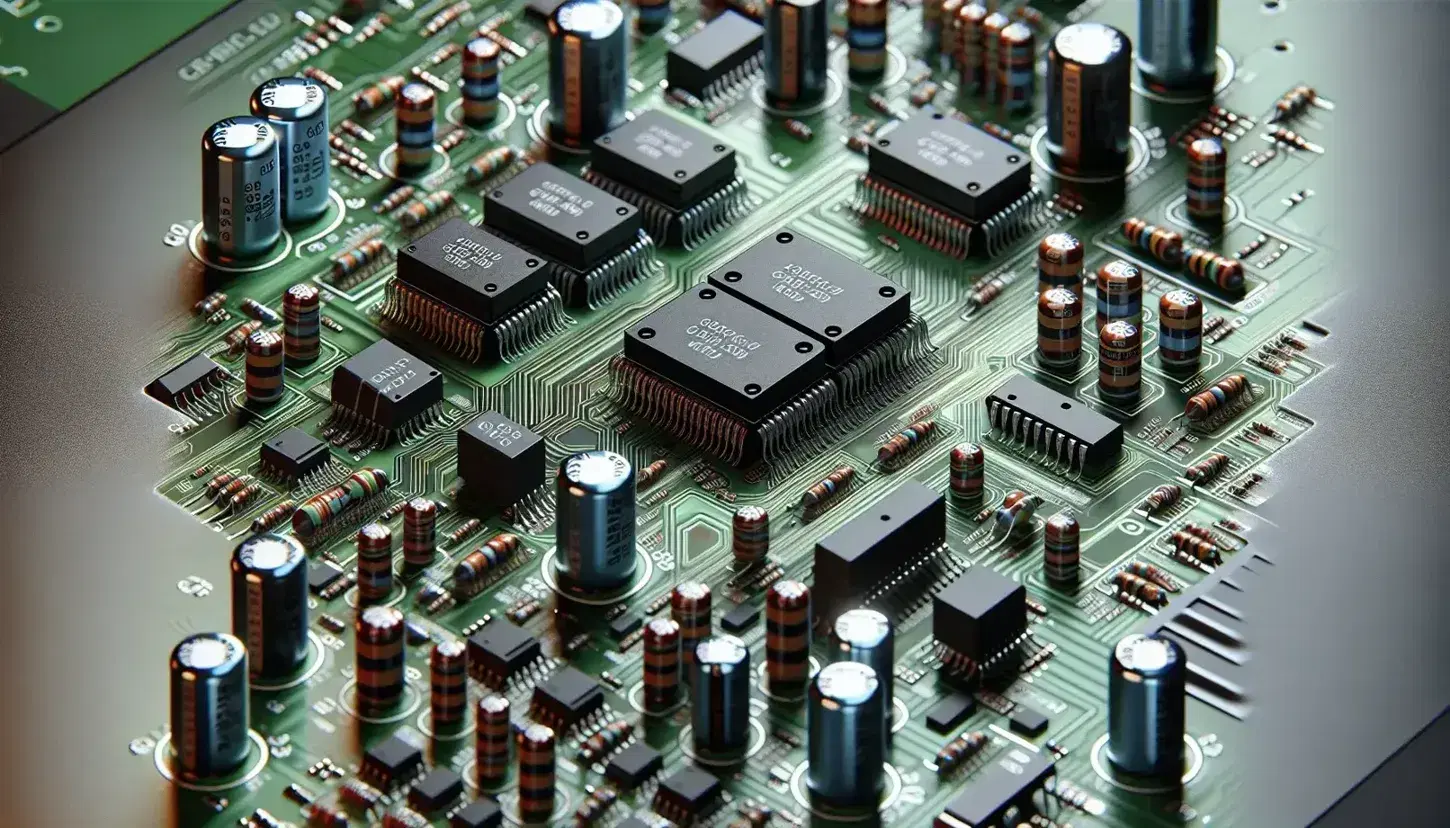

Close-up of an electronic board with various components such as colored resistors, capacitors and integrated circuits on a green base.

Defining Features of Finite Automata

Finite Automata are characterized by their deterministic nature and a finite set of states and input symbols. They begin computation from a designated initial state and process input strings symbol by symbol. Accepting states are defined within the automaton to determine whether a given input string is accepted by the machine, based on whether the computation ends in one of these states. These defining features enable Finite Automata to be used effectively in areas such as language recognition, parsing, and the design of sequential circuits.

Diagrammatic Representation of Finite State Machines

Finite State Machines can be graphically represented using state diagrams, which depict states as nodes and transitions as directed edges between these nodes. This visual representation is instrumental in understanding the operational dynamics of an FSM. For instance, a simple system that toggles a light bulb on and off based on user input can be modeled as an FSM, with states representing the light bulb's status and transitions corresponding to user actions. State diagrams facilitate the comprehension and communication of FSM designs and behaviors.

Components and Dynamics of Finite State Machines

The components of a Finite State Machine include a finite set of states, a finite set of input symbols (the alphabet), a transition function that defines state changes, an initial state from which operations commence, and a set of accepting states that signify successful computations. For example, in a vending machine FSM, the states could represent the amount of money inserted, the input symbols could be the denominations of currency, and the transition function would determine the state changes as money is inserted or items are dispensed.

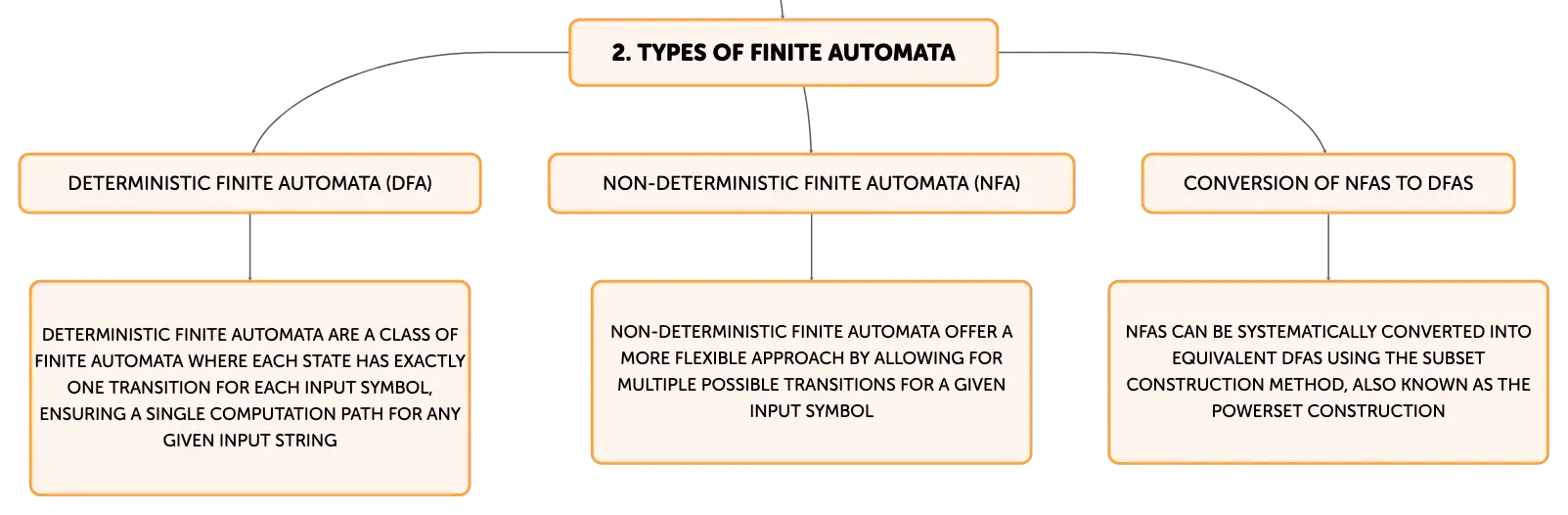

The Operation of Deterministic Finite Automata

Deterministic Finite Automata (DFA) are a class of Finite Automata where each state has exactly one transition for each input symbol, ensuring a single computation path for any given input string. DFAs are particularly suited for recognizing regular languages, which are the simplest class of languages in the Chomsky hierarchy. They operate by reading input strings one symbol at a time, transitioning between states according to the transition function, and determining acceptance based on whether the final state is an accepting state.

Non-Deterministic Finite Automata and Their Versatility

Non-Deterministic Finite Automata (NFA) offer a more flexible approach by allowing for multiple possible transitions for a given input symbol, including transitions to multiple states or no state at all. NFAs can simplify the design of computational models and are capable of recognizing the same class of languages as DFAs. Although NFAs may appear more complex, they can be systematically converted into equivalent DFAs using the subset construction method, also known as the powerset construction.

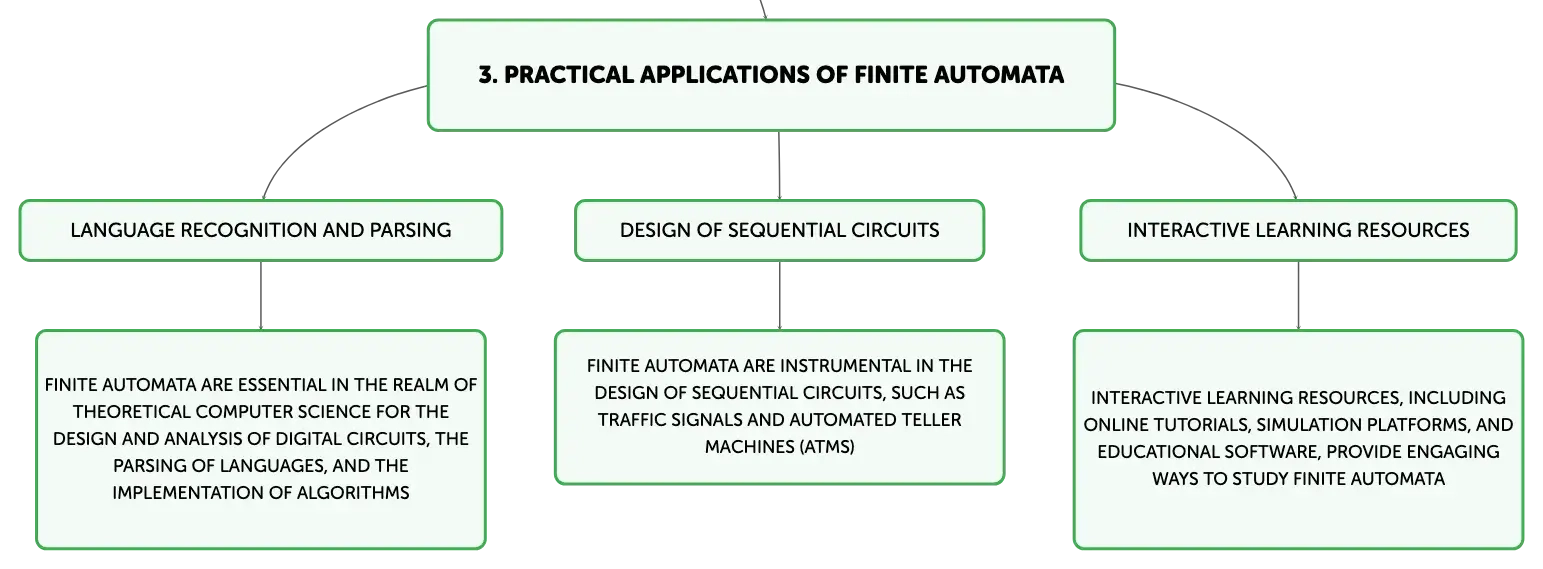

Finite Automata in Real-World Applications

Finite Automata find practical applications in a multitude of fields, including but not limited to compiler design, lexical analysis, artificial intelligence, and communication protocols. They are instrumental in simplifying complex computational tasks such as pattern matching with regular expressions and modeling systems like traffic signals and automated teller machines (ATMs). The deterministic nature of Finite Automata also plays a crucial role in areas such as security for encryption algorithms and in the design of digital circuits.

Interactive Learning Tools for Mastering Finite Automata

Interactive learning resources, including online tutorials, simulation platforms, and educational software, provide engaging ways to study Finite Automata. These tools complement traditional textbook material by offering hands-on experiences and visualizations of FSM concepts. They can help students understand the different types of Finite Automata, their properties, and their applications in computing. Interactive simulations, in particular, allow learners to experiment with FSMs, reinforcing theoretical knowledge through practical application.

The Significance of Finite Automata in Computer Science

Finite Automata are a fundamental concept in computer science, underpinning areas such as algorithm design, formal language theory, and error detection and correction. Their influence extends to artificial intelligence, where they are used in pattern recognition and control systems, as well as in text processing and parsing. Finite Automata provide a simple yet robust framework for understanding the principles of computation and automata theory, serving as a critical building block for both theoretical and applied computer science.
