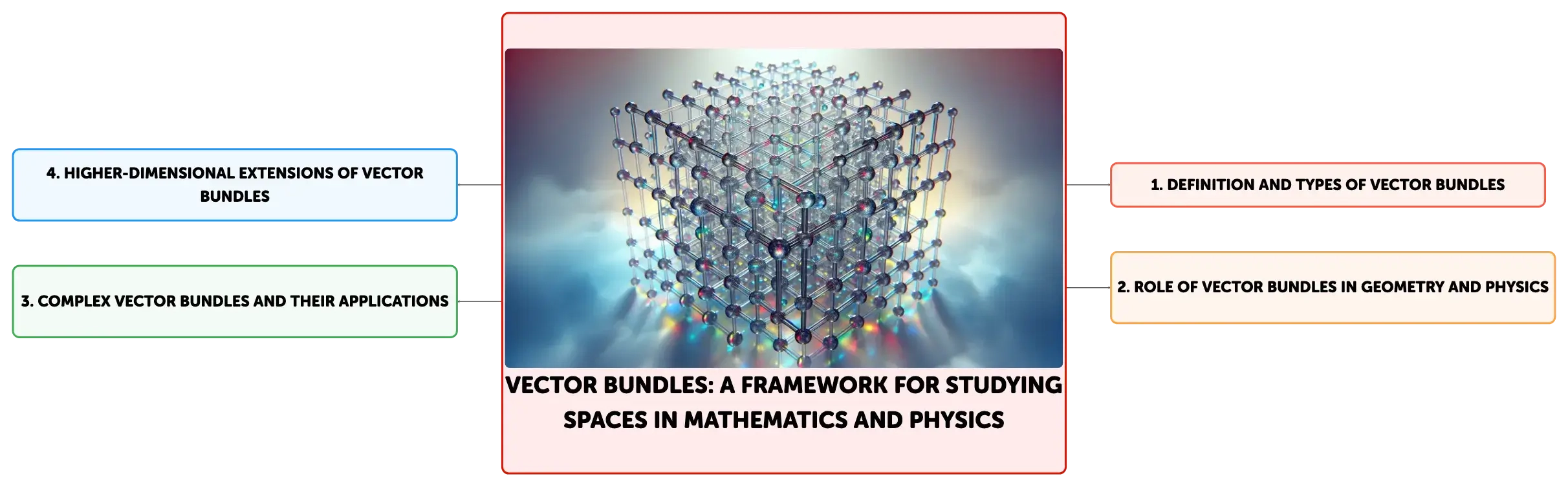

Vector Bundles: A Framework for Studying Spaces in Mathematics and Physics

Vector bundles are pivotal in understanding the geometry and topology of spaces, with applications in physics and engineering. They consist of a base space and attached vector spaces, or fibres, and can be trivial or nontrivial. Connections within these bundles are crucial for defining parallel transport and measuring curvature. Complex vector bundles and their Chern classes offer insights into complex manifolds, while practical uses range from material stress analysis to signal transmission.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Base Space in Vector Bundles

Click to check the answer

Base space is the underlying topological space to which vector spaces (fibres) are attached in a vector bundle.

2

Fibre in Vector Bundles

Click to check the answer

Fibre refers to the vector space attached at each point of the base space in a vector bundle, varying smoothly from point to point.

3

Trivial vs Nontrivial Vector Bundles

Click to check the answer

Trivial bundles have a constant fibre across the base space, while nontrivial bundles have fibres that can change from point to point.

4

In ______ geometry, vector bundles are essential for defining structures that remain unchanged under various mappings.

Click to check the answer

modern

5

Definition of Connection in Vector Bundles

Click to check the answer

A connection provides a way to differentiate vectors along a curve within a vector bundle.

6

Purpose of Parallel Transport in Differential Geometry

Click to check the answer

Parallel transport uses connections to move vectors along paths on a curved surface while keeping them parallel.

7

Connection's Role in Measuring Curvature

Click to check the answer

A connection measures curvature by showing how much a vector is displaced after transportation around a closed loop.

8

______ classes serve as topological invariants that help in classifying ______ vector bundles.

Click to check the answer

Chern complex

9

Vector bundles in material stress analysis

Click to check the answer

Used to model stresses/strains in materials, crucial for structural design like bridges.

10

Möbius strip vs. cylinder in vector bundles

Click to check the answer

Möbius strip exemplifies a non-trivial vector bundle; cylinder represents a trivial bundle with flat connection.

11

Importance of vector bundles in signal transmission

Click to check the answer

Essential for consistent structures in multi-dimensional spaces, e.g., signal transmission through optical fibers.

12

In physics, these constructs help model electromagnetic fields by representing both field ______ and its ______.

Click to check the answer

strength potential

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Mathematics

Parametric Equations and Integration

View document

Mathematics

Linear Systems: Modeling and Solving Complex Relationships

View document

Mathematics

Understanding the Vertex in Quadratic Functions

View document

Mathematics

Trigonometry: Exploring Angles and Sides of Triangles

View document

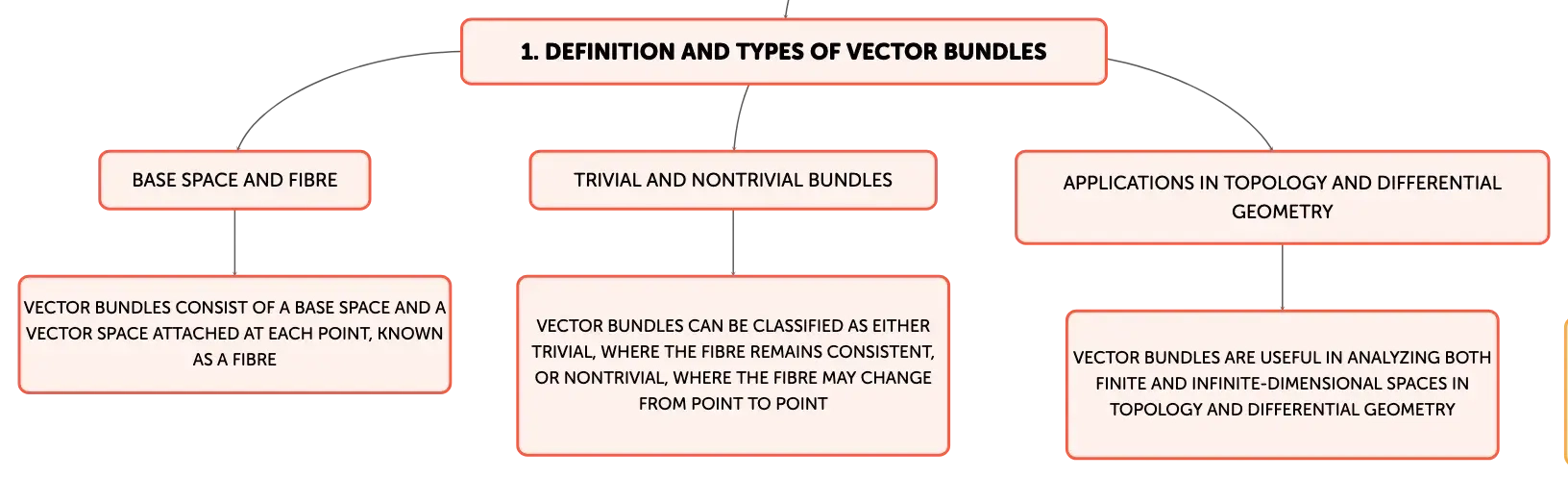

Exploring the Fundamentals of Vector Bundles

Vector bundles are fundamental structures in mathematics and physics that provide a framework for studying the intricate geometrical and topological features of various spaces. A vector bundle consists of a base space coupled with a vector space attached at each point of the base space, known as a fibre. This concept is instrumental in fields such as fibre bundle theory and differential geometry. Vector bundles are particularly useful in topology and differential geometry for analyzing both finite and infinite-dimensional spaces. They are classified into two types: trivial bundles, where the fibre remains consistent over the entire base space, and nontrivial bundles, where the fibre may change from point to point.
Transparent 3D geometric lattice with metallic rods and nodes against a gradient blue to white background, accented by colorful red, green, blue, and yellow tubes.

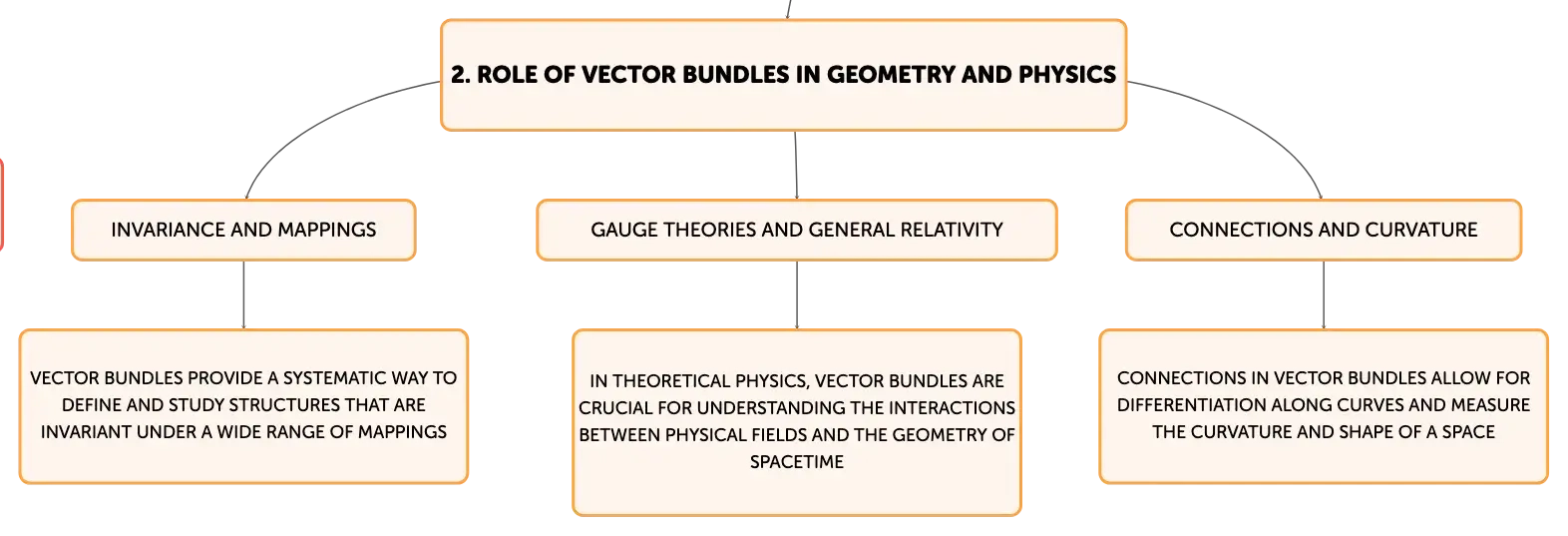

The Impact of Vector Bundles on Modern Geometry

Vector bundles play a critical role in modern geometry by providing a systematic way to define and study structures that are invariant under a wide range of mappings. This is crucial for understanding the geometric and topological properties of spaces. In the realm of theoretical physics, vector bundles are key to the study of gauge theories and the theory of general relativity. In these contexts, spacetime is modeled as a base space, with vectors at each point representing physical fields. This approach enables physicists to articulate how these fields interact with the geometry of spacetime.

The Significance of Connections in Vector Bundles

Connections in vector bundles are essential tools in differential geometry, offering a method to differentiate vectors along a curve within the bundle. They allow for the comparison of vectors at different points on the base space, which is fundamental to understanding the curvature and shape of the space. Conceptually, connections provide guidelines for parallel transport, which is the process of moving vectors along paths on a curved surface. In differential geometry, connections serve a dual purpose: they define the rules for parallel transport and they measure curvature, which indicates the extent to which a vector is displaced from its original position after being transported around a closed loop.

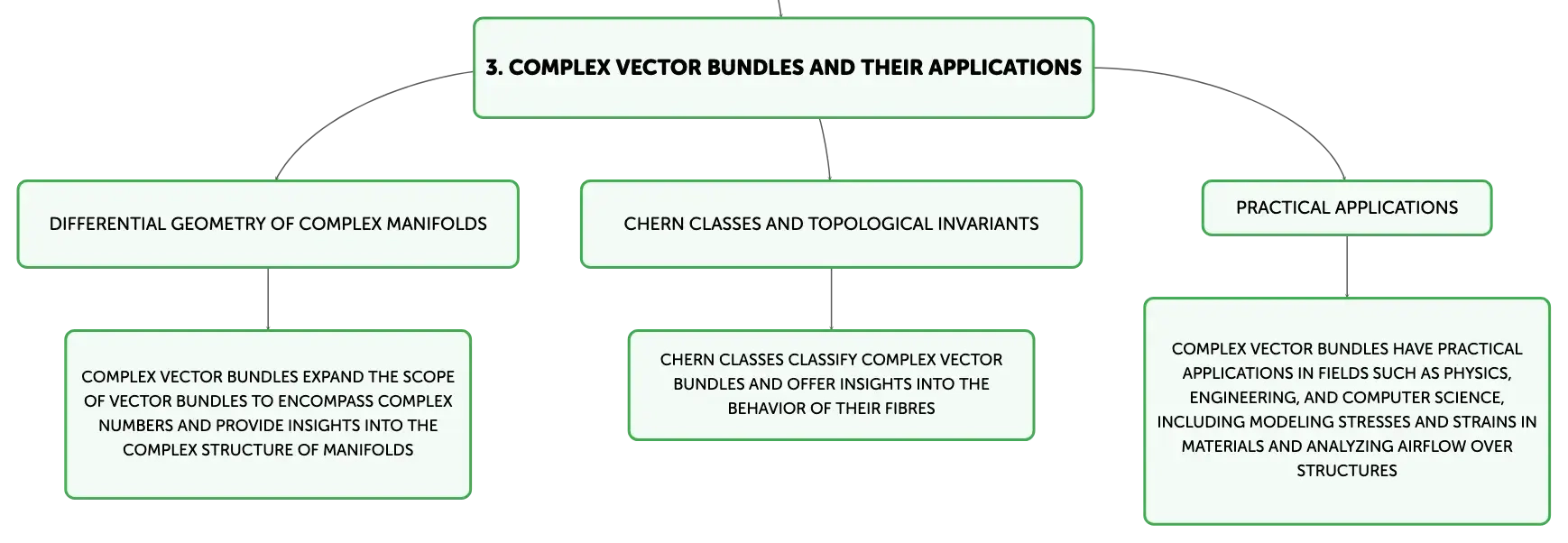

Complex Vector Bundles and Differential Geometry

Complex vector bundles, characterized by fibres that are complex vector spaces, are integral to the study of the differential geometry of complex manifolds. They expand the scope of vector bundles to encompass complex numbers, offering a richer perspective on mathematical structures. In these bundles, connections facilitate differentiation along the fibres, and curvature provides a measure of how the bundle twists. Chern classes are topological invariants that classify complex vector bundles and provide insights into the manifold's complex structure and the behavior of its fibres.

Vector Bundles in Practical Applications

The theoretical framework of vector bundles has practical implications in various disciplines, including physics, engineering, and computer science. For instance, they are utilized to model the distribution of stresses and strains in materials, which is vital in the design of structures like bridges or in aerodynamics for analyzing airflow over aircraft wings. The Möbius strip serves as a real-world example of a non-trivial vector bundle, while a cylinder represents a trivial vector bundle with a flat connection, signifying no curvature or twisting. These concepts are essential for understanding and maintaining consistent structures across different dimensions, such as in the transmission of signals through optical fibres.

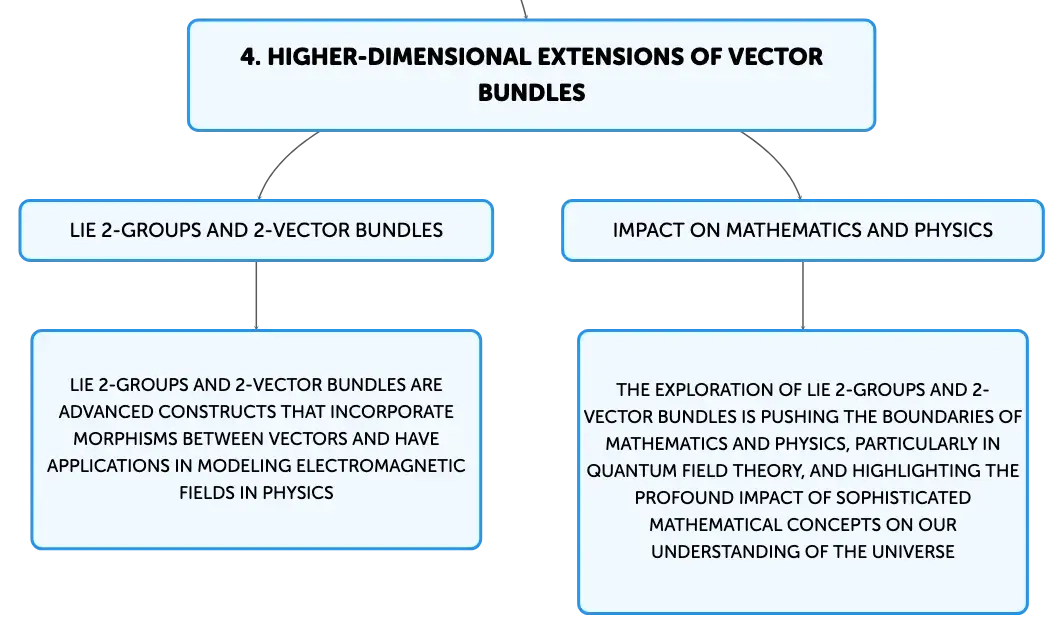

Advanced Generalizations: Lie 2-Groups and 2-Vector Bundles

Lie 2-groups and 2-vector bundles are higher-dimensional extensions of the concept of vector bundles, incorporating morphisms between vectors and broadening the framework to more complex structures. These advanced constructs are particularly relevant in the modeling of electromagnetic fields in physics, offering a more complete representation that encompasses both the electromagnetic field strength and its potential. The exploration of Lie 2-groups and 2-vector bundles is forging new paths in the fields of mathematics and physics, especially in quantum field theory, and underscores the profound impact that sophisticated mathematical concepts can have on our understanding of the universe.
