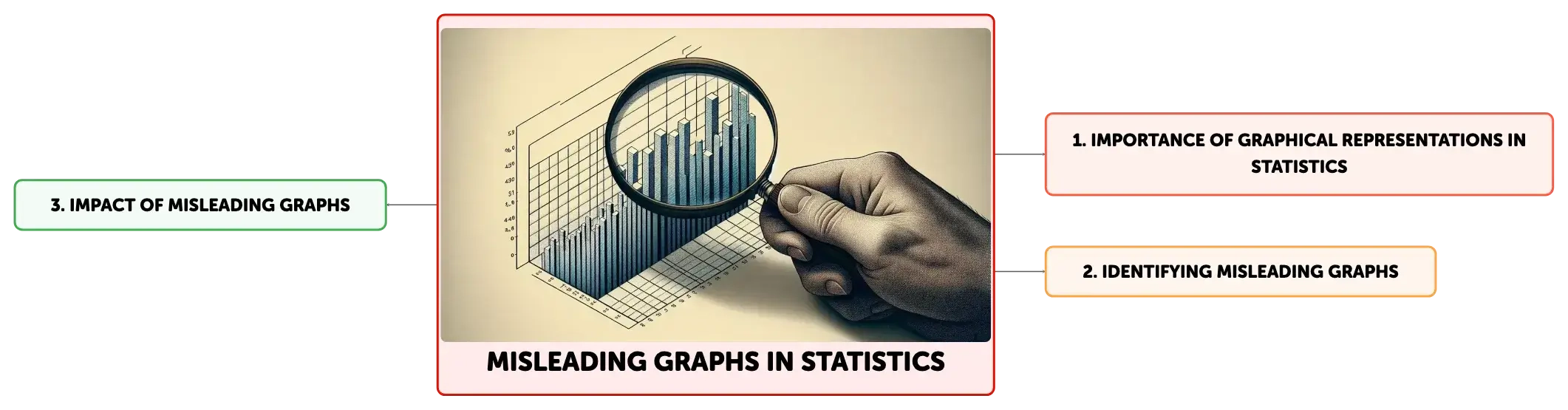

Misleading Graphs in Statistics

Understanding misleading graphs in statistics is crucial for accurate data interpretation. This overview discusses how graphs can distort information through scale manipulation, axis interval inconsistencies, and selective data presentation. It emphasizes the importance of recognizing these distortions to maintain the integrity of statistical analysis and ensure informed decision-making.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

In statistics, graphical representations must be made with care to avoid ______ the viewer.

Click to check the answer

misleading

2

Students need to learn to spot distortions in graphs, which may involve manipulated ______, ______, or ______.

Click to check the answer

scale axis intervals data selection

3

Inappropriate scaling effects

Click to check the answer

Using non-proportional axes or not starting at zero to exaggerate/minimize data differences.

4

Data point manipulation

Click to check the answer

Omitting relevant or including extraneous data points to skew the graph's representation.

5

Misleading visual design

Click to check the answer

Applying 3D effects or disproportionate pictorial elements to distort perception.

6

A graph may misleadingly exaggerate changes if the Y-axis is ______, starting at a value higher than zero.

Click to check the answer

truncated

7

Impact of Scale Manipulation

Click to check the answer

Altering scale or axes can exaggerate or downplay data trends, misleading viewers.

8

Effects of 3D on Graphs

Click to check the answer

3D effects can distort perspective, making graph interpretation more complex and less accurate.

9

Consequences of Selective Data Presentation

Click to check the answer

Omitting key data or including irrelevant points skews the graph's message, potentially deceiving the audience.

10

When evaluating graphs for accuracy, it's crucial to check the ______, ______, and ______ to avoid deception.

Click to check the answer

title axis labels data scaling

11

Line Graph Characteristics

Click to check the answer

Uniform Y-axis intervals, clear labels; shows trends like growth or decline.

12

Bar Graph Baseline Importance

Click to check the answer

Correct baseline ensures precise comparison; useful for changes over time, e.g., house prices.

13

Comprehensive Employment Graph

Click to check the answer

Includes all relevant years; clarifies true employment rate changes.

14

______ graphs can distort the interpretation of statistical data, leading to ______ conclusions.

Click to check the answer

Misleading incorrect

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Mathematics

Understanding the Vertex in Quadratic Functions

View document

Mathematics

Rearrangement in Mathematics

View document

Mathematics

Trigonometry: Exploring Angles and Sides of Triangles

View document

Mathematics

Algebraic Expressions and Equations

View document

Understanding Misleading Graphs in Statistics

Graphical representations in statistics are essential tools for summarizing and interpreting data. However, when graphs are not constructed carefully, they can mislead the viewer. Misleading graphs, whether due to intentional deception or unintentional oversight, can skew the viewer's understanding of the data. These graphs may manipulate elements such as scale, axis intervals, and data selection to present a distorted view of the information. It is vital for students to learn how to identify such distortions to ensure they can critically analyze the validity of graphical data presentations.
Hand holding magnifying glass over bar graph with varying shades of blue bars, highlighting details without axis labels or numerical data.

Characteristics of Misleading Graphs

Misleading graphs often share common characteristics that can be identified with a critical eye. These include inappropriate scaling, such as axes that are not proportional or do not start at zero, which can exaggerate or minimize differences in the data. Omitting relevant data points or including extraneous data can also mislead by providing an incomplete or skewed picture. Additionally, the visual design of the graph, such as the use of 3D effects or disproportionate pictorial representations, can distort the viewer's perception. Understanding these characteristics is crucial for students to evaluate the integrity of statistical graphs.

Examples of Misleading Graphs

Consider two graphs that depict the same data set but with different scales on the Y-axis. One graph may use a compressed scale that minimizes the appearance of variation, while the other uses an exaggerated scale that amplifies differences. Both fail to accurately represent the data. Another common issue is a truncated Y-axis, where the baseline is set above zero, which can dramatically overstate changes in the data. For example, a graph showing a slight increase in house prices can appear to show a surge if the Y-axis starts at a high value. These examples highlight the need for careful graph construction to avoid misrepresentation.

Techniques Used to Create Misleading Graphs

Several techniques can lead to the creation of misleading graphs. Manipulating the scale or axes can alter the visual impact of the data, potentially misrepresenting the significance of trends. The use of 3D effects can introduce perspective distortion, complicating the interpretation of the graph. Selective presentation of data, either by omiting important points or including irrelevant ones, can also mislead viewers. To maintain the integrity of a graph, it is essential to use evenly distributed and appropriately scaled intervals for the data represented.

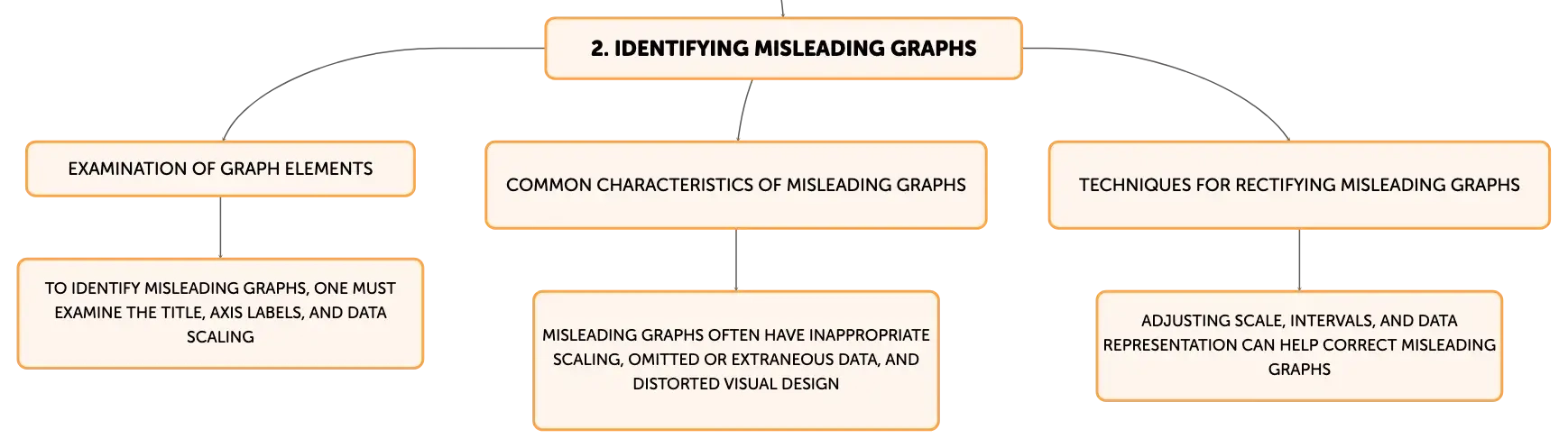

Identifying and Rectifying Misleading Graphs

To identify misleading graphs, students should examine the title, axis labels, and data scaling. The scale should start from zero and intervals should be consistent and without sudden jumps. In pictographs, symbols must be proportional to the quantities they represent, and the key must accurately reflect this proportionality. To rectify misleading graphs, one can adjust the scale to begin at zero, ensure consistent intervals, and include all relevant data. For pictographs, revising the key and symbols can provide a more accurate depiction of the data.

Conclusions Drawn from Accurate Graphs

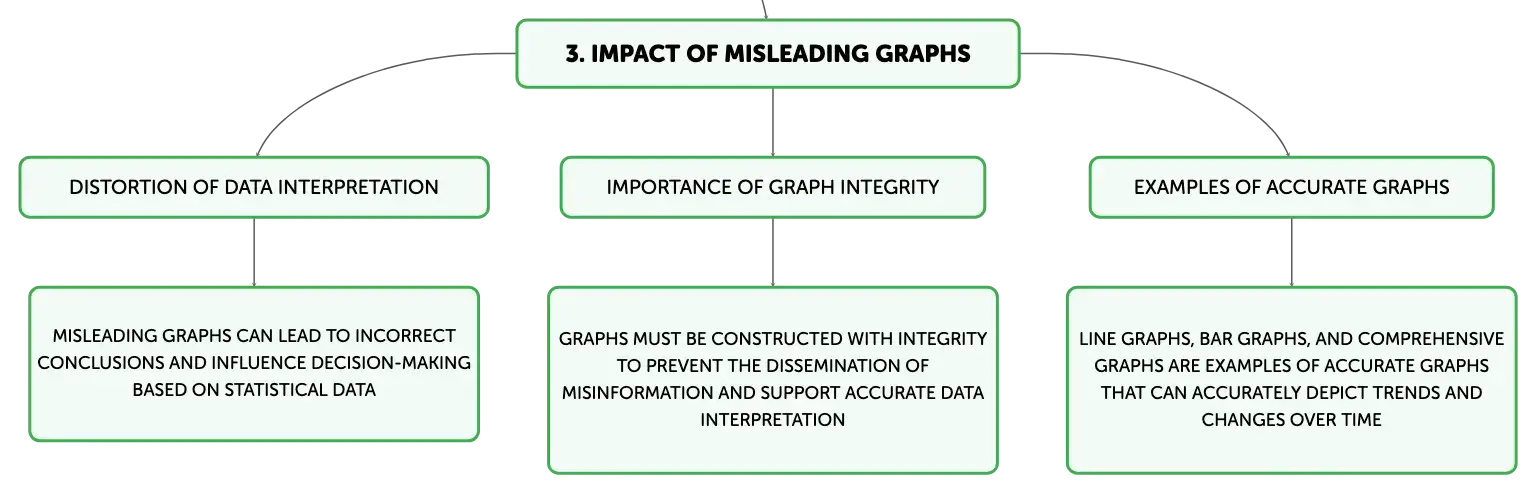

Accurate graphs enable the drawing of valid conclusions from data. A line graph with uniform Y-axis intervals and clear labels can accurately show trends, such as periods of growth or decline. A bar graph with a correct baseline allows for a precise comparison of changes over time, such as in house prices. When employment rate data is presented in a comprehensive graph that includes all pertinent years, the true pattern of employment changes becomes clear. Accurate graphs are indispensable for informed decision-making and understanding the true narrative of the data.

Key Takeaways on Misleading Graphs

Misleading graphs can significantly distort the interpretation of statistical data, leading to incorrect conclusions and potentially influencing decisions. It is imperative for students to develop the ability to recognize and correct misleading graphs, focusing on accurate scaling, data representation, and graphical clarity. By ensuring that graphs are constructed with integrity, students can prevent the dissemination of misinformation and support the precise interpretation of statistical data.
