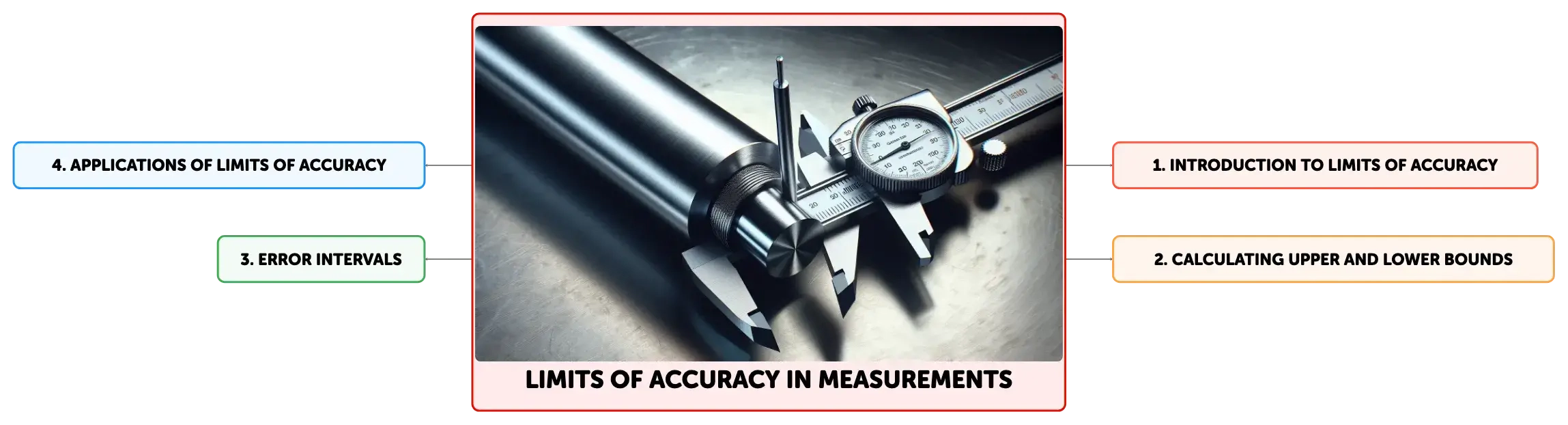

Limits of Accuracy in Measurements
Exploring measurement accuracy involves understanding the limits of precision in tools and their practical applications. It defines how the true value of a measurement lies within a range determined by the instrument's accuracy. This concept is crucial in fields like science, engineering, and everyday life, where accurate measurements inform decisions and calculations. Error intervals and bounds are key to interpreting data correctly.
See more1
5

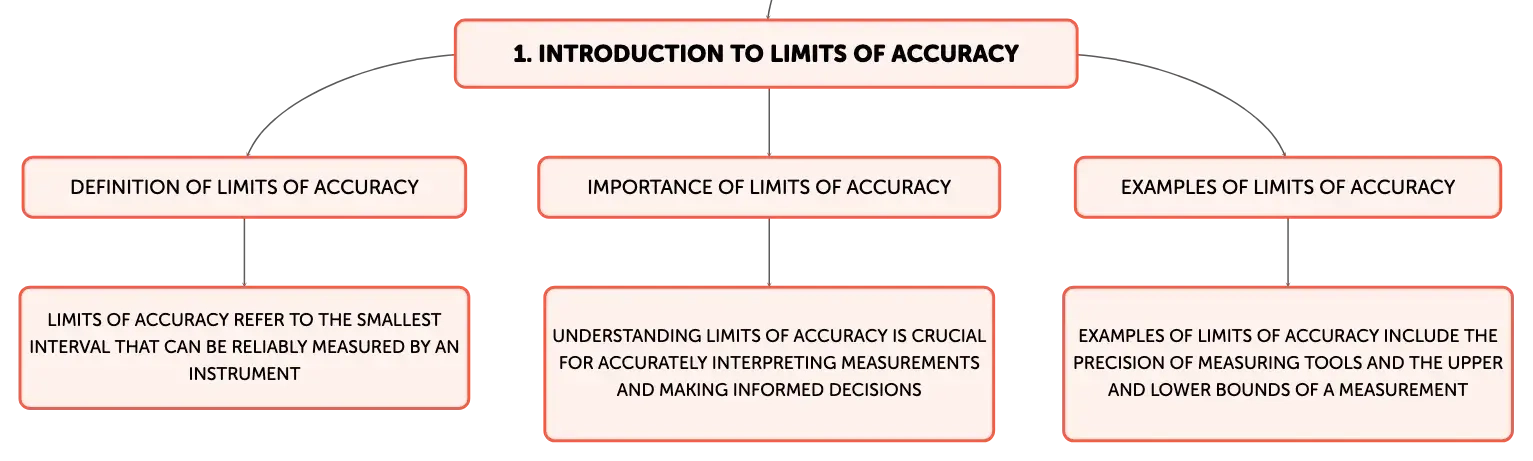

Exploring the Concept of Measurement Accuracy
Measurements are fundamental to understanding and interacting with the physical world, but they are inherently limited by the precision of the tools we use. The 'limits of accuracy' refer to the smallest interval that can be reliably measured by an instrument. For example, when using a ruler with millimeter divisions to measure a length of 8.2 cm, the true length could be slightly more or less due to the ruler's precision limit. The actual length could be between 8.15 cm and 8.25 cm, assuming the limit of accuracy is ±0.05 cm, which is half the smallest division on the ruler.Defining Measurement Bounds

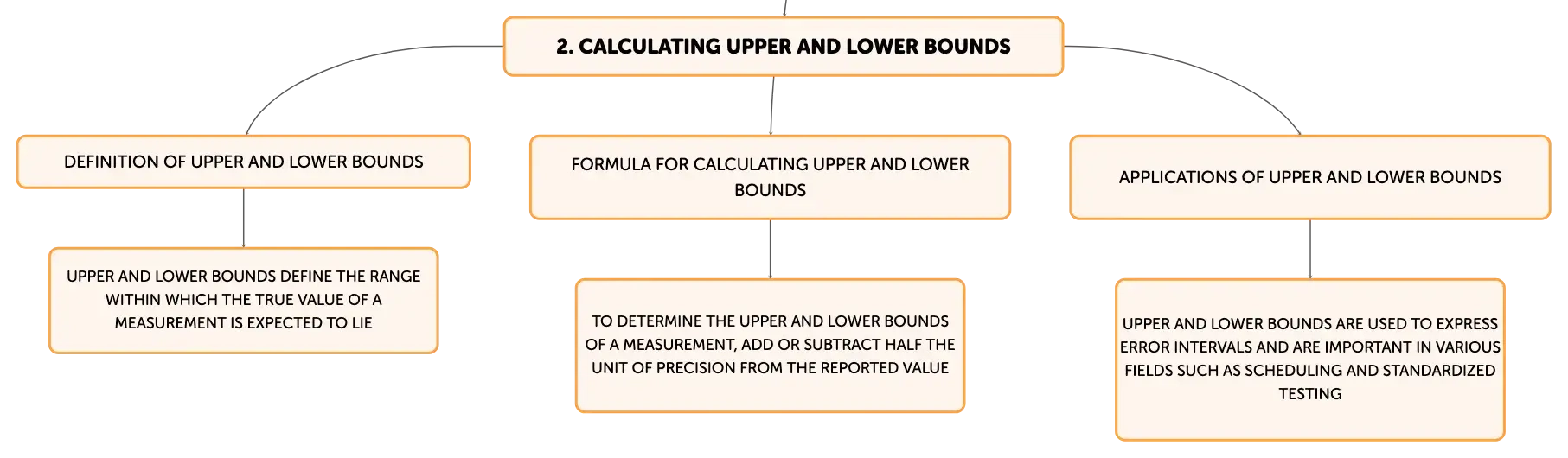

The accuracy of a measurement is often expressed in terms of upper and lower bounds, which define the range within which the true value is expected to lie. The lower bound is the minimum value that would be rounded up to the reported measurement, while the upper bound is the maximum value that would be rounded down. For instance, if a package is labeled as weighing 3 kg to the nearest kilogram, the true weight could be as low as 2.5 kg or as high as just under 3.5 kg. This is because 2.5 kg is the threshold for rounding up to 3 kg, and 3.5 kg would round to 4 kg, so the actual weight must be slightly less.Calculating Measurement Bounds
To determine the upper and lower bounds of a measurement, one must consider the reported value and the precision of the measurement. The formula involves adding or subtracting half the unit of precision from the reported value. For example, if a person's weight is recorded as 65 kg to the nearest 5 kg, the lower bound would be 62.5 kg (65 - 2.5) and the upper bound would be 67.5 kg (65 + 2.5). This calculation provides a range that encompasses all possible true values of the measurement within the limits of the instrument's accuracy.Error Intervals in Measurements

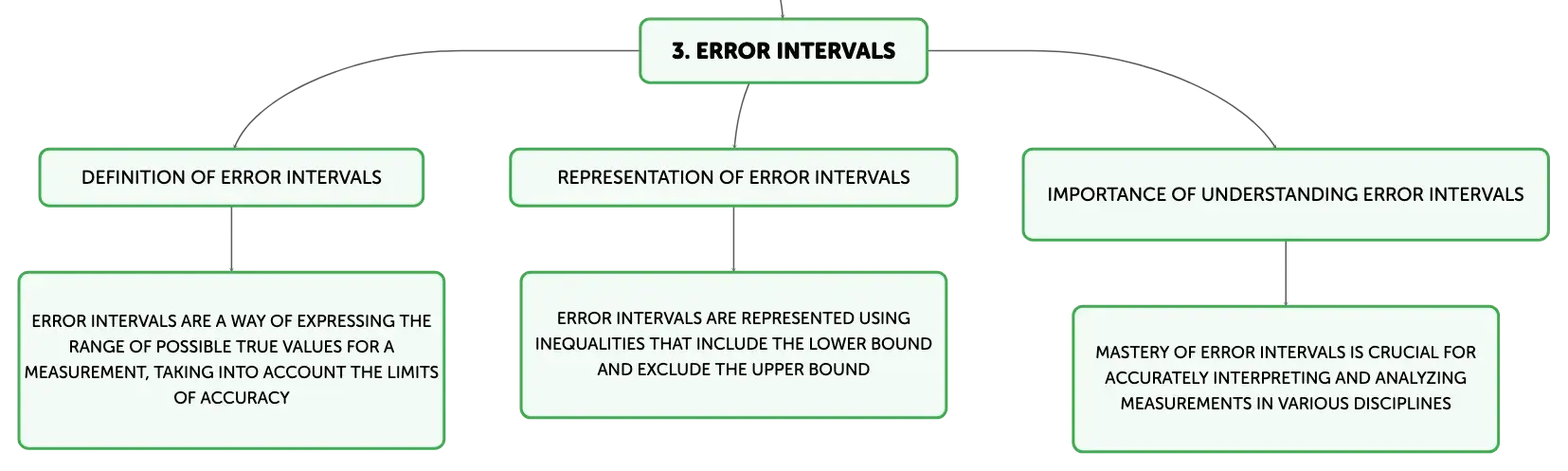

An error interval is a way of expressing the range of possible true values for a measurement, taking into account the limits of accuracy. It is represented using inequalities that include the lower bound and exclude the upper bound. For example, if an object's mass is measured as 175 g to the nearest gram, the error interval would be written as 174.5 g ≤ m < 175.5 g. This notation indicates that the mass is at least 174.5 g but less than 175.5 g, providing a precise understanding of the measurement's accuracy.Practical Implications of Measurement Accuracy

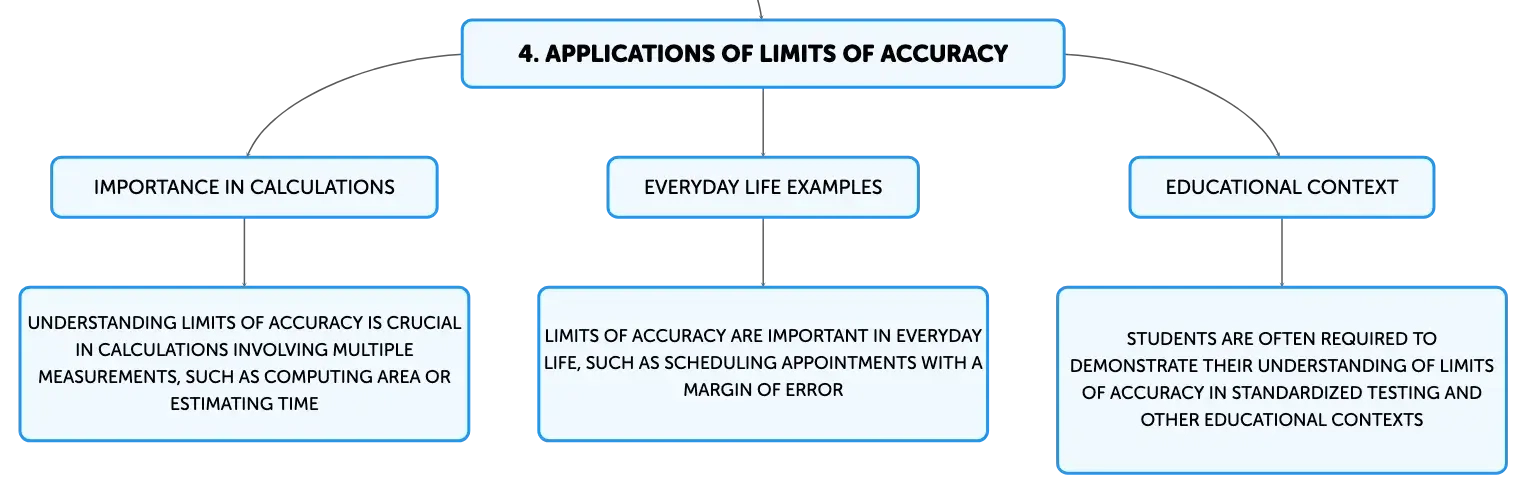

The concept of measurement accuracy is vital in everyday life and various professional fields. For instance, when scheduling an appointment for 10 am, the implied accuracy might allow for a margin of error, such as ±10 minutes. In educational contexts, particularly in standardized testing like GCSEs, students are often required to demonstrate their understanding of measurement accuracy by calculating error intervals for given data. This skill is essential for interpreting and analyzing measurements accurately.Applying Measurement Accuracy in Calculations
The limits of accuracy are crucial when performing calculations that involve multiple measurements. For example, when computing the area of a triangle using measurements with known accuracy, the maximum area is calculated using the upper bounds of the base and height. Conversely, to estimate the minimum time for a journey at a certain speed, one would use the lower bound of the distance and the upper bound of the speed, considering the accuracy to which these values are known.Concluding Thoughts on Measurement Accuracy
In conclusion, understanding the limits of accuracy is indispensable for accurately interpreting measurements. The precision of measuring instruments determines the range of possible true values, which is expressed through upper and lower bounds. Error intervals provide a clear representation of this range. Mastery of these concepts is crucial across various disciplines to ensure that measurements are used and understood correctly, allowing for informed decisions and accurate calculations.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
If a ruler's smallest division is 1 mm, an object measured at 8.2 cm could actually be between ______ cm and ______ cm.
Click to check the answer
2
Meaning of lower bound in measurements
Click to check the answer
3
Meaning of upper bound in measurements
Click to check the answer
4
Rounding rule for 3 kg label
Click to check the answer
5
For a weight noted as 65 kg with a precision of 5 kg, the ______ is 62.5 kg and the ______ is 67.5 kg.
Click to check the answer
6
Definition of error interval
Click to check the answer
7
Error interval notation for 175 g measurement
Click to check the answer
8
Purpose of error interval in measurements
Click to check the answer
9
In educational settings, such as during ______, students must often calculate ______ ______ to show their grasp of measurement accuracy.
Click to check the answer
10
Calculating max area of a triangle with measurement accuracy
Click to check the answer
11
Estimating min travel time with known speed and distance accuracy
Click to check the answer
12
The ______ of measuring tools dictates the range of potential accurate values, represented by ______ and ______ bounds.
Click to check the answer
13
In various fields, it's vital to grasp the concept of ______ intervals to make informed decisions and precise ______.
Click to check the answer
