Computational Fluid Dynamics (CFD) is a branch of fluid mechanics that employs numerical methods to simulate fluid flow and related phenomena. It relies on the Navier-Stokes equations to predict fluid behavior in aerospace, automotive, and medicine. CFD modeling involves problem definition, mesh generation, and iterative solutions, with a critical focus on result validation and analysis. The field's challenges include computational demands and physical process modeling.
Summary
Outline
Introduction to Computational Fluid Dynamics (CFD)
Computational Fluid Dynamics (CFD) is a sophisticated area of fluid mechanics that uses numerical methods and algorithms to simulate and analyze the behavior of fluids. By applying CFD, engineers and scientists can predict fluid flow, heat transfer, and associated phenomena with high precision. This technology is pivotal in various sectors, including aerospace, automotive, civil engineering, and medicine, for design optimization and problem-solving.The Fundamental Navier-Stokes Equations in CFD
The Navier-Stokes equations form the mathematical foundation of CFD. These equations represent the conservation laws of physics—mass, momentum, and energy—in fluid motion. They are a set of nonlinear partial differential equations that describe how the velocity field of a fluid evolves over time. Solving these equations is challenging due to their complexity, which is why CFD employs numerical methods like the finite volume, finite element, and finite difference methods to obtain approximate solutions.Essential Steps in CFD Modeling
CFD modeling is a multi-step process that begins with defining the problem and the computational domain. The next step is generating a mesh that divides the domain into discrete elements where the equations can be solved. Boundary conditions and initial conditions are then applied, and the Navier-Stokes equations are solved iteratively to simulate the fluid flow. The final step involves post-processing, which includes visualizing the flow patterns and analyzing the results for accuracy and insight.Diverse Applications of CFD
The applications of CFD are diverse and transformative. In the aerospace industry, CFD simulations are integral to designing aircraft for optimal aerodynamics. The automotive sector relies on CFD for enhancing vehicle performance and fuel efficiency through better aerodynamic designs. Environmental engineering uses CFD to model atmospheric phenomena and assess pollutant dispersion. In the biomedical field, CFD aids in understanding cardiovascular and respiratory flows, which is crucial for diagnostic and therapeutic advancements.Analysis and Validation of CFD Results
The analysis of CFD results is a meticulous process that involves comparing the simulation data with experimental or theoretical benchmarks to ensure validity. Visualization techniques help identify flow features, while quantitative assessments measure the accuracy of the simulation. This step is vital for verifying the model's reliability and for making informed decisions in design and research.Overcoming Challenges in CFD
Despite its capabilities, CFD analysis faces challenges such as the high computational demands of detailed simulations, the complexity of accurately modeling physical processes, and the rigorous validation of results. Overcoming these challenges requires a robust understanding of both fluid dynamics and numerical methods. Continuous advancements in computational resources, algorithms, and validation techniques are progressively mitigating these issues, leading to more reliable and efficient CFD analyses.Beginning with Computational Fluid Dynamics
For newcomers to CFD, a systematic approach to learning is recommended. This involves grasping the fundamental concepts, becoming proficient with CFD software, and applying knowledge to practical projects. Educational resources, including textbooks, online courses, and tutorials, are widely available. Participation in CFD forums and workshops can also provide valuable experience and foster community engagement, enhancing one's expertise in this dynamic field.
Show More

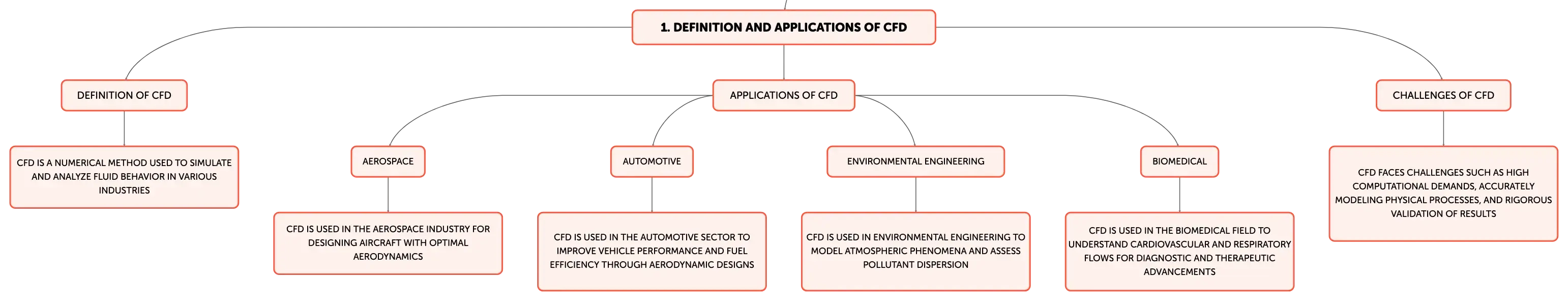

Definition and Applications of CFD
Definition of CFD
CFD is a numerical method used to simulate and analyze fluid behavior in various industries
Applications of CFD
Aerospace
CFD is used in the aerospace industry for designing aircraft with optimal aerodynamics
Automotive
CFD is used in the automotive sector to improve vehicle performance and fuel efficiency through aerodynamic designs
Environmental Engineering
CFD is used in environmental engineering to model atmospheric phenomena and assess pollutant dispersion
Biomedical
CFD is used in the biomedical field to understand cardiovascular and respiratory flows for diagnostic and therapeutic advancements
Challenges of CFD
CFD faces challenges such as high computational demands, accurately modeling physical processes, and rigorous validation of results

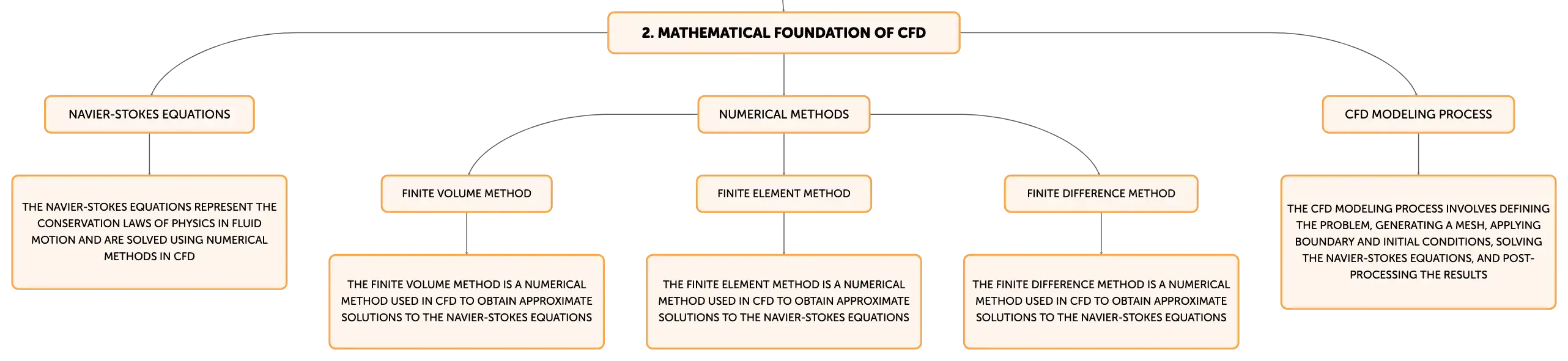

Mathematical Foundation of CFD
Navier-Stokes Equations
The Navier-Stokes equations represent the conservation laws of physics in fluid motion and are solved using numerical methods in CFD
Numerical Methods
Finite Volume Method
The finite volume method is a numerical method used in CFD to obtain approximate solutions to the Navier-Stokes equations
Finite Element Method
The finite element method is a numerical method used in CFD to obtain approximate solutions to the Navier-Stokes equations
Finite Difference Method
The finite difference method is a numerical method used in CFD to obtain approximate solutions to the Navier-Stokes equations
CFD Modeling Process
The CFD modeling process involves defining the problem, generating a mesh, applying boundary and initial conditions, solving the Navier-Stokes equations, and post-processing the results

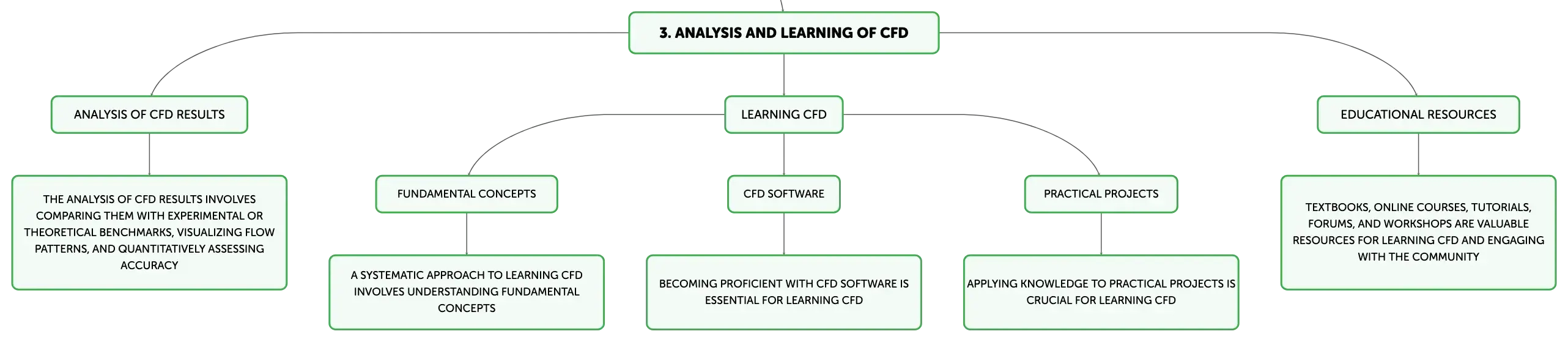

Analysis and Learning of CFD
Analysis of CFD Results
The analysis of CFD results involves comparing them with experimental or theoretical benchmarks, visualizing flow patterns, and quantitatively assessing accuracy
Learning CFD
Fundamental Concepts
A systematic approach to learning CFD involves understanding fundamental concepts
CFD Software
Becoming proficient with CFD software is essential for learning CFD
Practical Projects
Applying knowledge to practical projects is crucial for learning CFD
Educational Resources
Textbooks, online courses, tutorials, forums, and workshops are valuable resources for learning CFD and engaging with the community
