Double Integrals: A Powerful Tool for Calculating Two-Dimensional Aggregates
Double integrals are a mathematical concept used to calculate the sum of a function over a two-dimensional area. They are crucial in physics for determining mass, charge, and energy distributions, in engineering for stresses and moments, and in other fields like economics and environmental science for modeling market behaviors and estimating pollutant distributions. The use of polar coordinates is highlighted for its advantages in simplifying calculations for circular regions.
See moreExploring the Fundamentals of Double Integrals
Double integrals are an essential mathematical tool used to evaluate the aggregate of a function over a two-dimensional area. They are denoted by \(\int \int_R f(x,y) \,dx\,dy\), where \(R\) represents the region of integration in the xy-plane. The process involves calculating the sum of products of the function's value, \(f(x,y)\), and an infinitesimally small area element, typically visualized as the volume above each differential area element in the xy-plane. This concept is crucial in various fields, including physics, where it is used to determine quantities such as mass, charge, and energy distributions over a given area, and in engineering for calculating stresses and moments in materials.Calculating Double Integrals Step by Step

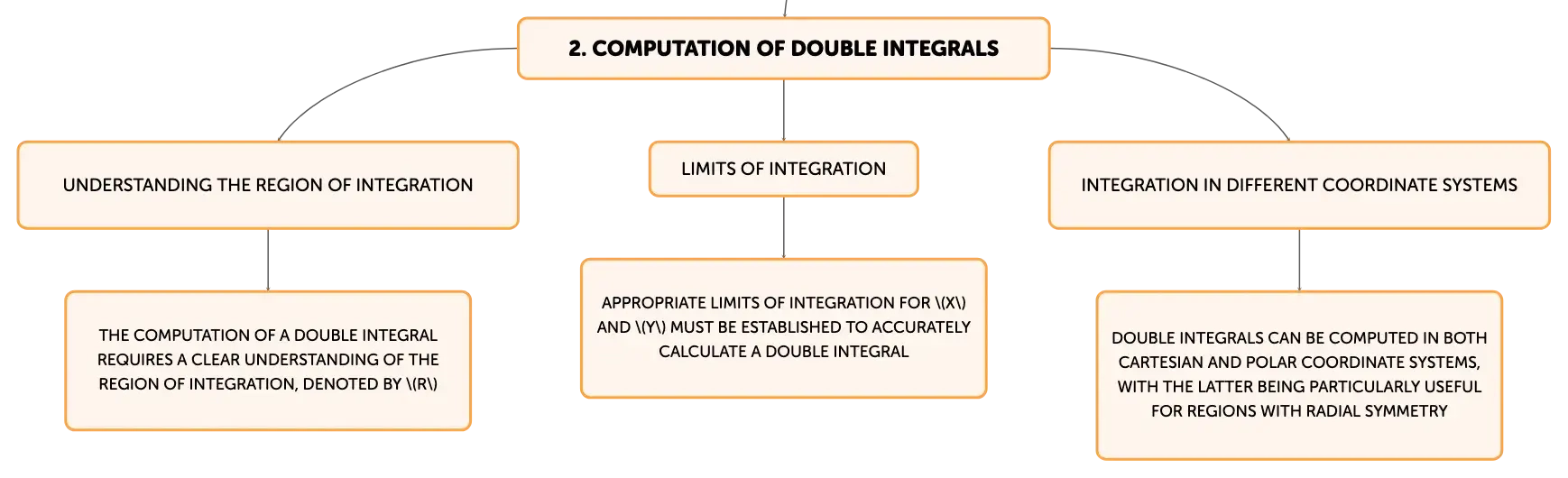

The computation of a double integral requires a clear understanding of the region \(R\) and the establishment of appropriate limits of integration for \(x\) and \(y\). The function \(f(x,y)\) is first integrated with respect to \(x\), treating \(y\) as a constant, and then the resulting expression is integrated with respect to \(y\). This procedure can be performed in both Cartesian and polar coordinate systems, with the latter being particularly useful for regions with radial symmetry. In polar coordinates, the function is expressed in terms of \(r\) and \(\theta\), and the limits of integration are determined by the radii and angles that define the region. The use of polar coordinates often simplifies the integration process for circular or sector-shaped regions.Real-World Applications of Double Integrals

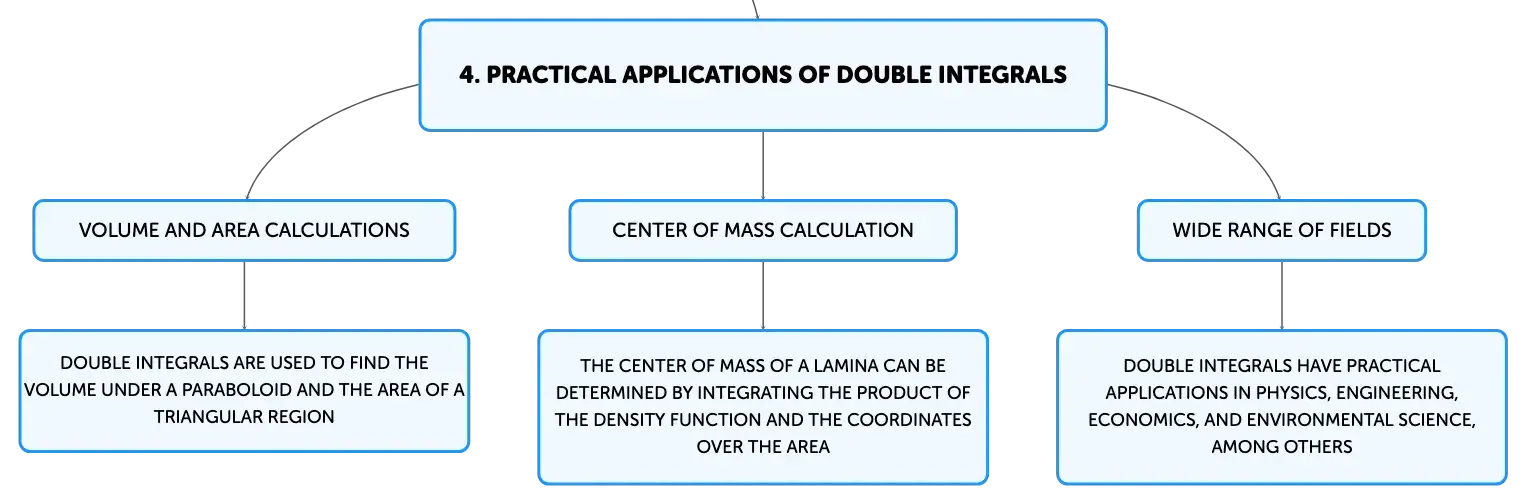

Double integrals are applied in a variety of practical scenarios. For example, to find the volume under a paraboloid described by \(f(x, y) = 4 - x^2 - y^2\) above a square region, one sets up the double integral with limits corresponding to the square's boundaries. Similarly, to determine the area of a triangular region, the double integral of \(f(x, y) = 1\) is evaluated over the bounds defined by the triangle's edges. These techniques are also employed to find the center of mass of a lamina by integrating the product of the density function and the coordinates over the area. Such applications are not limited to geometry; they extend to fields like thermodynamics, where double integrals are used to calculate heat flow across a surface, and economics, for assessing consumer surplus in a market.Advantages of Double Integrals in Polar Coordinates

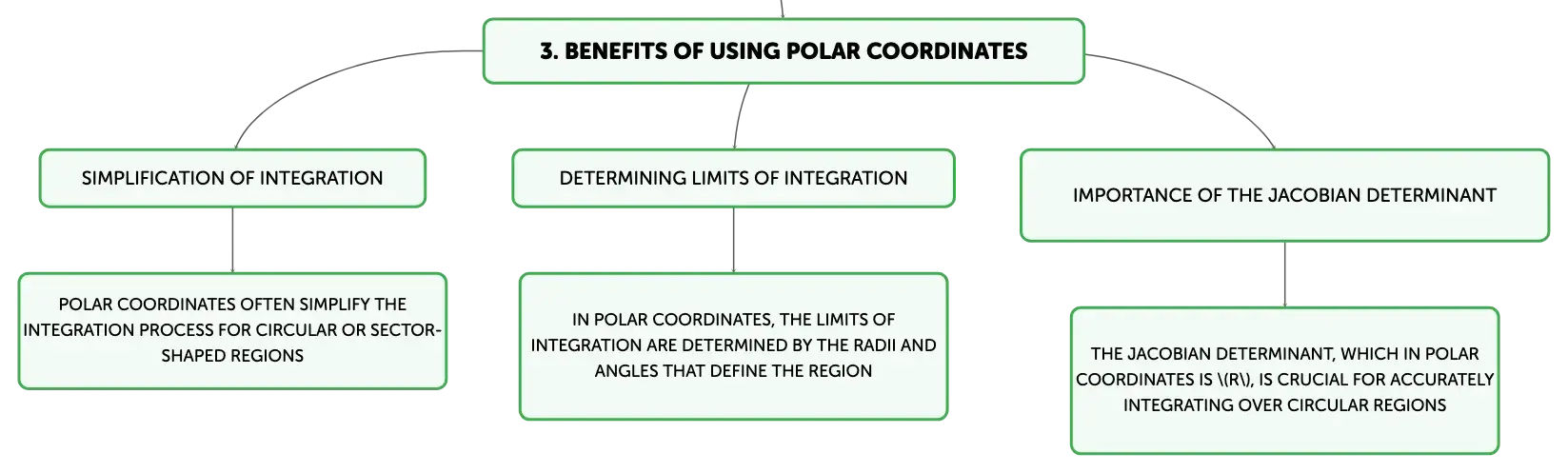

Utilizing polar coordinates for double integrals is particularly beneficial for regions that are circular or annular in shape. In this coordinate system, a point is defined by its radial distance \(r\) from the origin and the angle \(\theta\) relative to the positive x-axis. The Jacobian determinant, which in polar coordinates is \(r\), accounts for the change in area when converting from Cartesian to polar coordinates. This conversion is crucial for accurate integration over circular regions. For instance, the area of a circle with radius \(a\) can be easily computed using a double integral in polar coordinates, yielding the well-known result \(\pi a^2\).The Integral Role of Double Integrals in Various Disciplines
Double integrals play a vital role across multiple disciplines, facilitating the calculation of physical quantities and enabling the analysis of complex systems. In physics, they are instrumental in determining properties such as gravitational and electric fields. Engineers use double integrals to compute moments of inertia and centroids, which are essential for structural analysis and design. Economists apply double integrals to model and predict market behaviors. In environmental science, they are used to estimate pollutant distribution in ecosystems. These examples illustrate the broad utility of double integrals, highlighting their significance in translating theoretical concepts into practical solutions for real-world problems.Want to create maps from your material?
