Graph Traversal: Exploring Vertices in a Graph

Graph traversal techniques such as Breadth-First Search (BFS) and Depth-First Search (DFS) are fundamental in computer science for analyzing networks, social connections, and more. These methods, along with advanced algorithms like Dijkstra's and A* Search, are crucial for various applications including network routing, web crawling, and AI systems. Understanding their differences, such as BFS's level-by-level approach versus DFS's depth exploration, is key to solving complex computational problems.

See more

1/5

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

In computer science, ______ is crucial for tasks like network routing and analyzing social networks.

Click to check the answer

Graph traversal

2

Vertex Definition

Click to check the answer

A vertex is a node within a graph.

3

Edge Function

Click to check the answer

An edge connects two vertices in a graph.

4

Root in Traversal

Click to check the answer

The root is the starting vertex for graph traversal.

5

In a social network, ______ may be utilized to discover the shortest link between two people.

Click to check the answer

BFS

6

Queues aid in the -by- exploration in BFS, whereas stacks assist in the depth-first backtracking in ______.

Click to check the answer

level level DFS

7

BFS starting point in graph traversal

Click to check the answer

Begins at root, explores neighbors at current depth before moving to next level

8

BFS data structure used

Click to check the answer

Utilizes a queue to manage vertices to visit

9

DFS data structure used

Click to check the answer

Employs a stack to explore deeply along each branch, then backtracks

10

In ______ graphs, BFS and DFS can be used but must avoid ______ nodes.

Click to check the answer

undirected revisiting

11

To ensure each vertex is only considered once, a ______ array or a set is used to track ______ vertices.

Click to check the answer

boolean visited

12

Dijkstra's Algorithm Purpose

Click to check the answer

Finds shortest paths in weighted graphs without negative edges.

13

A* Search Optimization

Click to check the answer

Utilizes heuristics to enhance efficiency of pathfinding.

14

Bellman-Ford vs. Floyd-Warshall

Click to check the answer

Bellman-Ford handles negative weights, Floyd-Warshall finds all pairs shortest paths.

15

BFS is often utilized to chart the connections within ______ networks.

Click to check the answer

social

16

______'s algorithm is fundamental to route planning in systems such as ______ Maps.

Click to check the answer

Dijkstra Google

17

Dijkstra's algorithm purpose

Click to check the answer

Finds shortest paths from a single source in weighted graphs without negative weights.

18

A* Search uniqueness

Click to check the answer

Utilizes heuristics to optimize pathfinding, balancing between Dijkstra's and Greedy BFS.

19

______ is especially useful for finding the shortest path in unweighted graphs.

Click to check the answer

BFS

20

______ is better suited for tasks like topological sorting or detecting cycles in a graph.

Click to check the answer

DFS

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

The Importance of Bits in the Digital World

Computer Science

Secondary Storage in Computer Systems

Computer Science

Understanding Processor Cores

Computer Science

Computer Memory

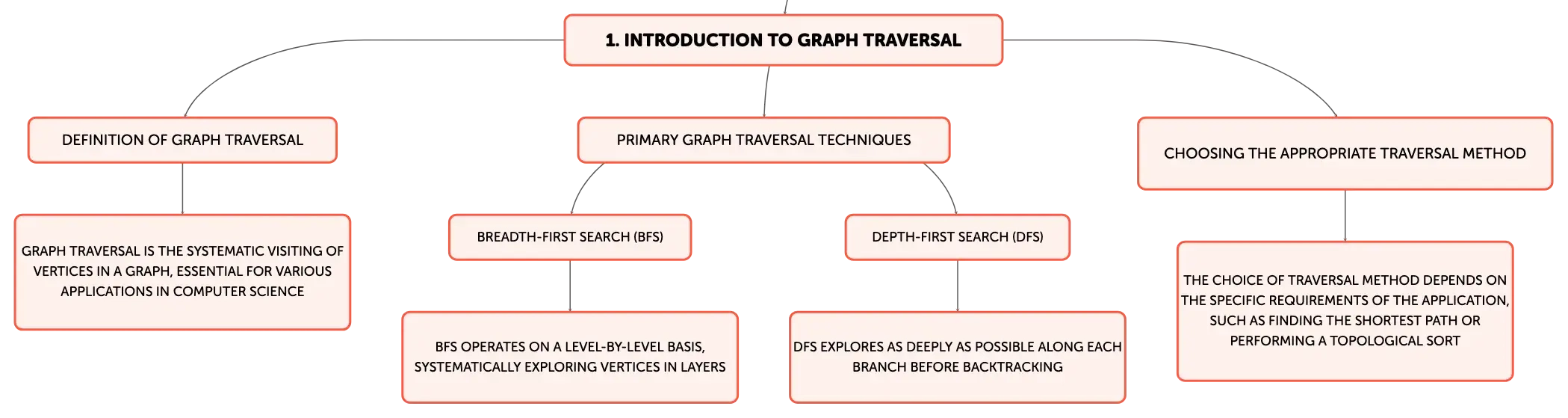

Fundamentals of Graph Traversal Techniques

Graph traversal is a key operation in the field of computer science, where it refers to the systematic visiting of vertices in a graph. This operation is essential for a variety of applications, including but not limited to, network routing, analysis of social networks, and the construction of spanning trees. The primary graph traversal techniques are Breadth-First Search (BFS) and Depth-First Search (DFS). BFS operates on a level-by-level basis, while DFS explores as deeply as possible along each branch before backtracking. The choice of traversal method depends on the specific requirements of the application, such as the need to find the shortest path or to perform a topological sort.
Complex three-dimensional maze with white walls and a red ball in the center on a monochrome background, soft shadows for depth.

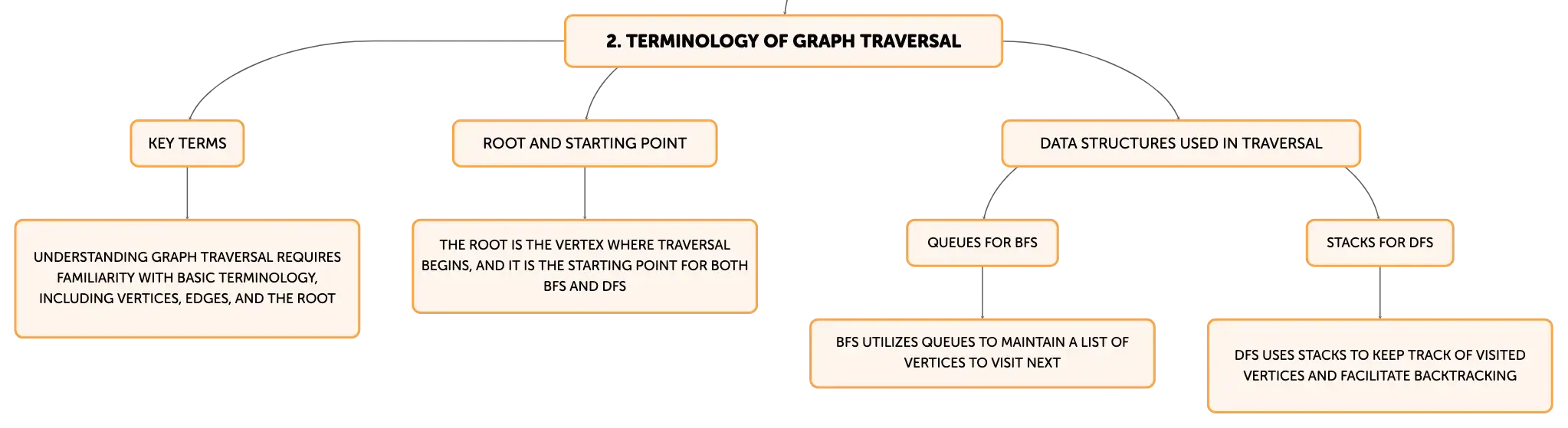

Essential Terminology in Graph Traversal

Understanding graph traversal requires familiarity with basic terminology. A 'vertex' is an individual node within the graph, while an 'edge' represents the connection between two vertices. The 'root' is the vertex where traversal begins. BFS systematically explores vertices in layers, starting from the root and moving outward, while DFS dives into the graph, exploring as far as possible before backtracking. These traversal methods utilize data structures like queues for BFS, which maintain a list of vertices to visit next, and stacks for DFS, which keep track of the vertices visited during the traversal to facilitate backtracking.

Graph Traversal in Data Structures and Algorithms

Graph traversal algorithms are integral to the functionality of many data structures and are used for various purposes, such as constructing trees, detecting cycles, and finding the shortest paths. For instance, in a social network, BFS might be used to find the shortest connection path between two individuals. Implementing these algorithms requires the use of appropriate data structures: queues facilitate the level-by-level exploration in BFS, while stacks enable the depth-first backtracking in DFS.

In-Depth Analysis of BFS and DFS

BFS begins at the root of the graph and examines all neighboring vertices at the present depth before progressing to the next level. It uses a queue to keep track of the vertices to be visited. DFS, conversely, employs a stack to delve as deeply as possible into the graph along each branch before backtracking. The choice between BFS and DFS is determined by the specific problem, such as employing BFS for the shortest path in an unweighted graph or DFS for applications like topological sorting or cycle detection.

Traversal Approaches for Undirected Graphs

In undirected graphs, where edges do not have a direction, BFS and DFS are still applicable but require careful handling to avoid revisiting nodes. This is typically managed by using a boolean array or a set to keep track of visited vertices, ensuring that each vertex is considered only once. During traversal, nodes are marked as visited and are either enqueued (in BFS) or pushed onto a stack (in DFS) until all vertices have been processed.

Exploring a Variety of Graph Traversal Algorithms

Beyond the foundational BFS and DFS, there exists a spectrum of graph traversal algorithms tailored for specific types of graphs and problems. Dijkstra's algorithm, for example, is designed for finding the shortest paths in weighted graphs, while A* Search incorporates heuristics to optimize pathfinding. Other notable algorithms include Bellman-Ford, which can handle negative edge weights, and Floyd-Warshall, which computes shortest paths between all pairs of vertices. These algorithms are evaluated based on their time and space complexity to determine their efficiency.

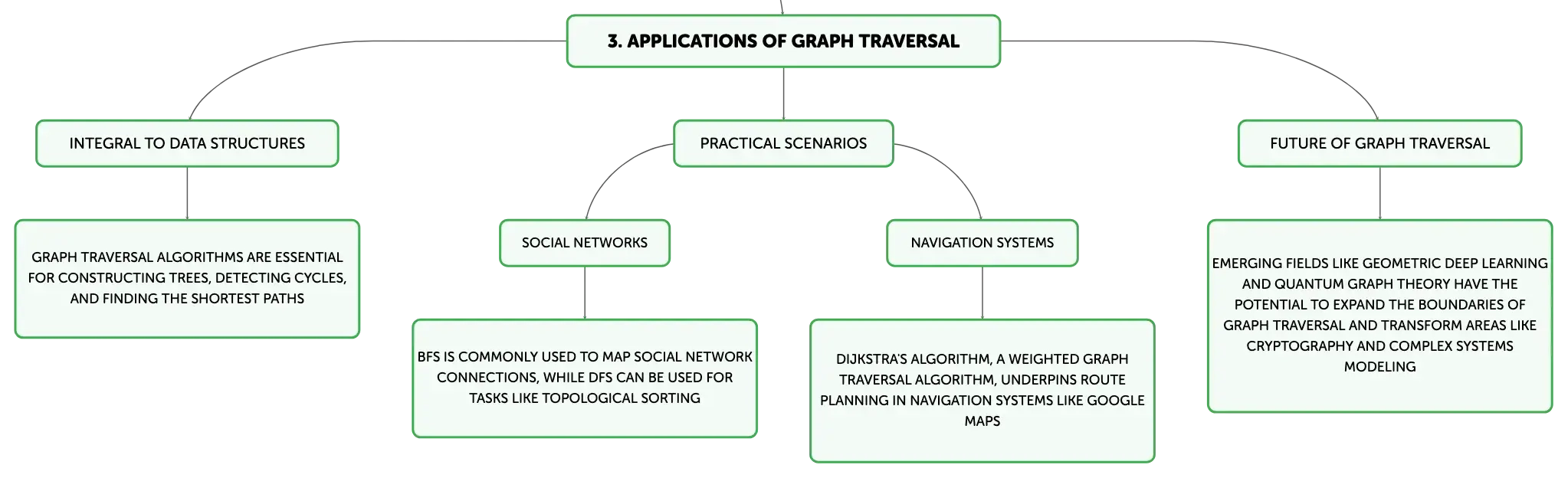

Real-World Applications and the Evolution of Graph Traversal

Graph traversal algorithms are employed in a multitude of practical scenarios, such as optimizing network routing, enabling efficient web crawling, and enhancing artificial intelligence systems. BFS is commonly used to map social network connections, while Dijkstra's algorithm underpins route planning in navigation systems like Google Maps. The future of graph traversal is bright, with emerging fields such as geometric deep learning and quantum graph theory poised to expand the boundaries of the discipline, potentially transforming areas like cryptography and the modeling of complex systems.

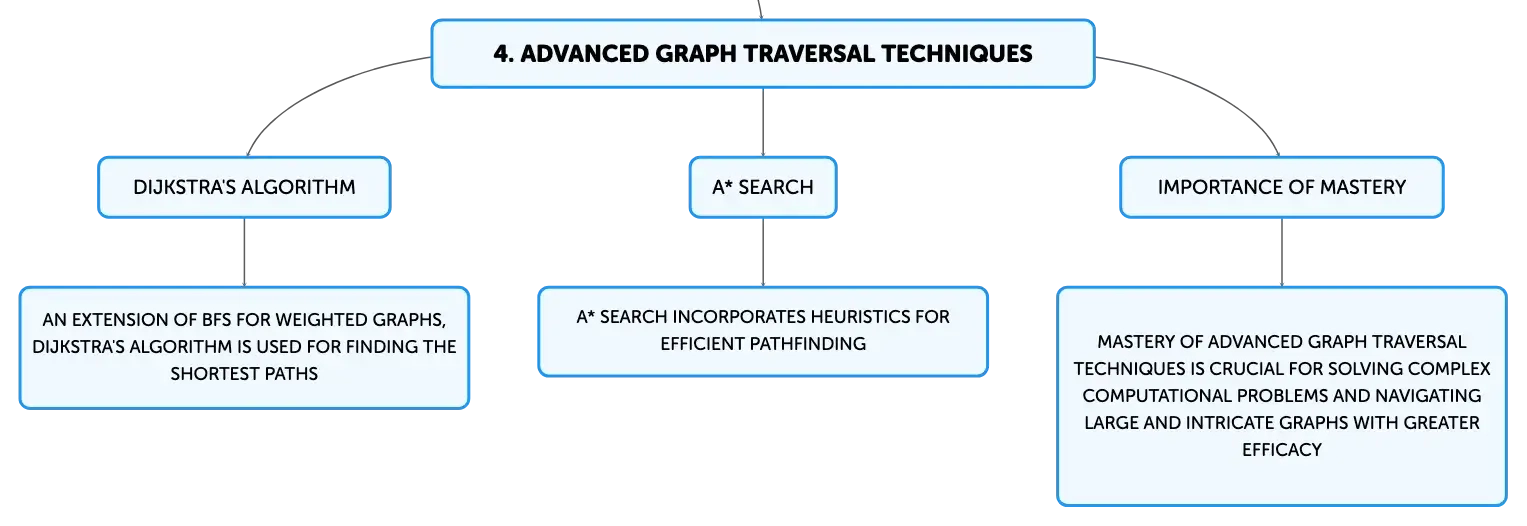

Advanced Graph Traversal Topics and Techniques

Advanced graph traversal encompasses a range of sophisticated algorithms and techniques. Dijkstra's algorithm, an extension of BFS for weighted graphs, and A* Search, which applies heuristics for efficient pathfinding, are examples of such advanced techniques. Mastery of these algorithms, along with others like bidirectional search, is crucial for solving complex computational problems and navigating large and intricate graphs with greater efficacy.

Comparative Analysis of BFS and DFS

A comparative analysis of BFS and DFS highlights their unique attributes and suitability for different computational tasks. BFS is particularly effective for identifying the shortest path in unweighted graphs, while DFS is more appropriate for tasks that require exploring as deeply as possible, such as topological sorting or cycle detection. The decision to use BFS or DFS is contingent upon the nature of the graph and the specific problem requirements, including the desired outcome and the constraints of the computational environment.
