CPU Registers and Their Functions
Concept Map
CPU registers are integral to a computer's processor, facilitating high-speed data and instruction storage for efficient task execution. They are categorized into general-purpose and special-purpose registers, each serving distinct functions within the CPU's architecture. Special-purpose registers like the Program Counter and Accumulator are key to managing instruction flow and computations. Understanding these components is crucial for grasping the complexities of efficient computing.
Summary
Outline
The Role of CPU Registers in Computing
Central Processing Unit (CPU) registers are critical elements of a computer's processor, acting as fast-access storage locations for data, instructions, and processor status. These registers enable the CPU to execute tasks with high efficiency and speed. They are involved in arithmetic and logical operations, managing data flow between the CPU and main memory, and tracking the program counter, which indicates the next instruction to be executed. Registers are an essential part of the CPU's control unit, which orchestrates the workflow and coordinates the operations of the computer's various components.Types of CPU Registers: General-Purpose and Special-Purpose
CPU registers are classified into general-purpose and special-purpose registers based on their roles. General-purpose registers are flexible and can be utilized by the processor for a variety of tasks, such as holding temporary data and intermediate results of computations. Special-purpose registers, on the other hand, are tailored for specific functions, including managing the program counter and status registers that reflect the state of the processor. The number of general-purpose registers varies with the CPU's architecture, while the special-purpose registers are determined by the specific design of the CPU.How CPU Registers Operate
CPU registers operate in conjunction with other processor components, including the Arithmetic Logic Unit (ALU), the instruction decoding unit, and the memory interface. They supply the ALU with operands for computation and store the results. The instruction decoding unit relies on registers to interpret instructions and orchestrate the required operations. The memory interface uses registers to facilitate the exchange of data between the CPU and the main memory. The control unit, using instruction and program counter registers, ensures the synchronized functioning of the CPU's components.CPU Registers vs. Cache Memory
CPU registers and cache memory are both critical for temporary data storage in a computer system, yet they serve distinct purposes and have different characteristics. Registers are limited in size and embedded within the CPU, offering the quickest access to data and instructions. Cache memory, which is larger and situated between the CPU and main memory, provides faster access than main memory but is not as quick as registers. Registers are used to hold data, instructions, and processor status, while cache memory is designed to store frequently accessed data and instructions to enhance system performance.The Role of Cache Memory in Performance Enhancement
Cache memory is a pivotal component in computer architecture, significantly improving system performance by storing commonly used data and instructions. This reduces the average memory access time, leading to increased throughput, reduced energy consumption, and more efficient use of memory bandwidth. The cache serves as an intermediary that narrows the performance gap between the high-speed CPU and the slower main memory, which is crucial for the smooth and efficient operation of computing systems.Special-Purpose CPU Registers and Their Roles
Special-purpose CPU registers, such as the Program Counter (PC), Memory Address Register (MAR), Memory Data Register (MDR), and Current Instruction Register (CIR), play vital roles in the operation of the CPU. The PC keeps track of the address of the next instruction to be executed, the MAR holds the address of data to be fetched or stored, the MDR serves as a buffer for data being transferred to or from memory, and the CIR contains the instruction currently being processed. These registers are instrumental in ensuring the orderly execution of programs by managing instruction flow, enabling data retrieval and storage, and decoding instructions for the CPU to execute.The Accumulator Register in CPUs
The accumulator is a central register within the CPU's Arithmetic Logic Unit (ALU) that is used to accumulate the results of arithmetic and logic operations. Depending on the CPU architecture, it may function as either a general-purpose or a special-purpose register. The accumulator streamlines the processor's design by minimizing the need for multiple registers to store intermediate results and operands, thereby enhancing the efficiency of computations and optimizing CPU performance.Concluding Insights on CPU Registers
To conclude, CPU registers are fundamental to the swift and accurate execution of tasks in a computer system. They are categorized into general-purpose and special-purpose registers, each with specific functions in the CPU's operation. Registers collaborate with other CPU components to facilitate operations, while cache memory supports their role by storing data that is frequently accessed. Special-purpose registers, including the PC, MAR, MDR, and CIR, along with the accumulator, are crucial for the effective processing of instructions. A thorough understanding of these components is essential to grasp the intricate processes that underpin efficient computing.
Show More

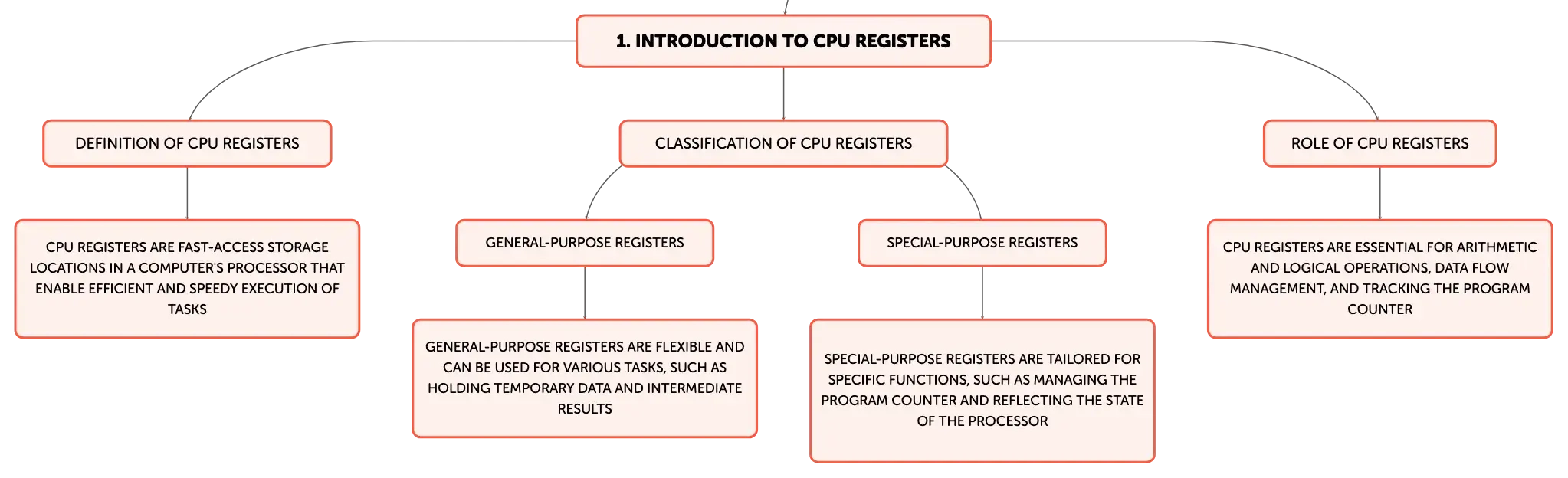

Introduction to CPU Registers
Definition of CPU Registers
CPU registers are fast-access storage locations in a computer's processor that enable efficient and speedy execution of tasks
Classification of CPU Registers
General-Purpose Registers
General-purpose registers are flexible and can be used for various tasks, such as holding temporary data and intermediate results
Special-Purpose Registers
Special-purpose registers are tailored for specific functions, such as managing the program counter and reflecting the state of the processor
Role of CPU Registers
CPU registers are essential for arithmetic and logical operations, data flow management, and tracking the program counter

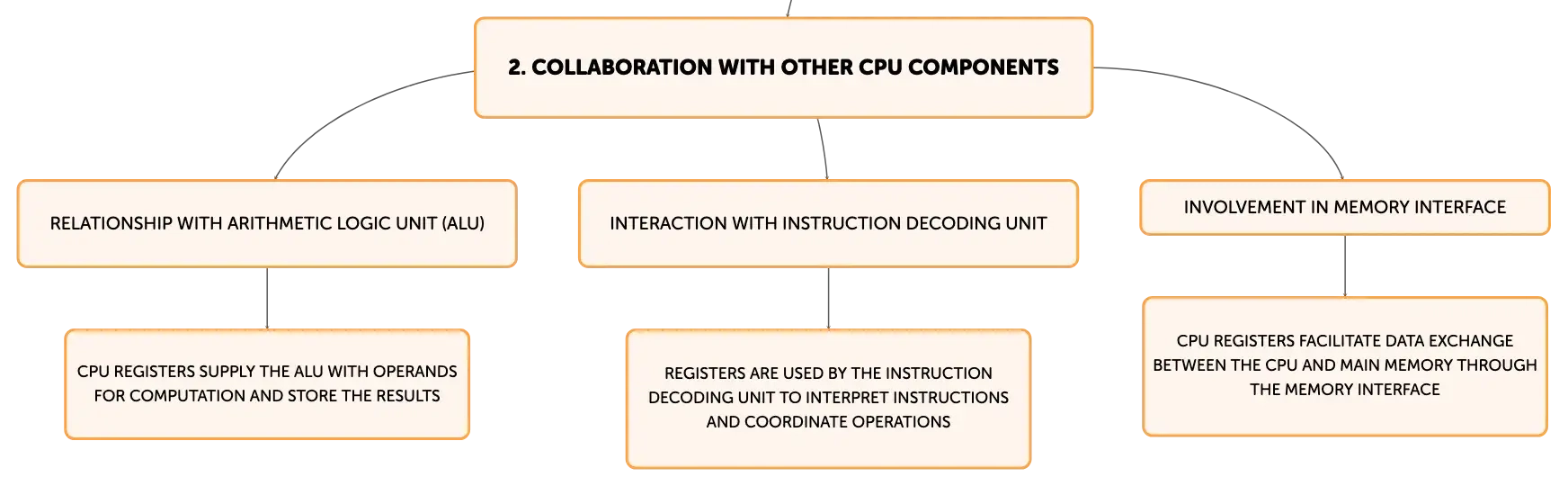

Collaboration with Other CPU Components
Relationship with Arithmetic Logic Unit (ALU)
CPU registers supply the ALU with operands for computation and store the results
Interaction with Instruction Decoding Unit
Registers are used by the instruction decoding unit to interpret instructions and coordinate operations
Involvement in Memory Interface
CPU registers facilitate data exchange between the CPU and main memory through the memory interface

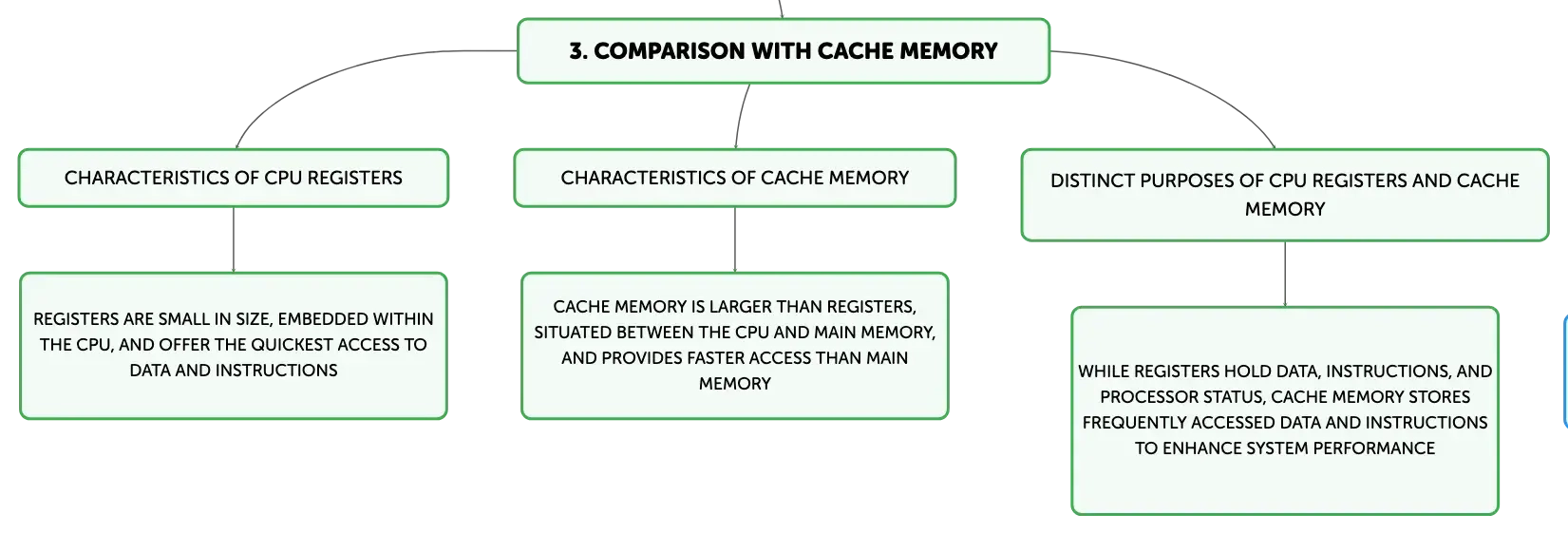

Comparison with Cache Memory
Characteristics of CPU Registers
Registers are small in size, embedded within the CPU, and offer the quickest access to data and instructions
Characteristics of Cache Memory
Cache memory is larger than registers, situated between the CPU and main memory, and provides faster access than main memory
Distinct Purposes of CPU Registers and Cache Memory
While registers hold data, instructions, and processor status, cache memory stores frequently accessed data and instructions to enhance system performance

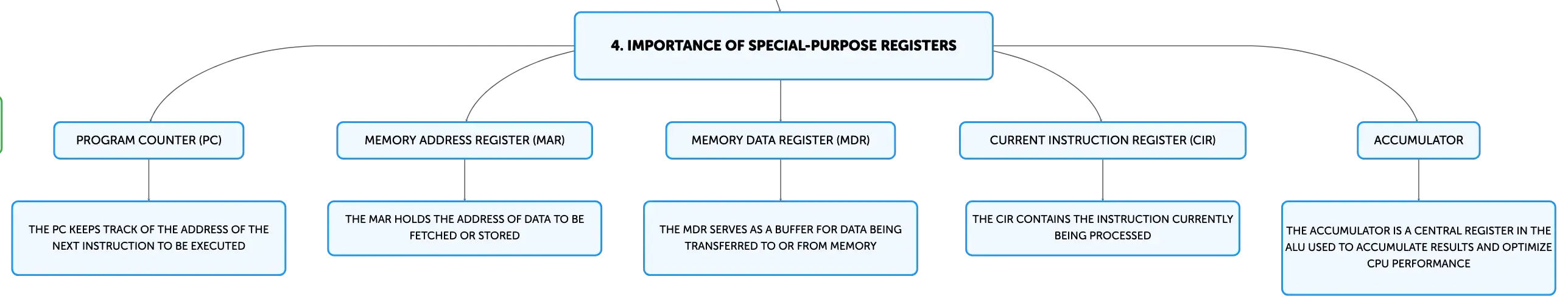

Importance of Special-Purpose Registers
Program Counter (PC)
The PC keeps track of the address of the next instruction to be executed
Memory Address Register (MAR)
The MAR holds the address of data to be fetched or stored
Memory Data Register (MDR)
The MDR serves as a buffer for data being transferred to or from memory
Current Instruction Register (CIR)
The CIR contains the instruction currently being processed
Accumulator
The accumulator is a central register in the ALU used to accumulate results and optimize CPU performance

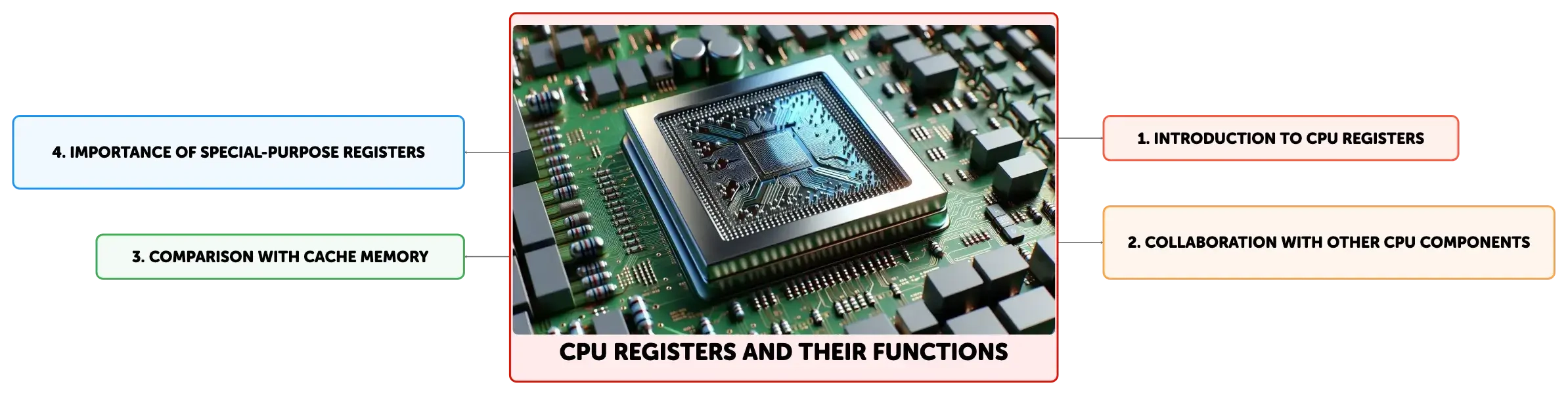

CPU Registers and Their Functions
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Types of CPU Registers
Data, instruction, status registers; manage tasks, store operands, track CPU state.
01
Role of Registers in CPU Operations
Facilitate arithmetic/logical operations, control data flow, manage instruction sequence.
02
Function of Program Counter Register
Holds address of next instruction; ensures sequential execution of program code.
