Plane Electromagnetic Waves
Plane electromagnetic waves are fundamental in physics, involving oscillating electric and magnetic fields that propagate energy through space. These waves are generated by the acceleration of electric charges and are described mathematically by Maxwell's equations. Their characteristics include transverse oscillations, energy transport, and varying speeds in different media. Interactions with materials can cause reflection, absorption, and the formation of standing waves. The intensity of these waves is also discussed, highlighting their importance in various applications.
See moreFundamentals of Plane Electromagnetic Waves

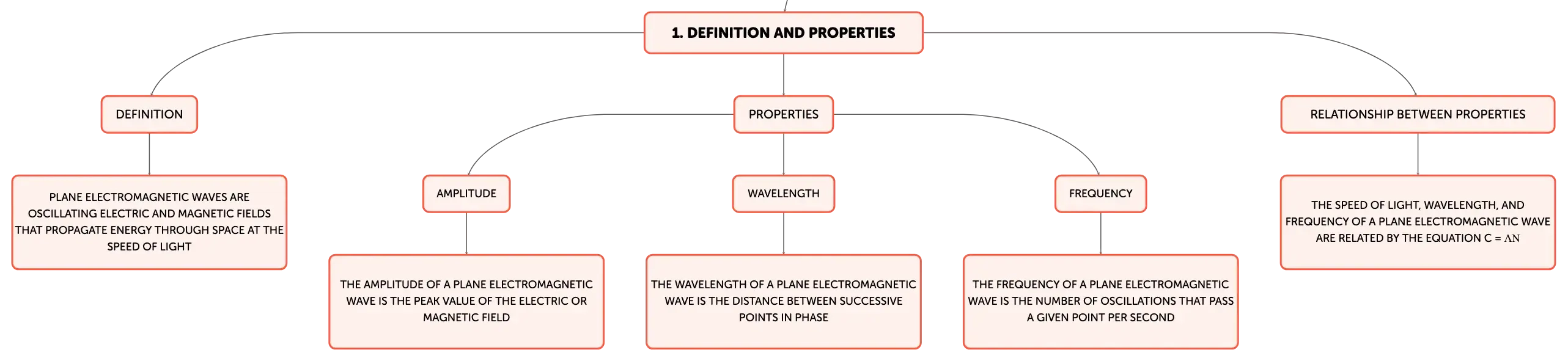

Plane electromagnetic waves are a crucial concept in the study of physics, representing the propagation of energy through space via oscillating electric and magnetic fields. These fields are mutually perpendicular and also perpendicular to the direction of wave travel. In a vacuum, plane electromagnetic waves propagate at the speed of light, which is approximately \(3 \times 10^8\) meters per second. The amplitude of a wave is the peak value of the electric or magnetic field, the wavelength is the distance between successive points in phase, and the frequency is the number of oscillations that pass a given point per second. These properties are related by the equation \( c=\lambda \nu \), where \(c\) is the speed of light, \( \lambda \) is the wavelength, and \( \nu \) is the frequency.Generation of Plane Electromagnetic Waves

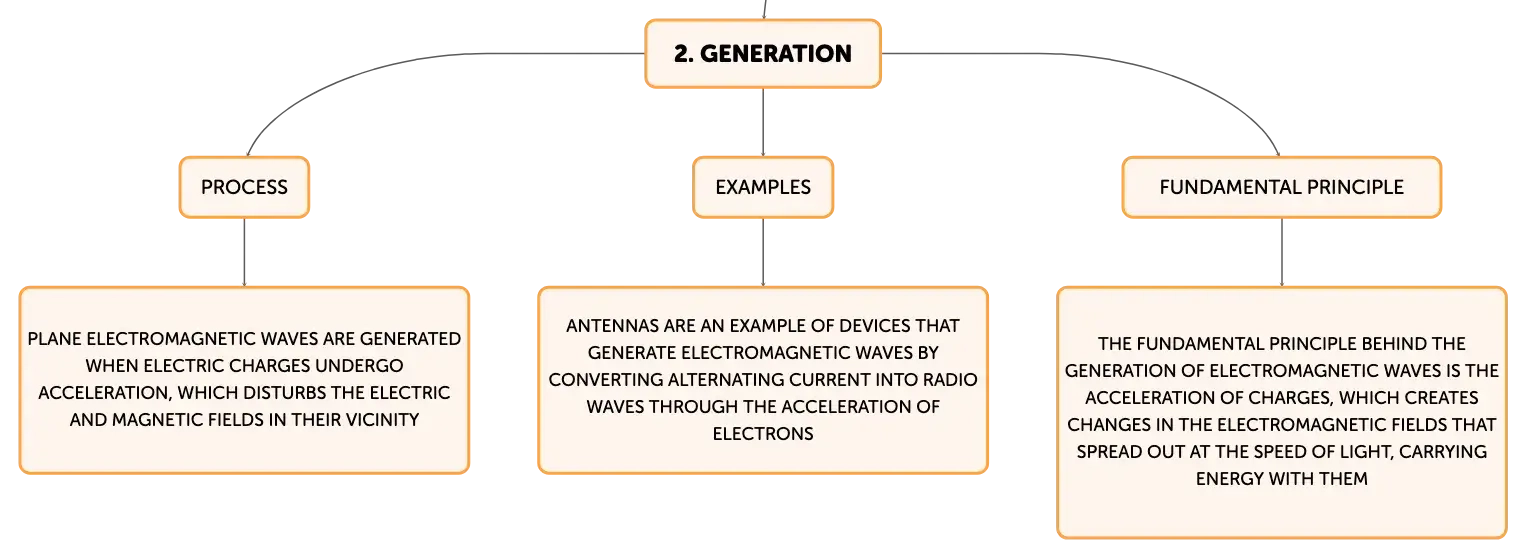

The generation of plane electromagnetic waves occurs when electric charges undergo acceleration, which in turn disturbs the electric and magnetic fields in their vicinity. These disturbances propagate as waves. Antennas are a typical example of devices that generate electromagnetic waves; they do so by converting alternating current into radio waves through the acceleration of electrons. The fundamental principle behind the generation of electromagnetic waves is the acceleration of charges, which creates changes in the electromagnetic fields that spread out at the speed of light, carrying energy with them.Mathematical Description of Plane Electromagnetic Waves
Maxwell's equations provide the foundation for the mathematical description of plane electromagnetic waves. The wave equation for a plane electromagnetic wave in a homogeneous, isotropic, and non-conductive medium is given by \( \frac{{\partial^2 E}}{{\partial z^2}} = \mu\epsilon\frac{{\partial^2 E}}{{\partial t^2}} \), where \( E \) is the electric field, \( \mu \) is the magnetic permeability, \( \epsilon \) is the electric permittivity, \( z \) is the direction of propagation, and \( t \) is time. This second-order partial differential equation describes the propagation of the wave and reflects the relationship between the wave's spatial curvature and temporal changes.Characteristics and Properties of Plane Electromagnetic Waves

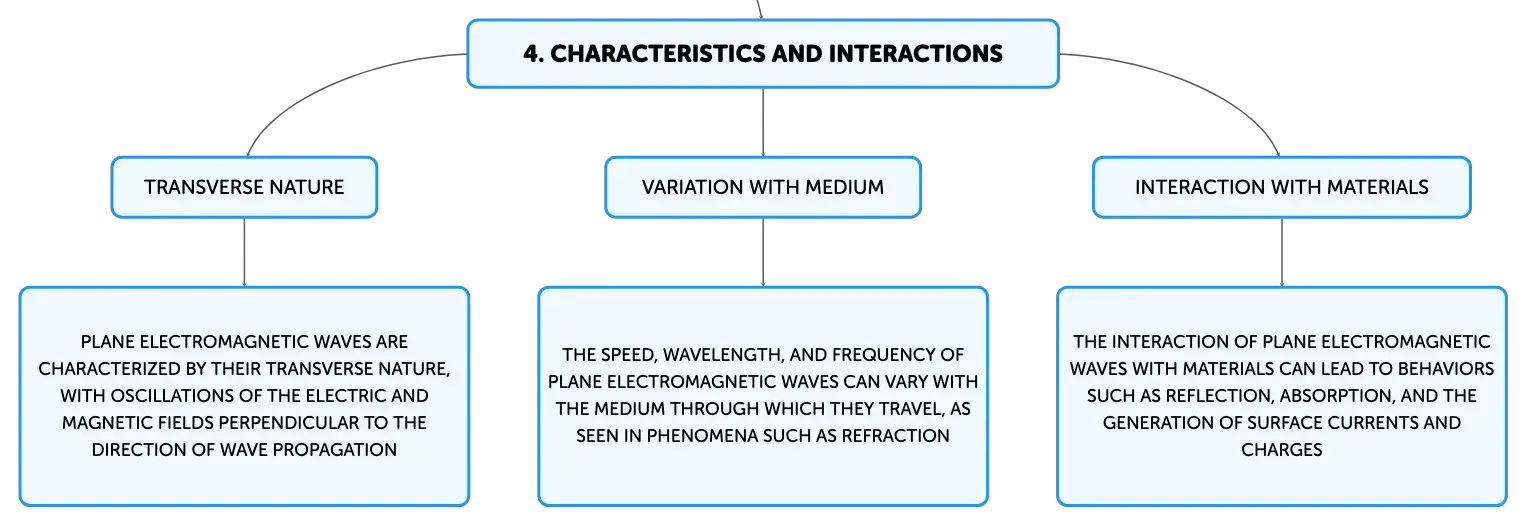

Plane electromagnetic waves are characterized by their transverse nature, meaning that the oscillations of the electric and magnetic fields are perpendicular to the direction of wave propagation. These waves transport energy and momentum, and their speed, wavelength, and frequency can vary with the medium through which they travel. For example, when light enters water from air, it slows down and bends—a phenomenon known as refraction. This change in speed and wavelength illustrates how the properties of plane electromagnetic waves are influenced by the medium.Interaction of Plane Electromagnetic Waves with Materials
The interaction of plane electromagnetic waves with materials can lead to a variety of behaviors. In a vacuum, these waves propagate freely, with their electric and magnetic fields described by sinusoidal functions. The amplitude of the electric field is directly related to the amplitude of the magnetic field, with the constant of proportionality being the speed of light. When these waves encounter conductive surfaces, such as metal plates, they can induce surface currents and charges, resulting in reflection and the potential formation of standing waves. This interaction can also lead to the absorption of some of the wave's energy by the material and the generation of surface currents and charges.Special Types and Intensity of Plane Electromagnetic Waves
Sinusoidal plane electromagnetic waves are a special type of wave that is particularly important due to their uniform, periodic oscillations. These waves are described by sinusoidal functions for both the electric and magnetic fields, with the oscillations of one field generating the other, facilitating the propagation of the wave. The intensity of a plane electromagnetic wave, which quantifies the energy it carries per unit area, is given by \( I = \frac{1}{2}\varepsilon_0cE_0^2 \), where \( \varepsilon_0 \) is the permittivity of free space, \( c \) is the speed of light, and \( E_0 \) is the peak amplitude of the electric field. The intensity is influenced by factors such as the electric field amplitude, the medium through which the wave travels, and the frequency of the wave.Want to create maps from your material?
