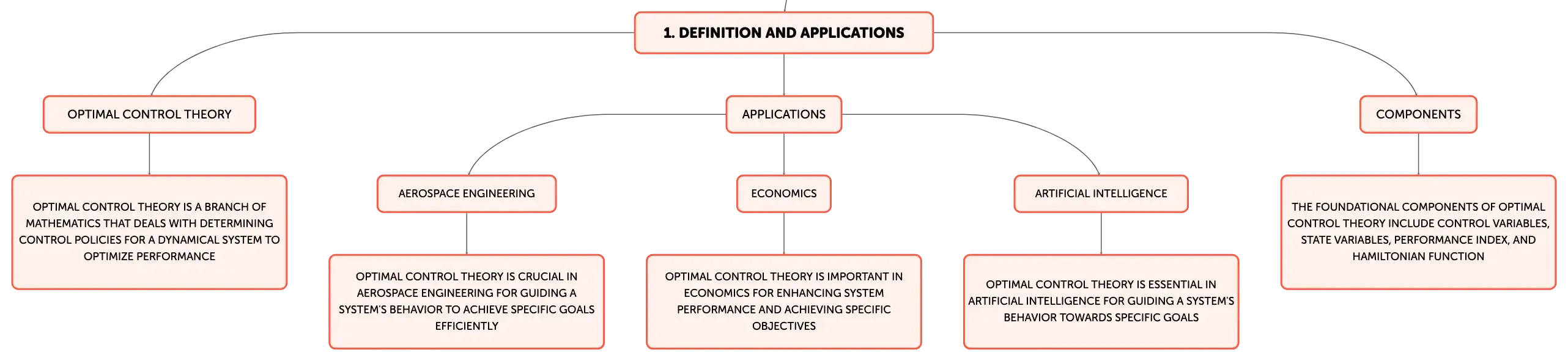

Exploring the Fundamentals of Optimal Control Theory

Optimal control theory is a branch of mathematics that deals with the problem of determining control policies for a dynamical system over a period of time to optimize a certain performance criterion. This theory is crucial in fields such as aerospace engineering, economics, and artificial intelligence, where it is necessary to guide a system's behavior to achieve specific goals efficiently. The theory requires the formulation of a control problem, which typically involves differential equations to describe the system dynamics, a performance index to be optimized, and constraints that the system must adhere to. By applying mathematical tools such as the calculus of variations, dynamic programming, and numerical optimization techniques, optimal control theory provides a systematic framework for designing control strategies that enhance system performance.

Modern white drone with four spinning rotors in flight against a clear blue sky, over a lush park landscape with trees and trimmed grass.

Key Elements of Optimal Control Theory

The foundational components of optimal control theory include the control variables, which represent the inputs or actions that can be manipulated to influence the system's behavior. The state variables describe the system's current status, and the evolution of these states is governed by differential equations. The performance index, or cost function, quantifies the objective that the control policy aims to achieve, such as minimizing energy consumption or maximizing profit. The Hamiltonian function is a crucial concept that combines the cost function with the system's dynamics and constraints, providing a framework for analyzing and solving control problems. The Pontryagin's Maximum Principle and the Bellman equation are seminal results in optimal control, offering necessary conditions for optimality and a recursive solution method, respectively.

Dynamic Programming and Optimal Control

Dynamic programming is a powerful algorithmic technique in optimal control that addresses complex decision-making problems by decomposing them into simpler sub-problems. It is particularly effective for multi-stage processes where decisions at one stage affect future decisions and outcomes. The Bellman equation embodies the principle of optimality, asserting that an optimal policy has the property that, regardless of the initial state and decision, the remaining decisions must constitute an optimal policy with regard to the state resulting from the first decision. This recursive nature of dynamic programming makes it an indispensable tool for solving optimal control problems that are too complex for analytical solutions.

Addressing Uncertainty with Stochastic Optimal Control

Stochastic optimal control is a variant of optimal control theory that deals with systems affected by randomness or uncertainty. This is particularly relevant in fields such as finance, where future market conditions are unpredictable, and in engineering systems subject to random disturbances. Stochastic optimal control uses stochastic differential equations to model the uncertain dynamics of the system and employs computational techniques like Monte Carlo simulations to estimate the outcomes of different control strategies. By incorporating randomness into the control problem, stochastic optimal control helps in designing policies that are robust to uncertainty and variability in system behavior.

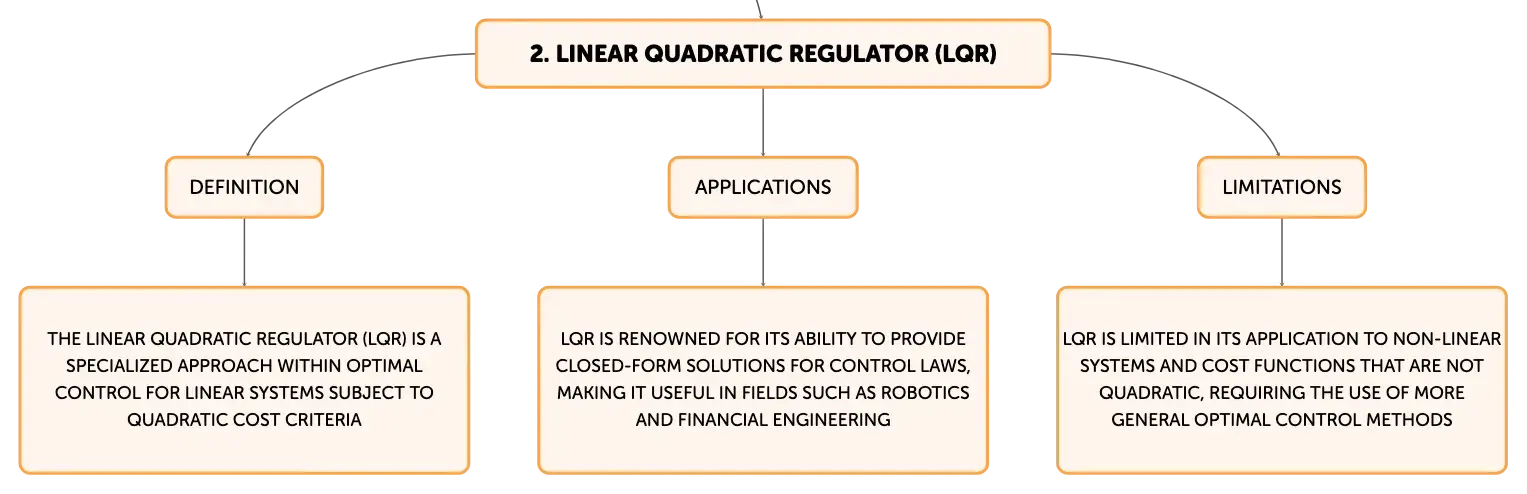

The Linear Quadratic Regulator and Its Applications

The Linear Quadratic Regulator (LQR) is a specialized approach within optimal control for linear systems subject to quadratic cost criteria. It is particularly renowned for its ability to provide closed-form solutions for control laws, which are derived using the Riccati equation. The LQR framework results in a feedback control policy that drives the system towards a desired state in an optimal manner, as defined by the quadratic cost function. While LQR is highly effective for linear systems, its application is limited when dealing with non-linear systems or cost functions that are not quadratic, necessitating the use of more general optimal control methods for such cases.

Crafting and Implementing Optimal Control Solutions

The process of solving an optimal control problem is methodical and involves several key steps: defining the system dynamics through differential equations, establishing the performance index or cost function, identifying the constraints, and determining the optimal control policy. Computational algorithms play a significant role in this process, particularly when analytical solutions are infeasible. The Hamiltonian function is instrumental in deriving the necessary conditions for optimality and serves as a guide for the development of control policies that satisfy both the performance objectives and the system constraints. Practical implementation also requires validation through simulation or experimentation to ensure that the theoretical control policies perform as expected in real-world scenarios.

Real-World Impact of Optimal Control Theory

Optimal control theory has a profound impact on practical applications across a variety of domains. In robotics, it is employed to develop algorithms for precise motion control and efficient path planning. In the realm of financial engineering, it aids in constructing dynamic portfolio strategies that can adapt to market volatility. These examples underscore the broad applicability and effectiveness of optimal control theory in optimizing the performance and efficiency of complex systems. The theory's versatility allows it to be tailored to the specific needs of different industries, making it an invaluable tool for engineers, economists, and scientists alike.
