Photosynthesis and its Measurement Systems
Exploring the mechanisms of photosynthesis, this content delves into how plants, algae, and certain bacteria harness light energy to produce glucose and oxygen. It covers the key components of photosynthesis measurement systems, including leaf chambers, infrared gas analyzers, and environmental sensors. The text also distinguishes between open and closed photosynthesis systems and discusses how they calculate photosynthetic rates, aiding in agricultural and environmental research.
See moreExploring the Mechanisms of Photosynthesis

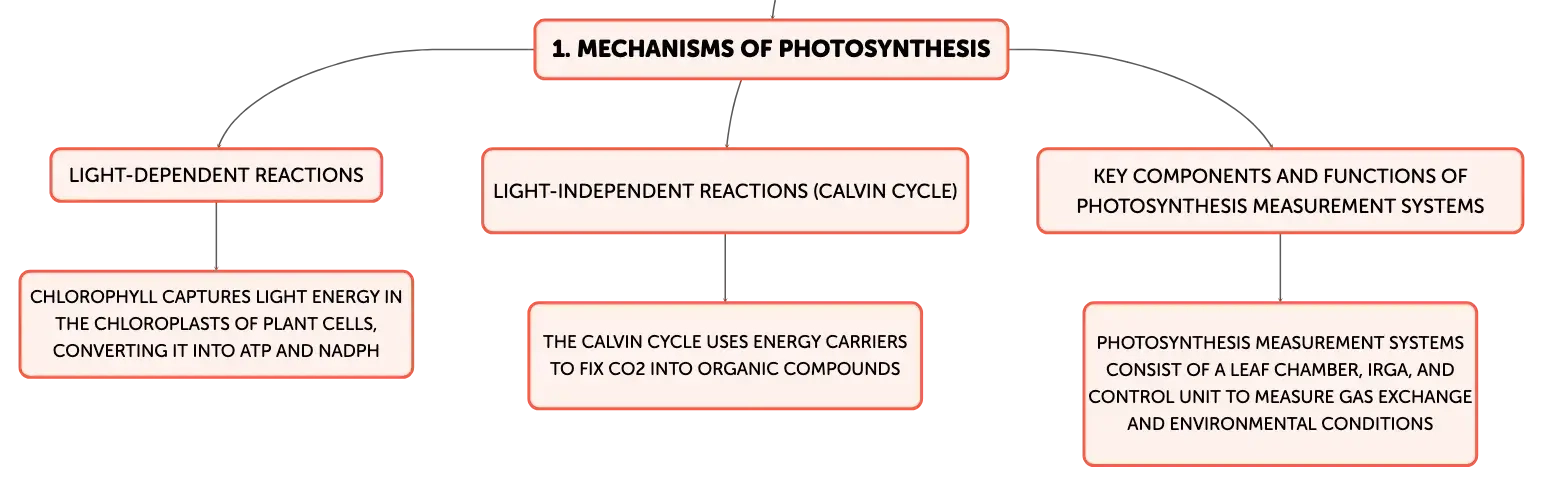

Photosynthesis is a fundamental biological process through which plants, algae, and certain bacteria convert light energy into chemical energy, using carbon dioxide (CO2) and water to produce glucose and oxygen. This process is central to life on Earth as it forms the base of the food chain and is responsible for the oxygen in our atmosphere. Photosynthesis occurs in the chloroplasts of plant cells, where chlorophyll captures light energy. The light-dependent reactions convert this energy into ATP and NADPH, while the light-independent reactions, also known as the Calvin cycle, use these energy carriers to fix CO2 into organic compounds.Key Components and Functions of Photosynthesis Measurement Systems
Photosynthesis measurement systems, often referred to as gas exchange systems, typically consist of a leaf chamber to enclose a leaf or plant part, an infrared gas analyzer (IRGA) to measure CO2 and water vapor concentrations, and a control unit with a display and data storage capabilities. These systems may also include sensors for environmental conditions such as temperature, humidity, and light intensity. The IRGA is crucial for detecting changes in gas concentrations as air flows into and out of the leaf chamber, allowing for the calculation of photosynthetic and transpiration rates. Some systems are equipped with additional features like CO2 injection and humidity control to simulate various environmental conditions.Infrared Gas Analysis and Data Handling

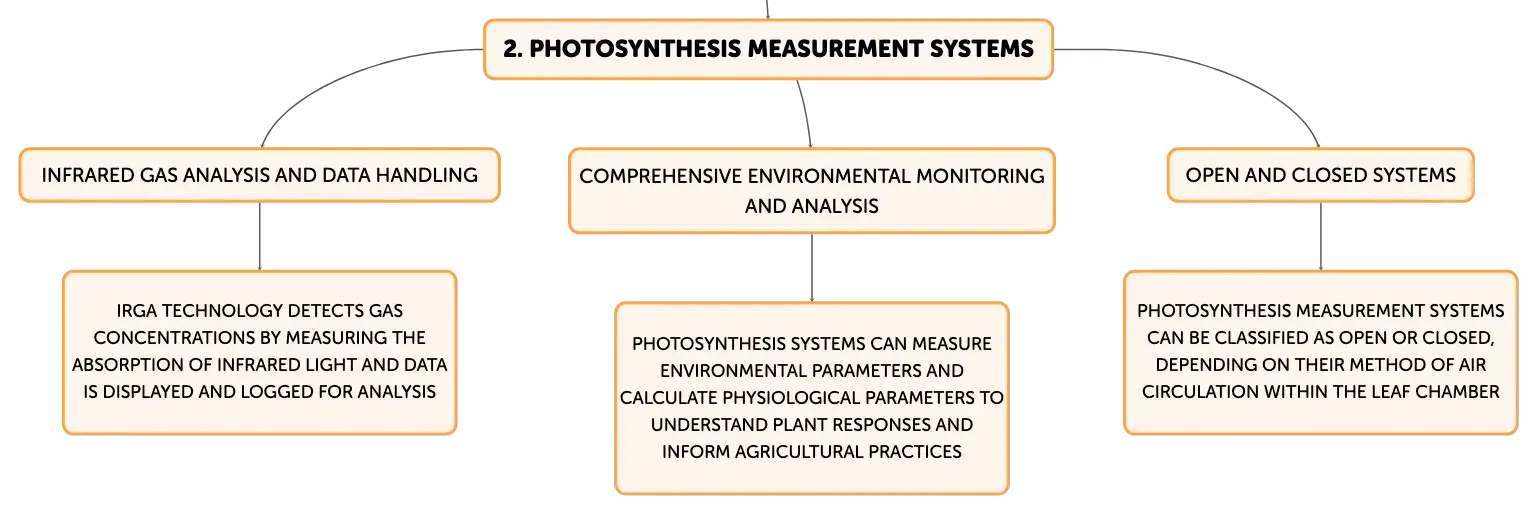

The IRGA is a sophisticated sensor that measures the concentration of gases like CO2 and water vapor by detecting the absorption of infrared light. The technology distinguishes between the different gases based on their unique absorption spectra. The data collected by the IRGA and other sensors are displayed on the system's console, which may include an LCD screen for real-time monitoring. Data logging is an essential feature for later analysis, and modern systems often provide options for data export to computers or cloud storage, enhancing the accessibility and sharing of research findings.Comprehensive Environmental Monitoring and Analysis
In addition to measuring gas exchange, photosynthesis systems can monitor a range of environmental parameters that affect photosynthetic efficiency. These include leaf and air temperature, photosynthetically active radiation (PAR), and relative humidity. The systems calculate important physiological parameters such as stomatal conductance, intercellular CO2 concentration, and water use efficiency. These measurements help researchers understand how plants respond to their environment and can inform agricultural practices to improve crop yields and water usage.Distinguishing Between Open and Closed Photosynthesis Systems
Photosynthesis measurement systems are classified as either open or closed based on their method of air circulation within the leaf chamber. Open systems continuously exchange the chamber's air with the external environment, maintaining a constant CO2 concentration and allowing for the direct measurement of photosynthetic and transpiration rates. Closed systems, on the other hand, recirculate the same air within the chamber, measuring the change in CO2 and water vapor concentrations over time. Each system has its advantages and limitations, with open systems being more commonly used due to their ability to simulate natural conditions more closely.Calculating Photosynthetic Rates in Open and Closed Systems

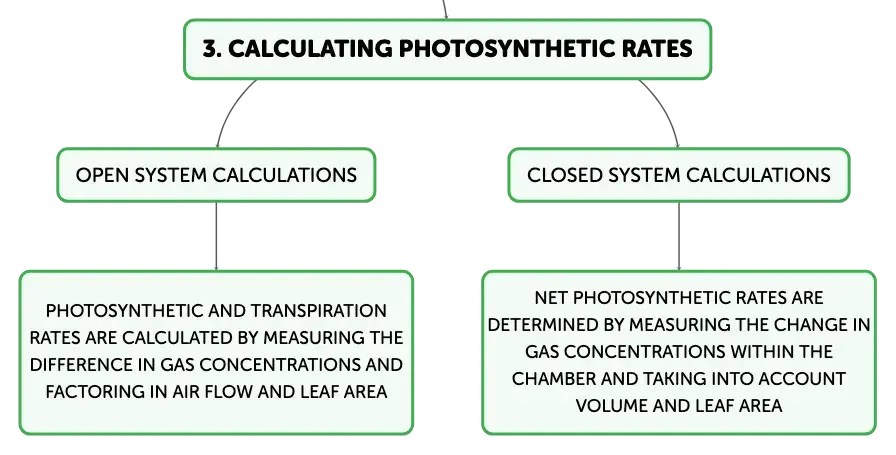

The calculation of photosynthetic rates in open systems involves measuring the difference in CO2 concentration between the air entering and exiting the leaf chamber, factoring in the flow rate of air and the leaf area. Transpiration rates are similarly calculated using the water vapor concentration difference. In closed systems, the net photosynthetic rate is determined by the rate of change in CO2 concentration within the chamber, taking into account the volume of the chamber, the density of CO2, and the enclosed leaf area. These calculations are crucial for quantifying the efficiency of photosynthesis under varying environmental conditions and for understanding the physiological status of the plant.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
______ is the process where plants and certain microorganisms transform light into chemical energy.
Click to check the answer
2
During photosynthesis, ______ and water are used to create glucose and ______.
Click to check the answer
3
The light-dependent reactions produce ATP and ______, which are then used in the Calvin cycle.
Click to check the answer
4
The Calvin cycle, a series of light-______ reactions, synthesizes organic compounds from CO2.
Click to check the answer
5
Photosynthesis is vital for life on Earth as it provides the foundation for the ______ and produces atmospheric ______.
Click to check the answer
6
Function of IRGA in gas exchange systems
Click to check the answer
7
Additional sensors in photosynthesis measurement systems
Click to check the answer
8
Advanced features in some photosynthesis systems
Click to check the answer
9
This technology can tell various gases apart due to their distinct ______.
Click to check the answer
10
The measurements from the IRGA and other devices are shown on a ______, which might feature an LCD for live data viewing.
Click to check the answer
11
______ is crucial for subsequent examination of the data gathered by sensors like the IRGA.
Click to check the answer
Data logging
12
Contemporary systems often support data ______ to computers or the cloud, improving the ease of access and distribution of scientific results.
Click to check the answer
export
13
Purpose of measuring gas exchange in photosynthesis systems
Click to check the answer
14
Physiological parameters calculated by photosynthesis systems
Click to check the answer
15
Impact of photosynthesis system measurements on agriculture
Click to check the answer
16
Photosynthesis measurement systems are divided into two types: ______ or ______, based on their air circulation method in the leaf chamber.
Click to check the answer
17
______ systems reuse the same air, tracking changes in CO2 and water vapor to measure photosynthesis over time.
Click to check the answer
18
While both systems have their own benefits and drawbacks, ______ systems are preferred for their ability to more accurately replicate ______ conditions.
Click to check the answer
19
Measuring CO2 difference in open systems
Click to check the answer
20
Calculating transpiration rates
Click to check the answer
21
Determining net photosynthesis in closed systems
Click to check the answer
