Chromatic Aberration

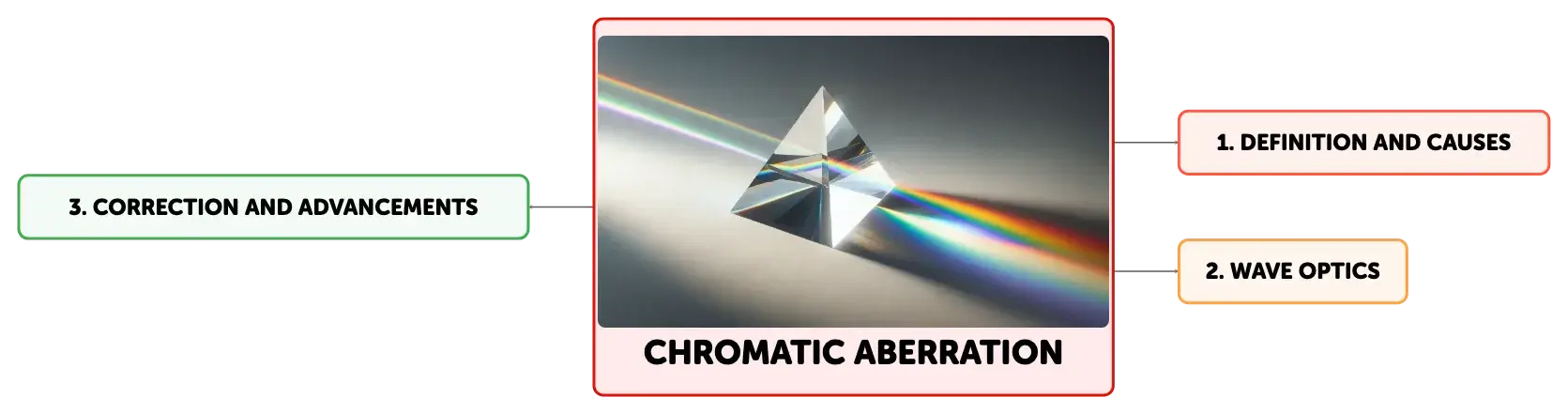

Chromatic aberration affects image quality in optical devices by causing color fringes due to dispersion. This optical effect occurs when a lens doesn't focus all colors on the same plane. Wave optics, lens properties, and technological solutions like achromatic and apochromatic lenses are discussed to address this issue.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Definition of chromatic aberration

Click to check the answer

Optical effect where a lens fails to focus all colors at the same point.

2

Consequence of chromatic aberration on image quality

Click to check the answer

Results in color fringes at high-contrast edges, degrading image sharpness.

3

Optical devices affected by chromatic aberration

Click to check the answer

Cameras, telescopes, and microscopes can suffer from reduced image quality.

4

The principle of ______ causing colors to bend at different angles due to frequency-dependent light speed in materials explains ______ ______.

Click to check the answer

dispersion chromatic aberration

5

Longitudinal Chromatic Aberration Definition

Click to check the answer

Occurs when different colors focus at varying distances from lens along optical axis, causing image blur.

6

Lateral Chromatic Aberration Definition

Click to check the answer

Happens when colors focus at different positions in plane perpendicular to optical axis, leading to color fringing.

7

Chromatic Aberration Correction Importance

Click to check the answer

Essential for diagnosing, correcting optical systems to improve image clarity and reduce color distortions.

8

______ aberration is caused by light's physical properties and the substance of the lens.

Click to check the answer

Chromatic

9

Define achromatic lens.

Click to check the answer

Lens designed to focus two wavelengths (red and blue) at same point, reducing chromatic aberration.

10

Purpose of apochromatic lens.

Click to check the answer

Corrects for three wavelengths, further reducing chromatic aberration than achromatic lenses.

11

Role of modern lens coatings.

Click to check the answer

Minimize reflections, enhance light transmission, aiding in chromatic aberration correction.

12

______ aberration showcases basic principles of wave optics like ______, ______, and the ______ nature of light.

Click to check the answer

Chromatic refraction dispersion wavelength-dependent

13

Understanding ______ aberration helps in grasping the complexities in ______ design and ______ processing.

Click to check the answer

chromatic lens image

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Parallel Beams in Physics

Physics

Radiation Pressure

Physics

Optical Aberrations

Physics

Wave Equations and Their Applications

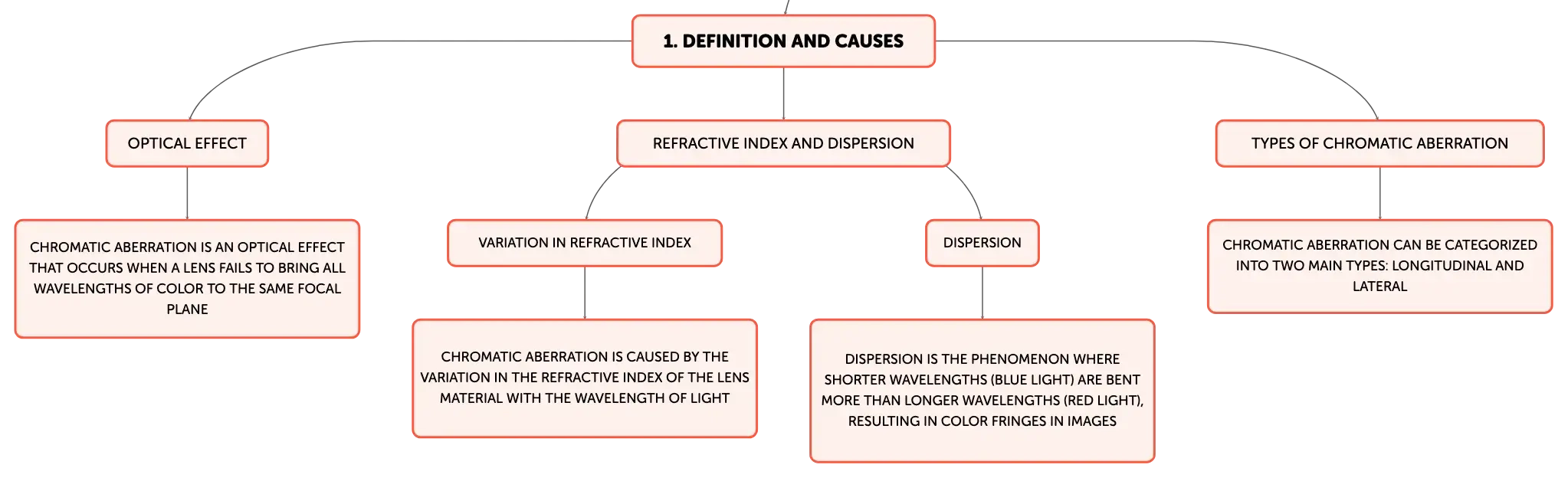

Understanding Chromatic Aberration in Optical Systems

Chromatic aberration is an optical effect that occurs when a lens fails to bring all wavelengths of color to the same focal plane, or when wavelengths are focused at different positions along the optical axis. This phenomenon is due to the variation in the refractive index of the lens material with the wavelength of light, known as dispersion. Shorter wavelengths (blue light) are bent more than longer wavelengths (red light), resulting in an image with color fringes at high-contrast edges. This effect can degrade image quality in various optical devices, including cameras, telescopes, and microscopes.
Clear glass prism on a white surface dispersing light into a colorful spectrum, showcasing the colors of the rainbow from red to violet.

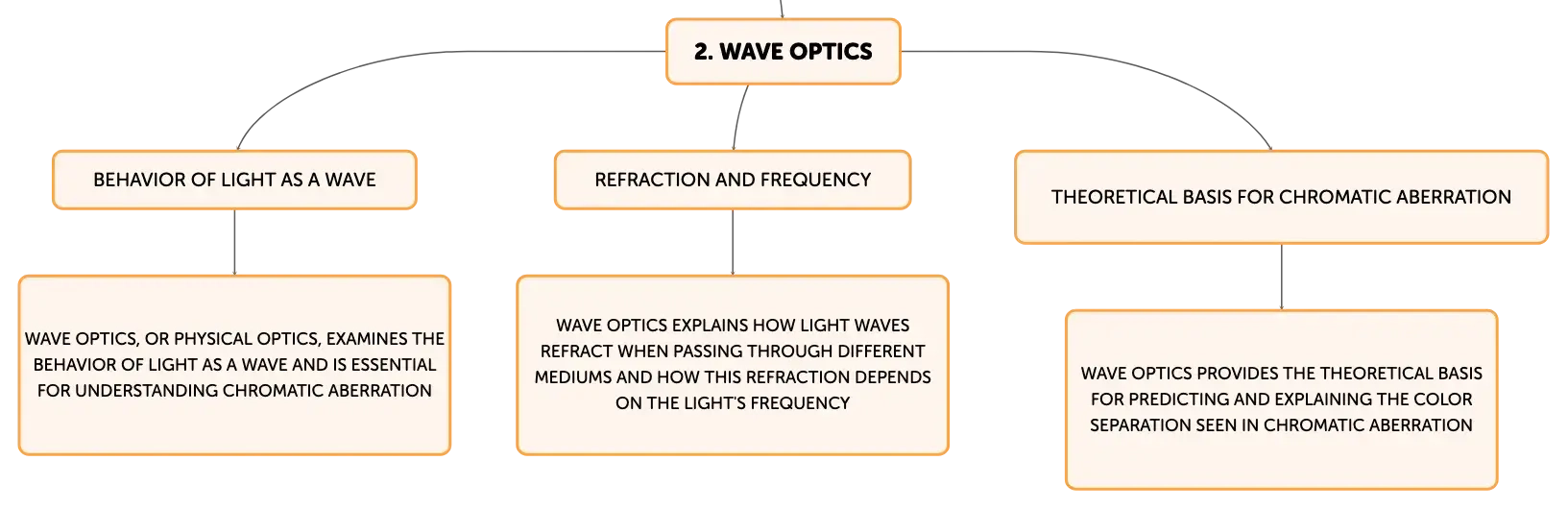

Wave Optics: The Science Behind Chromatic Aberration

Wave optics, or physical optics, examines the behavior of light as a wave and is essential for understanding chromatic aberration. It explains how light waves refract when they pass from one medium to another and how this refraction depends on the light's frequency. Dispersion arises because the speed of light in a material varies with frequency, leading to different bending angles for each color. Wave optics provides the theoretical basis for predicting and explaining the color separation seen in chromatic aberration.

Classifying Chromatic Aberration: Longitudinal and Lateral Types

Chromatic aberration can be categorized into two main types: longitudinal and lateral. Longitudinal chromatic aberration, also known as axial chromatic aberration, occurs when different colors are focused at different distances from the lens along the optical axis, resulting in a blurred image. Lateral chromatic aberration, or transverse chromatic aberration, happens when colors are focused at different positions in a plane perpendicular to the optical axis, causing color fringing in off-axis image points. Understanding these types helps in diagnosing and correcting chromatic aberration in optical systems.

The Mechanism of Chromatic Aberration in Lenses

Chromatic aberration arises from the physical properties of light and the lens material. When light traverses a lens, it is refracted at the interface between air and the lens material, and again when it exits. The amount of bending is dependent on the light's wavelength and the refractive index of the lens material. Since the refractive index varies with wavelength—a phenomenon known as dispersion—each color experiences a different degree of bending. This differential refraction leads to the separation of colors, manifesting as chromatic aberration in the final image.

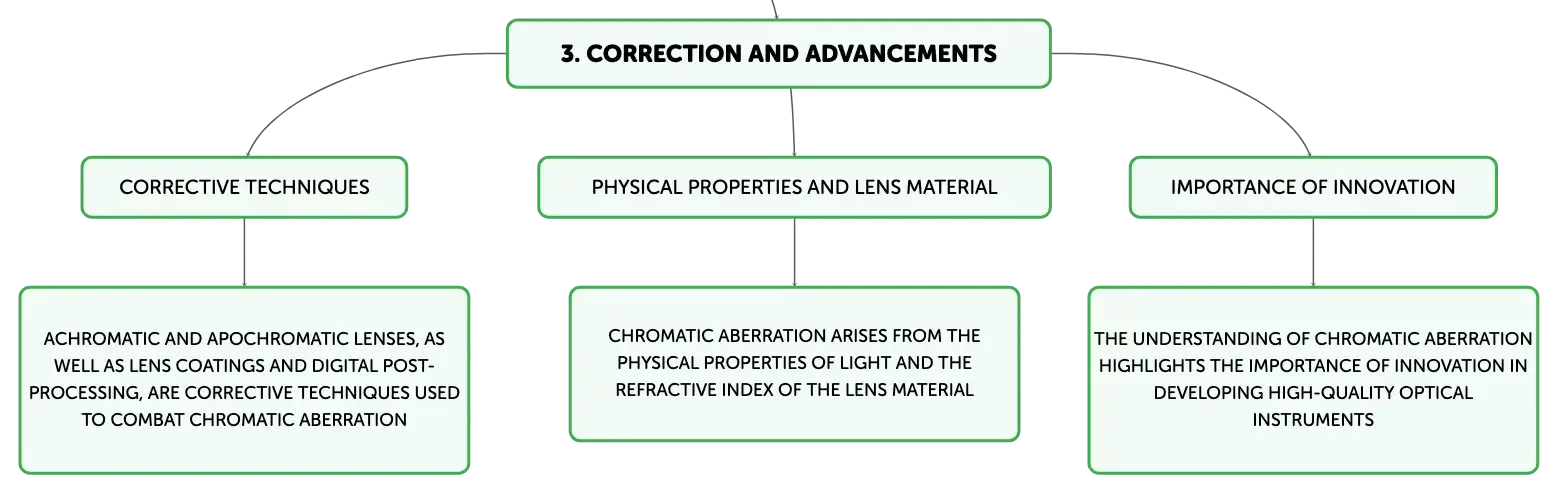

Technological Solutions to Chromatic Aberration

To combat chromatic aberration, optical engineers have developed several corrective techniques. Achromatic lenses are designed to bring two specific wavelengths (typically red and blue) into the same focus, significantly reducing chromatic aberration. Apochromatic lenses go a step further, correcting for three wavelengths. Additionally, modern lens coatings can minimize reflections and enhance light transmission, while digital post-processing can adjust for residual chromatic aberration in captured images. These advancements have greatly improved the performance of optical systems.

Educational Insights on Chromatic Aberration

Chromatic aberration is a compelling subject for educational exploration, demonstrating fundamental principles of wave optics such as refraction, dispersion, and the wavelength-dependent nature of light. By studying this optical phenomenon, students gain insight into the challenges and solutions associated with lens design and image processing. The understanding of chromatic aberration not only enriches the knowledge of optical science but also highlights the importance of innovation in developing high-quality optical instruments.
