Understanding Pipeline Hazards in Computer Architecture

Computer architecture often employs pipeline processing to improve the performance and efficiency of central processing units (CPUs). This method allows for the simultaneous execution of multiple instruction stages, enhancing instruction throughput. However, pipeline hazards—situations that prevent the next instruction from executing in the designated clock cycle—can disrupt this process. These hazards, which may arise during the instruction fetch, decode, or execute stages, impede the smooth flow of instructions, causing delays and reduced performance. The three main types of pipeline hazards are structural, data, and control hazards, each with distinct conflicts and dependencies that can occur within the pipeline.

Types and Implications of Pipeline Hazards

Pipeline hazards are classified into three main types: structural, data, and control hazards. Structural hazards occur when there is a contention for hardware resources by multiple instructions at the same time. Data hazards arise when there is a dependency between instructions that use the same data, leading to conflicts such as read-after-write (RAW), write-after-read (WAR), and write-after-write (WAW). Control hazards are associated with the execution of branch instructions and other instructions that modify the program counter (PC), which can lead to branch mispredictions. These hazards can cause pipeline stalls, which are periods where no useful work is done, thus strategies such as hazard detection and resolution are necessary to maintain an efficient pipeline operation.

Mitigating Control Hazards in Pipelining

Control hazards pose a significant challenge due to their potential to disrupt the flow of a program. These hazards occur when the pipeline must make predictions about the outcome of branch instructions, which can lead to mispredictions and the need to flush the pipeline. To mitigate control hazards, architects employ techniques such as static branch prediction, which uses a fixed strategy for guessing branch outcomes, and dynamic branch prediction, which adapts to runtime behavior. Other methods include the use of branch delay slots, which fill the gap between the branch decision and the target instruction execution, and loop unrolling, which reduces the number of branches by replicating the loop body. The branch prediction buffer, or branch target buffer, is another tool that caches the outcomes of recent branch instructions to improve prediction accuracy.

Addressing Data Hazards in Pipelining

Data hazards occur when there are dependencies between instructions that access or modify the same data. To address these hazards, architects implement various techniques such as instruction reordering, which rearranges the instruction sequence to minimize conflicts, and hardware interlocks, which delay instruction execution until the necessary data is available. Pipelining bypassing, or forwarding, is a technique that allows for the direct transfer of data between pipeline stages, circumventing the need for data to be fully written back before being used by subsequent instructions. These methods are essential for maintaining a fluid and efficient pipeline operation, ensuring that data dependencies do not hinder processor performance.

Exploring CPU Pipeline Hazards and Their Management

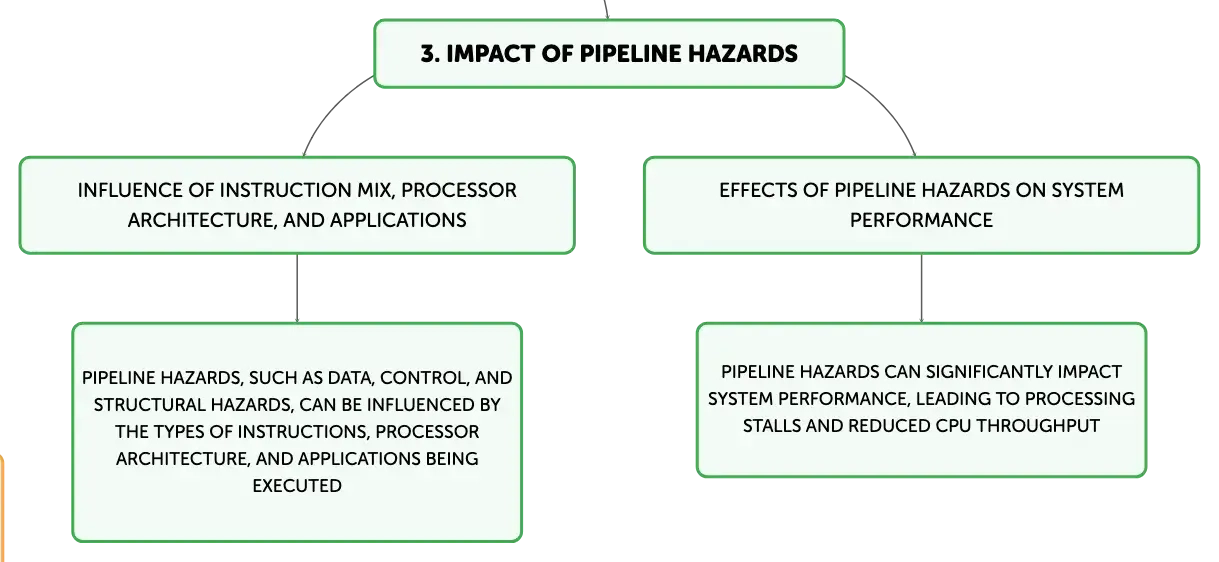

CPU pipeline hazards, which include data, control, and structural hazards, are influenced by the instruction mix, the processor's architecture, and the applications being executed. Data hazards stem from the unavailability of operands, control hazards from the uncertainty of branch decisions, and structural hazards from limitations in hardware resources. To manage these hazards, architects use techniques such as data forwarding to resolve data dependencies, hardware interlocks to prevent execution until data is ready, instruction reordering to avoid conflicts, branch prediction to anticipate control flow changes, speculative execution to process instructions before all conditions are known, and delayed branching to defer the execution of branch instructions. Each technique helps to prevent pipeline stalls and maintain efficiency, but they may also introduce complexity or require additional hardware resources.

Real-World Examples and Consequences of Pipeline Hazards

In real-world scenarios, pipeline hazards can significantly impact system performance. For instance, data hazards may lead to processing stalls when instructions with shared data dependencies are executed in close succession. Structural hazards can occur when there are conflicts over shared resources, such as simultaneous memory accesses, which prevent concurrent instruction processing. These hazards can degrade system performance and reduce CPU throughput. Understanding the causes and effects of pipeline hazards is crucial for developing effective management strategies, which in turn can enhance the operational efficiency of computer systems.
