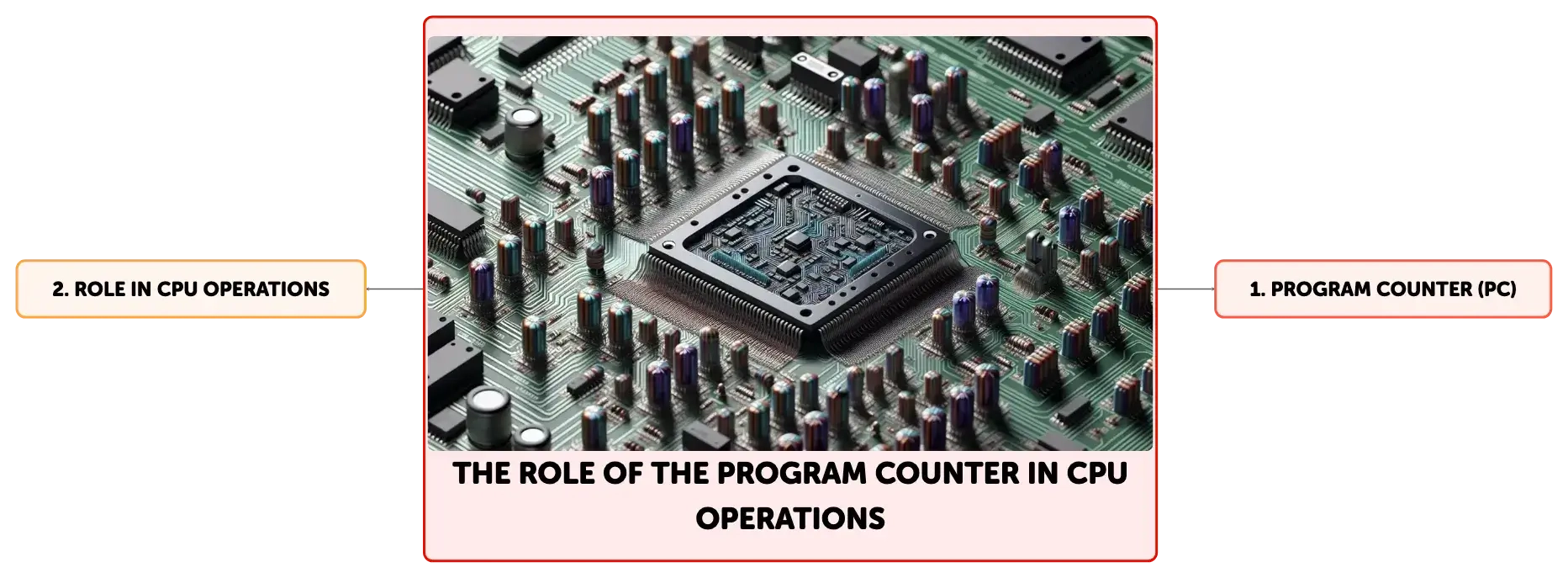

The Role of the Program Counter in CPU Operations

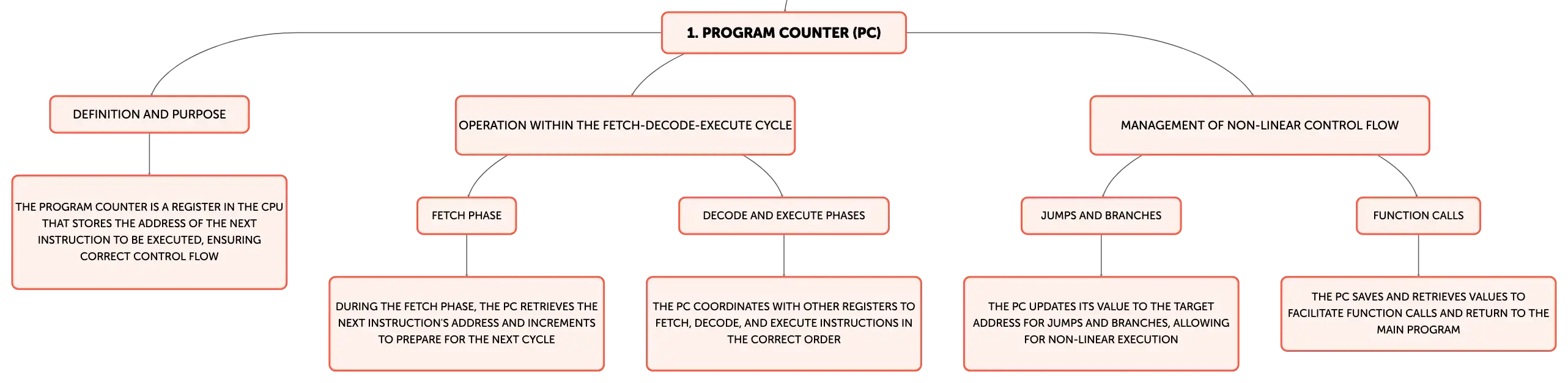

The Program Counter (PC) is a critical CPU register that holds the address of the next instruction, enabling sequential execution and control flow management. It is pivotal in the fetch-decode-execute cycle, coordinating with other registers for task sequencing and handling non-linear control flows like jumps and branches. Understanding the PC's function is crucial for reliable computing operations.

see more
Open map in editor

1

3

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Program Counter alternate name

Click to check the answer

Also known as Instruction Pointer in some CPU architectures.

2

Program Counter function in control flow

Click to check the answer

Maintains intended control flow by holding next instruction address.

3

Program Counter usage in jumps and branches

Click to check the answer

Updated to new address during jumps, branches, and subroutine calls.

4

For control flow, the PC allows execution of jumps, loops, and branches by changing its value to the ______ instruction's address.

Click to check the answer

target

5

Fetch phase role of PC

Click to check the answer

PC retrieves next instruction's memory address.

6

PC incrementation timing

Click to check the answer

PC increments after fetching, before next cycle.

7

CPU operation core cycle

Click to check the answer

Fetch-decode-execute cycle processes instructions.

8

The PC supplies the instruction's ______ to the address register, enabling the instruction to be retrieved into the ______ register.

Click to check the answer

address data

9

Function of Program Counter (PC) in jump instructions

Click to check the answer

PC updated with target address, deviates from sequential execution.

10

Role of PC in conditional branches

Click to check the answer

PC value changes based on conditions, enables loops and conditional execution.

11

PC behavior during function calls

Click to check the answer

Current PC saved to stack, function's start address loaded into PC, original PC restored post-function.

12

During ______, the Program Counter is essential as it saves the current state and aids in moving to an ______ service routine.

Click to check the answer

interrupts interrupt

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Secondary Storage in Computer Systems

View document

Computer Science

Understanding Processor Cores

View document

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

Computer Science

Bitwise Shift Operations in Computer Science

View document

Exploring the Function of the Program Counter in CPUs

The Program Counter (PC), also referred to as the Instruction Pointer in some architectures, is an essential register within the Central Processing Unit (CPU) that facilitates the sequential execution of instructions. It contains the address of the next instruction to be executed, thereby guiding the CPU through the program's instructions in the correct order. The PC is crucial for the CPU to maintain the intended control flow of a program, particularly during linear execution and when executing jumps, branches, and subroutine calls.

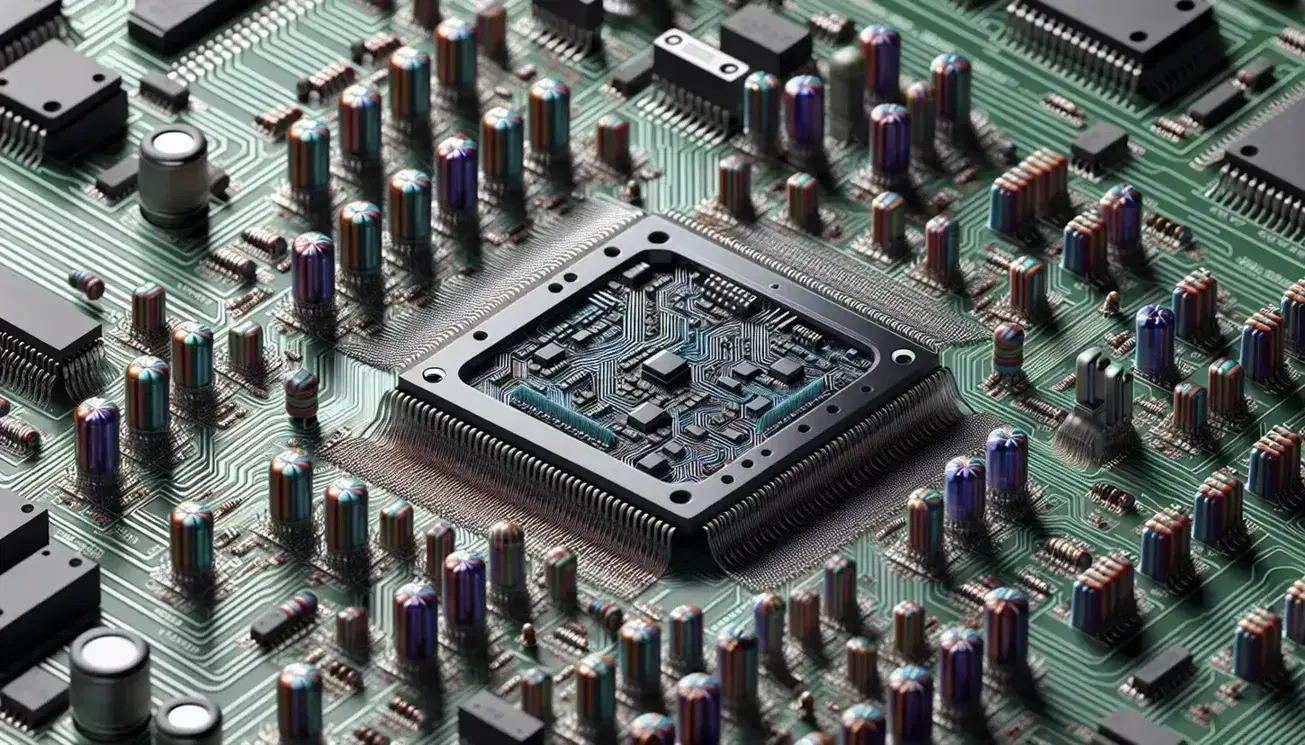

Close-up of a silicon microprocessor on green PCB board with electronic components such as capacitors, resistors and diodes soldered.

Program Counter's Impact on Instruction Sequencing and Control Flow

The Program Counter is central to the CPU's ability to sequence tasks correctly. It stores the address of the current instruction and automatically increments to the next instruction's address after each execution cycle. This ensures that the CPU executes the program's instructions in the intended sequence. Additionally, the PC is vital for control flow management, as it facilitates the execution of conditional and unconditional jumps, loops, and branches by updating its value to the target instruction's address, thus altering the normal execution path as dictated by the program's logic.

The Fetch-Decode-Execute Cycle's Reliance on the Program Counter

Within the fetch-decode-execute cycle, the Program Counter's role is indispensable. During the fetch phase, the CPU uses the PC to retrieve the next instruction from its memory address. Once the instruction is fetched, the PC is incremented to point to the subsequent instruction, preparing for the next cycle. The CPU then decodes the instruction and executes it. This cycle is the core of the CPU's operation, with the Program Counter acting as a guide to ensure the CPU processes instructions in the correct order.

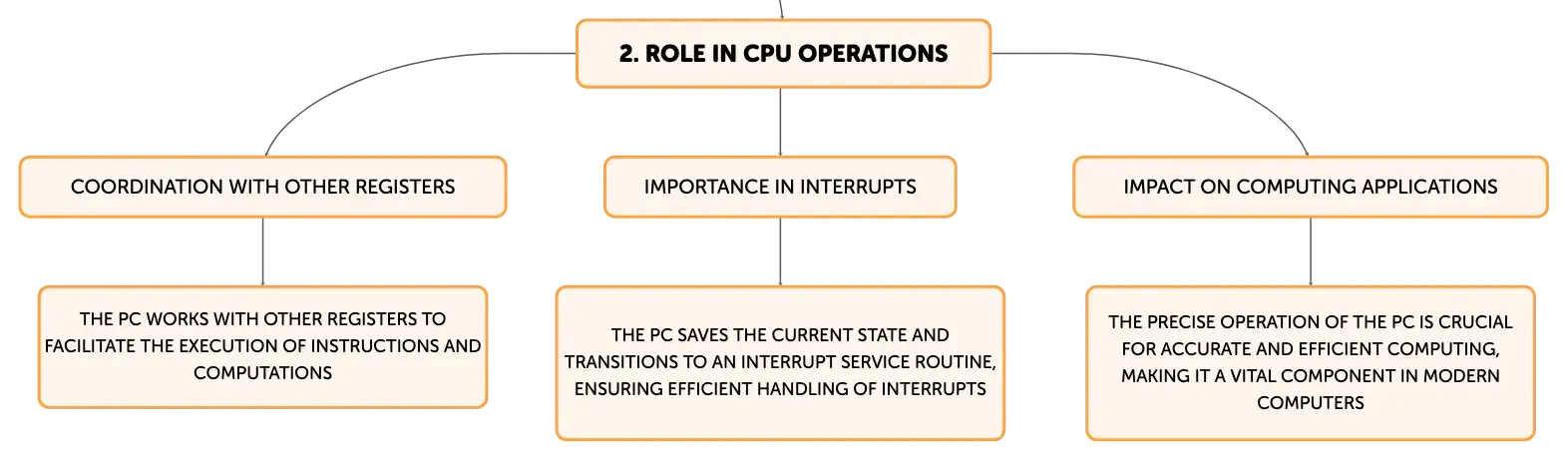

Interplay Between the Program Counter and Other CPU Registers

The Program Counter operates in conjunction with other CPU registers to execute instructions efficiently. Registers are specialized storage locations within the CPU that facilitate the execution process, including the address register, data register, instruction register, and various general-purpose registers. The PC contributes to this process by providing the address of the instruction to the address register, which then allows the instruction to be fetched into the data register and subsequently moved to the instruction register for decoding. During the execution phase, the general-purpose registers are used for computations, with the PC coordinating the sequence of these operations.

Handling Non-Linear Control Flow with the Program Counter

The Program Counter adeptly manages non-linear control flow, such as program jumps and branches. When the CPU encounters a jump instruction, the PC is updated with the target memory address, deviating from sequential execution. Branch instructions, like conditional branches, alter the PC's value based on specific conditions, enabling loops and conditional execution. Function calls involve saving the current PC value to the stack and loading the function's starting address into the PC. After the function executes, the saved PC value is retrieved, allowing the program to continue from where it left off.

Real-World Significance of Program Counter Operations

The Program Counter's precise operation is vital in various computing applications, particularly in ensuring the correct execution of the instruction cycle. It orchestrates the flow of instructions through the fetch, decode, execute, and memory access stages. The PC's role is also critical during interrupts, where it saves the current state and facilitates the transition to an interrupt service routine. Inaccurate handling of the Program Counter can result in software errors, incorrect program execution, and system instability. Therefore, a thorough understanding of the PC's function is essential for reliable and efficient computing, underscoring its importance in the architecture and operation of modern computers.
