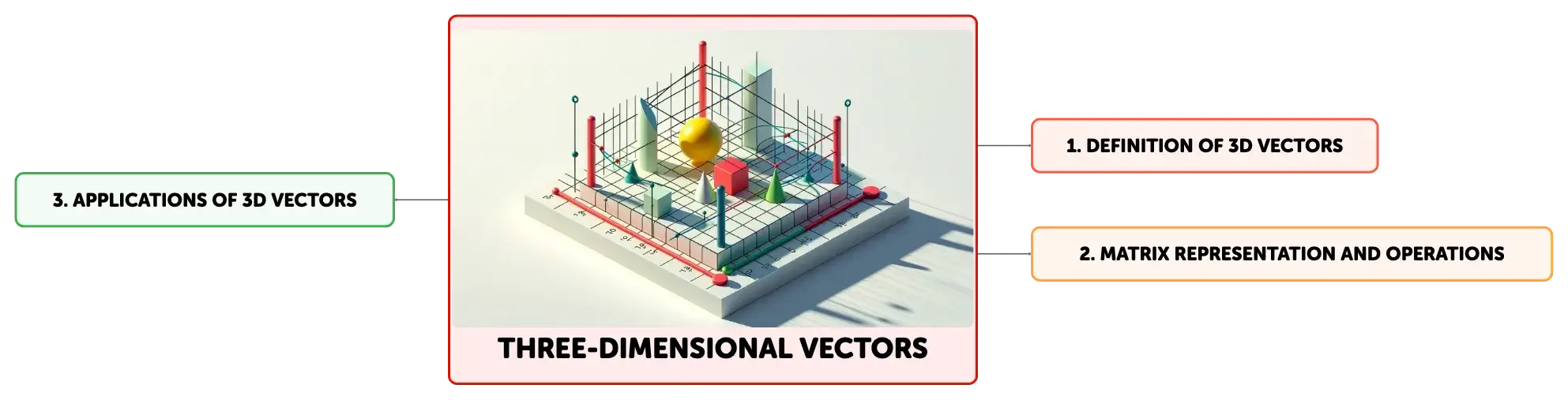

Concept Map
Algorino
Edit available
Three-dimensional vectors are fundamental in describing direction and magnitude in a 3D space. They are denoted by components along the x, y, and z axes, represented by unit vectors i, j, and k. Graphical representation in a coordinate system, matrix formulation, and operations such as dot product, magnitude calculation, and angle determination are crucial for their application in scientific and engineering fields.
Summary
Outline
Exploring the Fundamentals of 3D Vectors
Three-dimensional vectors, commonly referred to as 3D vectors, are mathematical objects defined in a space characterized by three dimensions, corresponding to the x, y, and z axes. These vectors provide a way to describe both direction and magnitude within a three-dimensional context. A 3D vector is typically denoted by its components along the unit vectors i, j, and k, which are parallel to the x, y, and z axes, respectively. For example, a vector A→ that originates from the point (0,0,0) and points to the coordinate (3,2,5) is expressed as A→=3i+2j+5k, where the numbers 3, 2, and 5 represent the scalar magnitudes of the vector's components in the respective directions of the unit vectors.Visualizing 3D Vectors in a Coordinate System
To graphically represent a 3D vector, it is plotted within a three-dimensional coordinate system that consists of the x-axis, y-axis, and z-axis, which are all perpendicular to one another. The plotting process involves drawing these axes, pinpointing the vector's terminal point (also known as the head), and sketching an arrow from the origin to this terminal point. The coordinates of the head are then labeled to indicate the vector's position in space. This visual representation is instrumental in comprehending the vector's spatial orientation and direction.Matrix Formulation of 3D Vectors
Beyond their component notation, 3D vectors can be represented as matrices. In matrix form, a vector is depicted as a column matrix with three entries, each corresponding to the vector's i, j, and k components. For instance, the vector A→=3i+2j+5k is equivalently represented by the column matrix [3; 2; 5]. This matrix representation is particularly advantageous for performing vector operations, such as calculating the dot product or cross product between vectors.Computing the Dot Product of 3D Vectors
The dot product is a key operation involving 3D vectors, which quantifies the extent to which two vectors align in direction. To compute the dot product of vectors A→ and B→, with components A→=(a, b, c) and B→=(d, e, f), one multiplies the corresponding components and adds the products: A→·B→=ad+be+cf. This scalar result can be utilized to find the cosine of the angle between the vectors or to project one vector onto another.Calculating the Magnitude of 3D Vectors
The magnitude of a 3D vector is a scalar that represents its length and is derived using the three-dimensional Pythagorean theorem. For a vector A→ with components (x1, y1, z1), the magnitude is calculated as |A→|=√(x1^2+y1^2+z1^2). This formula is essential for quantifying the vector's size within the three-dimensional space it occupies.Determining the Angle Between 3D Vectors
The angle between two 3D vectors is determined by employing the dot product in conjunction with the magnitudes of the vectors. The formula θ=cos^(-1)((A→·B→)/(|A→||B→|)) yields the angle θ between vectors A→ and B→. This angle is a critical measure in various scientific and engineering contexts, where understanding the directional relationship between vectors, such as forces or velocities, is necessary.Key Insights on 3-Dimensional Vectors
To summarize, 3D vectors extend the concept of 2D vectors into a three-dimensional framework, characterized by their i, j, and k components. They can be depicted graphically in a coordinate system, represented algebraically in matrix form, and analyzed through operations like the dot product, magnitude calculation, and angle determination. Mastery of these concepts is indispensable for applications in numerous scientific and engineering fields, where 3D vectors play a pivotal role in modeling and resolving complex spatial challenges.
Show More

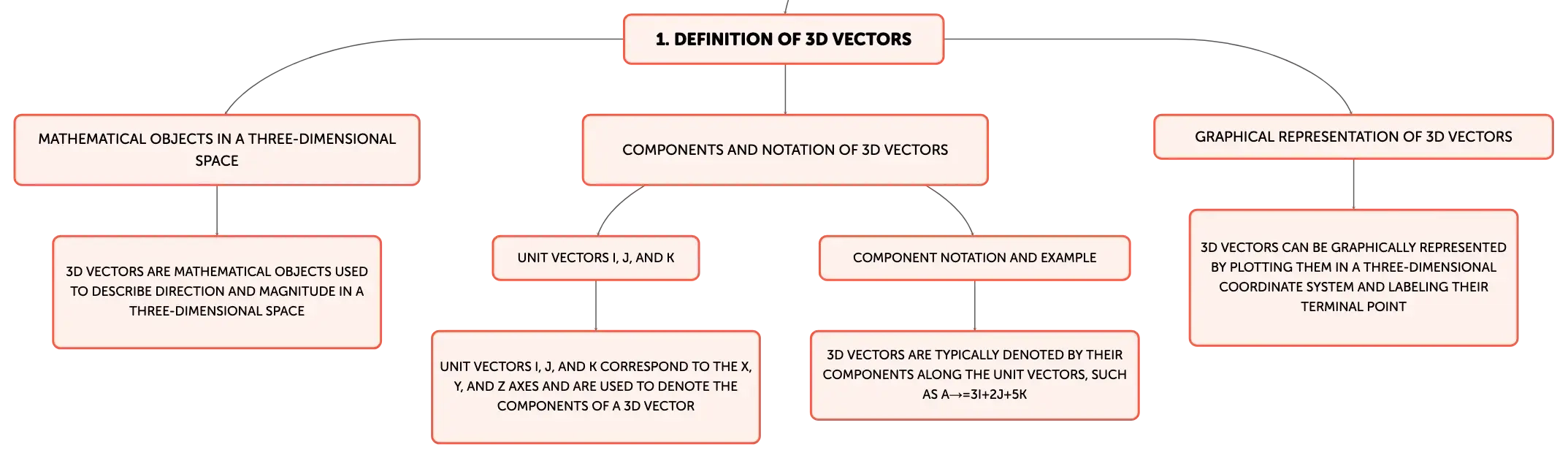

Definition of 3D Vectors
Mathematical objects in a three-dimensional space
3D vectors are mathematical objects used to describe direction and magnitude in a three-dimensional space
Components and notation of 3D vectors
Unit vectors i, j, and k
Unit vectors i, j, and k correspond to the x, y, and z axes and are used to denote the components of a 3D vector
Component notation and example
3D vectors are typically denoted by their components along the unit vectors, such as A→=3i+2j+5k
Graphical representation of 3D vectors
3D vectors can be graphically represented by plotting them in a three-dimensional coordinate system and labeling their terminal point

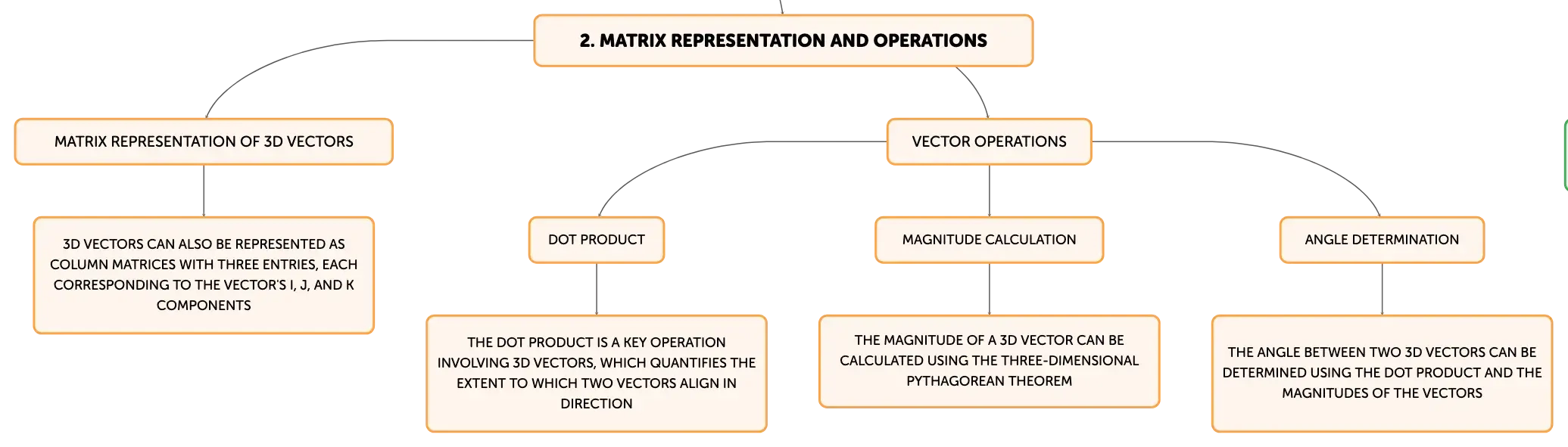

Matrix Representation and Operations
Matrix representation of 3D vectors
3D vectors can also be represented as column matrices with three entries, each corresponding to the vector's i, j, and k components
Vector operations
Dot product
The dot product is a key operation involving 3D vectors, which quantifies the extent to which two vectors align in direction
Magnitude calculation
The magnitude of a 3D vector can be calculated using the three-dimensional Pythagorean theorem
Angle determination
The angle between two 3D vectors can be determined using the dot product and the magnitudes of the vectors

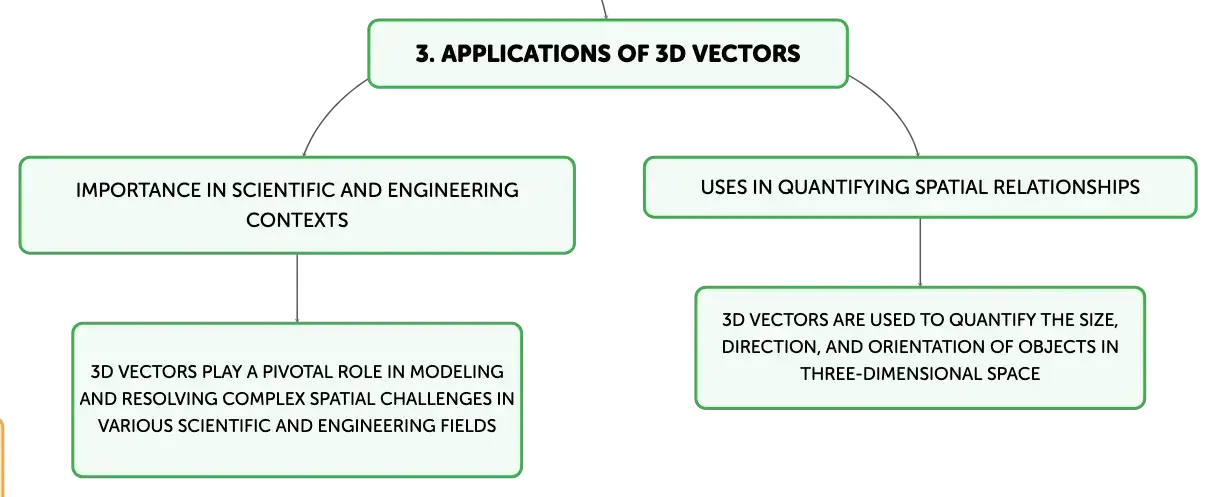

Applications of 3D Vectors
Importance in scientific and engineering contexts
3D vectors play a pivotal role in modeling and resolving complex spatial challenges in various scientific and engineering fields
Uses in quantifying spatial relationships
3D vectors are used to quantify the size, direction, and orientation of objects in three-dimensional space
Three-Dimensional Vectors
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
Components of a 3D vector
Represented by scalar magnitudes along i, j, k unit vectors.
01
Unit vectors in 3D
i, j, k correspond to x, y, z axes respectively.
02
Magnitude of a 3D vector
Calculated using the square root of the sum of the squares of its components.
