Exploring the Basics of Alternating Current (AC)

Alternating current (AC) is a type of electrical current that periodically reverses direction and changes its magnitude continuously in a sinusoidal pattern. This oscillation allows AC to efficiently distribute energy across vast electrical networks, making it the standard for power delivery in homes and businesses. AC is generated by an alternator, which consists of a rotating coil within a stationary magnetic field. This rotation induces a changing magnetic flux through the coil, which, according to Faraday's Law of Electromagnetic Induction, generates an electromotive force (EMF) that drives the current.

Close-up of a black three-pronged power plug partially inserted into a white wall socket on a beige wall, poised to establish an electrical connection.

Generating and Visualizing Alternating Current

The generation of alternating current is facilitated by an alternator, where a conductor, typically a coil of wire, rotates within a magnetic field. This motion intersects the magnetic flux lines at varying angles, inducing a time-varying electromotive force that propels the charges through the circuit, producing AC. The graphical representation of AC is a sine wave, depicting the cyclical nature of the voltage and current over time. The wave oscillates between peak positive and negative values, with a frequency determined by the number of cycles per second, measured in Hertz (Hz). For instance, in the United Kingdom, the standard frequency is 50Hz.

Mathematical Representation of Alternating Current

The instantaneous value of an alternating current can be mathematically expressed by the sine wave equation \(I(t) = I_{max} \cdot \sin(\omega t)\), where \(I(t)\) is the current at time \(t\), \(I_{max}\) is the peak current, and \(\omega\) is the angular frequency. The voltage in an AC circuit follows a similar equation, \(V(t) = V_{max} \cdot \sin(\omega t)\), with \(V(t)\) representing the instantaneous voltage and \(V_{max}\) the peak voltage. The period \(T\) of the AC waveform is the reciprocal of the frequency \(f\), given by \(T = \frac{1}{f} = \frac{2\pi}{\omega}\), where \(f\) is in Hertz.

Distinguishing AC from DC

Alternating current (AC) and direct current (DC) are fundamentally different in their behavior and generation. AC is characterized by its periodic change in direction and amplitude, whereas DC maintains a constant direction and amplitude over time. AC is generated using alternators with slip rings that accommodate the coil's rotation, allowing the current to alternate. In contrast, DC generators employ a split-ring commutator to produce a steady, unidirectional current. AC typically operates at a frequency of 50 or 60Hz, depending on the region, while DC has a frequency of zero, signifying a steady-state current.

Utilization and Transmission of AC and DC

Alternating current is the primary mode of electrical transmission due to its ability to be easily transformed to higher or lower voltages, which minimizes energy loss over long distances. AC powers electric motors and is the backbone of the electrical grid. Direct current is prevalent in battery technology, electronics, and in the output of photovoltaic cells. Devices that require DC often use rectifiers or converters to transform AC from the grid into usable DC power.

The Significance of RMS Values in AC

Root mean square (RMS) values are critical in AC circuits as they provide a measure of the effective or equivalent DC voltage or current that would deliver the same power to a load. RMS values are the standard for electrical measurements, as they reflect the true power of AC. The RMS current \(I_{RMS}\) and voltage \(V_{RMS}\) are derived from their peak values (\(I_{max}\) and \(V_{max}\)) using the formula \(I_{RMS} = \frac{I_{max}}{\sqrt{2}}\) and \(V_{RMS} = \frac{V_{max}}{\sqrt{2}}\), respectively. These calculations are essential for designing and analyzing AC circuits and for practical electrical measurements.

Practical Applications and Calculations of AC

Alternating current is essential for the functioning of numerous household and industrial devices. For example, an AC circuit with a peak voltage of 250V and a peak current of 5A would have RMS values of approximately 176.8V and 3.54A, respectively, calculated using the RMS formulas. Conversely, if the RMS voltage and current are known to be 150V and 2.15A, the peak values can be calculated as approximately 212.1V and 3.04A. These calculations are vital for understanding the performance and safety requirements of electrical appliances and systems.

Key Insights into Alternating Current

Alternating current (AC) is a cornerstone of modern electrical infrastructure, known for its oscillatory nature and long-distance transmission capabilities. AC is generated through the induction of an electromotive force in a rotating coil within a magnetic field, resulting in a sinusoidal current. The distinction between AC and direct current (DC) is crucial, with AC being favored for its versatility and ease of voltage transformation. RMS values play a pivotal role in equating AC to a comparable DC value for accurate measurements and practical engineering considerations, highlighting the importance of a comprehensive understanding of AC in both theoretical and applied electrical studies.

Alternating Current (AC)

Concept Map

Summary

Outline

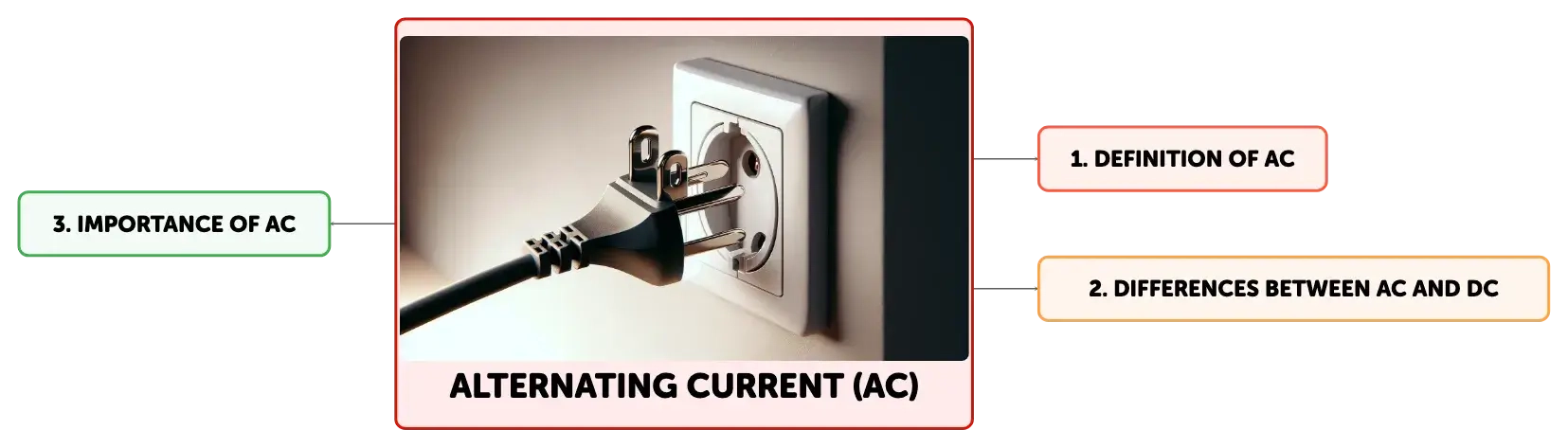

Alternating Current (AC)

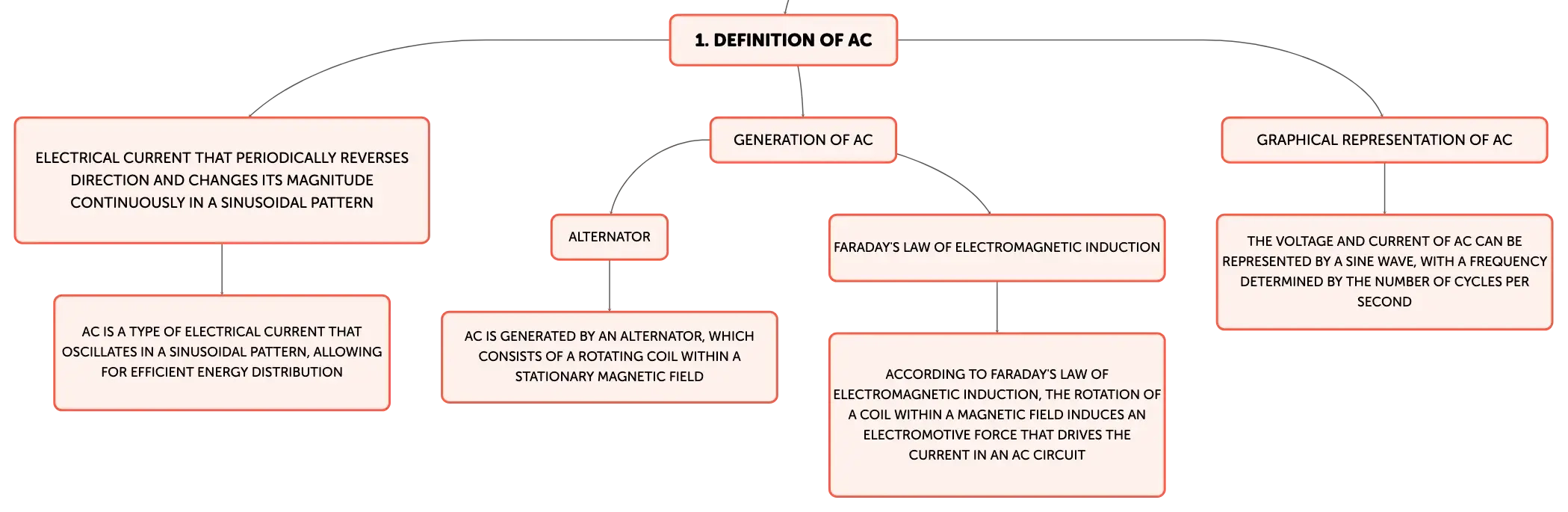

Definition of AC

Electrical current that periodically reverses direction and changes its magnitude continuously in a sinusoidal pattern

Generation of AC

Graphical Representation of AC

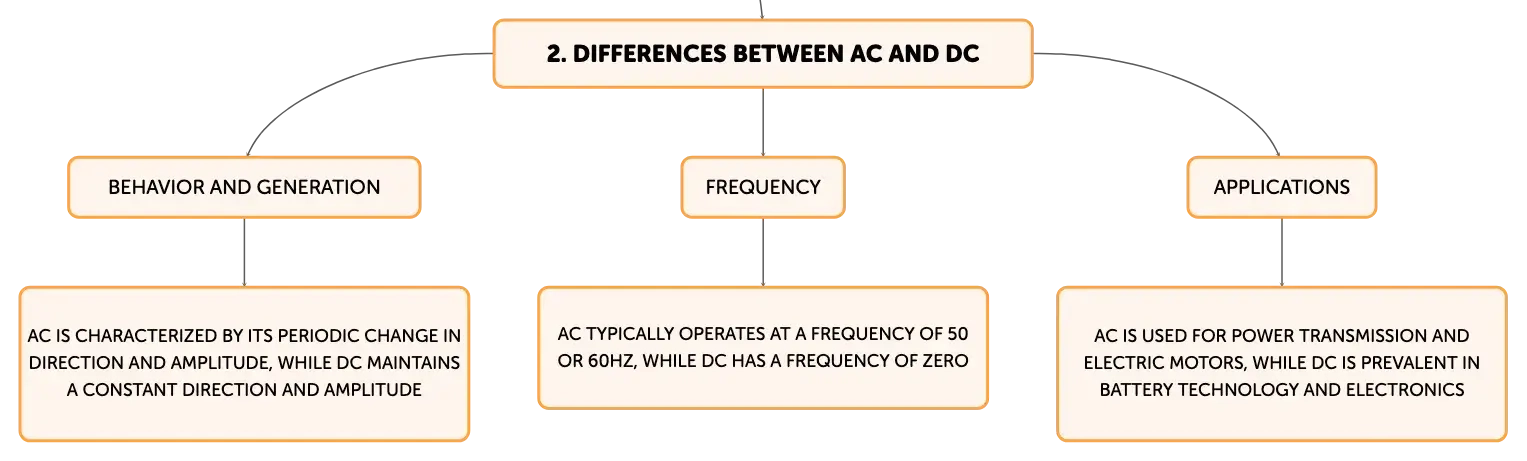

Differences between AC and DC

Behavior and Generation

Frequency

Applications

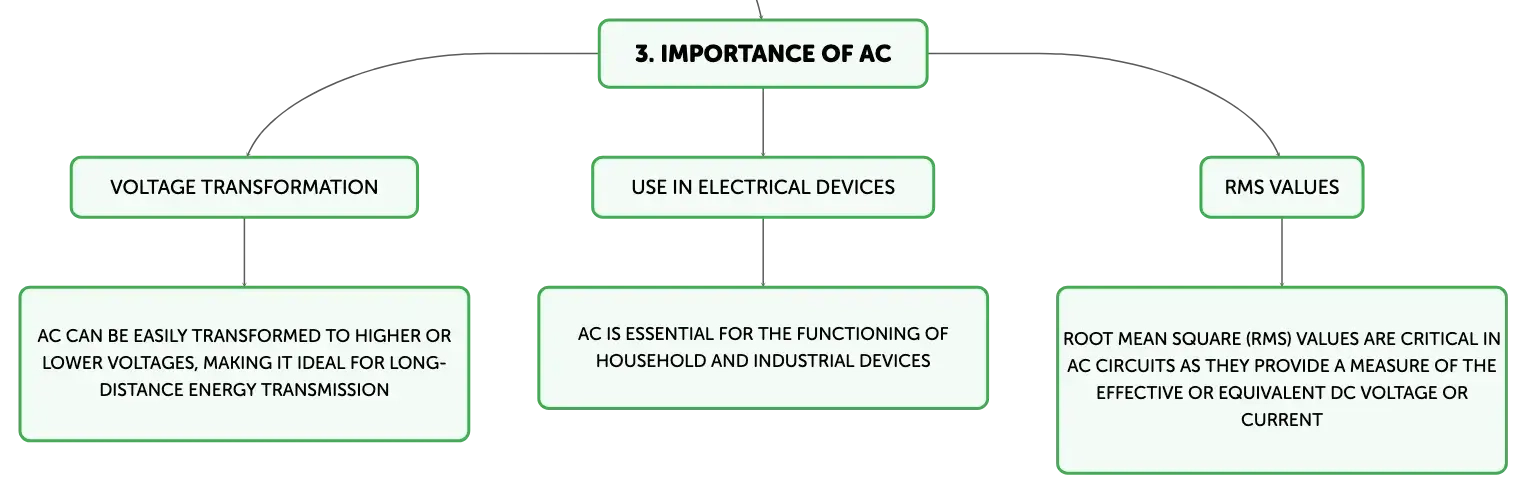

Importance of AC
