Exploring the Fetch-Decode-Execute Cycle in CPUs
The Fetch-Decode-Execute Cycle, also known as the instruction cycle, is the operational process through which a computer's central processing unit (CPU) executes instructions in a program. This cycle is a cornerstone of computational theory and is vital for students to grasp the inner workings of computer systems. The cycle includes three distinct steps: fetching the instruction from the system's memory, decoding the instruction to determine the operation to be performed, and executing the operation on the appropriate data. The cycle's efficiency is a key determinant of a computer's performance, as it affects the rate at which programs are executed.Detailed Analysis of the Fetch-Decode-Execute Cycle
Each phase of the Fetch-Decode-Execute Cycle plays a critical role in the CPU's function. The fetch phase involves the program counter, which points to the next instruction to be executed, and the memory address register, which holds the address of the instruction to be fetched. The instruction is then loaded into the instruction register. During the decode phase, the control unit of the CPU interprets the instruction and prepares the necessary operations. Finally, in the execute phase, the CPU performs the instruction using the arithmetic logic unit (ALU) for calculations or by altering control signals to other parts of the system. This cycle repeats continuously, allowing the CPU to process a stream of instructions rapidly.Influence of the Fetch-Decode-Execute Cycle on Computing Performance
The Fetch-Decode-Execute Cycle's frequency is a primary indicator of a CPU's performance. The cycle is synchronized with the CPU's clock speed, with each phase ideally completing in one clock cycle. A higher clock speed allows for more cycles per second, leading to quicker instruction processing and enhanced system efficiency. However, various factors can introduce delays, such as cache misses, pipeline stalls, and branch mispredictions, which can disrupt the smooth progression of the cycle and degrade performance. Understanding these factors is essential for optimizing computer operation and designing efficient CPUs.Mitigating Bottlenecks in the Fetch-Decode-Execute Cycle
Addressing bottlenecks in the Fetch-Decode-Execute Cycle is crucial for maximizing CPU performance. Enhancements in memory technology, such as the use of cache memory, can alleviate slow fetch times by providing faster access to frequently used instructions. Simplifying the instruction set architecture (ISA) can reduce the complexity of the decode phase, leading to quicker translation of instructions. Execution speed can be improved by employing techniques such as pipelining, which allows multiple instructions to be processed simultaneously, and by using multicore processors to handle parallel tasks. By systematically identifying and resolving these bottlenecks, the cycle's efficiency can be significantly enhanced.Real-World Applications of the Fetch-Decode-Execute Cycle
The Fetch-Decode-Execute Cycle is not merely a theoretical construct; it is the foundation of all computational tasks. For example, when a user runs a program that adds two numbers, the CPU employs this cycle to process each instruction involved in the task. The CPU fetches the instruction to load the numbers into registers, decodes it to understand that an addition operation is required, and then executes the operation, storing the result in a register or memory location. This cycle is the basis for executing all types of software, from simple utilities to complex operating systems, demonstrating its practical significance in computing.Essential Insights into the Fetch-Decode-Execute Cycle
To conclude, the Fetch-Decode-Execute Cycle is an essential process that underpins the functionality of computer processors. It is imperative for students to understand this cycle, which encompasses the fetch, decode, and execute stages, to fully appreciate how computers process instructions and perform tasks. Recognizing the importance of each phase and the potential for bottlenecks is key to diagnosing performance issues and enhancing CPU efficiency. By optimizing the cycle, computers can achieve faster processing speeds and improved overall performance, which is fundamental in the ever-evolving field of computer science.
Show More

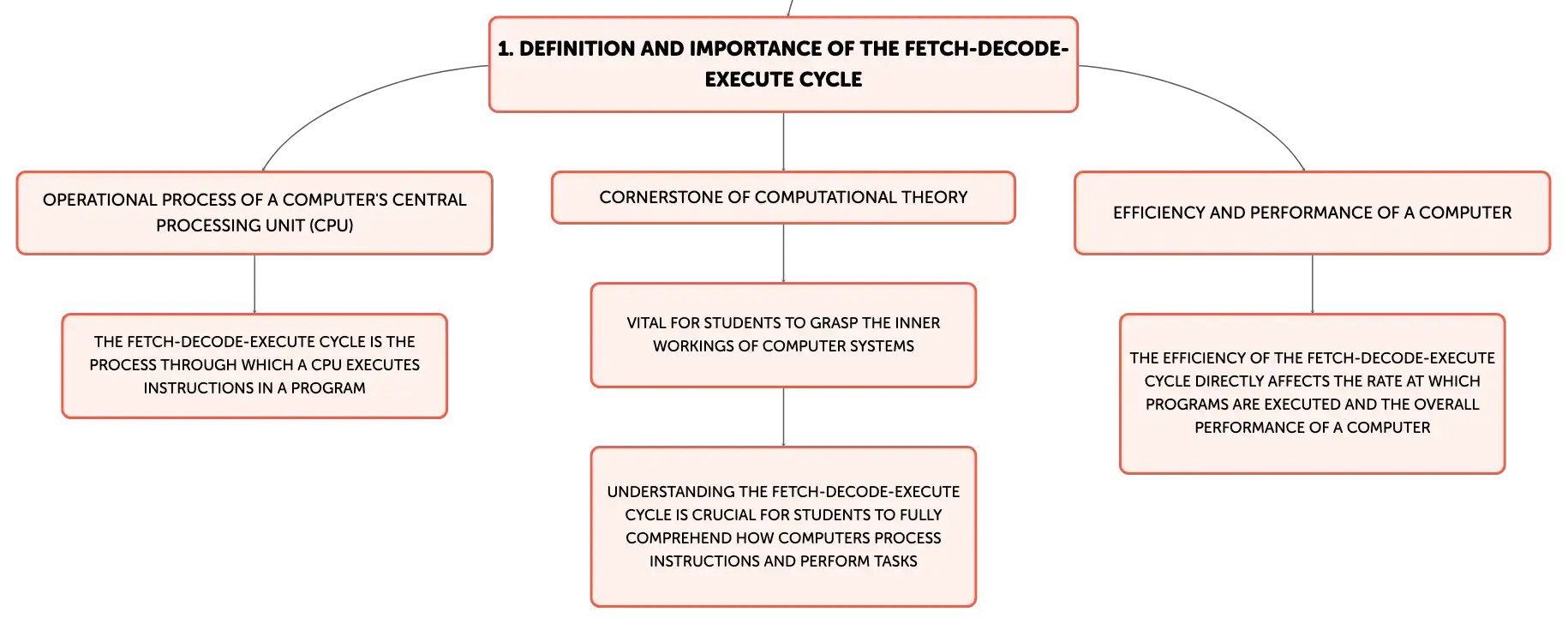

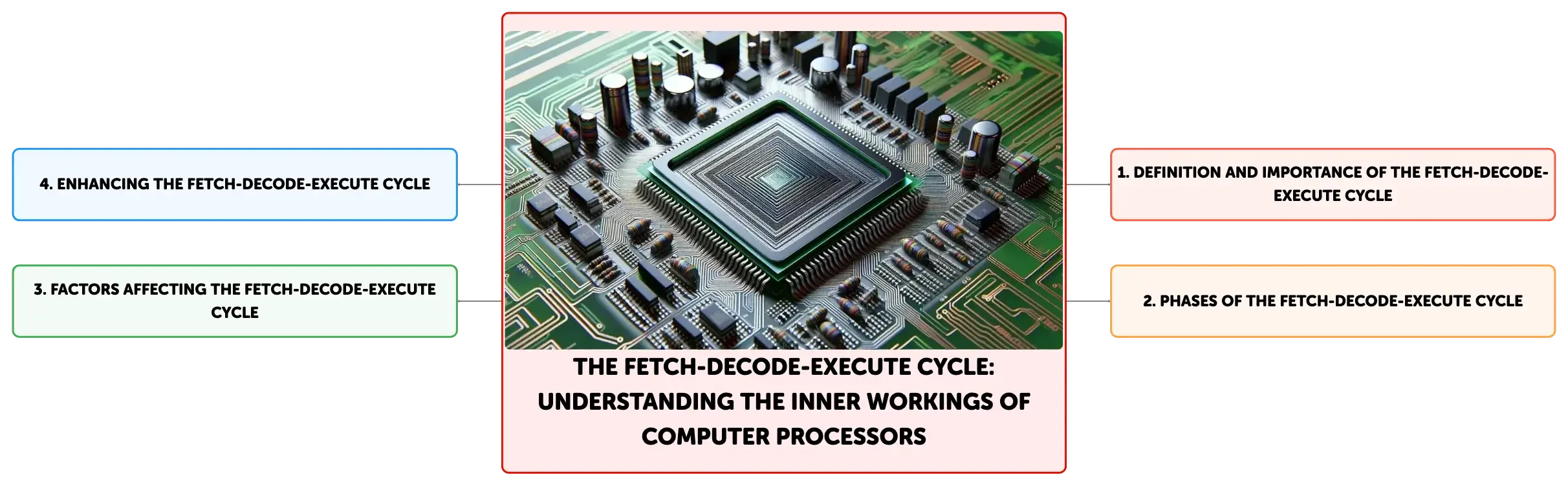

Definition and Importance of the Fetch-Decode-Execute Cycle
Operational process of a computer's central processing unit (CPU)
The Fetch-Decode-Execute Cycle is the process through which a CPU executes instructions in a program
Cornerstone of computational theory
Vital for students to grasp the inner workings of computer systems
Understanding the Fetch-Decode-Execute Cycle is crucial for students to fully comprehend how computers process instructions and perform tasks
Efficiency and performance of a computer
The efficiency of the Fetch-Decode-Execute Cycle directly affects the rate at which programs are executed and the overall performance of a computer

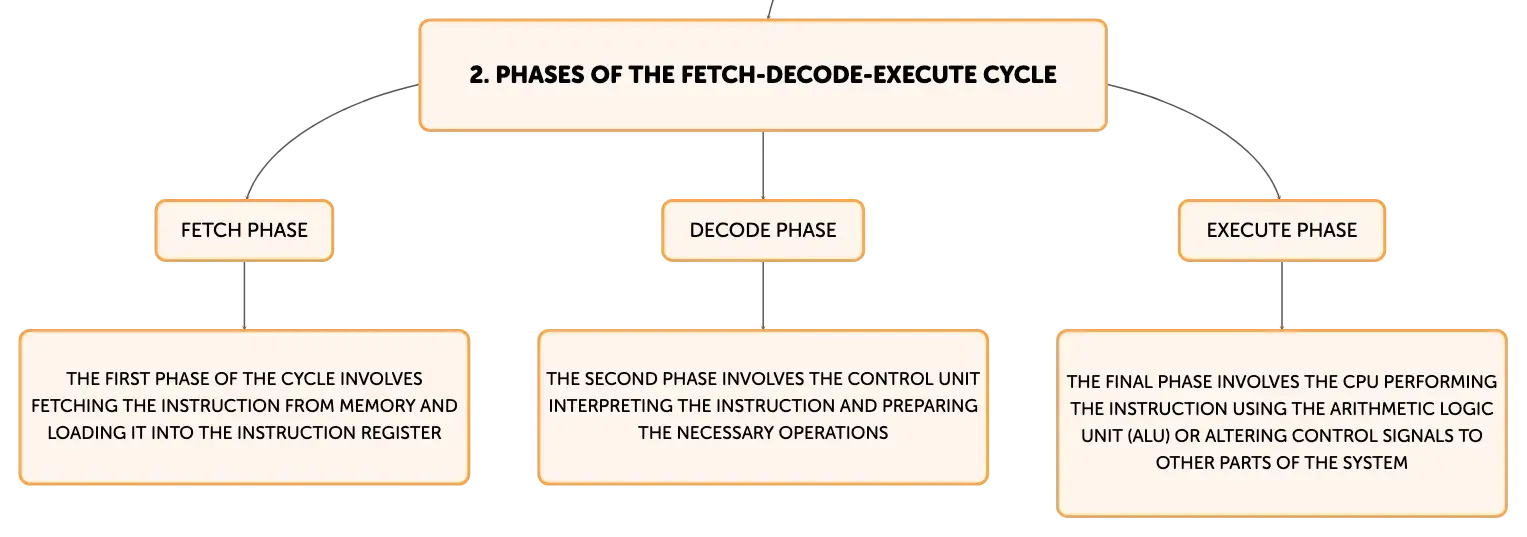

Phases of the Fetch-Decode-Execute Cycle
Fetch phase
The first phase of the cycle involves fetching the instruction from memory and loading it into the instruction register
Decode phase
The second phase involves the control unit interpreting the instruction and preparing the necessary operations
Execute phase
The final phase involves the CPU performing the instruction using the arithmetic logic unit (ALU) or altering control signals to other parts of the system

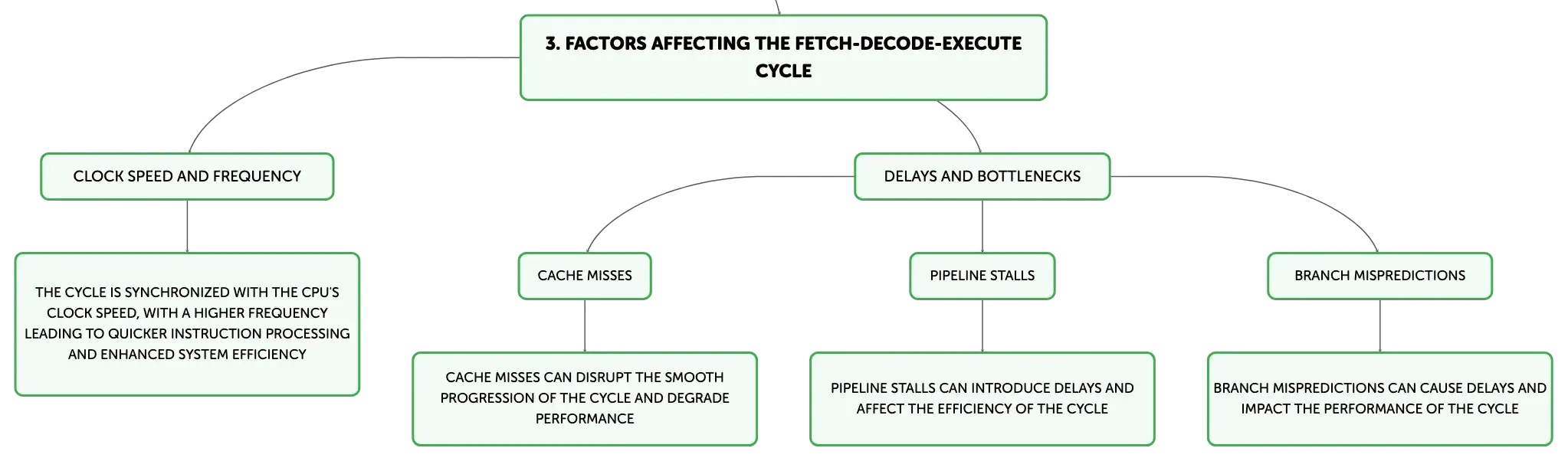

Factors Affecting the Fetch-Decode-Execute Cycle
Clock speed and frequency
The cycle is synchronized with the CPU's clock speed, with a higher frequency leading to quicker instruction processing and enhanced system efficiency
Delays and bottlenecks
Cache misses
Cache misses can disrupt the smooth progression of the cycle and degrade performance
Pipeline stalls
Pipeline stalls can introduce delays and affect the efficiency of the cycle
Branch mispredictions
Branch mispredictions can cause delays and impact the performance of the cycle

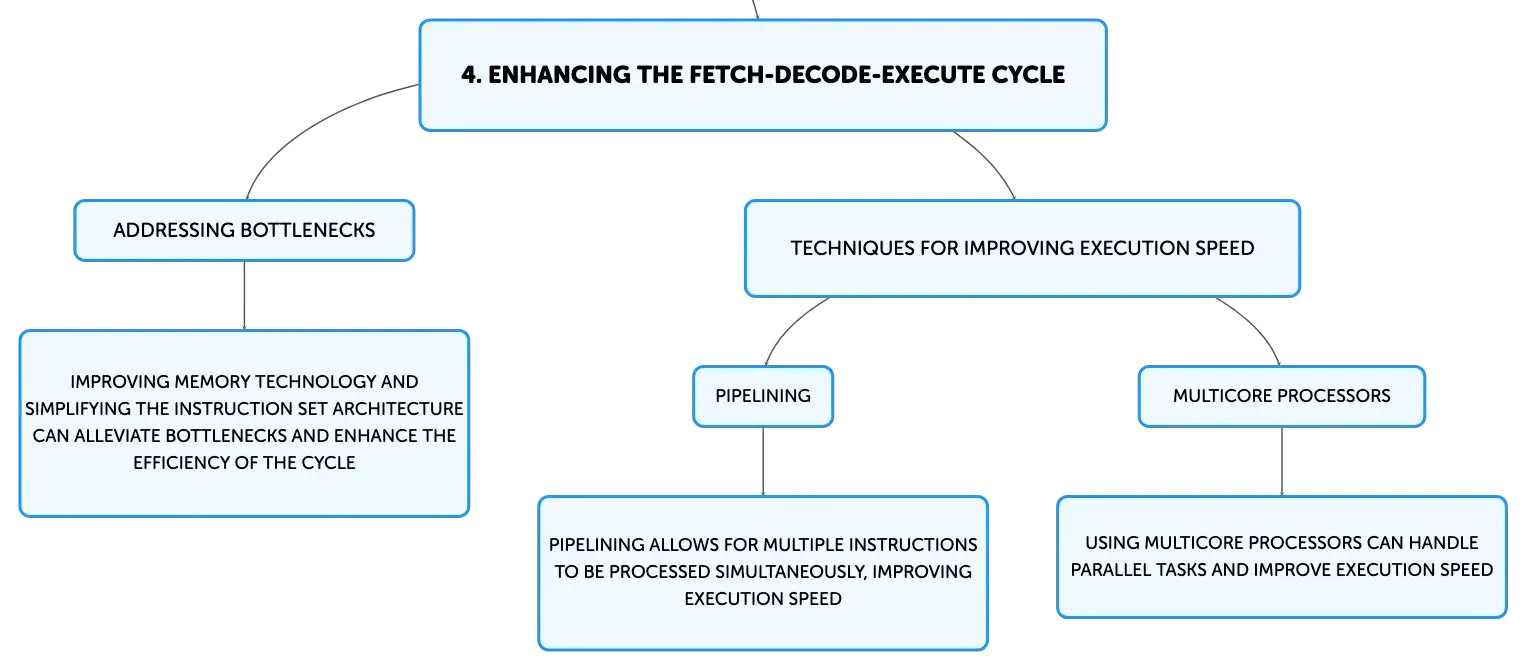

Enhancing the Fetch-Decode-Execute Cycle
Addressing bottlenecks
Improving memory technology and simplifying the instruction set architecture can alleviate bottlenecks and enhance the efficiency of the cycle
Techniques for improving execution speed
Pipelining
Pipelining allows for multiple instructions to be processed simultaneously, improving execution speed
Multicore processors
Using multicore processors can handle parallel tasks and improve execution speed
