Depth First Search (DFS)
Concept Map
Depth First Search (DFS) is a key algorithm in computer science for traversing graphs and trees. It's essential for tasks like finding connected components and solving puzzles by exploring all possible configurations. DFS uses a stack to track the traversal path and marks vertices as visited to ensure each node is processed once. Implementations in Python and Java reflect language characteristics, affecting complexity and readability.
Summary
Outline
Exploring Graphs with Depth First Search
Depth First Search (DFS) is a fundamental algorithm used in computer science for traversing and searching tree or graph data structures. It starts at a root node and explores as far as possible along each branch before backtracking. This method is recursive in nature and uses a stack implicitly in its recursive form or explicitly in its iterative form. DFS is particularly effective for tasks that require visiting every vertex of the graph, such as checking for connected components or solving puzzles that require exploring all possible configurations.Core Elements of Depth First Search
The DFS algorithm operates using a collection of vertices (nodes), edges that connect these vertices, and a stack to keep track of the traversal path. Vertices are marked as visited to prevent revisiting, and edges define the relationships or paths between vertices. The stack, which can be an explicit data structure or the call stack in the case of recursion, records the vertices that need to be visited as the algorithm dives deeper into the graph. This systematic approach ensures that all vertices are explored in a depthward motion before backtracking.Implementing DFS in Python
Python's syntax and built-in data structures facilitate the implementation of DFS. A graph can be represented using a dictionary where keys are nodes and values are lists of adjacent nodes. The DFS algorithm can be implemented using a list to emulate a stack, with the append() and pop() methods to add and remove nodes. A set is typically used to keep track of visited nodes, ensuring that each node is processed only once. Python's implementation of DFS is often clear and concise, making it a popular choice for teaching and understanding the algorithm.Implementing DFS in Java
In Java, DFS can be implemented using its robust Collections Framework. A graph is represented with a HashMap that maps each node to a list of its adjacent nodes. The DFS algorithm is commonly implemented recursively in Java, utilizing the system's call stack to keep track of the nodes. Visited nodes are tracked using a boolean array where each node corresponds to an index that indicates whether it has been visited. The recursive DFS function within a Graph class is responsible for marking nodes as visited and for iterating over all adjacent, unvisited nodes, invoking itself for each one.Comparative Analysis of DFS Implementations
The underlying principles of the DFS algorithm remain constant across different programming languages, but implementation details can vary. Python's implementation often involves explicit stack manipulation and the use of sets for tracking visited nodes, while Java's implementation typically uses recursion and boolean arrays for this purpose. These differences reflect the inherent characteristics of each language, such as Python's dynamic typing and Java's static typing. The choice of programming language for implementing DFS can affect the algorithm's time and space complexity, readability, and suitability for specific problems.The Versatility of Depth First Search in Computer Science
Depth First Search is a versatile and widely-used algorithm in computer science, fundamental to solving many types of problems. Its exhaustive approach to exploring all possible paths in a graph or tree is crucial for applications ranging from pathfinding to analyzing network connectivity. Mastery of DFS and its various implementations is essential for developing effective solutions to complex computational problems. The algorithm's importance extends beyond academic study, playing a significant role in practical applications across different domains in computer science.
Show More

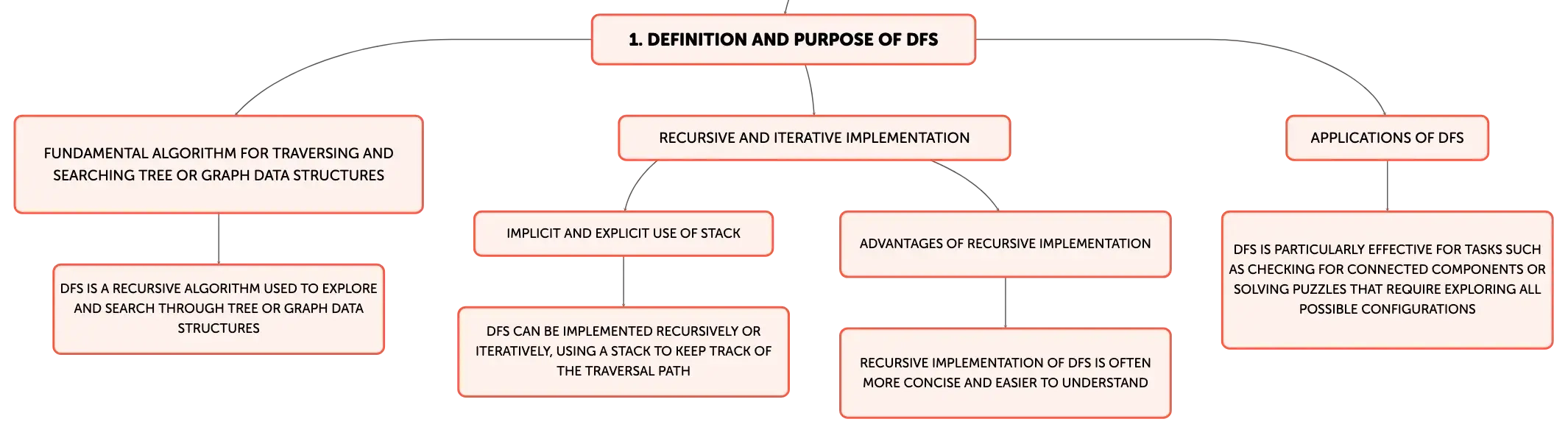

Definition and Purpose of DFS
Fundamental algorithm for traversing and searching tree or graph data structures
DFS is a recursive algorithm used to explore and search through tree or graph data structures
Recursive and Iterative Implementation
Implicit and Explicit Use of Stack
DFS can be implemented recursively or iteratively, using a stack to keep track of the traversal path
Advantages of Recursive Implementation
Recursive implementation of DFS is often more concise and easier to understand
Applications of DFS
DFS is particularly effective for tasks such as checking for connected components or solving puzzles that require exploring all possible configurations

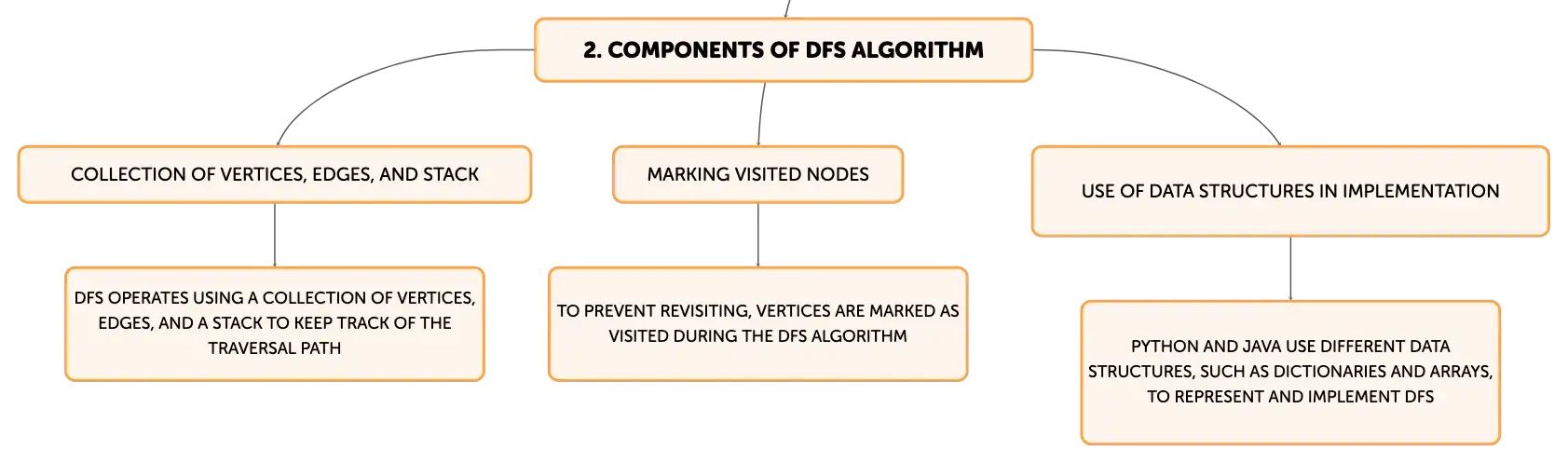

Components of DFS Algorithm
Collection of Vertices, Edges, and Stack
DFS operates using a collection of vertices, edges, and a stack to keep track of the traversal path
Marking Visited Nodes
To prevent revisiting, vertices are marked as visited during the DFS algorithm
Use of Data Structures in Implementation
Python and Java use different data structures, such as dictionaries and arrays, to represent and implement DFS

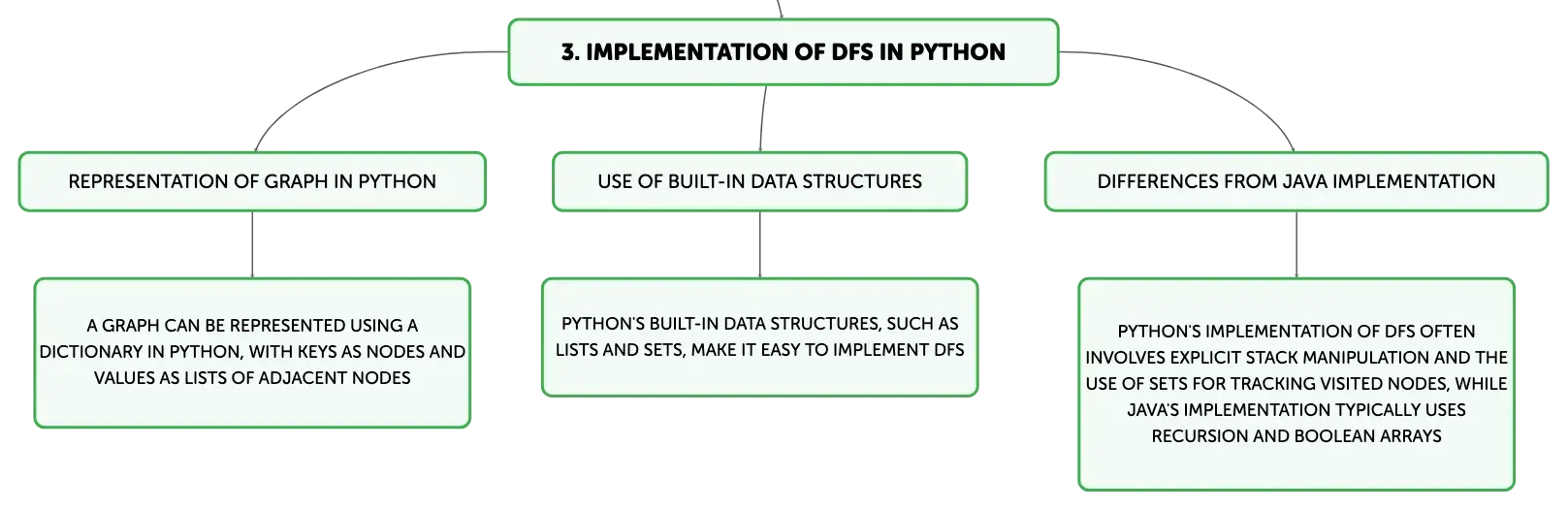

Implementation of DFS in Python
Representation of Graph in Python
A graph can be represented using a dictionary in Python, with keys as nodes and values as lists of adjacent nodes
Use of Built-in Data Structures
Python's built-in data structures, such as lists and sets, make it easy to implement DFS
Differences from Java Implementation
Python's implementation of DFS often involves explicit stack manipulation and the use of sets for tracking visited nodes, while Java's implementation typically uses recursion and boolean arrays

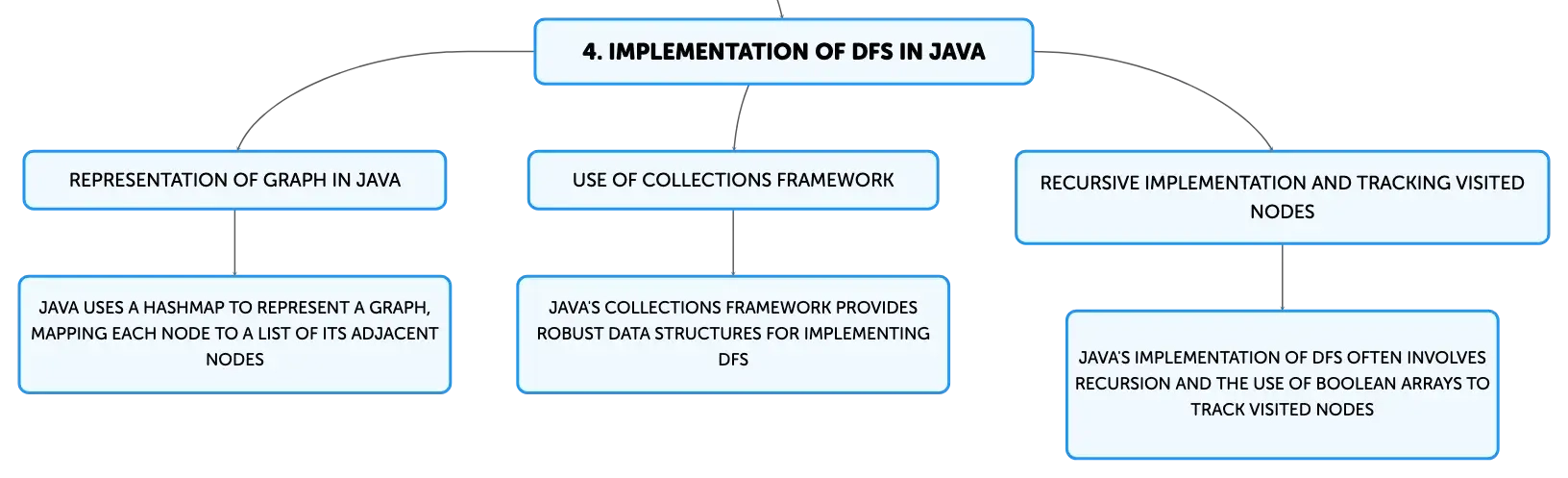

Implementation of DFS in Java
Representation of Graph in Java
Java uses a HashMap to represent a graph, mapping each node to a list of its adjacent nodes
Use of Collections Framework
Java's Collections Framework provides robust data structures for implementing DFS
Recursive Implementation and Tracking Visited Nodes
Java's implementation of DFS often involves recursion and the use of boolean arrays to track visited nodes
Depth First Search (DFS)
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
DFS Algorithm Nature
Recursive with implicit stack or iterative with explicit stack.
01
DFS Starting Point
Begins at root node, explores each branch as far as possible.
02
DFS Application Scenarios
Used for visiting every vertex, checking connected components, solving exhaustive puzzles.
