Understanding Standing Waves

Standing waves, or stationary waves, are wave patterns that appear to be still, as they do not propagate through a medium. These waves are characterized by nodes—points that remain motionless—and antinodes—points of maximum amplitude. Standing waves arise from the interference of two waves with identical frequency and amplitude, but traveling in opposite directions. When these waves meet, they can interfere constructively (in phase) to amplify the wave or destructively (out of phase) to cancel each other out, creating the pattern of nodes and antinodes. This phenomenon is commonly observed in physical systems with boundaries, such as strings and air columns.

Close-up of vibrating classical guitar strings on a wooden table, with warm brown hues and soft lighting enhancing the natural wood finish.

The Formation and Characteristics of Standing Waves

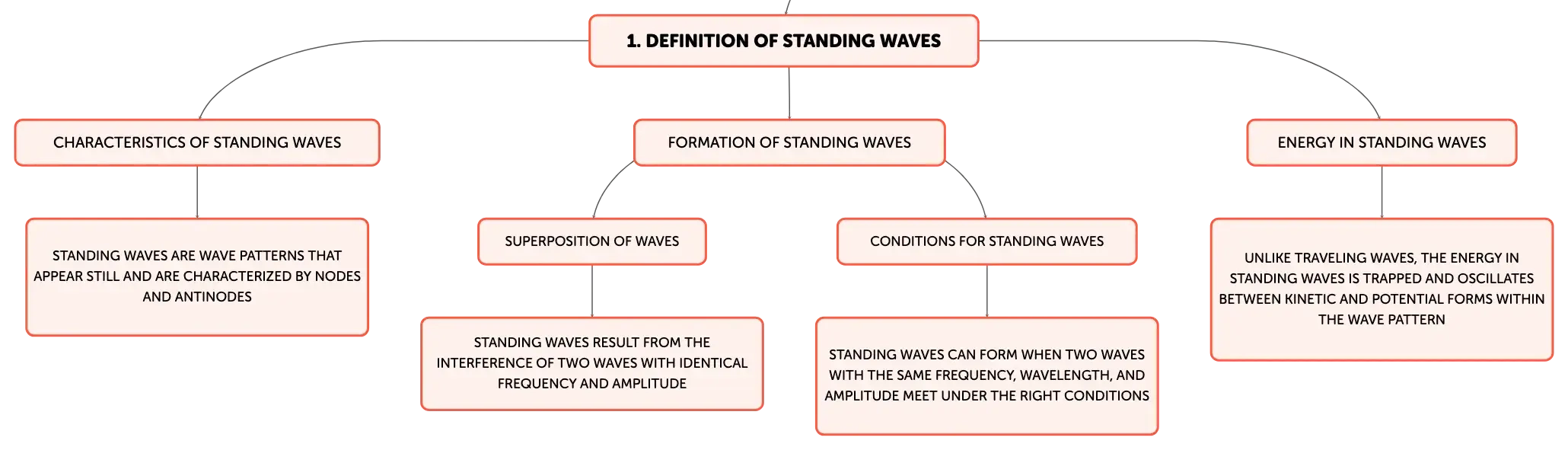

The phenomenon of standing waves results from the superposition of two waves with the same frequency and amplitude when they intersect. A standing wave can form when a traveling wave reflects off a boundary and meets an incoming wave under the right conditions. For a standing wave to occur, the waves must have the same frequency, wavelength, and amplitude. The superposition of the incident and reflected waves creates a pattern of nodes, where the displacement is always zero due to destructive interference, and antinodes, where the displacement reaches a maximum due to constructive interference. Unlike traveling waves, the energy in standing waves is trapped and oscillates between kinetic and potential forms within the wave pattern.

Period, Frequency, and Phase Difference in Standing Waves

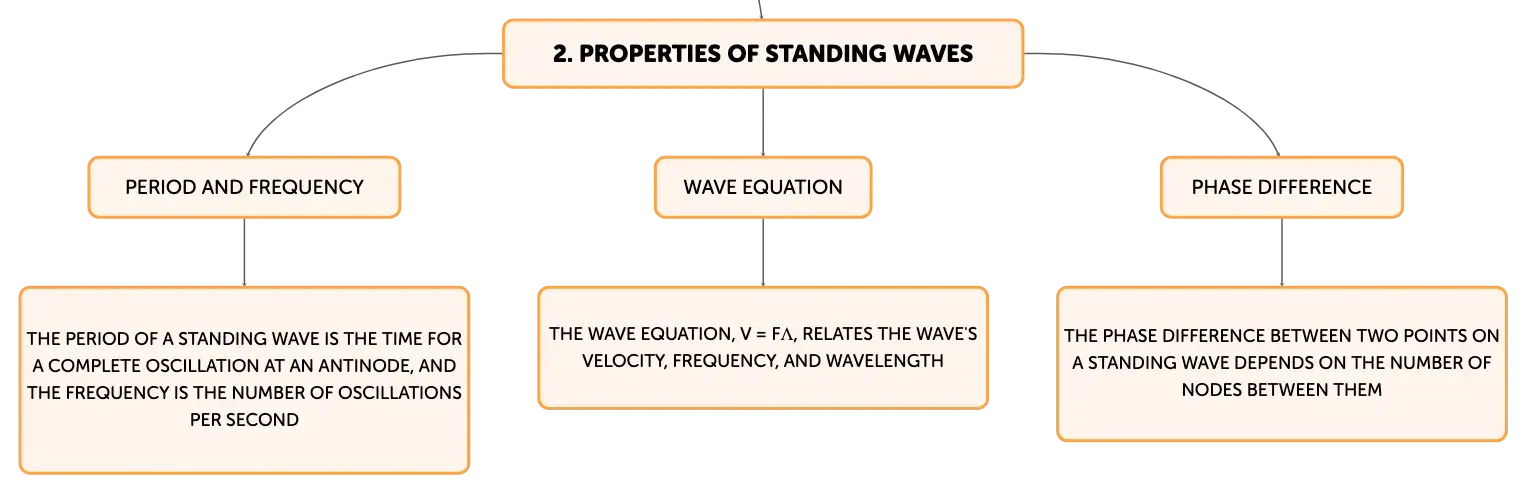

The period of a standing wave is the time required for a complete oscillation at an antinode. The frequency, which is the inverse of the period, represents the number of oscillations per second. The wave equation, v = fλ, relates the wave's velocity (v), frequency (f), and wavelength (λ). In a standing wave, the phase difference between two points depends on the number of nodes between them. Points on the wave that are separated by an even number of nodes are in phase, meaning they reach their maximum and minimum displacements simultaneously. Conversely, points separated by an odd number of nodes are out of phase and reach their maximum and minimum displacements at different times.

Mathematical Representation of Standing Waves

Standing waves can be mathematically modeled by considering the superposition of two traveling waves moving in opposite directions. The resulting equation for a standing wave in terms of position (x) and time (t) is y(x,t) = 2A sin(kx) cos(ωt), where A represents the amplitude, k is the wave number (2π/λ), and ω is the angular frequency (2πf). The amplitude of the standing wave is not constant along the wave; it is greatest at the antinodes, where it reaches 2A, and zero at the nodes, where the wave does not displace the medium.

Practical Examples of Standing Waves

Standing waves have practical applications in various fields, particularly in acoustics and the design of musical instruments. For example, when sound waves create standing waves in an air column, such as in a pipe or a wind instrument, the nodes and antinodes correspond to areas of minimum and maximum air pressure, respectively. This principle is fundamental to the functioning of instruments like flutes and organs. Similarly, standing waves on strings, which are fixed at both ends, are the basis for the sounds produced by stringed instruments like guitars and violins. The tension in the string and the boundary conditions at the fixed ends allow for the formation of standing wave patterns, which determine the pitch of the notes played.

Harmonics and Their Role in Standing Waves

Harmonics, or overtones, are essential for understanding the behavior of standing waves, particularly in the context of music. These are the multiple standing wave patterns that can form on a string with fixed ends or within an air column, each with its own distinct frequency. The fundamental frequency, or first harmonic, has the simplest pattern with one antinode between two nodes. Higher harmonics have more complex patterns with additional nodes and antinodes, and their frequencies are integer multiples of the fundamental frequency. The frequencies of the harmonics are determined by the length of the vibrating medium and the speed of the wave within it, which is crucial for tuning musical instruments to produce desired pitches.

Comparing Standing and Traveling Waves

Standing waves and traveling waves are distinct phenomena with some shared characteristics. Standing waves are defined by their stationary nodes and oscillating antinodes, with energy oscillating in place rather than being transferred through the medium. In contrast, traveling waves carry energy from one location to another, with all points on the wave oscillating in a continuous forward motion. In standing waves, points are either completely in phase or completely out of phase, depending on their separation by an even or odd number of nodes. Traveling waves, however, exhibit continuous phase shifts along the wave. Understanding the differences between these two types of waves is crucial for studying wave dynamics in various physical systems.
