Transient Analysis

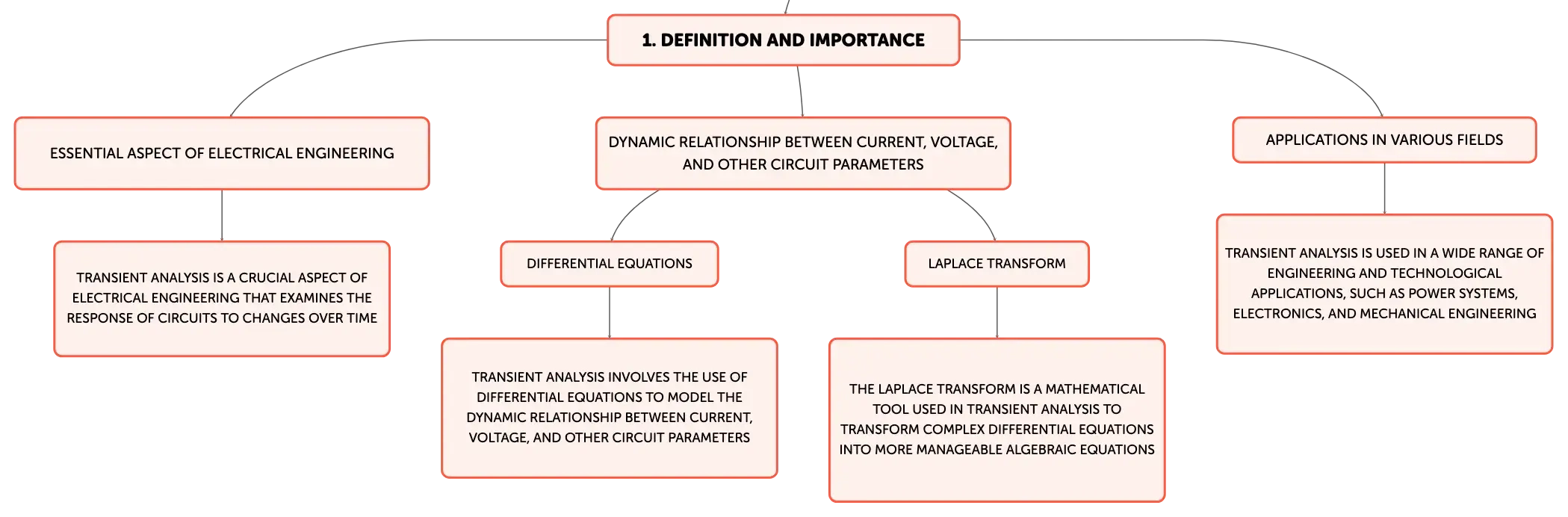

Fundamentals of Transient Analysis in Electrical Systems

Transient Analysis is an essential aspect of electrical engineering that examines the response of electrical circuits to changes over time, such as switching operations or fault conditions. This analysis is critical for understanding the behavior of circuits during the transition from one steady state to another. It involves the application of differential equations that model the dynamic relationship between current, voltage, and other circuit parameters. By solving these equations, engineers can predict the circuit's behavior during the transient phase, which is the period immediately following a disturbance until a new steady state is reached.

Core Principles and Mathematical Techniques in Transient Analysis

A comprehensive understanding of Transient Analysis requires familiarity with key concepts such as the transient state, steady state, and the mathematical tools used to analyze these conditions. The transient state refers to the interval following a sudden change in a system, during which the system's response evolves over time until it settles into a steady state. Mathematical methods, particularly the Laplace Transform, are pivotal in Transient Analysis for transforming complex differential equations from the time domain into the s-domain (complex frequency domain), where they become algebraic equations that are more tractable. This transformation facilitates the determination of the system's transient and steady-state responses.

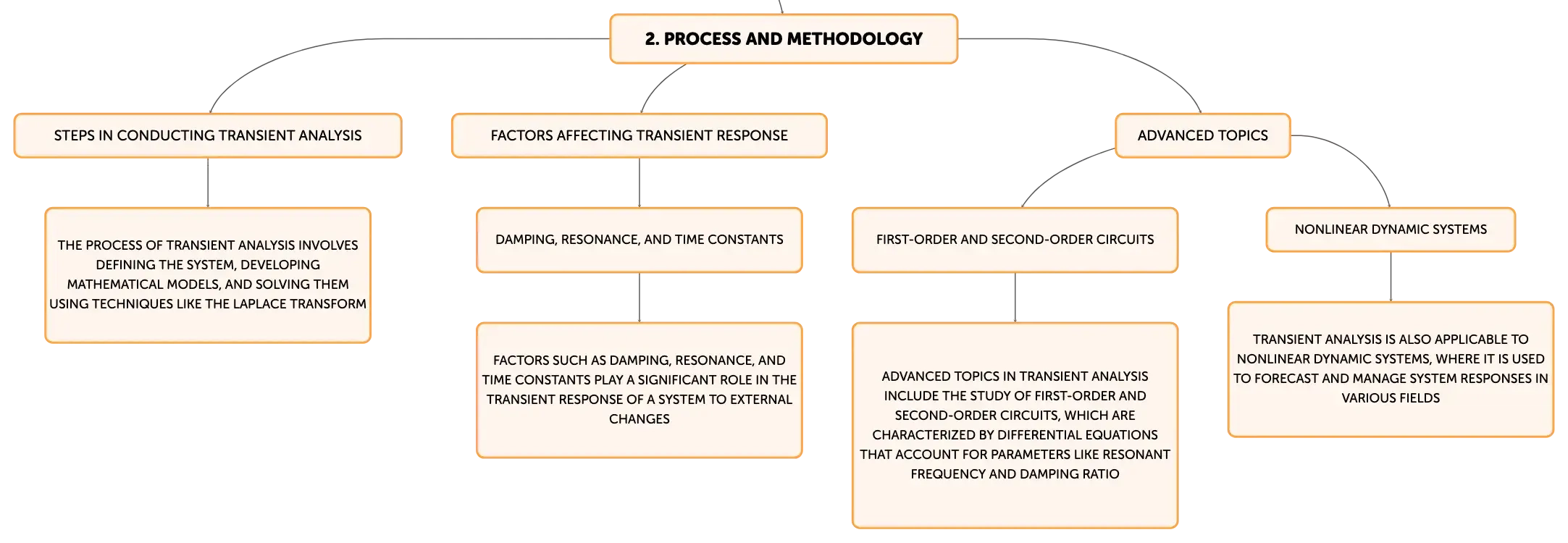

Methodology for Performing Transient Analysis

The process of conducting Transient Analysis involves several methodical steps. Initially, the system under study must be clearly defined, along with the relevant parameters. Mathematical models, typically differential equations, are then developed to characterize the system's dynamic response. These models are solved using techniques such as the Laplace Transform to elucidate the system's behavior over time. Factors such as damping, resonance, and time constants are integral to the analysis, as they significantly affect the transient response of the system to external changes.

Applications of Transient Analysis in Engineering and Technology

Transient Analysis is employed across a spectrum of engineering and technological applications. In electrical power systems, it is used to predict and mitigate the effects of disturbances, thereby enhancing grid reliability and preventing outages. Electronic systems benefit from transient analysis in the design and optimization of components like semiconductors and amplifiers, where the transient response is critical to overall performance. Mechanical engineers apply Transient Analysis to evaluate the response of structures to dynamic loads or abrupt operational changes. These diverse applications underscore the role of Transient Analysis in the design, safety, and efficiency of complex systems.

Advanced Transient Analysis for Complex Circuits and Systems

Advanced topics in Transient Analysis involve the study of more complex circuits, such as first-order (RC, RL) and second-order (RLC) circuits. These circuits are characterized by differential equations that account for additional parameters like resonant frequency and damping ratio, which are crucial for a detailed understanding of the system's transient behavior. Furthermore, Transient Analysis is applicable to nonlinear dynamic systems, where it is instrumental in forecasting and managing system responses in a variety of fields, from fluid dynamics to ecological modeling.

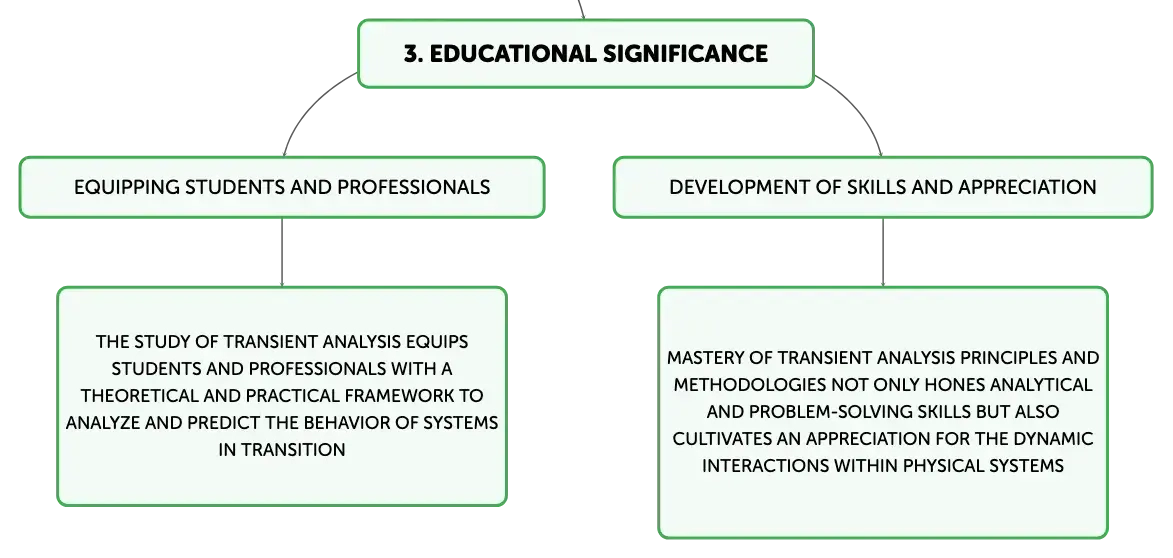

Educational Significance of Transient Analysis

As an educational subject, Transient Analysis equips students and professionals with a robust theoretical and practical framework to analyze and predict the behavior of systems in transition. Mastery of Transient Analysis principles and methodologies enables individuals to address complex engineering challenges across diverse disciplines. The study of Transient Analysis not only hones analytical and problem-solving skills but also cultivates an appreciation for the dynamic interactions within physical systems.
