The Heating Curve of Water

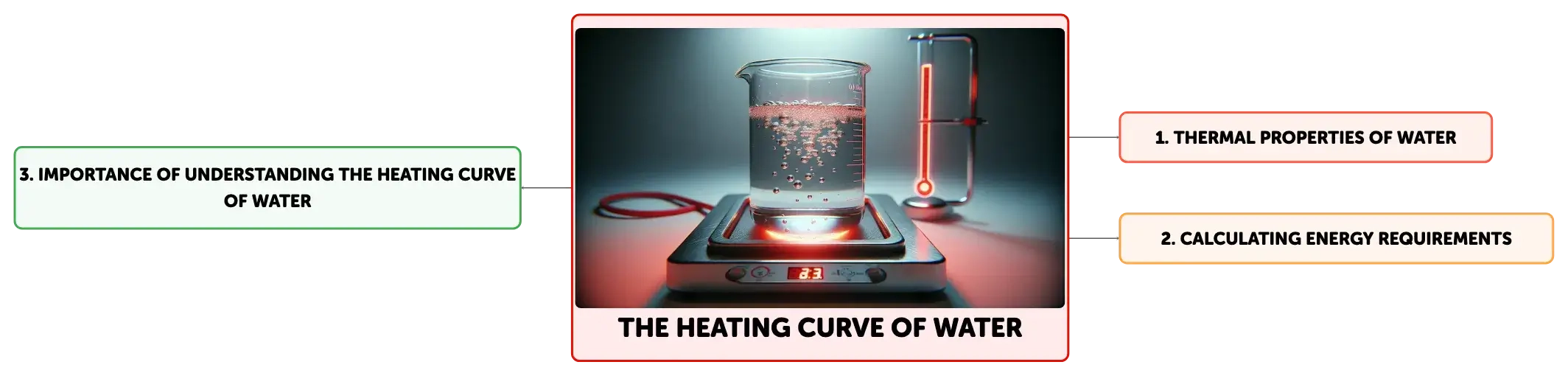

Exploring the Heating Curve of Water

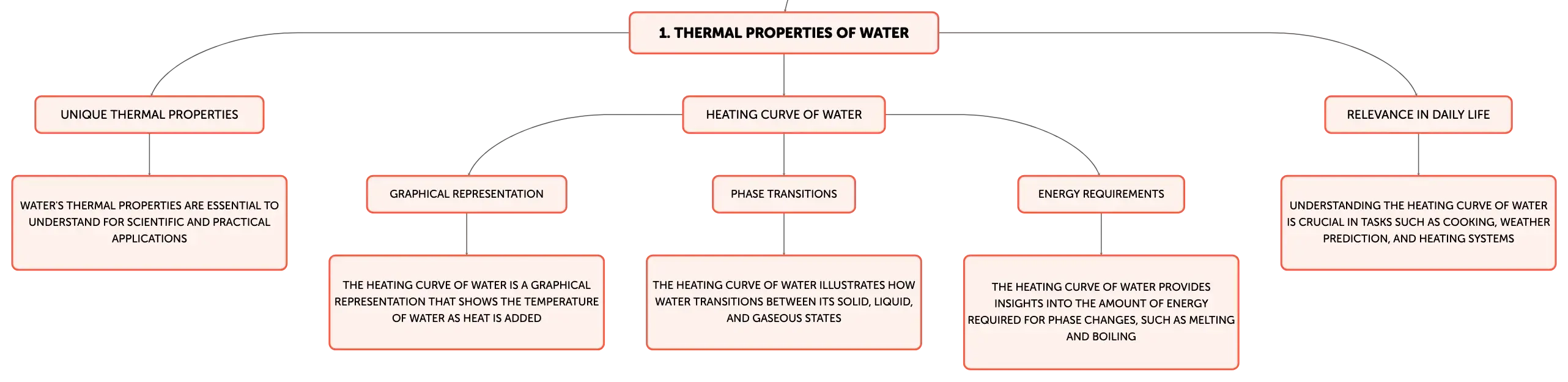

Water, a vital substance for life, exhibits unique thermal properties that are essential to understand for both scientific and practical applications. The heating curve of water is a graphical representation that depicts the temperature of water as heat is steadily added. This curve is pivotal in illustrating how water transitions between its solid, liquid, and gaseous states. It also provides insights into the amount of energy required for these phase changes, which is particularly relevant for tasks such as cooking, where the boiling point of water is a critical factor.

Constructing the Heating Curve of Water

The heating curve of water is plotted by measuring the temperature response to incremental additions of heat. The x-axis represents the heat energy input, and the y-axis denotes the temperature of the water. Starting with ice at a temperature below 0°C, the temperature rises linearly until it reaches the melting point. At this juncture, the temperature plateaus as heat is absorbed to break the molecular bonds within the ice, a process depicted by a horizontal line on the graph. This plateau occurs again at the boiling point of 100°C, where water converts to steam. The graph resumes its upward slope once all the water has vaporized, indicating a rise in the temperature of the steam with further heat addition.

Phase Transitions and Energy on the Heating Curve

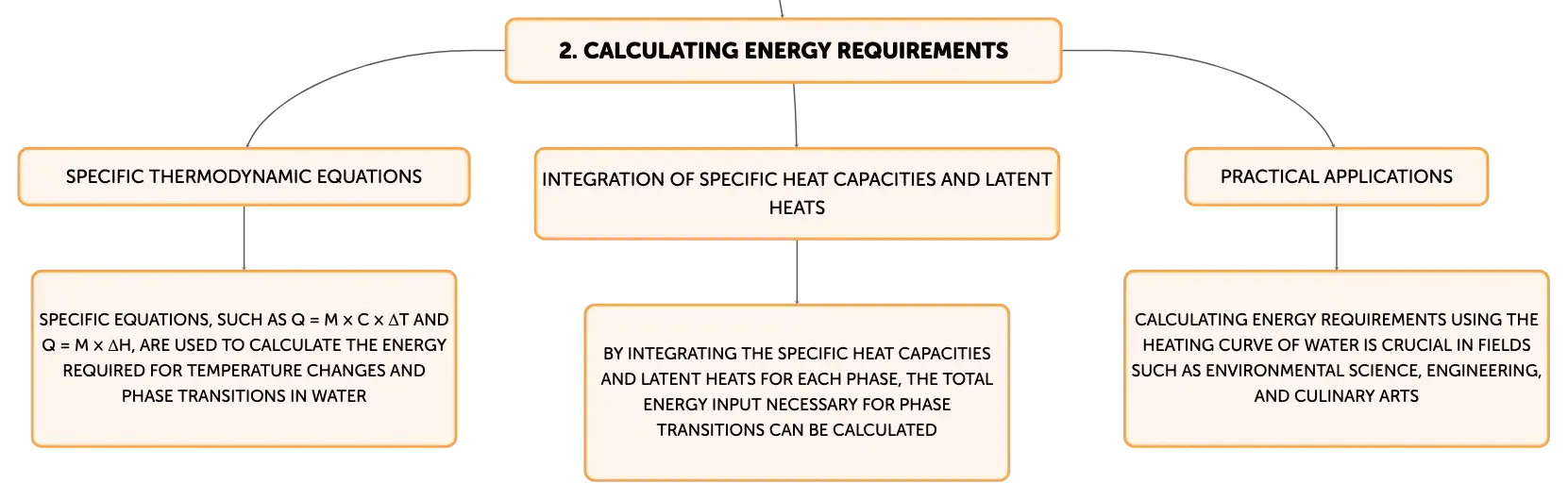

The heating curve of water not only reflects temperature changes but also delineates the phase transitions at the melting and boiling points, where the temperature remains constant. The energy required for these transitions is calculated using specific thermodynamic equations. For temperature changes within a single phase, the equation Q = m × C × ΔT is used, where Q is the heat energy, m is the mass, C is the specific heat capacity, and ΔT is the temperature change. The specific heat capacity is unique to each phase. For phase transitions, the equation Q = m × ΔH is employed, where m is the mass and ΔH is the latent heat of fusion or vaporization, depending on the transition in question.

Practical Applications of the Heating Curve

The heating curve of water is instrumental in calculating the energy required to heat a given mass of water through various phase changes. By integrating the specific heat capacities for ice, water, and steam, and the latent heats for melting and boiling, one can compute the total energy input necessary for each phase transition. This involves a step-by-step calculation that accounts for the energy to raise the temperature within each phase and the energy for the phase changes themselves. Such calculations are crucial in fields that require precise thermal control of water, including environmental science, engineering, and culinary arts.

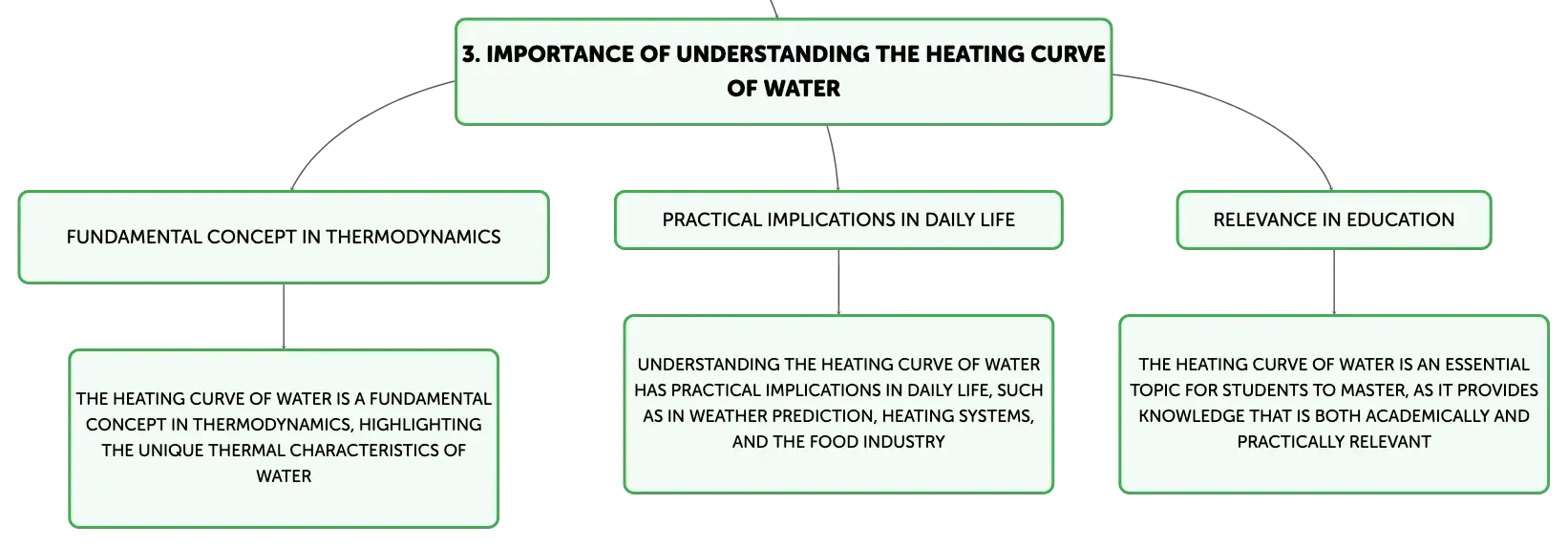

Significance of the Heating Curve of Water

The heating curve of water is a fundamental concept in thermodynamics, highlighting the extraordinary thermal characteristics of water. It underscores the importance of heat absorption during phase changes at constant temperatures and the different energy requirements for heating or cooling water in its various states. This knowledge is not only critical for academic purposes but also has practical implications in daily life, such as in weather prediction, heating systems, and the food industry, making it an essential topic for students to master.
