Karnaugh Maps: A Tool for Simplifying Boolean Expressions
Concept Map
Karnaugh Maps, invented by Maurice Karnaugh in 1953, are essential tools for simplifying Boolean algebra expressions in digital circuit design. They provide a visual method to reduce logical redundancies, optimize algorithms, and enhance system efficiency. By grouping adjacent '1's in a K-map, complex Boolean functions are minimized, aiding in algorithm design and error detection across various fields.
Summary
Outline
Introduction to Karnaugh Maps
Karnaugh Maps, or K-maps, are a graphical tool used in computer science to simplify Boolean algebra expressions. Invented by Maurice Karnaugh in 1953, K-maps facilitate the reduction of Boolean functions, which is essential in the design of digital circuits. These maps are preferred for their straightforward approach compared to algebraic methods, making them an effective tool for logic circuit design, software engineering, and digital system optimization. Karnaugh Maps help in identifying and eliminating logical redundancies, thereby streamlining the design process.Structure and Functionality of Karnaugh Maps
The configuration of a Karnaugh Map is determined by the number of variables it represents. A 3-variable K-map consists of eight cells arranged in a 2x4 matrix, corresponding to the possible combinations of variable states. A 4-variable K-map uses a 4x4 matrix, with cells ordered in Gray Code to facilitate the identification of adjacent terms that differ by only one bit, which is crucial for simplification. For five or more variables, K-maps become more complex, often involving multiple 4x4 matrices. Each K-map is specifically tailored to manage the intricacies of simplifying Boolean expressions with a given number of variables.Simplification Process with Karnaugh Maps
Simplifying Boolean expressions using Karnaugh Maps involves identifying the number of variables to choose the appropriate map size. After labeling the K-map with Gray Code for rows and columns, the Boolean expression is translated into a sum-of-products form. The map is then populated with '1's and '0's based on the expression's minterms. The primary goal is to group adjacent '1's into the largest possible power-of-two groupings, which directly translates to a simpler expression. The resulting groups are then expressed in their simplest form and combined using logical OR operations to yield the minimized Boolean function.Converting Truth Tables to Karnaugh Maps
Truth Tables, which enumerate all possible logical outcomes of a Boolean expression, can be directly translated into Karnaugh Maps. By creating a K-map with an equivalent number of variables as the Truth Table, one can fill in the '1's and '0's from the table's output column. Grouping the '1's in the K-map visually simplifies the expression, with each group representing a simplified term. These terms are then logically ORed to construct the final, minimized Boolean function. This conversion is particularly beneficial for simplifying the logic of digital systems and enhancing their operational efficiency.Karnaugh Maps in Algorithm Design and Optimization
Karnaugh Maps play a crucial role in algorithm design and optimization, particularly in scenarios requiring complex decision-making. By reducing Boolean expressions to their simplest forms, K-maps improve algorithmic efficiency and robustness, leading to a reduction in computational overhead and easier troubleshooting. Their application extends to various fields, including control systems, machine learning, and game development, where they help clarify intricate logical relationships. For instance, in spam detection algorithms, Karnaugh Maps can streamline the logic that determines whether an email is spam, enhancing the algorithm's effectiveness.Advanced Applications and Advantages of Karnaugh Maps
Karnaugh Maps are not only fundamental in simplifying Boolean expressions but also play a significant role in advanced algorithm development. They offer a visual representation of logical conditions, providing a comprehensive view of all possible scenarios, which is invaluable for algorithm refinement. This visualization aids in reducing algorithm complexity, resulting in faster execution and more straightforward debugging. Karnaugh Maps are also instrumental in error detection within algorithms, facilitating the debugging process and ensuring the integrity of the algorithm's logical structure.
Show More

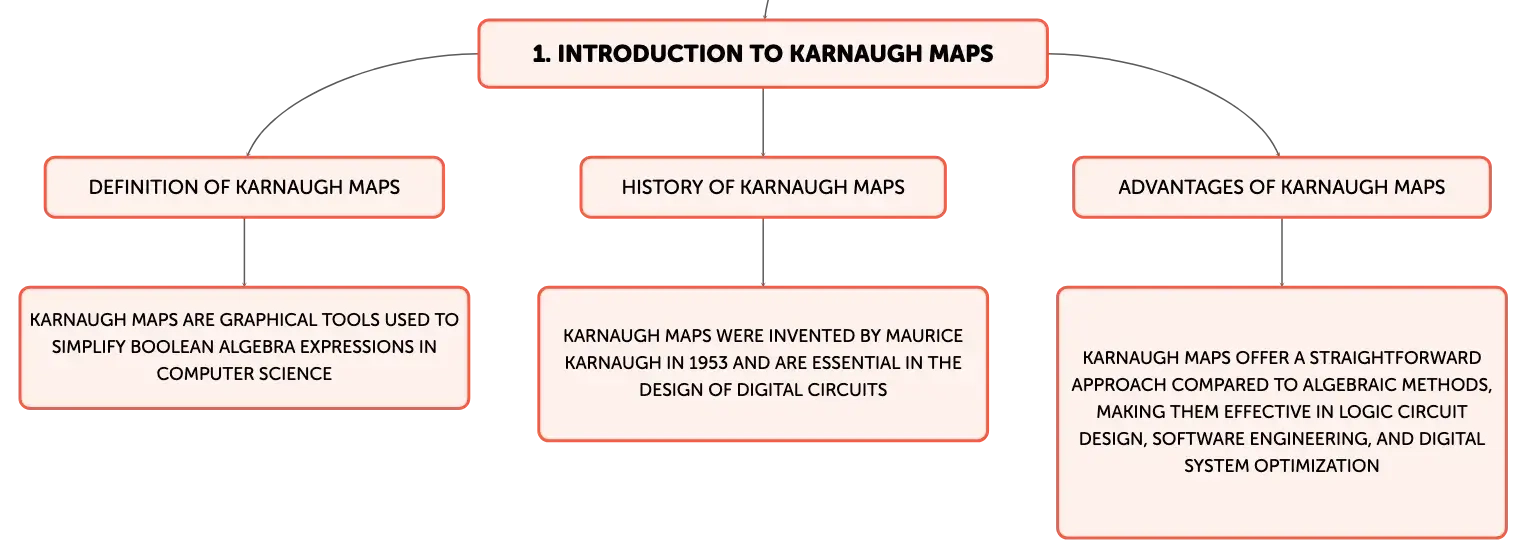

Introduction to Karnaugh Maps
Definition of Karnaugh Maps
Karnaugh Maps are graphical tools used to simplify Boolean algebra expressions in computer science
History of Karnaugh Maps
Karnaugh Maps were invented by Maurice Karnaugh in 1953 and are essential in the design of digital circuits
Advantages of Karnaugh Maps
Karnaugh Maps offer a straightforward approach compared to algebraic methods, making them effective in logic circuit design, software engineering, and digital system optimization

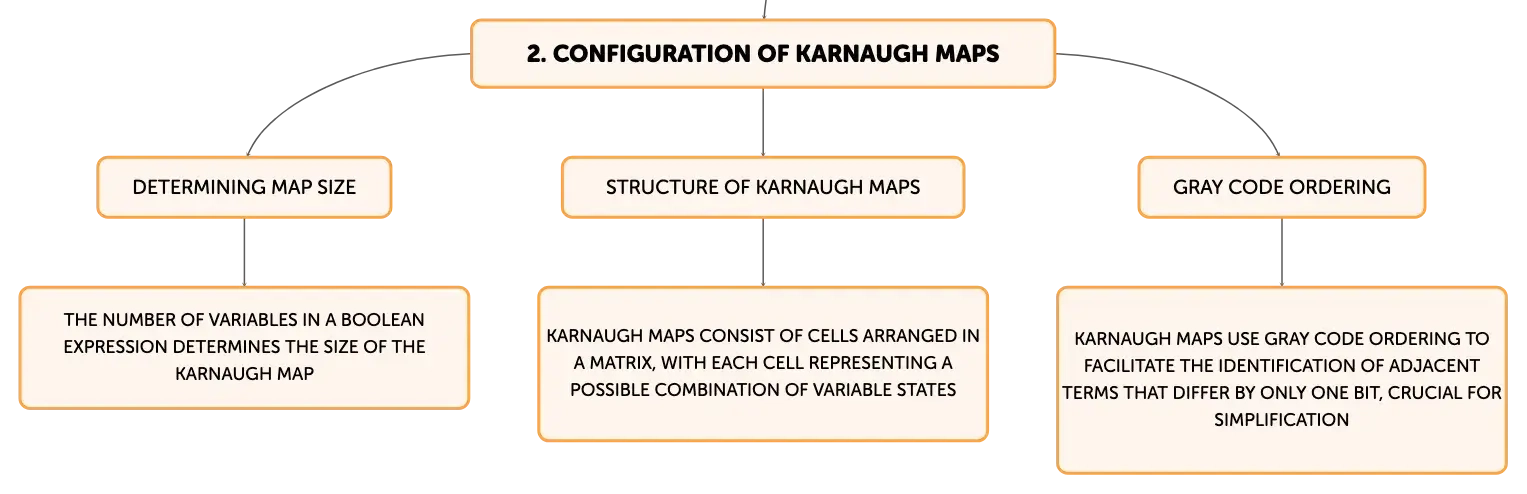

Configuration of Karnaugh Maps
Determining Map Size
The number of variables in a Boolean expression determines the size of the Karnaugh Map
Structure of Karnaugh Maps
Karnaugh Maps consist of cells arranged in a matrix, with each cell representing a possible combination of variable states
Gray Code Ordering
Karnaugh Maps use Gray Code ordering to facilitate the identification of adjacent terms that differ by only one bit, crucial for simplification
Simplifying Boolean Expressions with Karnaugh Maps
Translating Expressions into Sum-of-Products Form
Boolean expressions are translated into a sum-of-products form before being simplified using Karnaugh Maps
Grouping Adjacent Terms
The primary goal of using Karnaugh Maps is to group adjacent terms into the largest possible power-of-two groupings, resulting in a simpler expression
Combining Groups with Logical Operations
The resulting groups from a Karnaugh Map are combined using logical OR operations to yield the minimized Boolean function

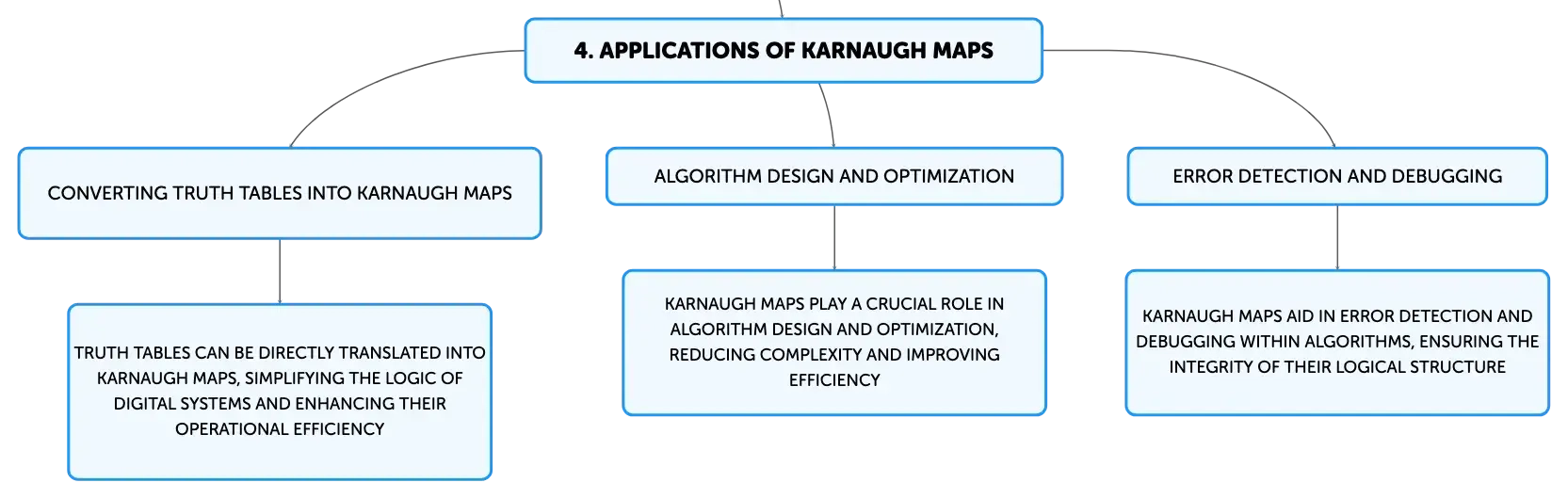

Applications of Karnaugh Maps
Converting Truth Tables into Karnaugh Maps
Truth Tables can be directly translated into Karnaugh Maps, simplifying the logic of digital systems and enhancing their operational efficiency
Algorithm Design and Optimization
Karnaugh Maps play a crucial role in algorithm design and optimization, reducing complexity and improving efficiency
Error Detection and Debugging
Karnaugh Maps aid in error detection and debugging within algorithms, ensuring the integrity of their logical structure
