Wi-Fi Evolution and Standards
Exploring the evolution of Wi-Fi standards, this overview highlights the progression from 802.11a to Wi-Fi 6, emphasizing their impact on network speed, range, and reliability. It delves into the significance of ensuring device compatibility and network performance, the transition from WEP to WPA3 for enhanced security, and the influence of frequency bands on network efficiency.
See more1
5
Exploring Wi-Fi Standards in Computer Networking

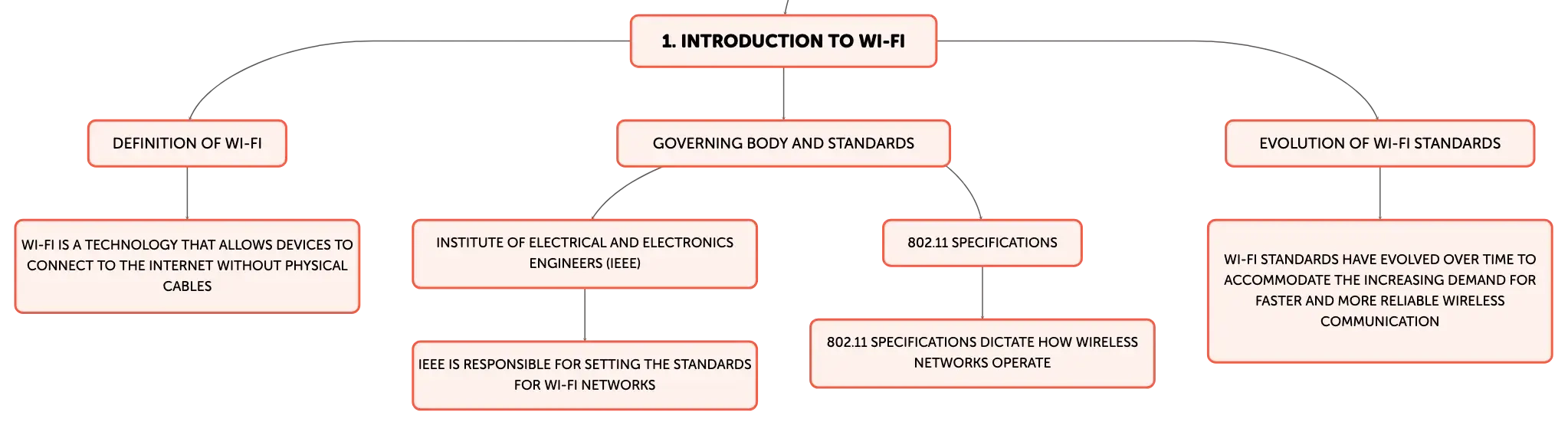

Wi-Fi, an abbreviation for Wireless Fidelity, is an essential technology that allows various devices, including smartphones, laptops, and smart appliances, to connect to the internet without physical cables. Governed by the Institute of Electrical and Electronics Engineers (IEEE) under the 802.11 specifications, Wi-Fi standards dictate how wireless networks operate. These standards have evolved over time to accommodate the increasing demand for faster and more reliable wireless communication. The progression includes 802.11a, 802.11b, 802.11g, 802.11n (Wi-Fi 4), 802.11ac (Wi-Fi 5), and the latest 802.11ax (Wi-Fi 6), each offering improvements in speed, range, and network capacity. The 802.11n standard, for example, significantly enhanced network speeds and signal reliability, leading to its widespread adoption.The Advancement of Wi-Fi Standards and Their Significance

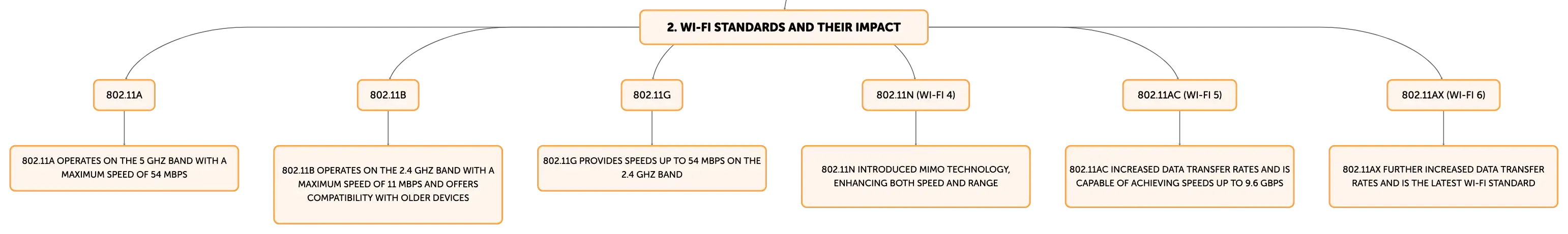

The evolution of Wi-Fi standards has been instrumental in shaping wireless communication. Initial standards such as 802.11a, 802.11b, and 802.11g each brought distinct benefits and limitations. The 802.11a standard operated on the less congested 5 GHz band with a maximum speed of 54 Mbps, but it had a shorter range. Conversely, 802.11b worked on the 2.4 GHz band with a longer range but slower speeds of up to 11 Mbps and offered compatibility with older devices. The subsequent 802.11g standard merged the benefits of its predecessors by providing speeds up to 54 Mbps on the 2.4 GHz band. Later, 802.11n introduced Multiple Input Multiple Output (MIMO) technology, enhancing both speed and range. The more recent 802.11ac (Wi-Fi 5) and 802.11ax (Wi-Fi 6) standards have further increased data transfer rates, with Wi-Fi 6 capable of achieving speeds up to 9.6 Gbps under optimal conditions.Ensuring Device Compatibility and Network Performance with Wi-Fi Standards

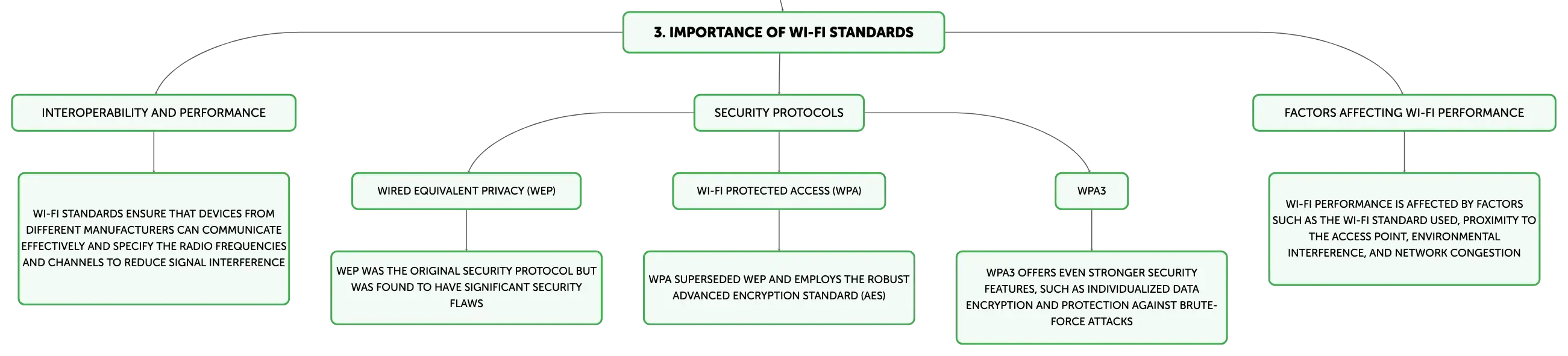

Wi-Fi standards play a pivotal role in the interoperability and performance of wireless networks. They ensure that devices from different manufacturers can communicate effectively, using the same protocols to connect and exchange data. These standards specify the radio frequencies and channels that Wi-Fi networks can use, which helps to reduce signal interference and overlap. They also define the methods for data encoding and transmission, as well as set the upper limits for data transfer rates, which have increased with each new iteration of the standard to support higher bandwidth applications.Wi-Fi Security Protocols: Evolution from WEP to WPA3
Security within Wi-Fi networks is addressed through a series of protocols designed to encrypt data, authenticate users, and control access. The original security protocol, Wired Equivalent Privacy (WEP), was found to have significant security flaws and was superseded by Wi-Fi Protected Access (WPA). WPA2, which became the standard for secure wireless networks, employs the robust Advanced Encryption Standard (AES) and is mandatory for all new devices to be Wi-Fi certified. The latest protocol, WPA3, offers even stronger security features, such as individualized data encryption and protection against brute-force attacks, and is gradually being adopted across devices.Influences on Wi-Fi Network Speeds and Performance
A Wi-Fi network's performance is affected by various factors, including the Wi-Fi standard utilized, the proximity to the access point, environmental interference, the volume of connected devices, and the network's security configuration. Newer Wi-Fi standards generally support higher data rates, but physical barriers and electronic interference can diminish signal strength and throughput. Network congestion also plays a role, as the available bandwidth is shared among all devices, potentially reducing the speed for each user.Enhancing Wi-Fi Network Speed and Coverage

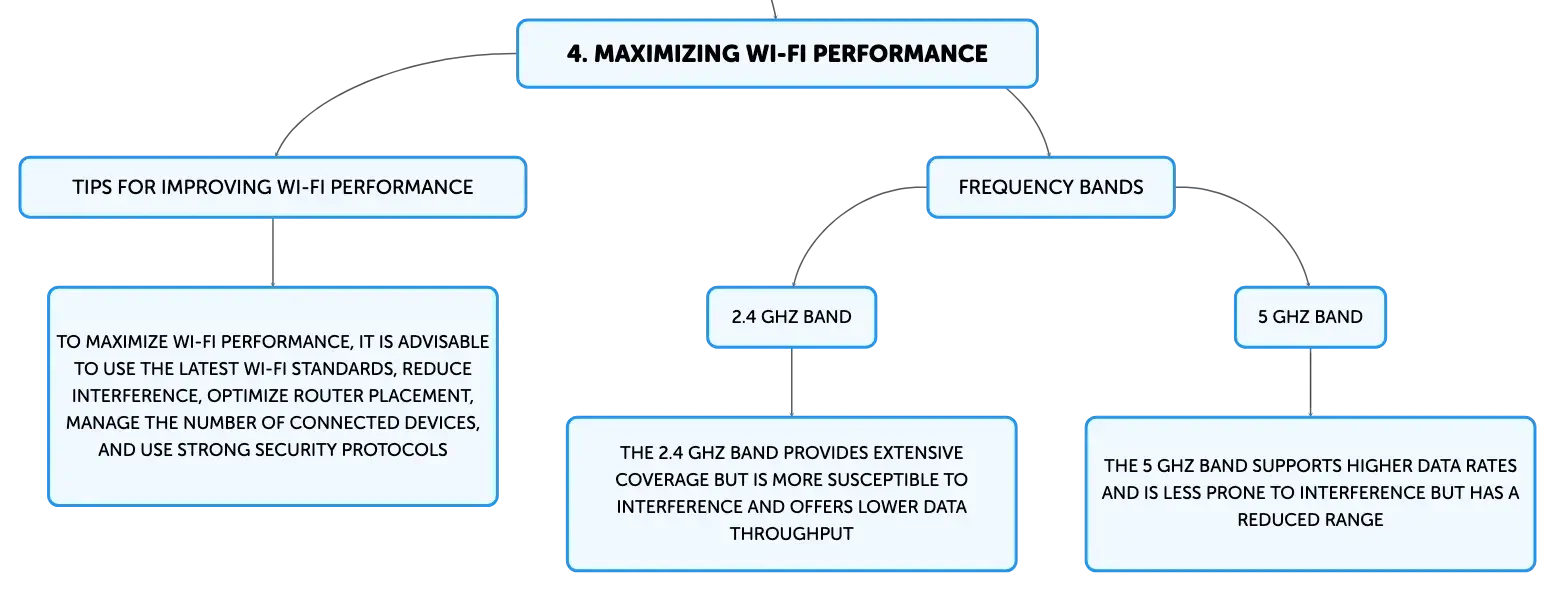

To maximize the speed and coverage of Wi-Fi networks, it is advisable to employ the latest Wi-Fi standards, reduce interference, optimize router placement, manage the number of devices connected, and use strong security protocols. Upgrading to a router that supports Wi-Fi 5 or Wi-Fi 6, strategically positioning the router to avoid obstructions, and configuring the most secure encryption settings can significantly improve network performance, offering users a more reliable and faster internet experience.Wi-Fi Frequency Bands: 2.4 GHz versus 5 GHz
Wi-Fi networks primarily operate on two frequency bands: 2.4 GHz and 5 GHz. The 2.4 GHz band provides extensive coverage and better penetration through walls but is more susceptible to interference and offers lower data throughput. The 5 GHz band, on the other hand, supports higher data rates and is less prone to interference but has a reduced range. The selection between these bands should be based on the specific requirements of the network, with 2.4 GHz being more suitable for wider coverage needs and 5 GHz preferred for bandwidth-intensive tasks within a smaller area. Understanding the properties of these frequency bands is essential for optimizing network performance and meeting the connectivity needs of users.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Meaning of Wi-Fi abbreviation
Click to check the answer
2
Devices using Wi-Fi technology
Click to check the answer
3
Evolution of Wi-Fi standards
Click to check the answer
4
The initial Wi-Fi standard, ______, operated on the 5 GHz band and could reach speeds of up to 54 Mbps.
Click to check the answer
5
The ______ standard combined the advantages of earlier Wi-Fi standards, offering 54 Mbps on the 2.4 GHz band.
Click to check the answer
6
Wi-Fi 6, also known as ______, significantly enhances wireless speeds, achieving up to 9.6 Gbps.
Click to check the answer
7
Role of Wi-Fi standards in reducing signal interference
Click to check the answer
8
Wi-Fi standards impact on data encoding and transmission
Click to check the answer
9
Evolution of Wi-Fi standards and data transfer rates
Click to check the answer
10
______ is the current standard for secure wireless networks, utilizing ______ for encryption and is required for Wi-Fi certification.
Click to check the answer
11
Impact of Wi-Fi Standard on Performance
Click to check the answer
12
Effect of Physical and Electronic Interference
Click to check the answer
13
Consequences of Network Congestion
Click to check the answer
14
For optimal Wi-Fi performance, it's recommended to upgrade to a router supporting ______ or ______, and to position it strategically.
Click to check the answer
15
2.4 GHz Wi-Fi: Coverage vs. Interference
Click to check the answer
16
5 GHz Wi-Fi: Data Rate vs. Range
Click to check the answer
17
Choosing Wi-Fi Band: Coverage or Bandwidth?
Click to check the answer
