The JavaScript Event Loop: Managing Asynchronous Tasks

Concept Map

The JavaScript Event Loop is a fundamental concept for managing asynchronous operations in a single-threaded context. It ensures tasks are executed concurrently without overloading the system, akin to a restaurant kitchen. The Event Loop cycles through tasks, utilizing the Call Stack and Callback Queue to process functions in an orderly fashion. Understanding its phases, from handling `setTimeout` to synchronizing the Call Stack, is crucial for non-blocking code development.

Summary

Outline

The JavaScript Event Loop: Managing Asynchronous Tasks

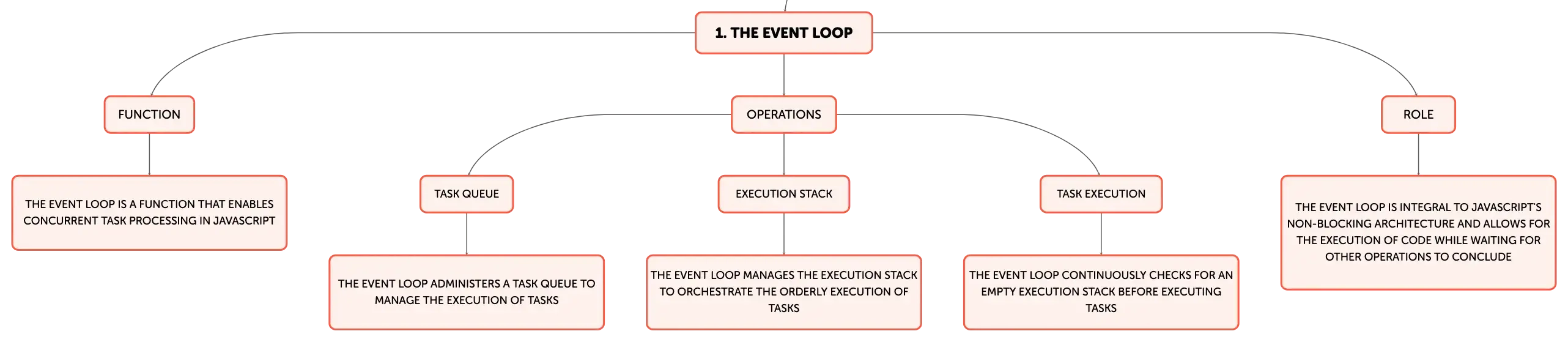

The Event Loop

Function

The Event Loop is a function that enables concurrent task processing in JavaScript

Operations

Task Queue

The Event Loop administers a task queue to manage the execution of tasks

Execution Stack

The Event Loop manages the execution stack to orchestrate the orderly execution of tasks

Task Execution

The Event Loop continuously checks for an empty execution stack before executing tasks

Role

The Event Loop is integral to JavaScript's non-blocking architecture and allows for the execution of code while waiting for other operations to conclude

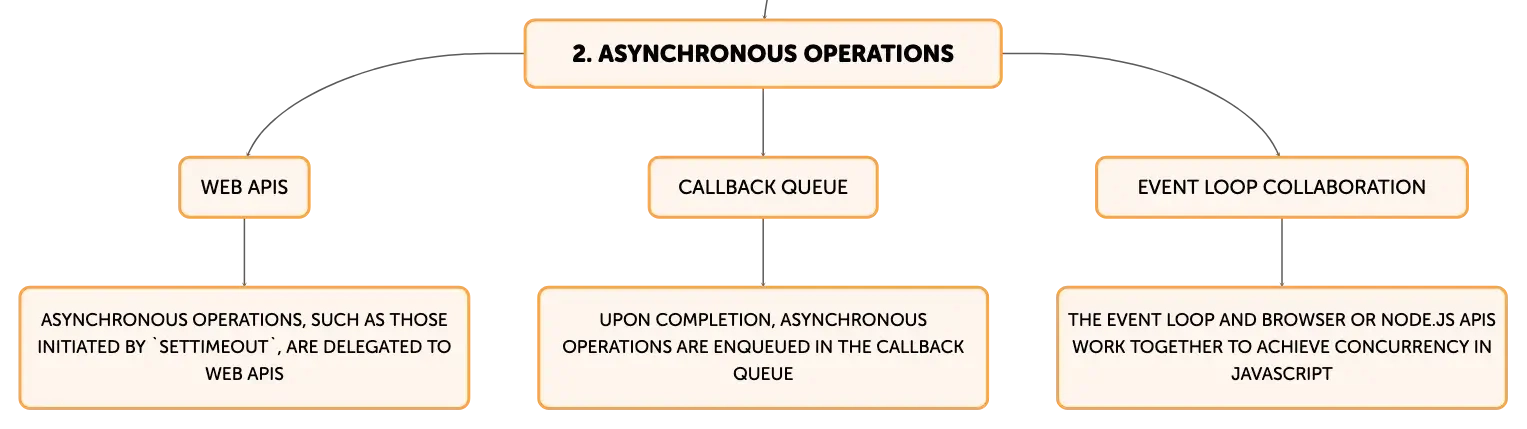

Asynchronous Operations

Web APIs

Asynchronous operations, such as those initiated by `setTimeout`, are delegated to Web APIs

Callback Queue

Upon completion, asynchronous operations are enqueued in the Callback Queue

Event Loop Collaboration

The Event Loop and browser or Node.js APIs work together to achieve concurrency in JavaScript

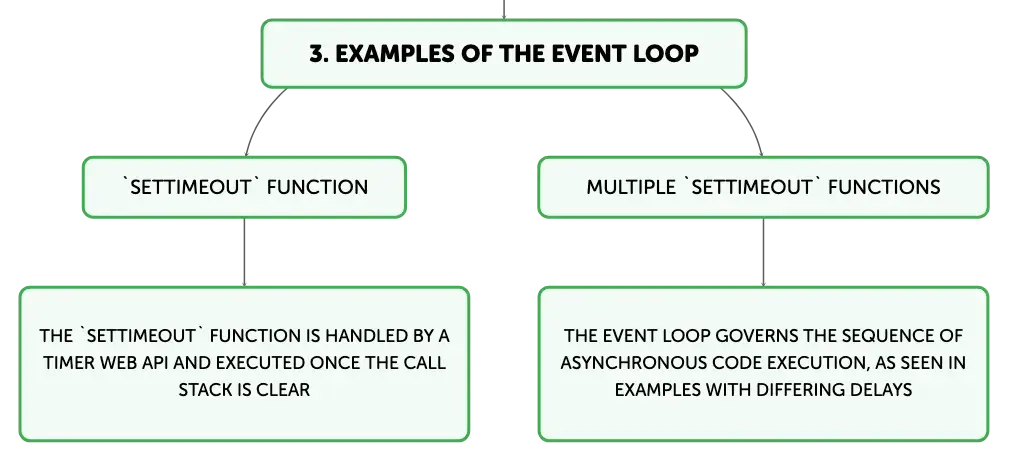

Examples of the Event Loop

`setTimeout` Function

The `setTimeout` function is handled by a Timer Web API and executed once the Call Stack is clear

Multiple `setTimeout` Functions

The Event Loop governs the sequence of asynchronous code execution, as seen in examples with differing delays

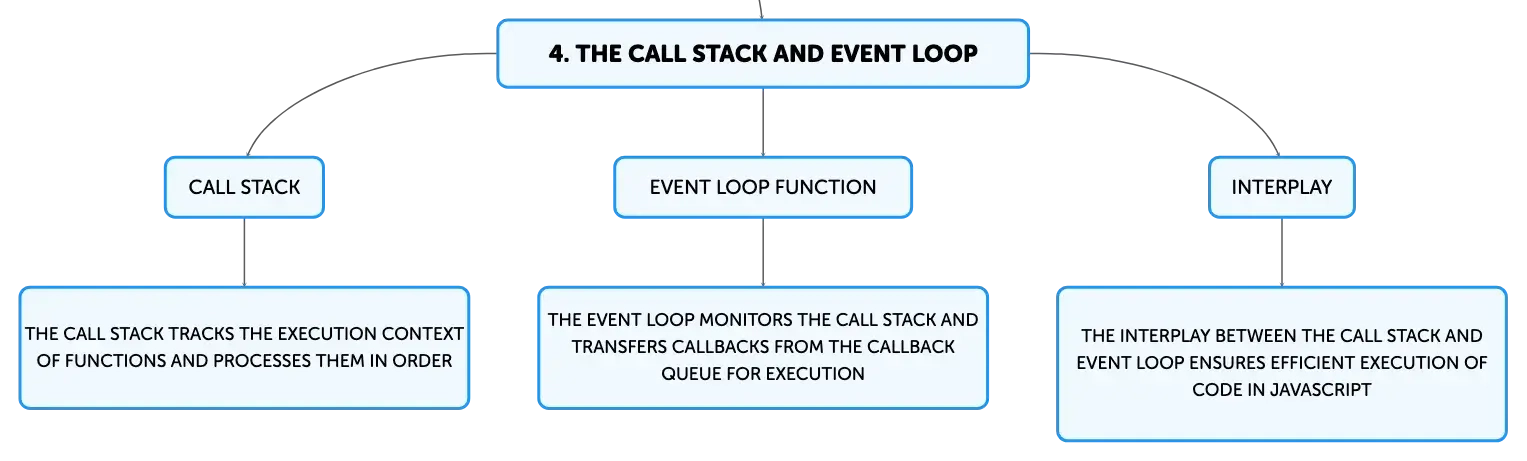

The Call Stack and Event Loop

Call Stack

The Call Stack tracks the execution context of functions and processes them in order

Event Loop Function

The Event Loop monitors the Call Stack and transfers callbacks from the Callback Queue for execution

Interplay

The interplay between the Call Stack and Event Loop ensures efficient execution of code in JavaScript

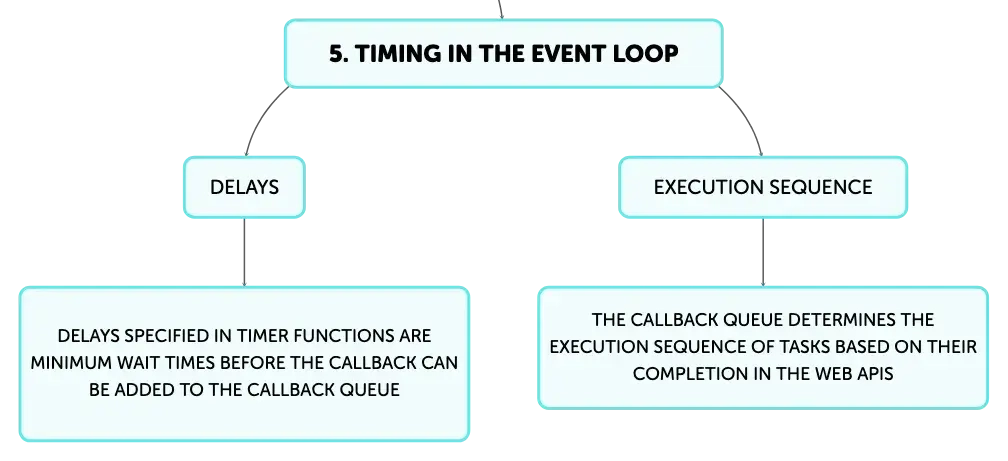

Timing in the Event Loop

Delays

Delays specified in timer functions are minimum wait times before the callback can be added to the Callback Queue

Execution Sequence

The Callback Queue determines the execution sequence of tasks based on their completion in the Web APIs

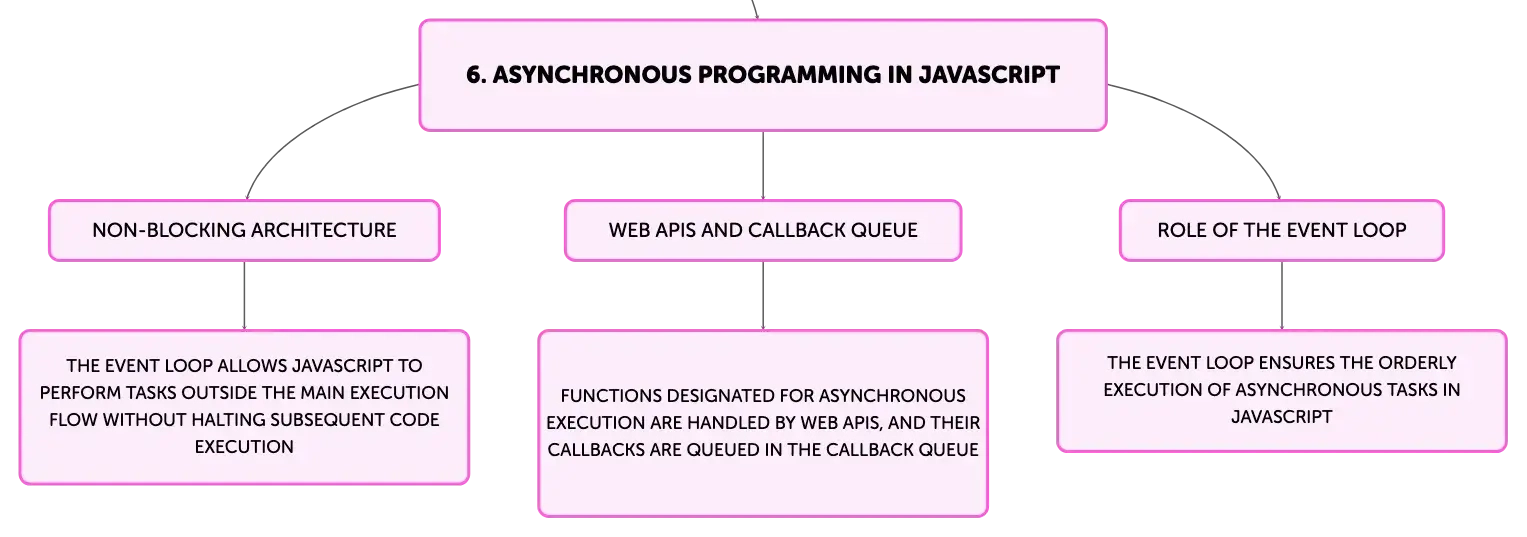

Asynchronous Programming in JavaScript

Non-Blocking Architecture

The Event Loop allows JavaScript to perform tasks outside the main execution flow without halting subsequent code execution

Web APIs and Callback Queue

Functions designated for asynchronous execution are handled by Web APIs, and their callbacks are queued in the Callback Queue

Role of the Event Loop

The Event Loop ensures the orderly execution of asynchronous tasks in JavaScript

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

The ______ ______ is crucial for asynchronous task management in JavaScript's single-threaded execution model.

JavaScript

Event Loop

Event Loop: Task Queue Role

Holds callbacks from async events, processed when execution stack is empty.

Event Loop: Execution Stack Management

Runs current tasks to completion, ensures stack is clear before next task.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Secondary storage devices on wooden surface, including silver external hard drive, colorful USB sticks and black SSD, with blurry books background.

Secondary Storage in Computer Systems

Modern data center with rows of black servers illuminated by colored LEDs, symmetrical corridors and soft blue light reflecting on the glossy white floor.

The Significance of Terabytes in Digital Storage

Hands carefully placing colored tiles on a dull gray surface, creating an incomplete mosaic in an uncluttered environment.

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

The Event Loop's Operational Phases

The JavaScript Event Loop operates through a four-stage cycle: it begins by creating a Stack Frame for the main script, processes the script's code line by line, manages asynchronous functions via Web APIs and the Callback Queue, and finally, invokes the Event Loop to check for an empty Stack Frame. Asynchronous operations, such as those initiated by `setTimeout`, are delegated to Web APIs. Upon completion, they are enqueued in the Callback Queue. The Event Loop then examines this queue and, if it contains functions, dequeues and executes them. This mechanism enables JavaScript to achieve concurrency through the collaboration of the Event Loop and the browser or Node.js APIs.

Demonstrating the Event Loop Through Examples

To illustrate the Event Loop in practice, consider two examples. In a straightforward case, a `setTimeout` function is used to delay a message output to the console. The function is handled by a Timer Web API, placed in the Callback Queue, and executed once the Call Stack is clear. A more intricate example involves two `setTimeout` functions with differing delays. The function with a zero-millisecond delay is executed after the one with a longer delay, due to the time it spends in the Web API and Callback Queue. These examples highlight how the Event Loop governs the sequence of asynchronous code execution.

Synchronization of the Call Stack and Event Loop

The JavaScript runtime environment is composed of the Call Stack and the Event Loop, which together enable the execution of code. The Call Stack is responsible for tracking the execution context of functions, processing them in order, and removing them once completed. In contrast, the Event Loop monitors the Call Stack and, when it is empty, transfers callbacks from the Callback Queue to the Call Stack. This interplay ensures that lengthy functions do not monopolize the Call Stack, allowing the Event Loop to maintain a consistent execution flow. Comprehending this dynamic is crucial for crafting efficient JavaScript code that circumvents issues such as Event Loop blocking.

Timing Considerations in the Event Loop

The timing within the Event Loop is a key aspect of JavaScript's asynchronous nature. Delays specified in timer functions like `setTimeout` are not precise execution intervals but minimum wait times before the callback can be added to the Callback Queue. The actual execution time may vary due to the processing of other tasks by the Call Stack, Event Loop, and Callback Queue. The execution sequence is determined by the Callback Queue, which orders operations based on their completion in the Web APIs. This knowledge is vital for developing non-blocking JavaScript code and for the efficient functioning of the Event Loop.

Asynchronous Programming via the Event Loop

The Event Loop is at the heart of JavaScript's ability to execute asynchronous programming, allowing the language to perform tasks outside the main execution flow without halting subsequent code execution. Functions designated for asynchronous execution are handled by Web APIs, and their callbacks are queued in the Callback Queue. The Event Loop ensures these callbacks are executed at an appropriate time when the Call Stack is available. This is exemplified by operations such as `setTimeout` and `fetch`, which showcase the Event Loop's pivotal role in managing asynchronous tasks and preserving JavaScript's non-blocking characteristic.
