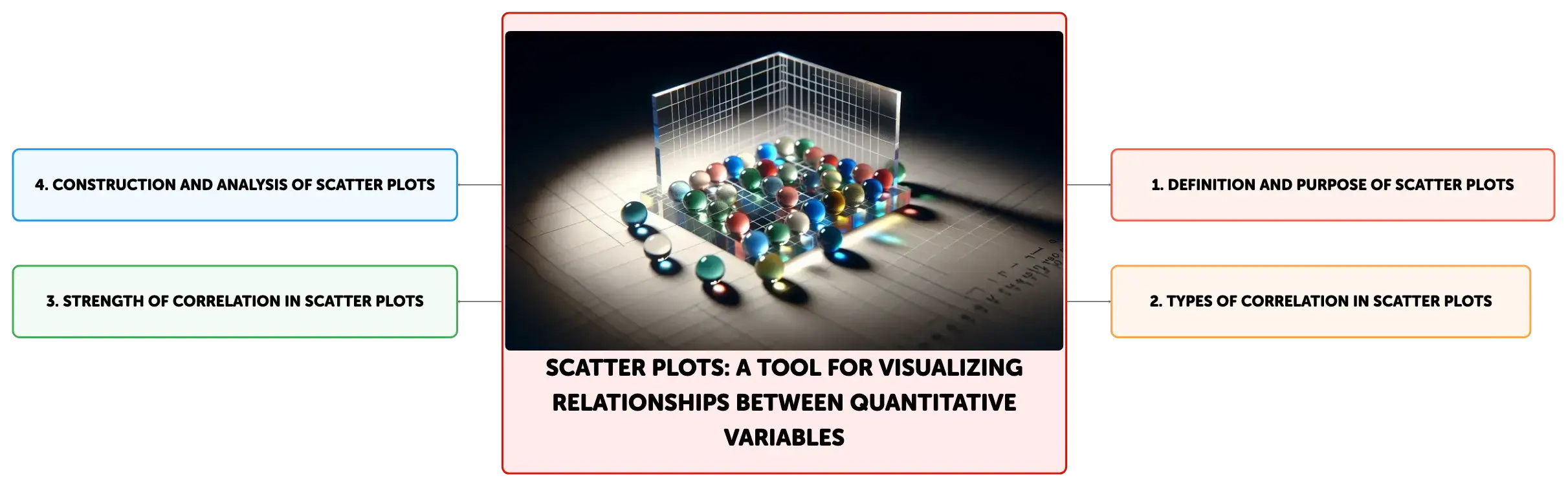

Scatter Plots: A Tool for Visualizing Relationships between Quantitative Variables
Scatter plots are a statistical tool used to visualize and analyze the relationship between two quantitative variables. They show how one variable, the independent, can affect another, the dependent, through the use of a graph where each point represents individual data. The correlation between these variables is quantified by the correlation coefficient 'r', and the strength and direction of this relationship can be assessed. Outliers and the regression line are also key elements in interpreting scatter plots.
See moreExploring the Fundamentals of Scatter Plots

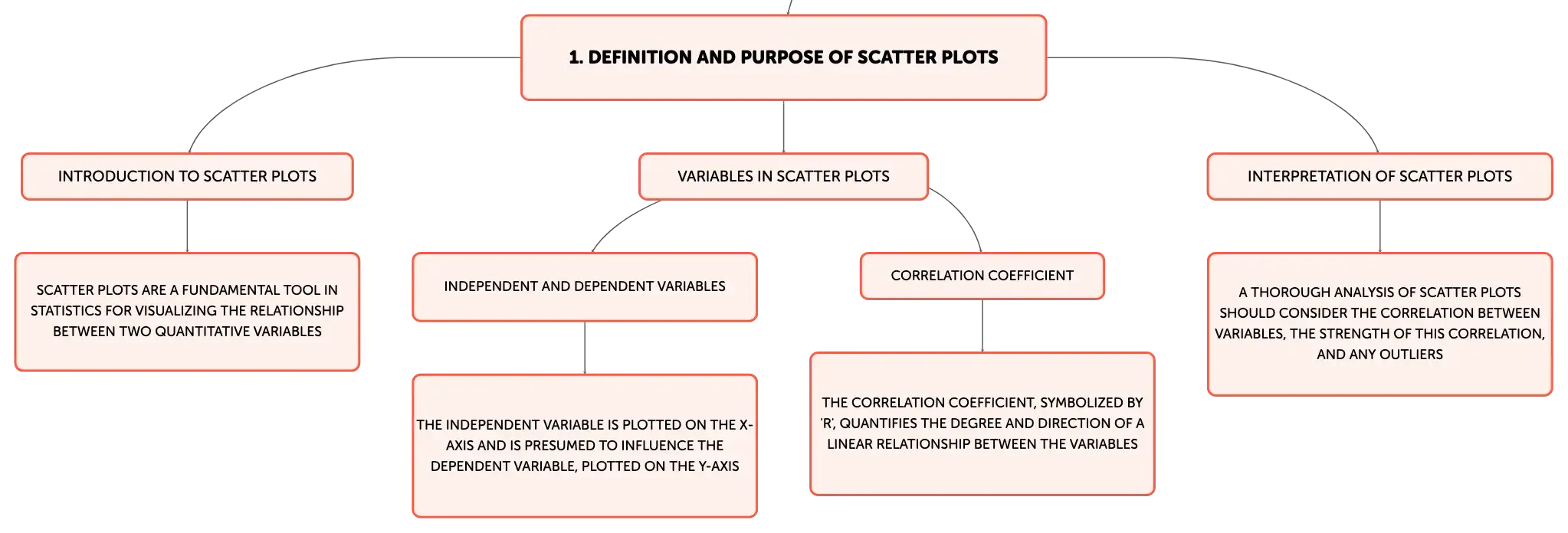

Scatter plots, also known as scatter graphs or scatter diagrams, serve as a fundamental tool in statistics for visualizing the relationship between two quantitative variables. Each point on a scatter plot represents an individual data point with coordinates determined by two variable values: one plotted along the x-axis (horizontal) and the other along the y-axis (vertical). The variable on the x-axis is typically the independent variable, which is presumed to influence or predict the variable on the y-axis, known as the dependent variable. For instance, a scatter plot might display the relationship between hours of study (independent variable) and test scores (dependent variable) for a group of students, with each point representing an individual student's data.Deciphering Correlation through Scatter Plots

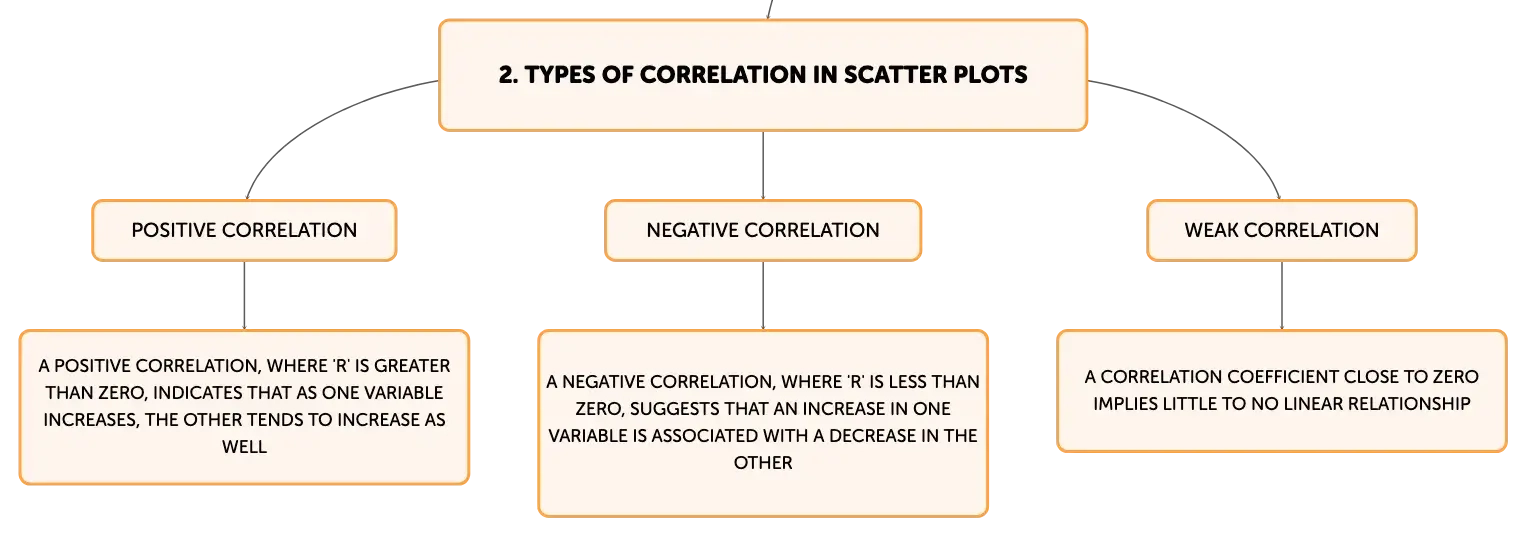

Correlation in scatter plots is a measure of how two variables are related. The correlation coefficient, symbolized by 'r', quantifies the degree and direction of a linear relationship between the variables. A positive correlation, where 'r' is greater than zero, indicates that as one variable increases, the other tends to increase as well. Conversely, a negative correlation, where 'r' is less than zero, suggests that an increase in one variable is associated with a decrease in the other. A correlation coefficient close to zero implies little to no linear relationship. The pattern of the data points on the scatter plot visually represents this correlation, with a clear upward or downward trend indicating a stronger correlation.Assessing Correlation Strength and Direction

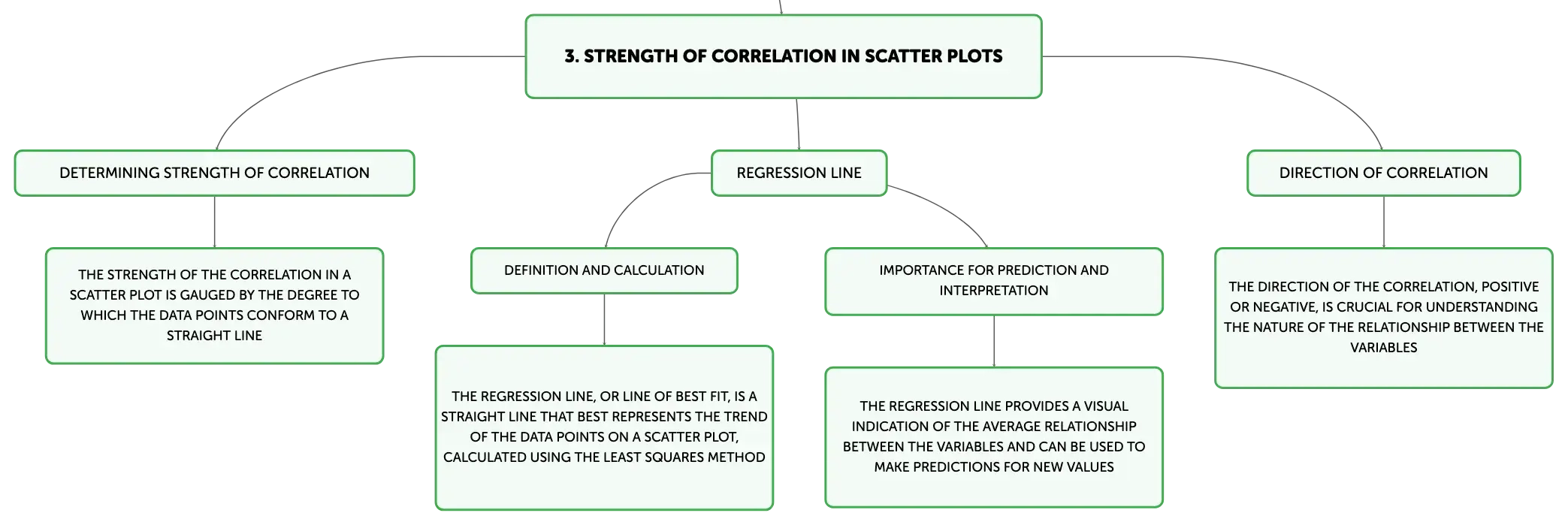

The strength of the correlation in a scatter plot is gauged by the degree to which the data points conform to a straight line. A strong correlation is characterized by data points that lie close to a straight line, either ascending or descending. The correlation coefficient reflects this strength, with values near +1 or -1 indicating strong positive or negative correlations, respectively. A weak correlation is suggested by a more dispersed arrangement of points and a correlation coefficient near zero. The direction of the correlation, positive or negative, is crucial for understanding the nature of the relationship between the variables.The Significance of the Regression Line
The regression line, or line of best fit, is a straight line that best represents the trend of the data points on a scatter plot. It is calculated using the least squares method to minimize the sum of the squares of the vertical distances of the points from the line. This line is instrumental for prediction and interpretation, as it provides a visual indication of the average relationship between the variables. By extending the regression line, one can make predictions about the dependent variable for new values of the independent variable.Analyzing Scatter Plots: Correlation, Strength, and Outliers
A thorough analysis of scatter plots should consider the correlation between variables, the strength of this correlation, and any outliers. Outliers are individual data points that fall far from the general trend of the data and can significantly influence the correlation coefficient and the regression line. Identifying outliers is essential as they may represent special cases, errors in data collection, or variations that warrant further investigation. A comprehensive description of a scatter plot includes these considerations to ensure an accurate interpretation of the data.Case Study: The Link Between Study Time and Academic Performance
An illustrative case of a scatter plot might examine the correlation between the number of hours students dedicate to studying and their academic performance. Such a plot may reveal a positive correlation, indicating that students who spend more time studying tend to achieve higher grades. A tight clustering of points would suggest a strong correlation, signifying a consistent relationship between study time and grades. However, outliers, such as students who study a lot but do not perform well, must be considered, as they could point to other factors influencing academic success, such as the quality of study methods or inherent aptitude.Constructing a Scatter Plot Step by Step

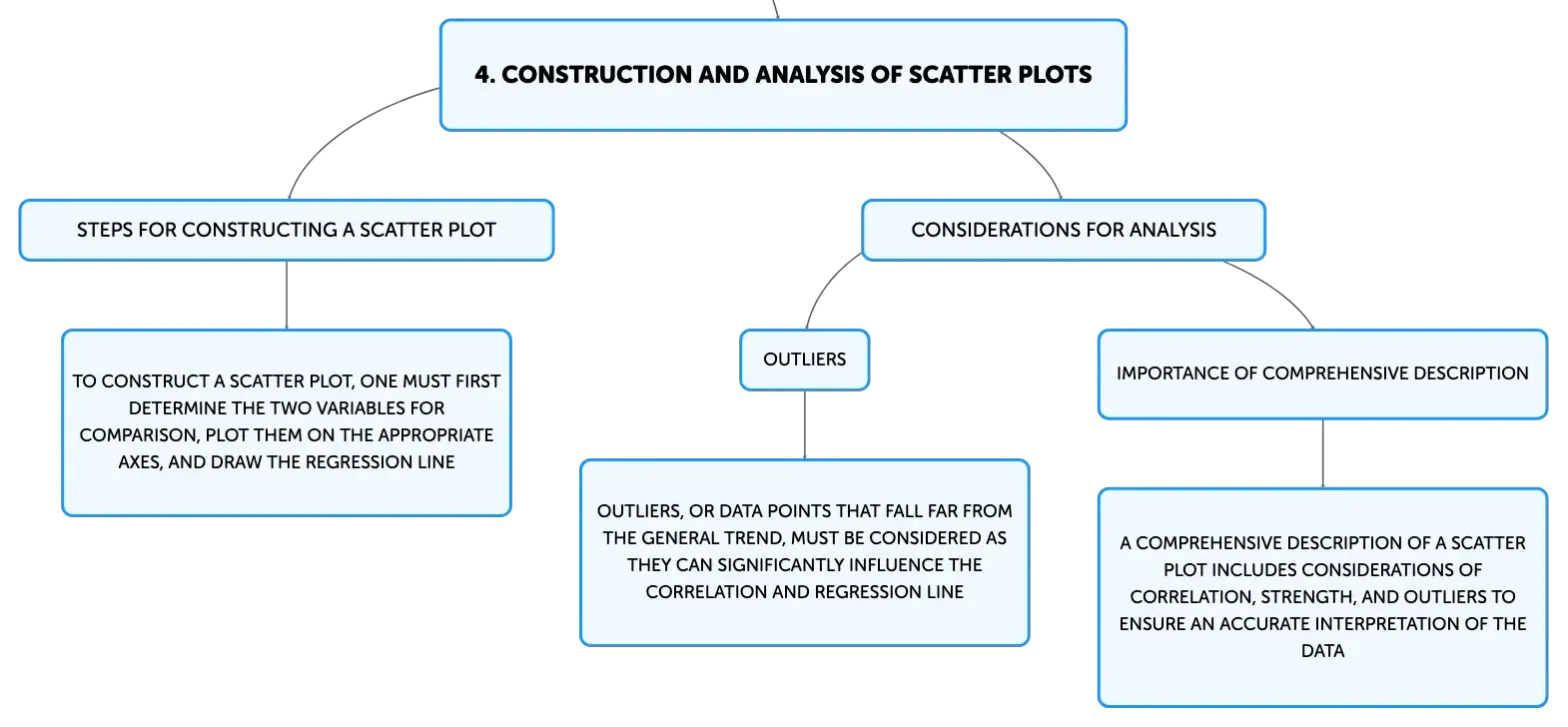

To construct a scatter plot, one must first determine the two variables for comparison. After collecting and organizing the data, plot the independent variable on the x-axis and the dependent variable on the y-axis. Each pair of variable values corresponds to a point on the plot. Once all data points are plotted, the regression line can be drawn to visually represent the correlation. This systematic process ensures that the scatter plot accurately portrays the relationship between the variables, making it a valuable analytical tool.Concluding Insights on Scatter Plots
Scatter plots are an indispensable statistical tool for depicting and analyzing the relationships between two quantitative variables. They can reveal positive, negative, or no correlation, with the proximity of data points to each other and to the regression line indicating the strength of the correlation. Mastery of scatter plot interpretation and construction is essential for students, researchers, and professionals in various disciplines, as it facilitates the discovery of patterns and trends within data sets, guiding data-driven decision-making.Want to create maps from your material?
