Exploring the fundamental properties of materials, this overview delves into how thermal conductivity, electrical conductivity, and mechanical strength are determined by atomic interactions. It highlights the importance of chemical bonding in defining properties such as ductility, toughness, and hardness. The concepts of elasticity, quantified by Young's modulus, plastic deformation, and the role of density in material applications are also examined.

Summary

Outline

Material Properties and Their Bulk Manifestations

Materials are characterized by a range of properties, such as thermal conductivity, electrical conductivity, and mechanical strength, which are determined by the interactions of their constituent atoms and molecules. When these atoms and molecules form a solid, they give rise to 'bulk properties'—the collective mechanical, thermal, and electrical characteristics that can be observed at the macroscopic scale. For instance, the elasticity of a rubber band is a result of its molecular structure and the interactions between its polymer chains, while the hardness of a diamond arises from the strong covalent bonds between carbon atoms in a rigid lattice structure.

Assorted geometric shapes on reflective surface, including a polished steel cube, green-tinted glass sphere, wooden cylinder, white powder, plastic prism, and floating pumice stone.

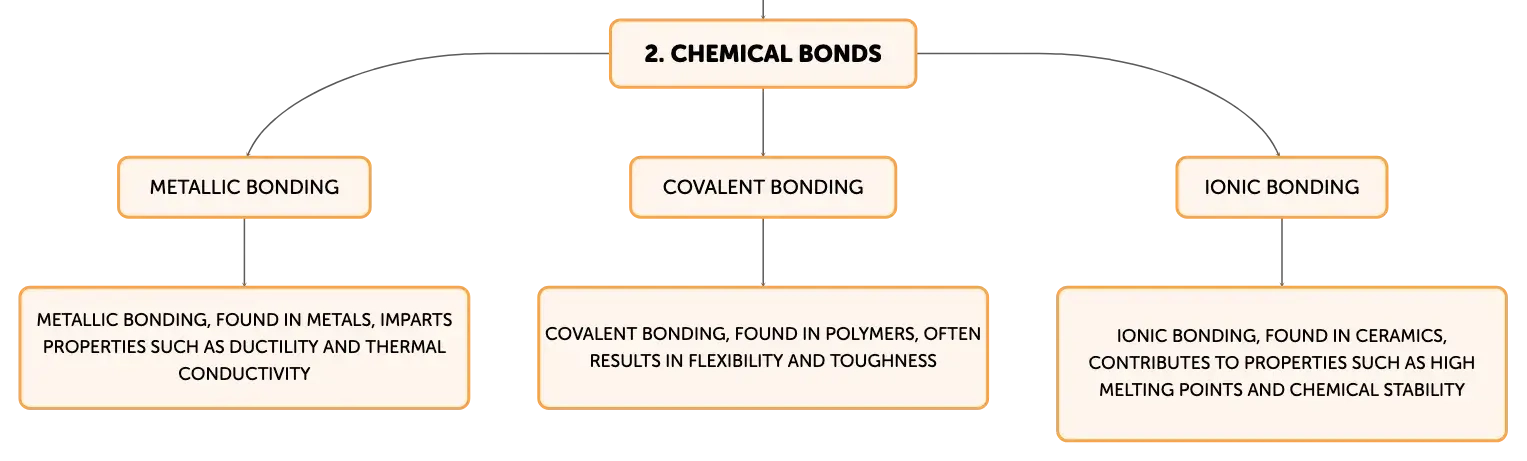

Chemical Bonding and Material Properties

The type and strength of chemical bonds in a material are fundamental to its properties. Metals, with their sea of delocalized electrons, exhibit metallic bonding, which imparts properties such as ductility and thermal conductivity. Polymers, consisting of long chains of molecules, are held together by covalent bonds and often display significant flexibility and toughness. Ceramics, with their ionic bonds, tend to be brittle but have high melting points and chemical stability. The nature of these bonds affects not only mechanical properties but also other characteristics like thermal expansion, electrical conductivity, and optical properties.

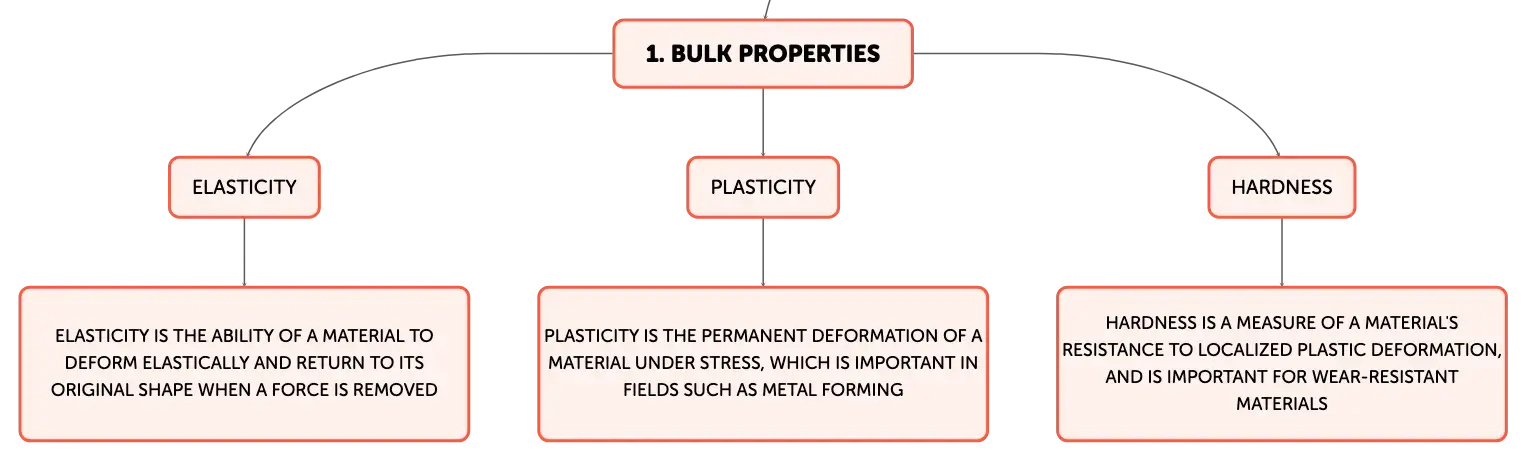

Elasticity and Its Quantification

Elasticity is the ability of a material to deform elastically—that is, non-permanently—when a force is applied and to return to its original shape when that force is removed. This property is essential for materials that must absorb energy without failing, such as in shock absorbers and resilient components. The degree of elasticity is quantified by Young's modulus, a measure of stiffness that relates stress (force per unit area) to strain (proportional deformation) in the linear elastic region of the material's response. Young's modulus is expressed in pascals (Pa) and is a critical parameter in engineering design.

Plastic Deformation and the Plastic Zone

Beyond the elastic limit, materials may undergo plastic deformation, where they experience permanent shape changes under stress. This plastic zone is characterized by yielding, where the material's response to stress becomes non-linear and irreversible. Understanding the onset of plastic deformation is crucial for material selection and design, ensuring that components operate within their elastic range to prevent failure or permanent damage. The study of plasticity is particularly important in fields such as metal forming, where materials are shaped through plastic deformation processes.

Hardness: Measuring Resistance to Deformation

Hardness is a measure of a material's resistance to localized plastic deformation, typically by indentation or scratching. It is an important property for materials that must resist wear or surface damage, such as cutting tools and wear-resistant coatings. Hardness is often inversely related to elasticity; materials that are very hard, such as diamonds, are less likely to deform elastically. Hardness tests, such as the Mohs scale for minerals or the Vickers and Brinell tests for metals, provide a quantitative measure of this property.

The Influence of Density on Material Properties

Density, the mass per unit volume of a material, is influenced by both the atomic mass of the elements present and the atomic packing efficiency in the material's structure. Denser materials, such as metals, often have atoms that are more closely packed, resulting in higher mass for a given volume. Conversely, materials with open or porous structures, such as foams, have lower densities. Density plays a critical role in applications where weight is a factor, such as in aerospace and automotive industries, and affects properties like strength-to-weight ratio and buoyancy.

Comprehensive Understanding of Bulk Properties

The bulk properties of materials, including elasticity, tensile strength, hardness, and density, are integral to predicting how materials will behave under various conditions. The elastic limit defines the boundary between reversible and permanent deformation, while Young's modulus quantifies a material's stiffness. These properties, along with others such as thermal expansion and electrical conductivity, are foundational in materials science and engineering. The appropriate selection and application of materials depend on a thorough understanding of these bulk properties to ensure performance, safety, and durability in their intended uses.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

The collective mechanical, thermal, and electrical characteristics observed at the macroscopic scale are known as ______.

bulk properties

01

The ______ of a rubber band is due to its molecular structure and the interactions between its ______ chains.

elasticity

polymer

02

Metallic bonding properties

Metallic bonds create a sea of delocalized electrons, leading to ductility and thermal conductivity.
