Electric Potential of Point Charges Explained

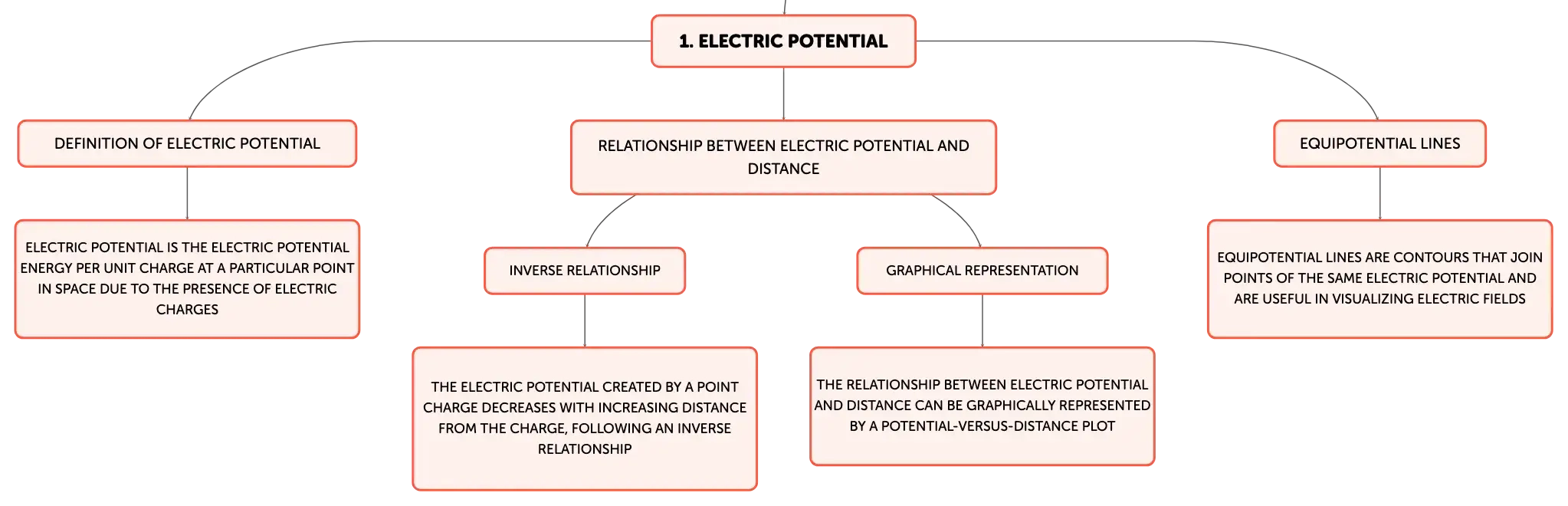

Electric potential is a key concept in electrostatics, representing the electric potential energy per unit charge at a particular point in space due to the presence of electric charges. For a point charge, which is an idealized charge located at a single point in space, the electric potential $V$ is defined as $V=\frac{kq}{r}$, where $k$ is Coulomb's constant ($8.99 \times 10^9\, \mathrm{Nm^2/C^2}$), $q$ is the charge, and $r$ is the radial distance from the charge to the point of interest. The unit of electric potential is the volt ($V$), which is equivalent to one joule per coulomb ($J/C$).

Van de Graaff generator with a metallic sphere on an insulated column, surrounded by suspended colored spheres demonstrating electrostatic effects in a lab.

Electric Potential's Inverse Relationship with Distance

The electric potential created by a point charge diminishes with increasing distance from the charge, following an inverse relationship. The equation $V=\frac{kq}{r}$ encapsulates this relationship, with $r$ representing the distance from the charge to the point where the potential is being measured. As the distance $r$ increases, the electric potential $V$ decreases, illustrating that the influence of a point charge weakens with distance. This relationship is graphically represented by a potential-versus-distance plot, where the potential decreases as one moves away from the charge, and the curve is inverted for a negative charge.

Understanding Equipotential Lines and Electric Field Lines

Equipotential lines are contours that join points of the same electric potential and are particularly useful in visualizing electric fields. Around a point charge, these lines are concentric spheres. A charge moving along an equipotential line does not experience a change in potential energy, and thus no work is required. Electric field lines, which indicate the direction of the electric force, radiate outward (or inward for negative charges) from a point charge and are perpendicular to the equipotential surfaces. This perpendicularity ensures that the electric field has no component along an equipotential surface, confirming that the potential remains constant along these lines.

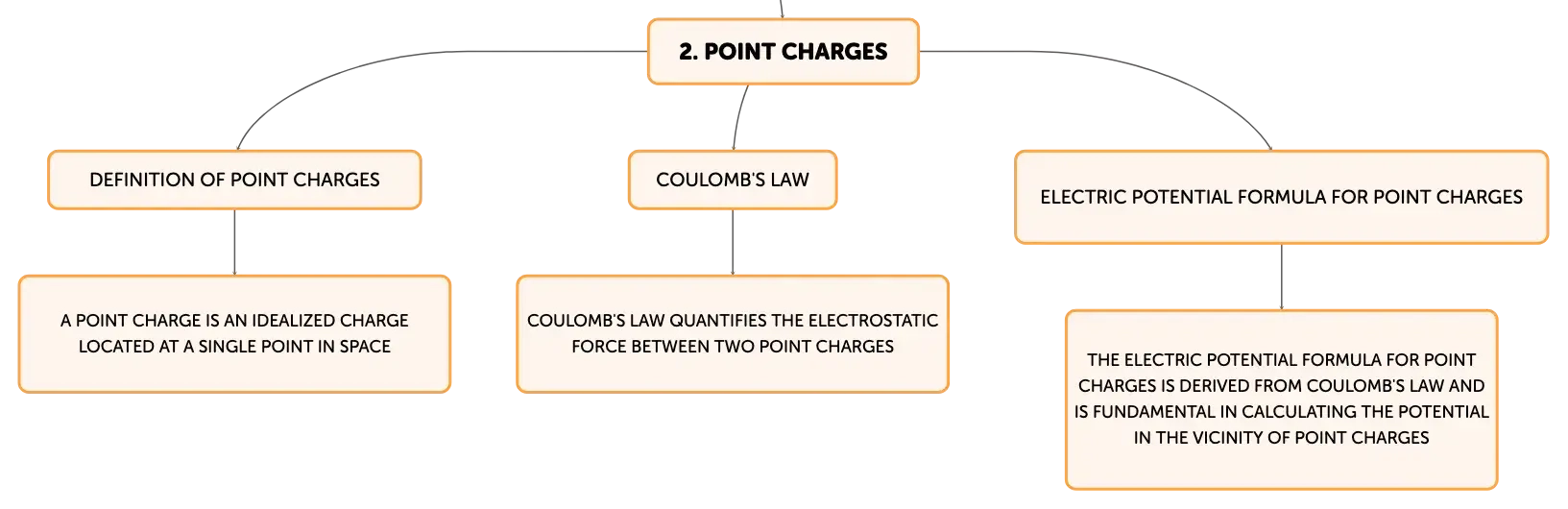

Derivation of the Electric Potential Formula for Point Charges

The electric potential formula for point charges is derived from Coulomb's law, which quantifies the electrostatic force between two point charges. Considering a charge $q$ and a test charge $Q$ separated by a distance $r$, the work $W$ required to bring $Q$ from infinity to a distance $r$ from $q$ is used to define the electric potential energy. The electric potential $V$ at distance $r$ from charge $q$ is then the potential energy per unit charge $Q$, yielding the formula $V=\frac{kq}{r}$. This formula is fundamental in calculating the potential in the vicinity of point charges.

Calculating Electric Potential and Field Strength

To calculate the electric potential at a point due to a point charge, one applies the formula $V=\frac{kq}{r}$, substituting the known values for the charge $q$ and the distance $r$. The magnitude of the electric field $E$ can also be determined from the electric potential by considering the potential difference ($\Delta V$) between two points and the distance ($\Delta r$) separating them, using the relationship $E=\left|\frac{\Delta V}{\Delta r}\right|$. This equation allows for the calculation of the electric field's strength based on the spatial variation of the potential.

Key Concepts in Electric Potential of Point Charges

In conclusion, the electric potential due to a point charge is a measure of the potential energy per unit charge at a given point in an electric field and is inversely proportional to the distance from the charge. Equipotential surfaces facilitate the visualization of areas with constant potential and are always orthogonal to electric field lines. Mastery of these concepts is crucial for analyzing electric fields and the forces exerted on charges. The ability to compute electric potential and field strength is instrumental in fields ranging from atomic physics to electrical engineering.
